Description
Take your deep cycle battery experience to the next level by investing into Renogy's LFP Battery, combining superior lithium-iron phosphate technology to provide a better solution to solar energy storage. Weighing at just a bit over 14.8 lbs, Renogy's LFP battery surpasses expectation by being lighter, compact, and more powerful than its lead-acid battery counterparts of 50Ah. Designed to replace conventional solar battery storage units such as sealed Sealed, AGM, or Gel batteries, utilize your LFP battery in power-sport applications, off-grid applications, solar energy storage, and more! Take a step into the right direction by pairing your solar system with one of the safest and highest-cycle battery chemistry yet.
The Renogy Adventurer Li and Rover charge controller are fully compatible with this battery.
Note:
Please be aware that if the batteries' Battery Management System (BMS) is activated and the battery voltage shows 0V, you must use a compatible Li charger to reactivate our Li batteries.
Make sure to tightly screw the battery terminals in, having loose battery terminals will cause the terminals to build up heat resulting in damage to the battery.
DO NOT string this battery in series. It is made ONLY for parallel connections using identical batteries.
If you have any questions regarding this product, please contact supporteu@renogy.com
Key Features
- Lightweight
- BMS protection
- Low Self-discharge
- Triplex Sealed Construction
- Patent Designed Construction
Minimum 12V Lithium Battery Bank Sizing
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.
| Battery Bank Qty/ Inverter Size | 50Ah | 100Ah | 170Ah |
|---|---|---|---|
| 1000W | 2 | 1 | 1 |
| 2000W | 4 | 2 | 2 |
| 3000W | 6 | 3 | 2 |
Package Includes
|

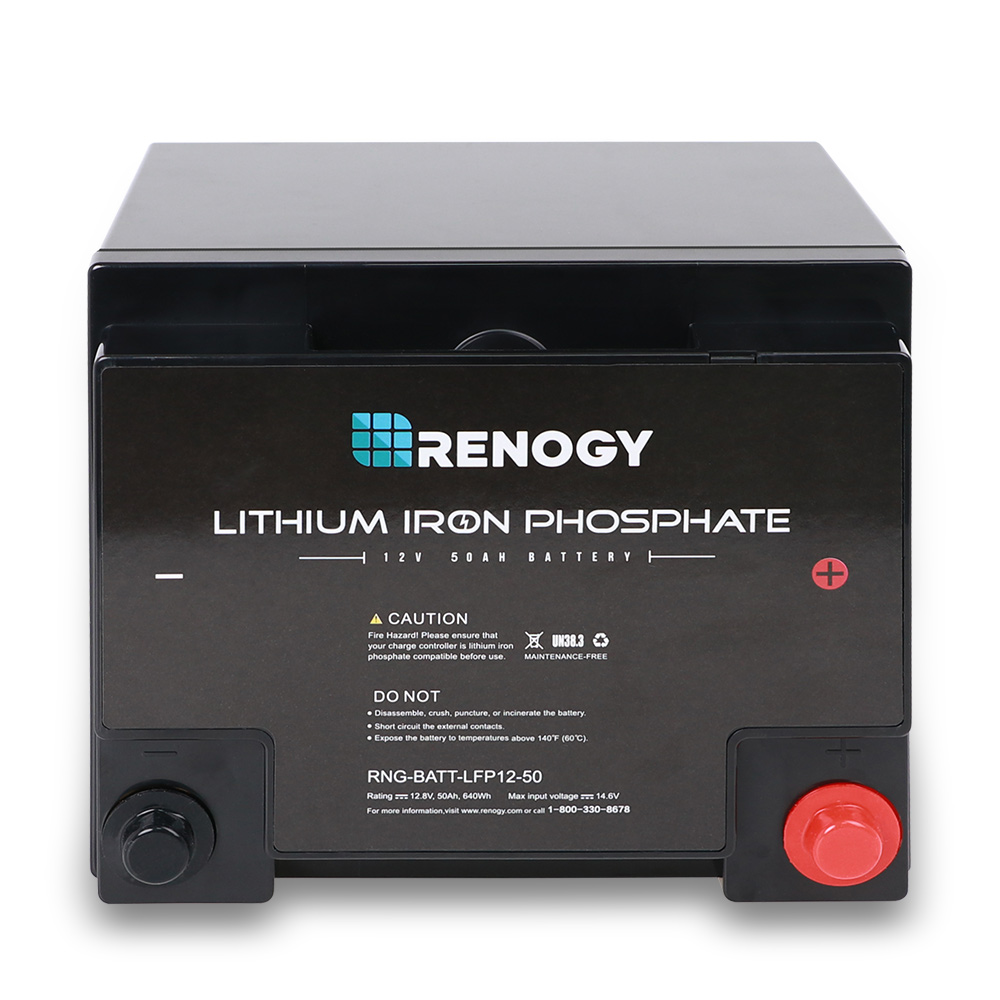

Renogy Lithium-Iron Phosphate Battery 12 Volt 50Ah
1 x
|
| Electric Characteristics | |
|---|---|
| Nominal Voltage: 12.8V | Energy Density: 114.4Wh/L |
| Rated Capacity (0.2C): 50Ah | Internal Resistance: ≤50mΩ |
| Minimal Rated Capacity (0.2C): 47.5Ah | Cycle Life (0.2C, 20±5°C): 80% DOD 2000 cycles |
| Energy: 640Wh | Specific Energy: 95.5Wh/kg |
| Charging Parameters | Discharge Parameters |
|---|---|
| Charge Voltage: 14.4 ± 0.2V | Maximum Continuous Discharge Current: 50A |
| Maximum Charge Current: 50A | Discharge Cut-off Voltage: ≥10V |
| Charge Cut-off Voltage: 14.6V |
| Temperature Parameters Operation Temperature Range | Temperature Parameters Storage Temperature Range |
|---|---|
| Charge:32~113¨H / 0¡«45¡æ | Less Than 1 Year:32~77¨H / 0~25¡æ |
| Discharge:-4~140¨H / -20¡«60¡æ | Less Than 3 Months:23~95¨H / -5~35¡æ |
| Recommended:73.4 ± 9¨H / 23 ± 5¡æ |
| Mechanical Properties | |
|---|---|
| Length: 197mm / 7.8 inch | Weight: 6.7 kg / 14.7 lbs. |
| Width: 166mm / 6.5 inch | Housing Material: ABS+PC |
| Height: 171mm / 6.7 inch | Terminal Model: M8x1.25x12mm |
| Cell Model: IFR26650-3.4Ah | Assembly Method: 4S15P |
Warranty Information
| Accessories | 5-year prorated warranty |
 |
 |
 |
 |
