RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT
Introducing the RENOGY IP67 50A DC-DC Dual Input Battery Charger with MPPT, a slim, waterproof dual charging solution perfect for confined spaces. Equipped with intelligent boost and buck logic, it seamlessly accommodates 12V/24V-12V/24V voltage systems, elevating DIY possibilities to the uttermost. Renogy's exclusive intelligent charging logic prioritizes solar energy, efficiently charging your house battery while easing the load on generators. This innovative product combines vehicle and solar power, automatically adjusting modes based on sunlight intensity. Maximizing energy utilization, it boasts a robust 50A current and an impressive 720W output power. Renogy IP67 Dual Input Battery Charger seamlessly switches to solar charging in ample sunlight and smoothly transitions to generator charging during low light, ensuring uninterrupted device power. Embrace an eco-conscious charging experience without compromising efficiency or space, redefining sustainable energy utilization.

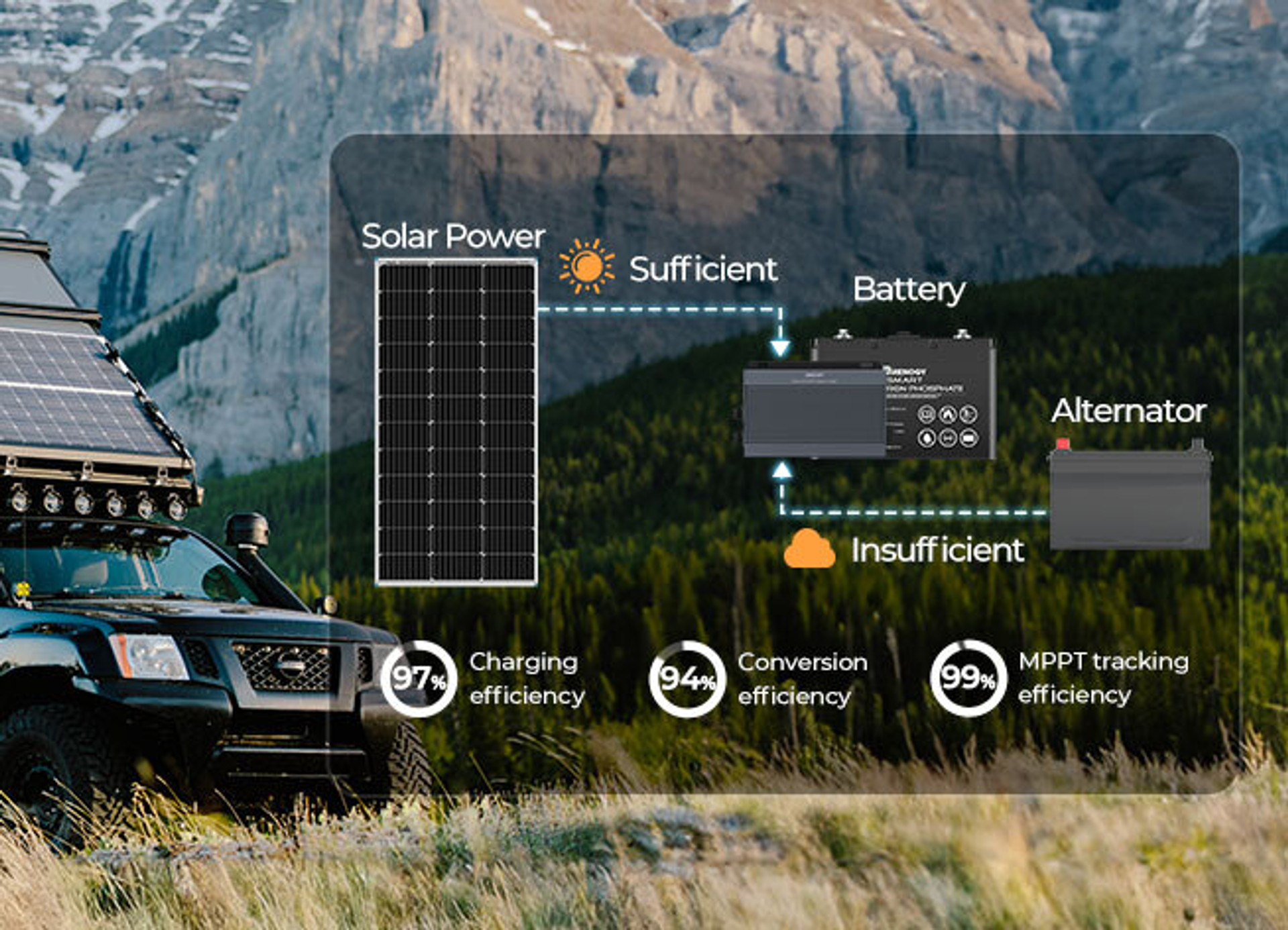

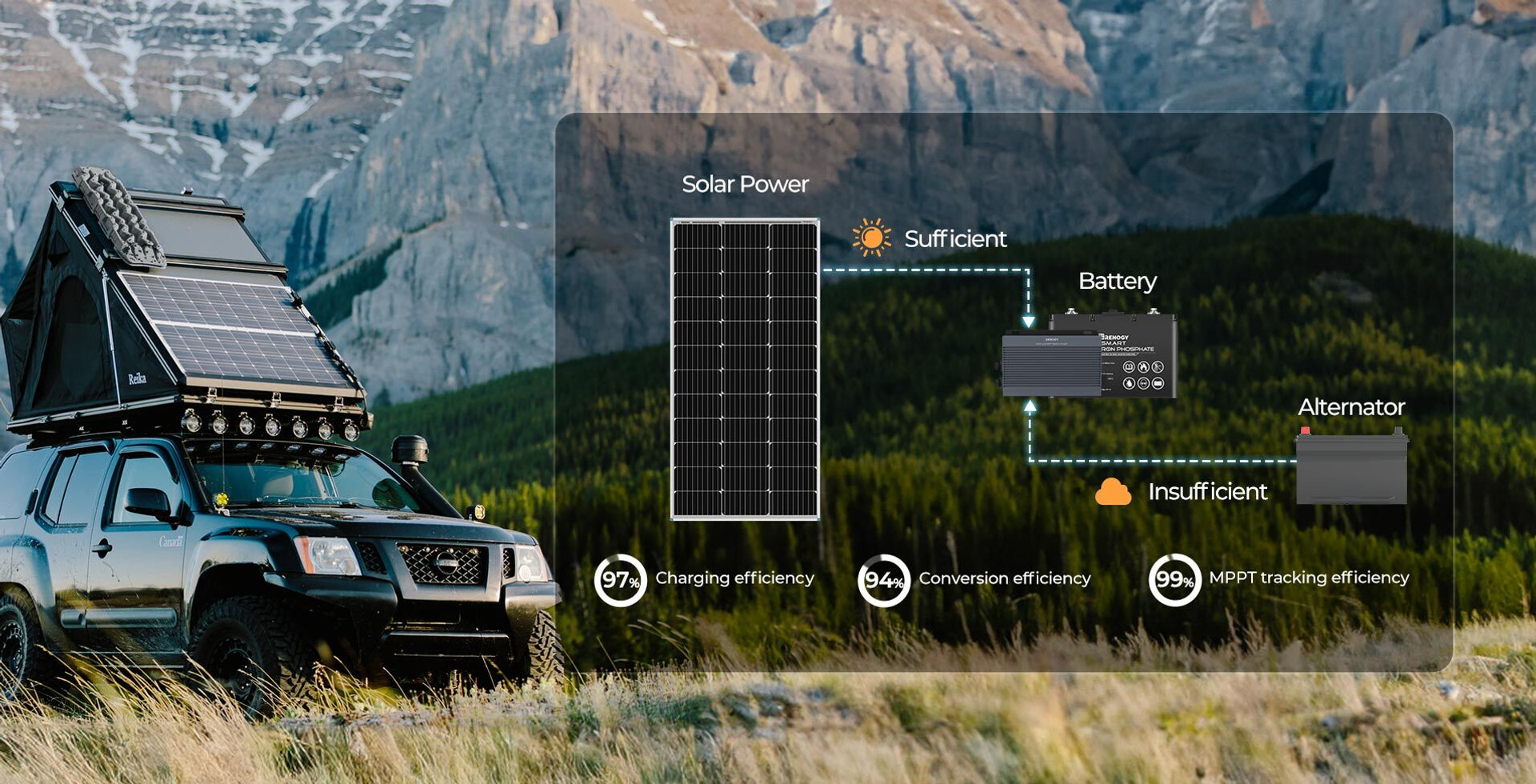

Intelligent Dual Charging Mode
Intelligently combining vehicle and solar power, with automatic mode adjustments based on sunlight intensity.
Versatile Voltage Adaptability
Light and Compact
Compact Design for Space Optimization
Mountable in the engine compartment and side storeroom, allowing for a more spacious and comfortable living space, facilitating easier movement.
Optimized Charging Efficiency
Enhanced Charging Safety
Optimized Charging Efficiency
720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs.
Enhanced Charging Safety
Comprehensive electric protections safeguard the charging process.

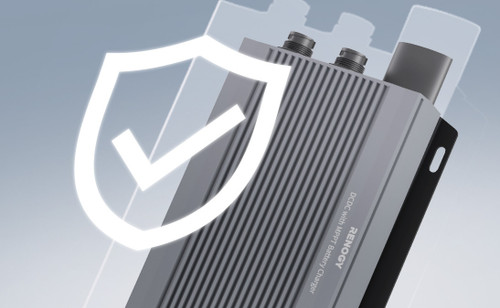

Robust and Resilient Design
Drop-Resistant
Sheet metal casing gives the charger a robust shell that withstands drops and impacts.

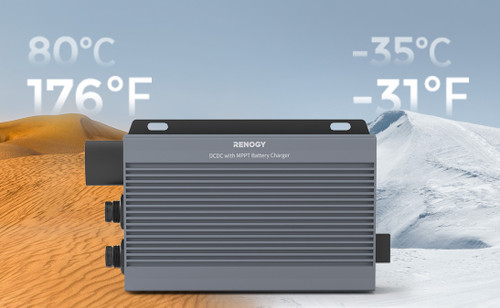

Temperature-Resistant
Withstand extreme temperatures from -35℃ to 80℃ and maintain full-load operation even at 55℃.
Water-Resistant
The all-around glue filling design provides complete protection for the charger and ensures a high level of waterproofing.
Ultimate Reliability with Impeccable Efficiency

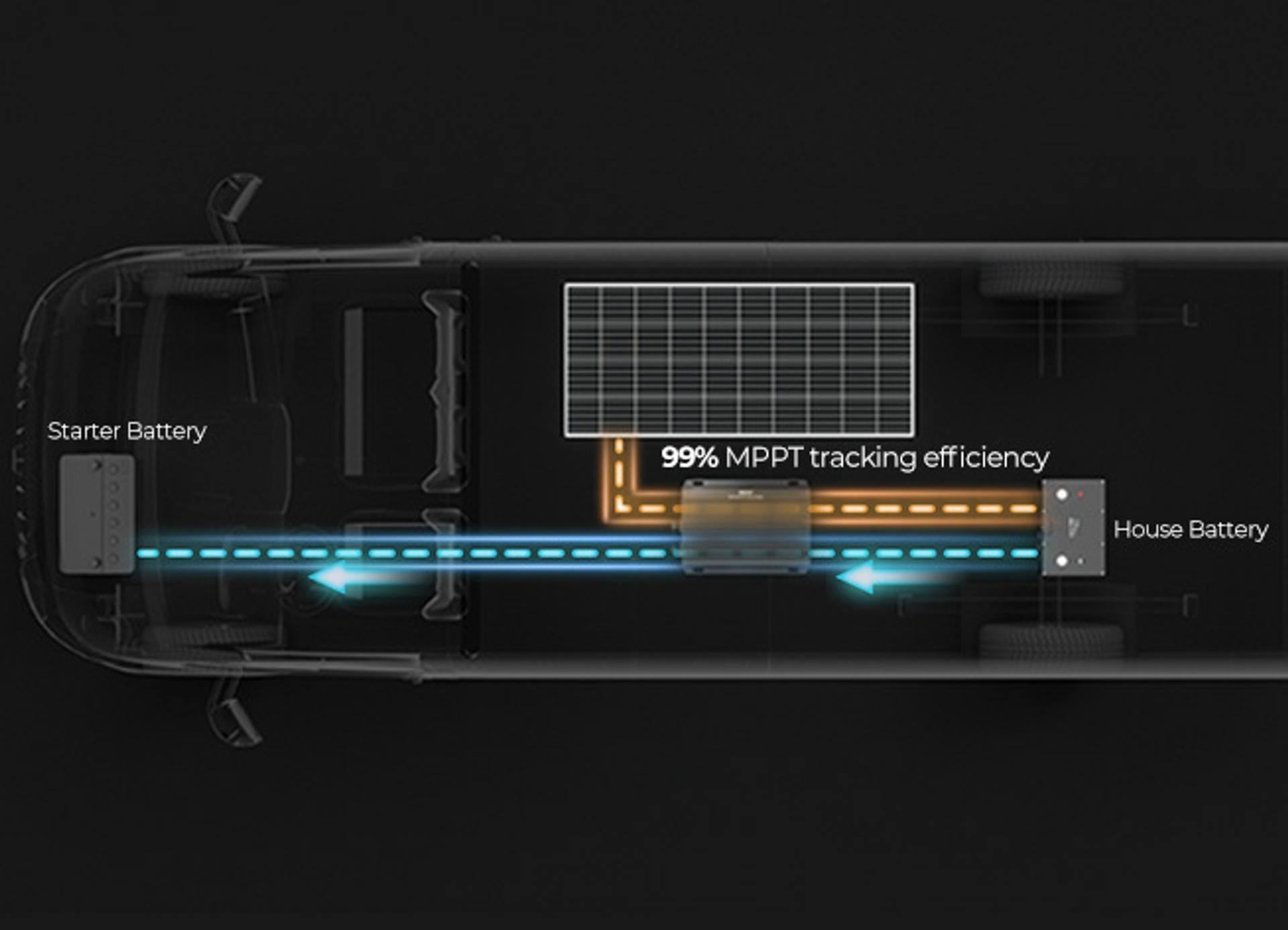

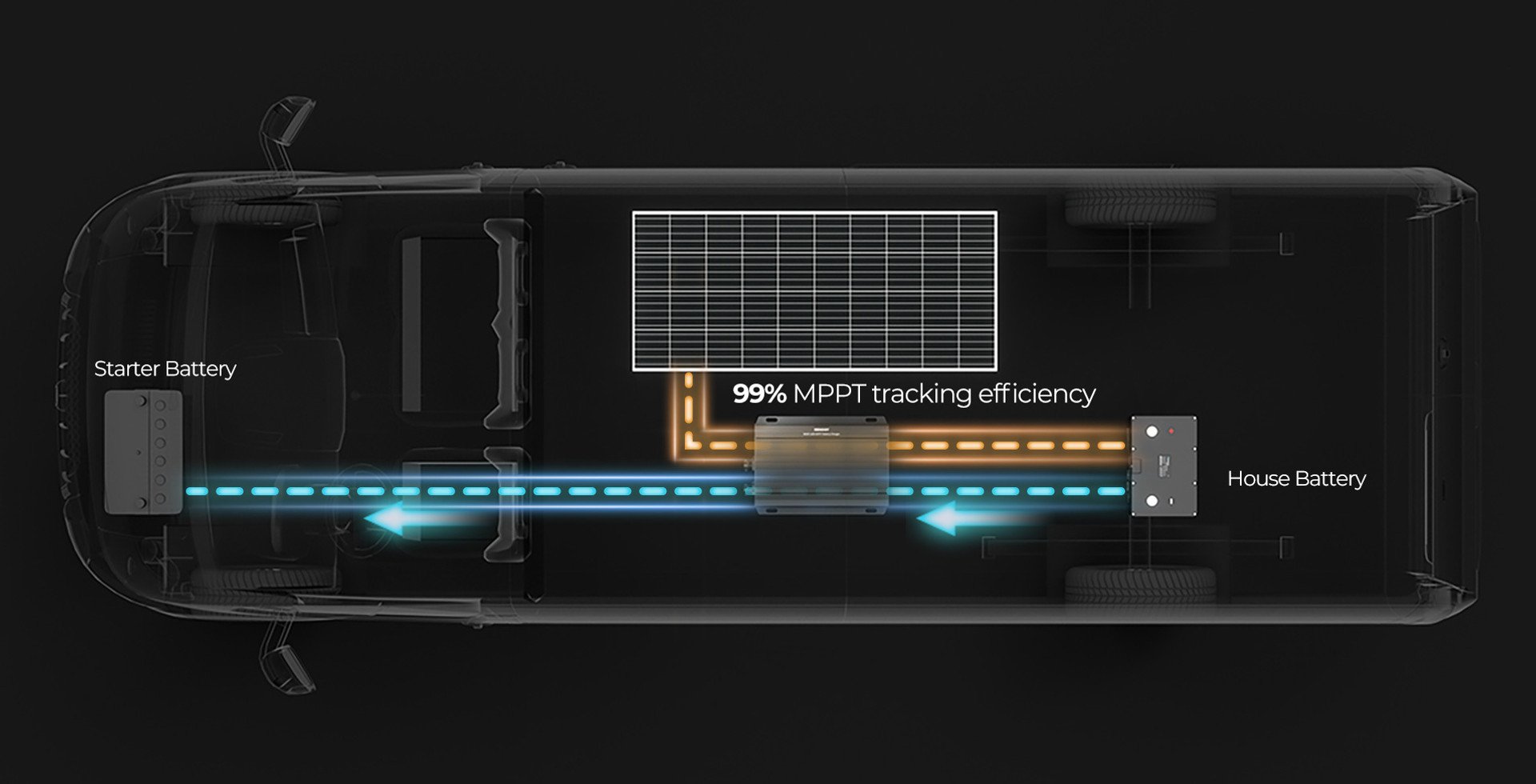

The battery charger efficiently meets the needs of the house battery while providing a trickle charge to the starter battery, ensuring that the vehicle can always start reliably.
Compatible with a Wider Range of Voltage
Expanding solar system DIY options for greater versatility.
Basic Information
System Voltage
12V/24V - 12V/24V
Solar Input Voltage
50 VDC
Output Voltage
9-32 VDC
Alternator Input
9-32 VDC
Maximum Output Current Rating
12V@50A ; 24V@25A
Output Power
720W
Battery Types
AGM/SLD , GEL ,FLD ,LI,USER
Input Fuse Rating
75A-100A
Output Fuse Rating
75A-100A
MPPT Tracking Efficiency
99%
MPPT Charging Efficiency
97%
Conversion Efficiency
94%
Temperature Compensation
-3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)
Idle Power Consumption
<100mA
GENERAL DATA
Model
RBC2125DS
Terminal Range
8AWG-4AWG
Communication Protocol: Modbus
RV-C
Operating Temperature Range
-31℉ to 176℉/-35℃ to 80℃
Storage Temperature Range
-40℉ to 176℉/-40℃ to 80℃
Humidity
0%-95%, No Condensation
Maximum Operating Altitude
3500m
Enclosure Rating
IP67
Dimensions
7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
Weight
4.10 lb / 1.86 kg
Certification
UL1741;CE;RoHS;FCC Part 15 class B
Protection
Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
WARRANTY INFORMATION
Material and workmanship warranty
3-year material warranty
Charge Controllers
DCCS Dual Input
Battery Chargers
DCCS Dual Input
Frequently Asked Questions
1. What is the significance of the system voltage value of 12/24V-12/24V for IP67 chargers?
When the IP67 charger is connected to the solar panel, it can use the 12V solar panel to boost the voltage to charge the 24V Housing battery; it can use the 12V solar panel to buck the voltage to charge the 12V Housing battery. When the IP67 charger is connected to the starter battery, the 12V starter battery can be utilized to boost the voltage to charge the 24V Housing battery; the 12V starter battery can be utilized to charge the 12V Housing battery.
2. What are the solar input requirements for this charger?
(1) The charger is suitable for up to 720W solar panel. (2) The charger is compatible with up to 50V solar panel input. (3) The charger is compatible with both rigid and flexible modules.
3. What type of alternator is this charger compatible with?
The charger is compatible with smart alternators and traditional alternators, the working voltage of different alternators will be different. The product itself comes with Bluetooth communication function, you can connect to DC Home or Core via Bluetooth, and then adjust the appropriate input voltage value of the charger according to the characteristics of the working voltage of different types of alternators.
4. How do I set the battery type on this charger?
Way 1: The charger itself has a button to set the battery type, the button is next to the "Type" indicator, press it briefly to select a different battery type. Way 2: The charger itself comes with Bluetooth communication, you can connect our Core, DC Home to change the battery type.
5. How to view data without a display?
The charger itself comes with Bluetooth communication, you can connect to our Core, DC Home to view the charger's data.
