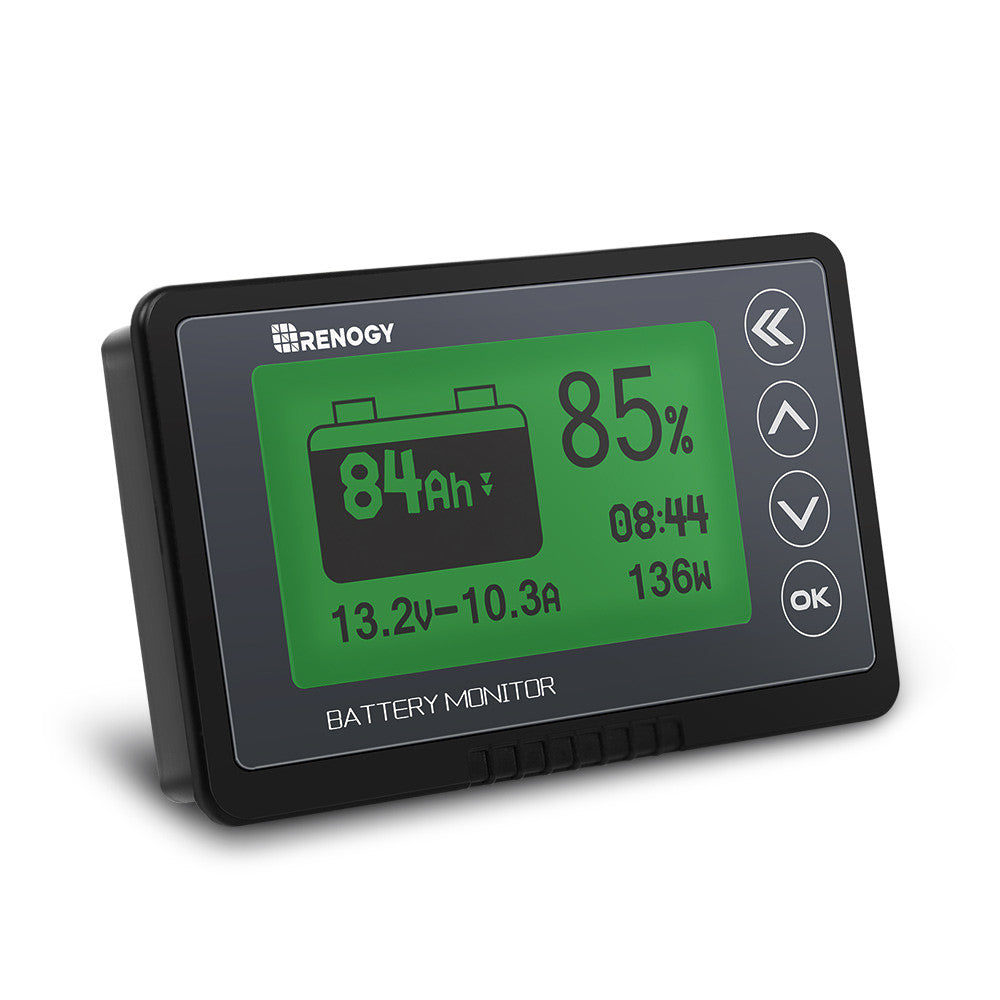

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!
It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
LOW POWER CONSUMPTION DESIGN
The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.
PROTECT YOUR BATTERY

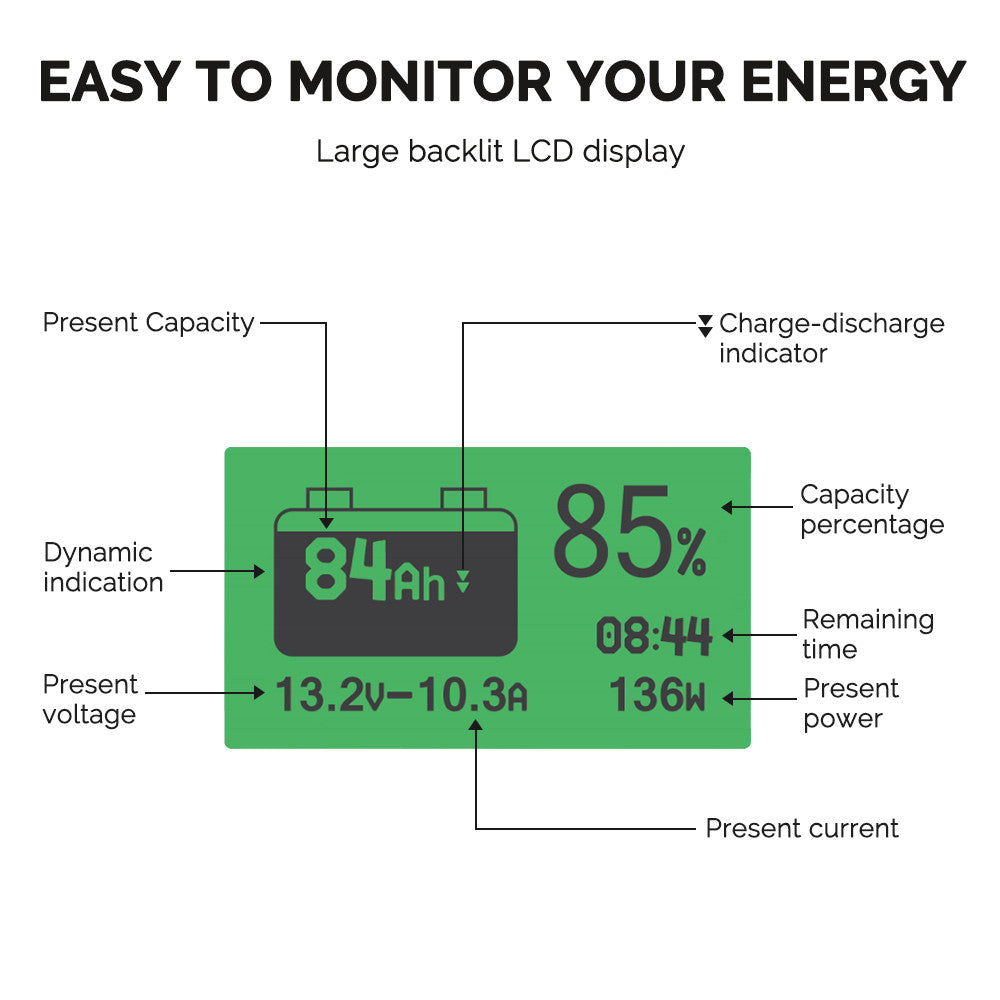

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.
EASY TO INSTALL

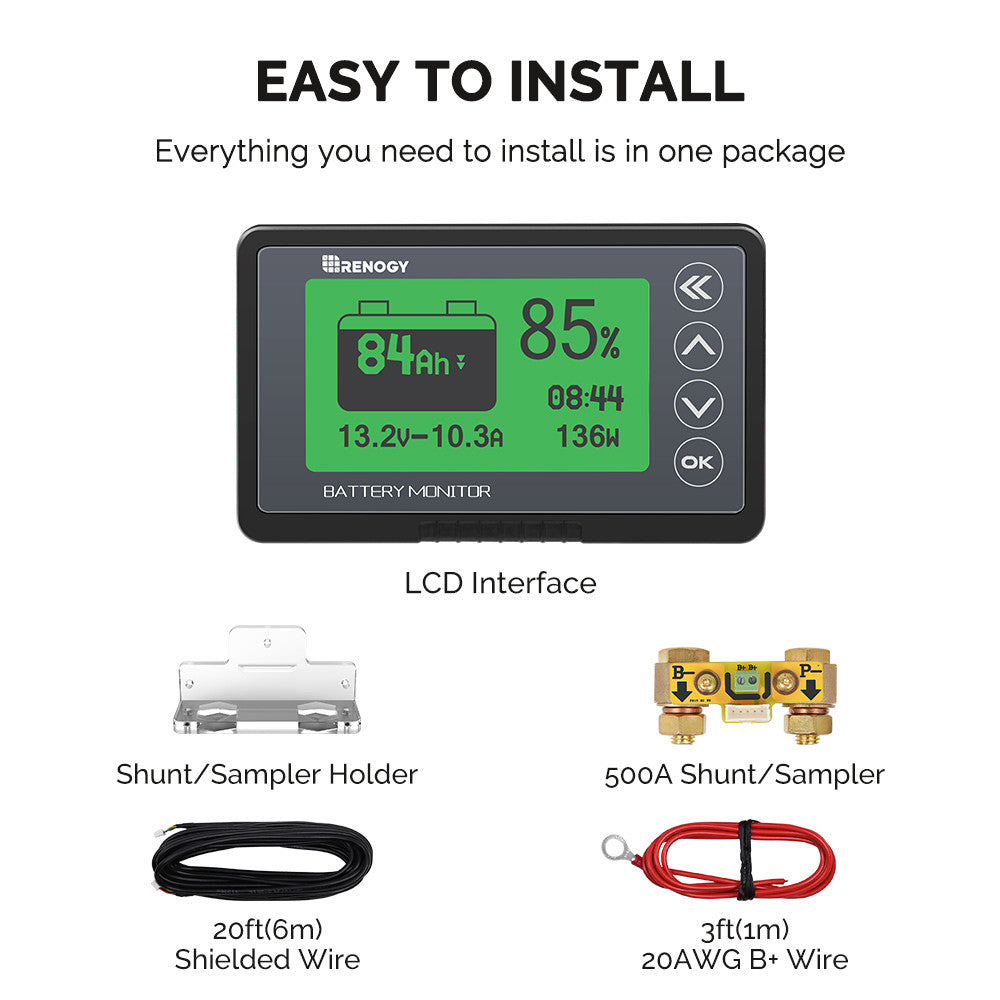

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.
Monitor your battery degradation with Renogy Battery Monitor!
It is of extreme importance to achieve accurate predictions of the remaining battery lifetime under various operating conditions. With the Renogy New Battery Monitor (RBM500-G3), you will be able to monitor the battery degradation to ensure reliable operation and timely maintenance.
Please follow the following steps for battery degradation monitor and calculation:
* 30 days data collection: record the effective battery capacity and nominal battery capacity on a daily base
* Effective Battery Capacity = Nominal Battery Capacity - (Current CAP * Battery Degradation Rate)
* Battery Degradation Rate = Nominal Battery Capacity- Effective Battery Capacity/Current CAP
Package Includes
LCD Interface
x 1
500A Shunt/Sampler
x 1
Shielded Wire
x 1
B+ Wire
x 1
Shunt Holder
x 1
500A BATTERY MONITOR WITH SHUNT
Operation Specifications
Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA

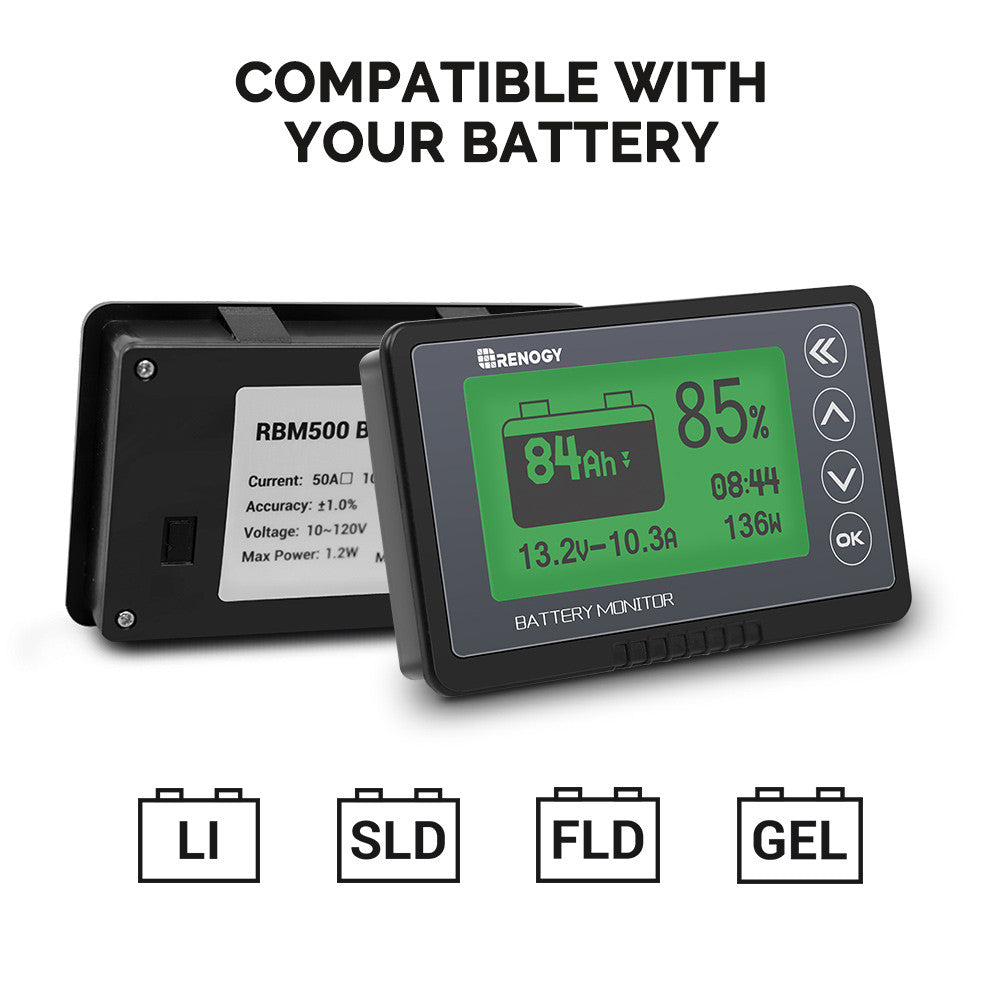

Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%
Mechanical Specifications
Shielded Wire Length
20 ft/6 m
Weight (LCD Interface)
2.6 oz / 75 g

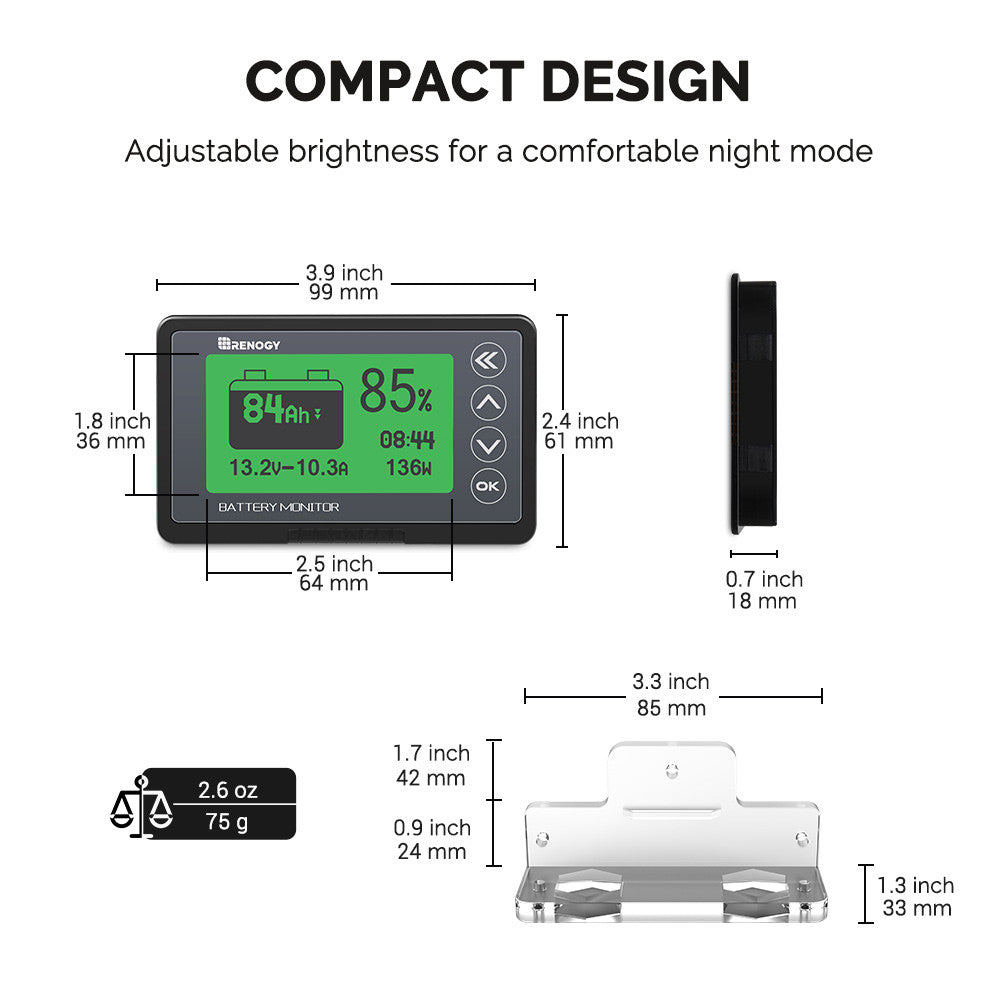

Size (LCD Interface)
3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm
B+ Wire Length
3 ft/1 m
Temperature range
14-140°F(-10-60°C)
Accessories
LCD Interface
x 1
500A Shunt / Sampler
x 1
Shielded Wire
x 1
B+ Wire
x 1
Shunt Holder
x 1
Warranty
Material Warranty
1 Year
Certifications
ROHS
Yes
Frequently Asked Questions
1. Is there a purpose to having both the Renogy 500A Battery Monitor and the Bluetooth Module?
"The Battery Monitor is a good idea for anyone without a smartphone or who doesn’t mind staying close to their system to keep tabs. This monitor can also work with all sorts of other battery applications, such as golf carts, electric scooters, medical devices, etc. The Bluetooth Module caters to anyone with a smartphone or tablet and those who want a bit more freedom in keeping tabs on their system. · Renogy LifePO4 Battery has an RJ45 communication port connected with BT-2 and monitors the battery data directly from the APP. · Lead-acid battery has no communication port, and the Bluetooth module detects battery data from the charge controller. You may find more from BATTERY MONITOR VS BLUETOOTH MODULE: WHAT'S BEST TO MONITOR YOUR SYSTEM? (https://www.renogy.com/blog/battery-monitor-vs-bluetooth-module-whats-best-to-monitor-your-system/)"
2. Can I monitor more than two batteries with one Renogy Battery Monitor?
Yes. Please follow the instruction carefully when you connect the system.

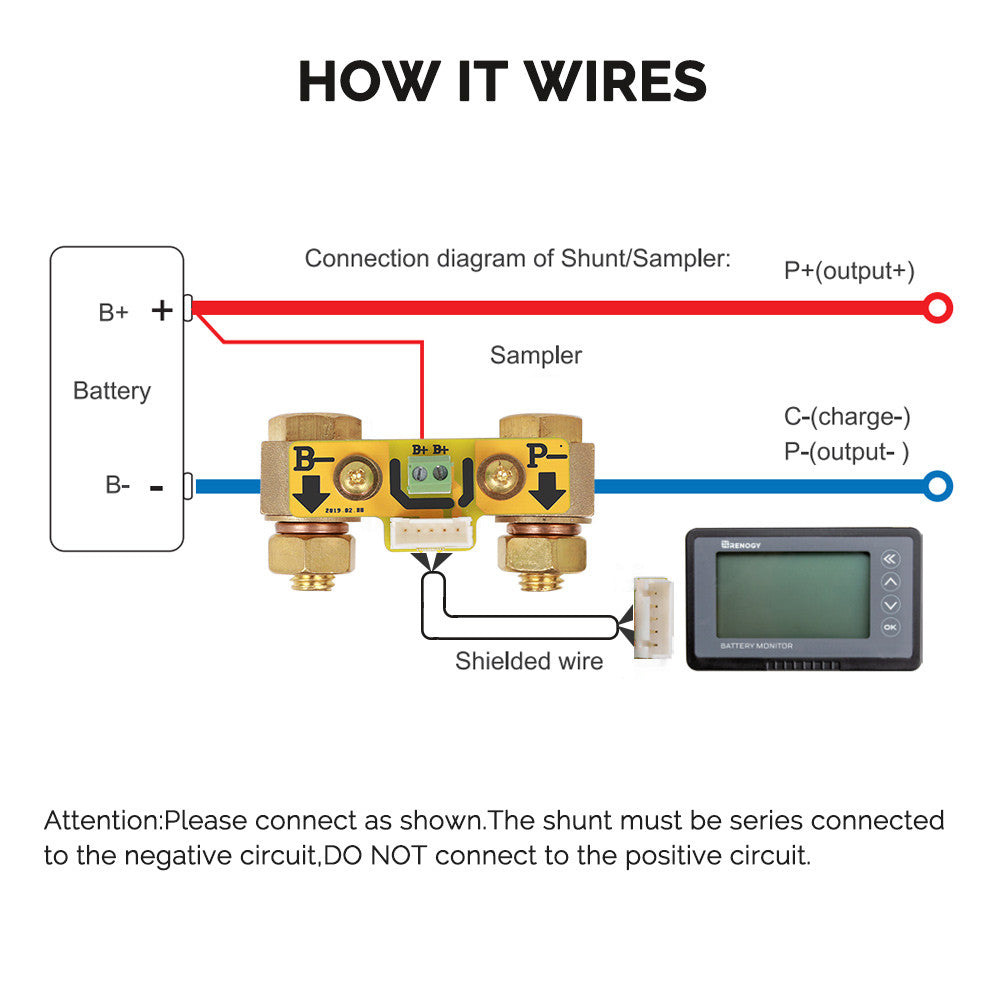

3. How to wire and calibrate the battery monitor?
Please find more information from the Video https://www.youtube.com/watch?v=-vrQsKZ7CdE
4. Can I use Renogy Battery Monitor with other brand's batteries?
Yes. The Renogy Battery Monitor is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
