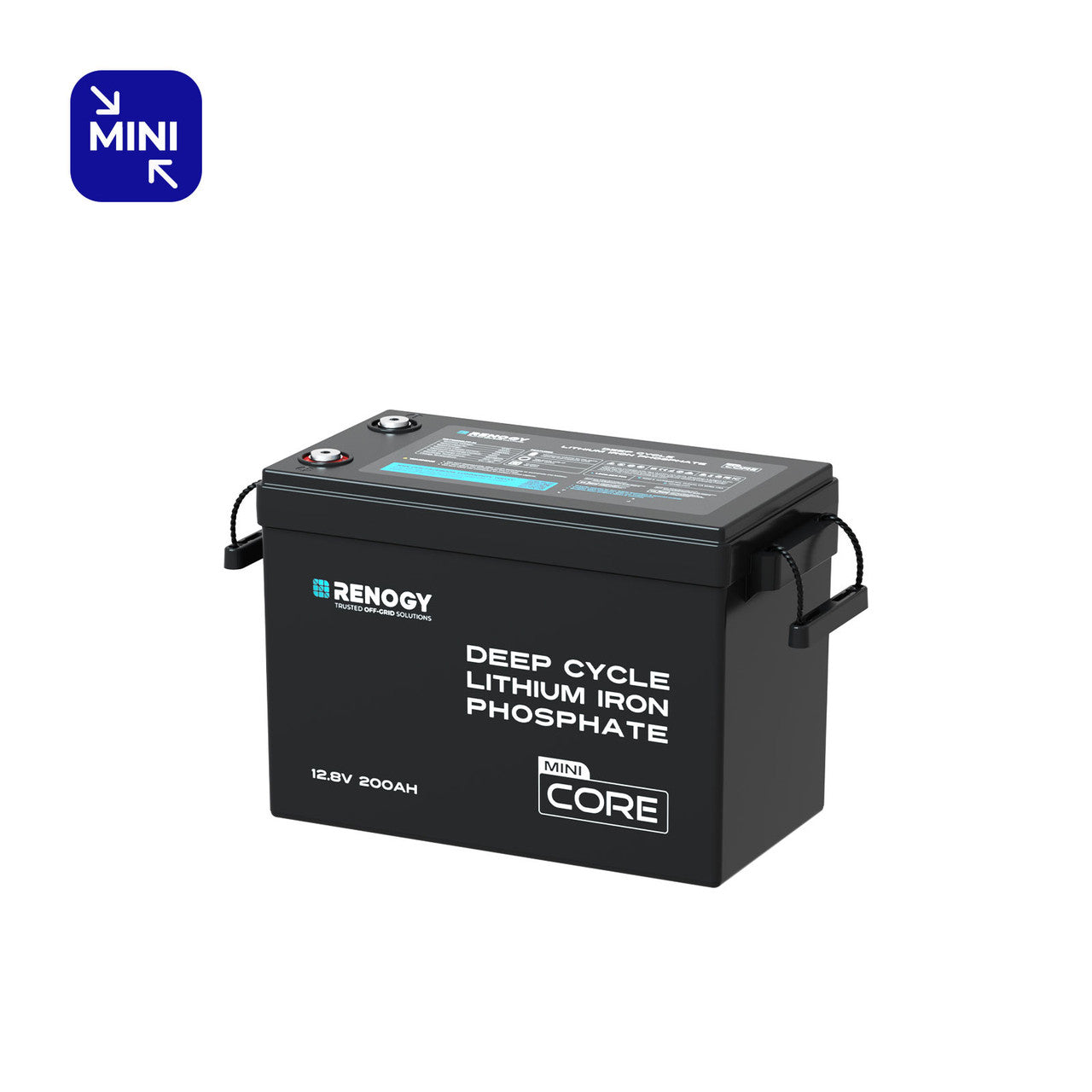

Batterie Core Mini LiFePO4 12,8 V 200 Ah avec protection basse température

SKU : RBT12200LFP-M-EU
€440,99 €669,99
Taxes incluses
+ 4400   Renogy Rays after purchase. Learn more

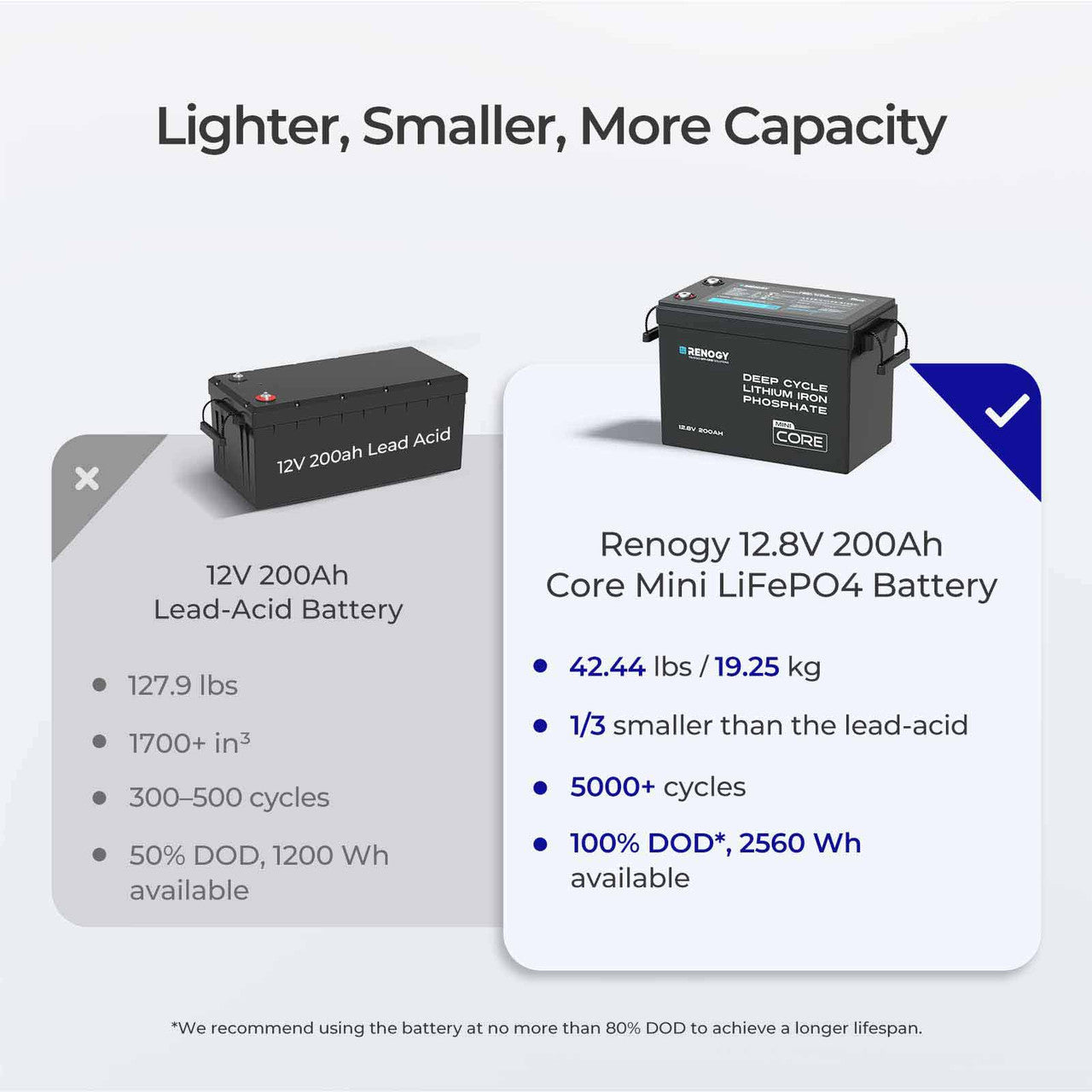

  • · Smaller than ever! 1/3 smaller than 12V 200Ah lead-acid.
  • · A 200A BMS, more robust than a 100A. Low-temp cut-off (charge & discharge).

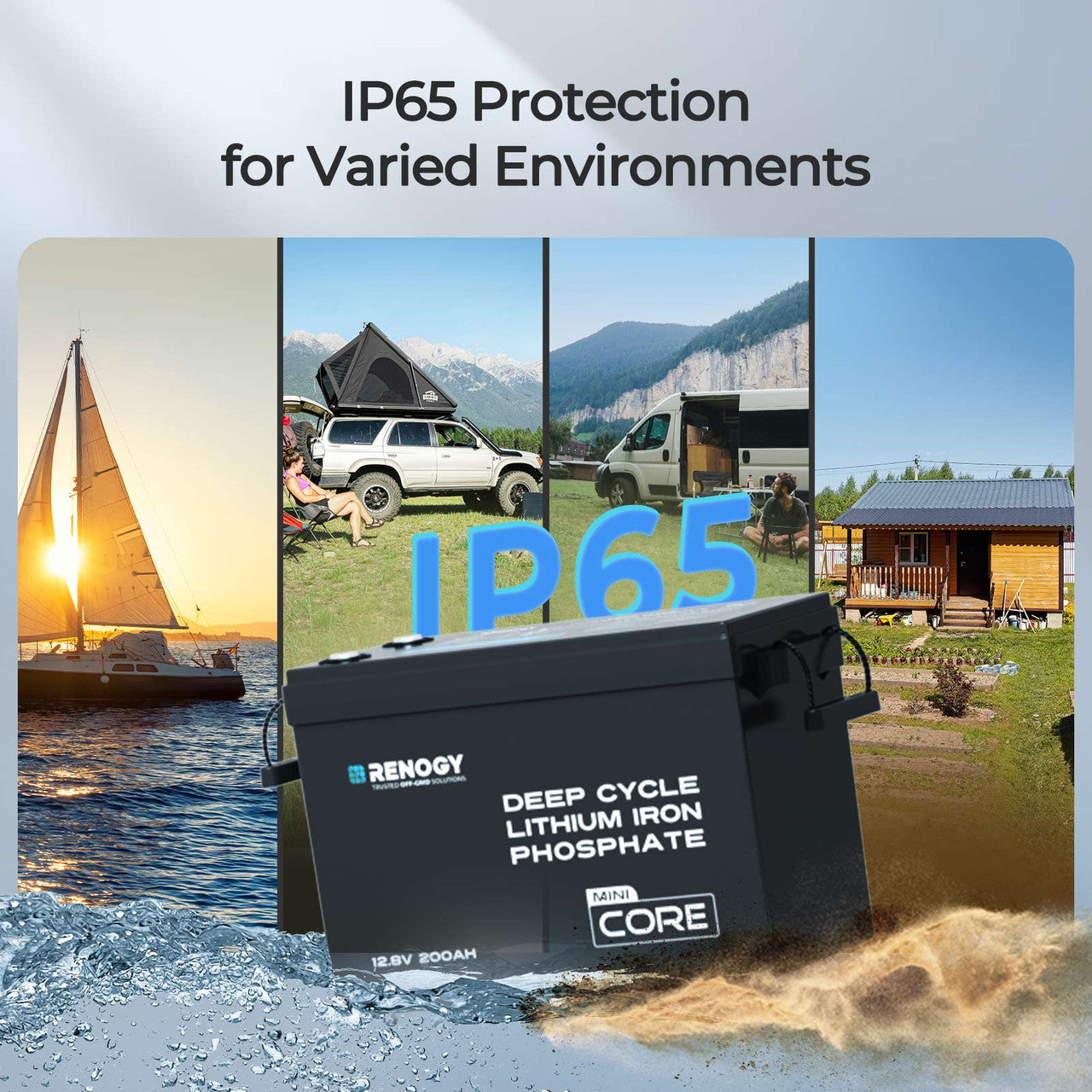

  • · IP65 waterproof & vibration-resistant for enhanced outdoor performance.
  • · Certified by FCC, UN38.3, ROHS, UKCA and more. 5-year warranty.

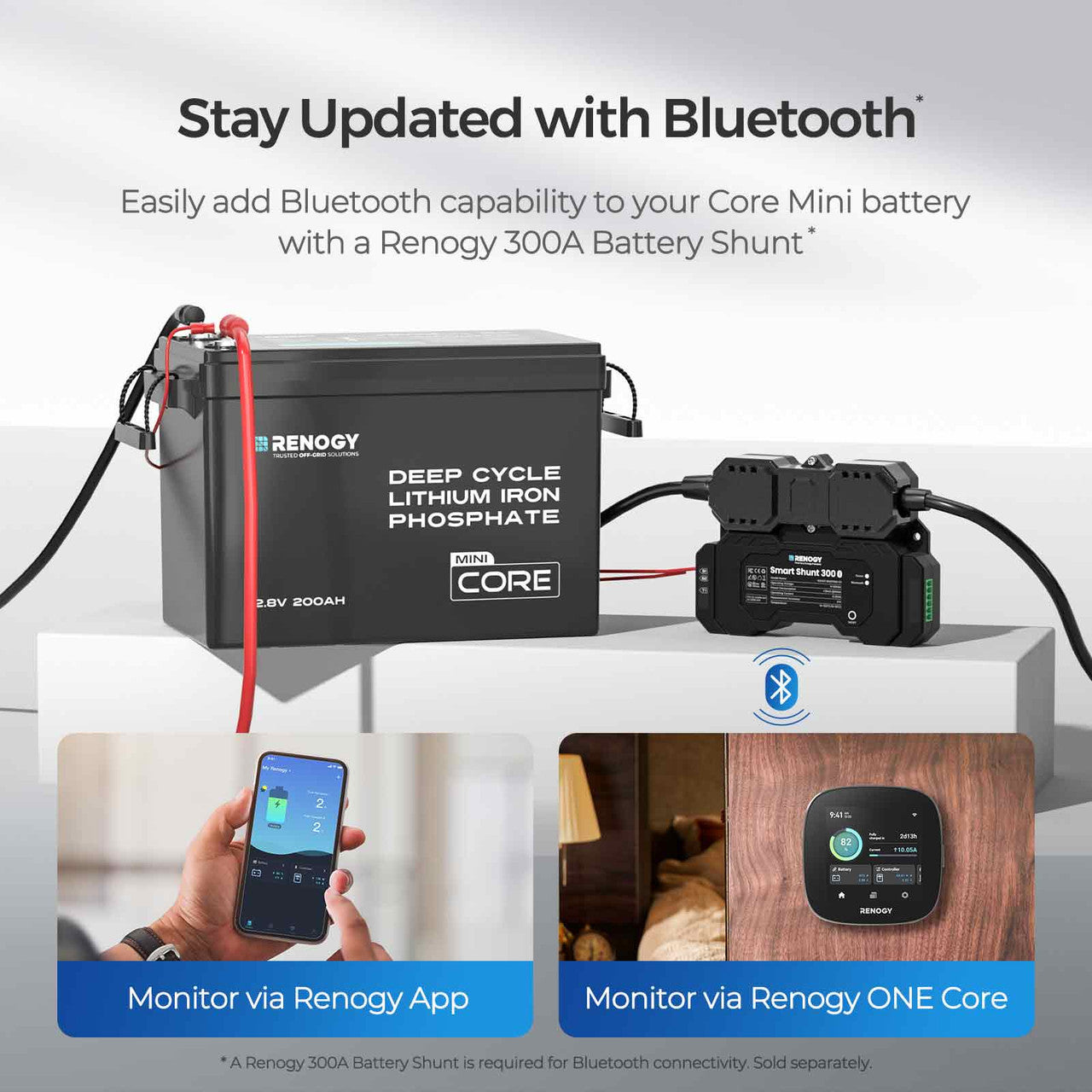

  • · Works with a Renogy 300A Battery Shunt for Remote Monitoring.
Quantity：
Return & refund policy

What is Renogy's Return Policy?



Return within 30 Days

You may return your product(s) to Renogy within 30 days of delivery. The item(s) must be in the original packaging, be unused, undamaged, and unmodified. A refund will be issued after the returned item is inspected by Renogy.

Start a Member ReturnStart a Guest Return



Renogy will pay for the return shipping label for items that fall within the following categories:

  • Carrier damage/ warehouse mishandling
  • Defective product
  • Incorrect product was delivered
  • Additional product(s) you did not order were delivered

For any other reason not listed, customers are responsible for any return shipping fees. Renogy will NOT accept returns with any modifications to the product as it voids our warranty. Any modified products returned to Renogy will be shipped back to you at your own expense.

Return after 30 Days

Return requests outside of 30 days require special authorization. You can submit a case through our online portal to request a late return.

Submit a Case

FAQs

Can I exchange my Renogy order?

Renogy does not offer exchanges. If you purchase the wrong item by mistake, you will need return the item and place a separate order for the correct one. The return shipping expenses shall be borne by you.

Where is my refund?

Once we have confirmed that the return requirements are met, we will issue a full refund within 2-5 business days. Actual deposit times may vary according to your banking institution. Additionally, an email notification will be sent out when the refund is issued.

What about defective or faulty items?

We stand behind all of our products. If the item(s) you received is defective or flawed in any way, please submit a case  on our online portal and describe the issue you are encountering.



----

Click here to view the full content of Return & Refund Policy.

Frequently bought together
This Item
Batterie Core Mini LiFePO4 12,8 V 200 Ah avec protection basse température
Add
x1
x1
Save together with
Frequently Bought With
View more bundles Fold
Total Bundle Price
Add Bundle to Cart
Total Bundle Price
Description
Includes
Specs
Downloads
FAQ
Reviews

Smaller, Sleeker, Still Renogy Strong.

Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

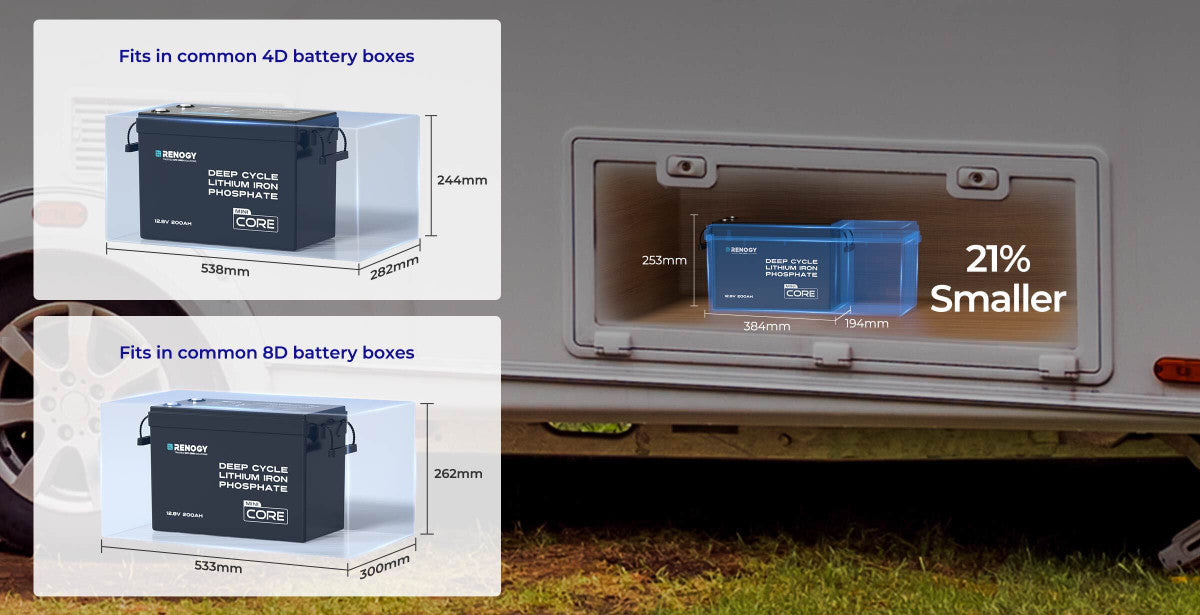

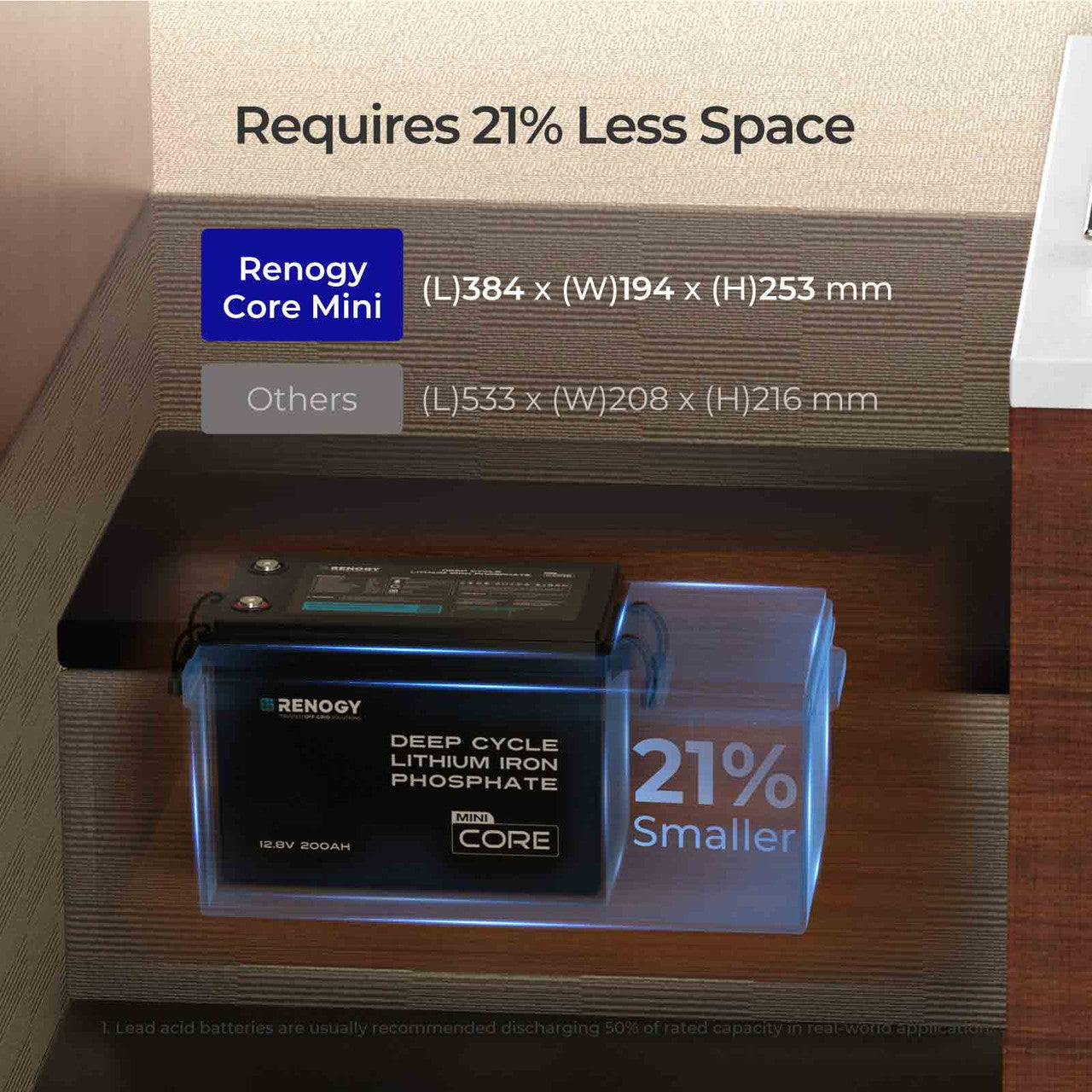

21% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

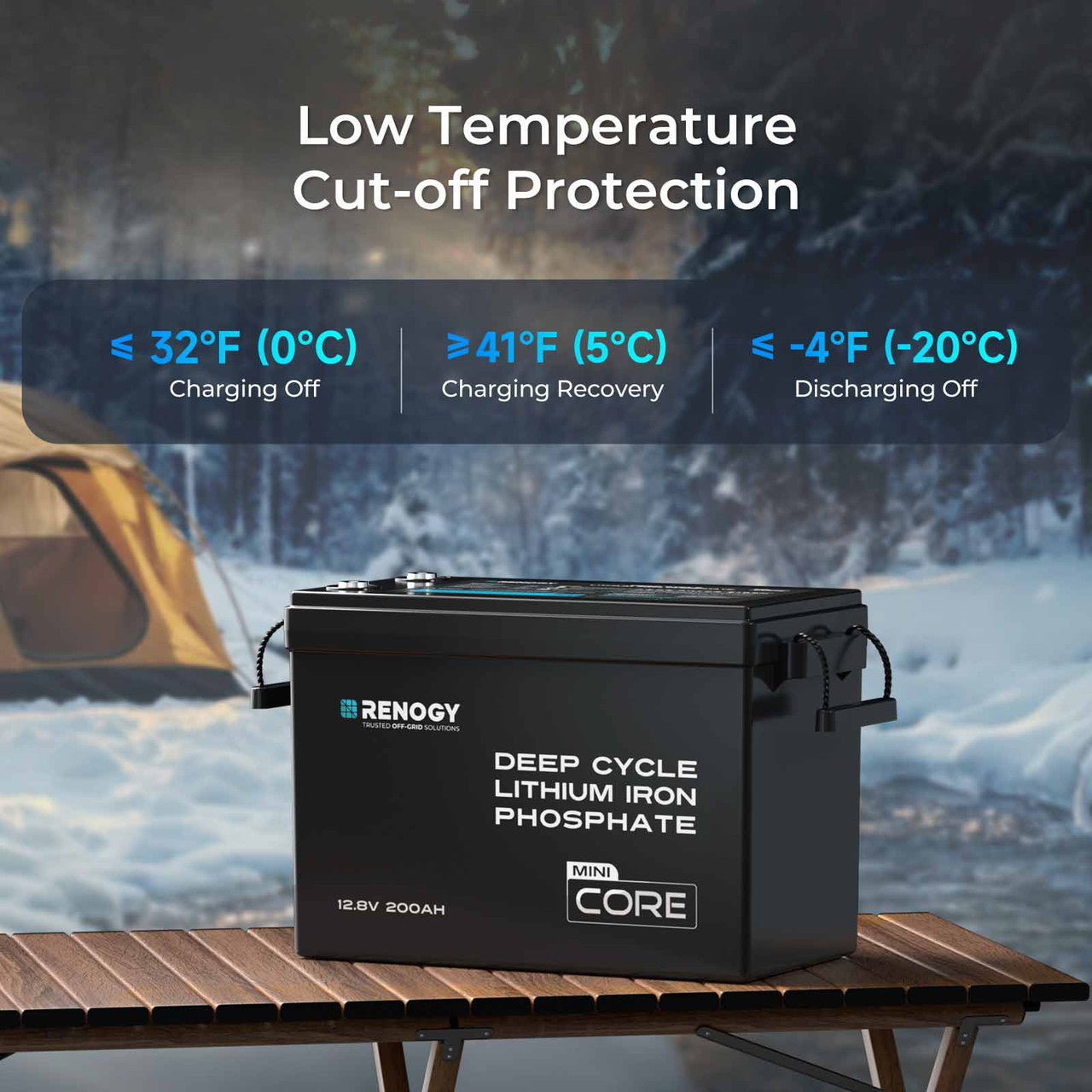

Hands-Free Low-Temp Cut-Off

The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

Peak Power Output
Vibration-Resistant Design
Tested & Trusted Power

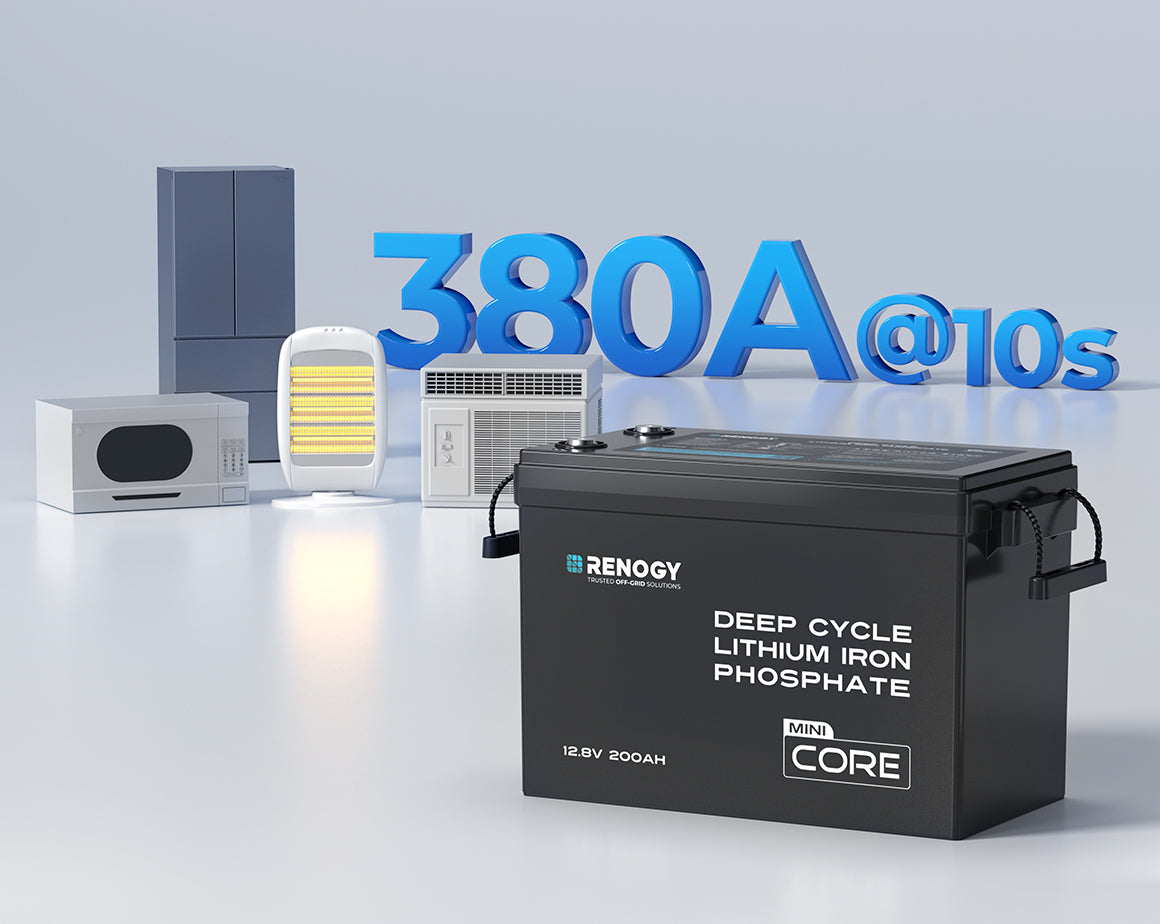

Peak Power Output

Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

Vibration-Resistant Design

Metal cell spacers prevent damage in rough terrain and choppy waters.

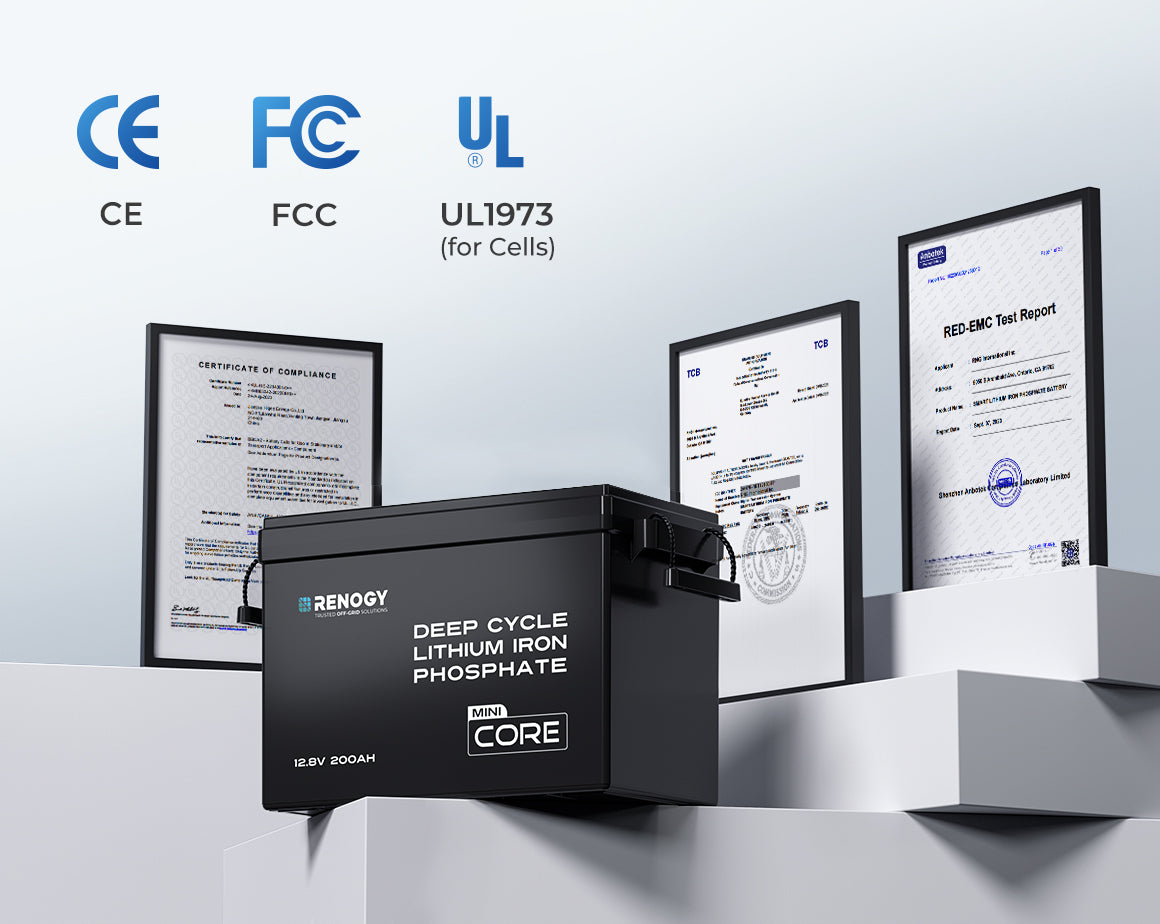

Tested & Trusted Power

Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

Power Your RV Adventure
Power Your Marine Adventure

Package Includes

12V 200Ah Lithium Iron Phosphate Battery

x 1

Long Terminal Bolts

x 2

Terminal Bolts

x 2

User Manual

x 1

Renogy 12.8V 200Ah Core Mini Deep Cycle Lithium Iron Phosphate Battery

Electrical Specifications

Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters

Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C); Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Operation Relative Humidity
5% to 95%

Charging Parameters

Voltage Range
10V to 14.6V
Maximum Continuous Charge Current
100A

Discharging Parameters

Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Dimension (L x W x H)
15.12×7.64×9.96 in/384×194×253 mm
Weight
42.44 lbs / 19.25 kg
Terminal Bolt Size
M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating
IP65

Warranty

5-year material warranty
Yes

Certifications

MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Yes
Shop By Scenario
RV, Vans, Camper & Trolling Motor

Resources Download

Manual

Télécharger

Warranty

Télécharger

Frequently Asked Questions

1. I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?

Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.

2. Can this battery be used in series to build a 48-volt system？

Yes. Renogy 12V Core Mini Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.

3. How many Renogy 12V 200Ah Core Mini Series Batteries can I connect at most?

The Renogy 12V 200Ah Core Mini Battery supports series, parallel and series-parallel configurations. You can connect up to four batteries in series to increase voltage or up to eight batteries in parallel to boost capacity. For maximum flexibility, you can combine them in a 4S × 4P arrangement for a total of sixteen batteries. All batteries must be the same model and have similar capacity.

4. How long will the Renogy Core Mini Series Lithium Iron Phosphate Battery last?

Renogy 12V 200Ah Core Mini Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structure design to brace for challenges wherever you go.

5. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.

6. How to recharge my LiFePO4 batteries?

Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.

7. What should I keep in mind when connecting batteries in series or parallel?

"When wiring batteries, make sure all connection cables are the same length and wire gauge. This reduces resistance differences and helps ensure balanced current flow—especially important when combining parallel groups into a series setup. Also, avoid mixing batteries from different brands, models, or usage histories. Differences in internal resistance or battery aging can lead to uneven charging and discharging, which may cause performance issues or potential safety concerns."
