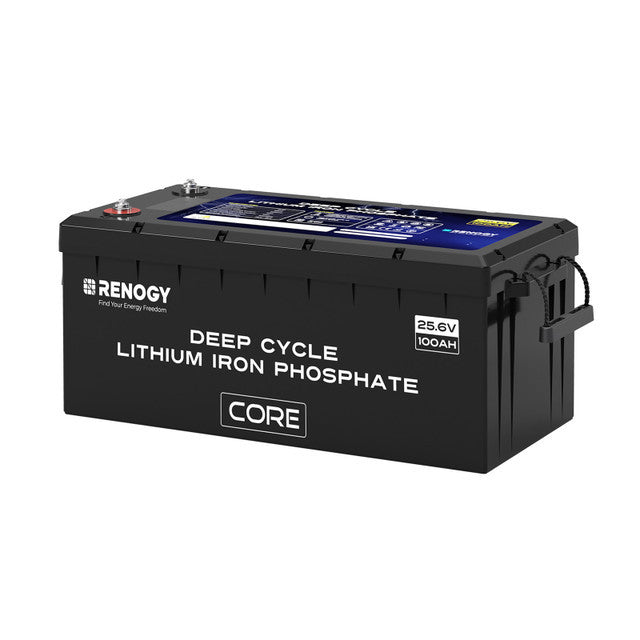

24V 100Ah lithium LiFePo4 battery with self-heating
SKU:
RBT24100LFPSH-EU
€1.209,99
Unit price
/
Unavailable
Sold out
Tax included.
Free shipping.
- -Industry-leading 200W self-heating power
- -EV-class cells (Grade A) with 5,000 cycles (80% DOD)
- -Low-temperature cut-off for safer charging and discharging
- -Automatic cell balancing during charging

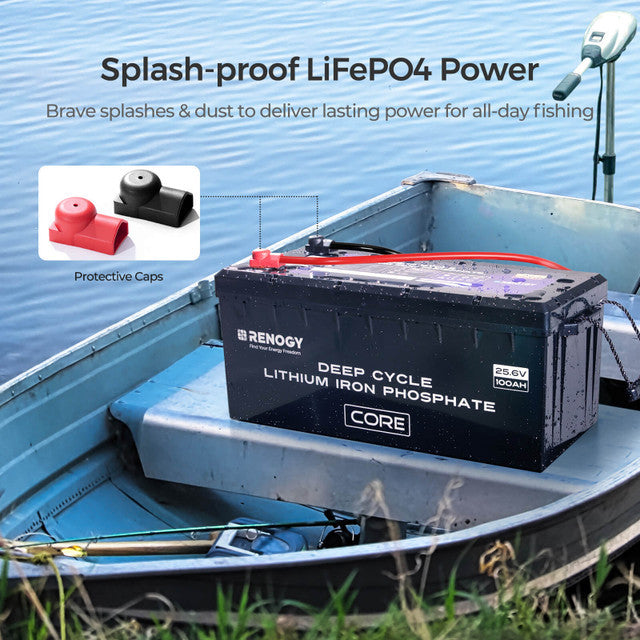

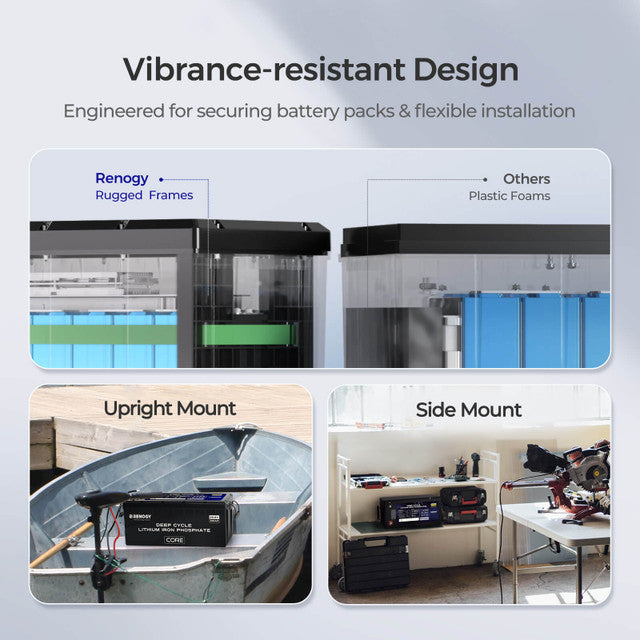

- -Vibration-resistant frames and IP65 protection
24V 100Ah lithium LiFePo4 battery with self-heating is backordered and will ship as soon as it is back in stock.
Enjoy payments with
Return & refund policy
-Industry-leading 200W self-heating power
-EV-class cells (Grade A) with 5,000 cycles (80% DOD)
-Low-temperature cut-off for safer charging and discharging
-Automatic cell balancing during charging
-Vibration-resistant frames and IP65 protection
Cruising Made Easy with Lighter Power
The built-in automotive-grade battery cells (Grade A) help reduce the overall weight of your 24V batteries to ensure a faster and smoother cruising experience.
Efficient Backup Power for Peace of Mind
With over 5 times more power per kilogram, the Renogy 24V 100Ah LiFePO4 Battery offers more power in a similar footprint. Be power-ready before emergencies, not after.
Longer Battery Life. Lasting Outdoor Fun.

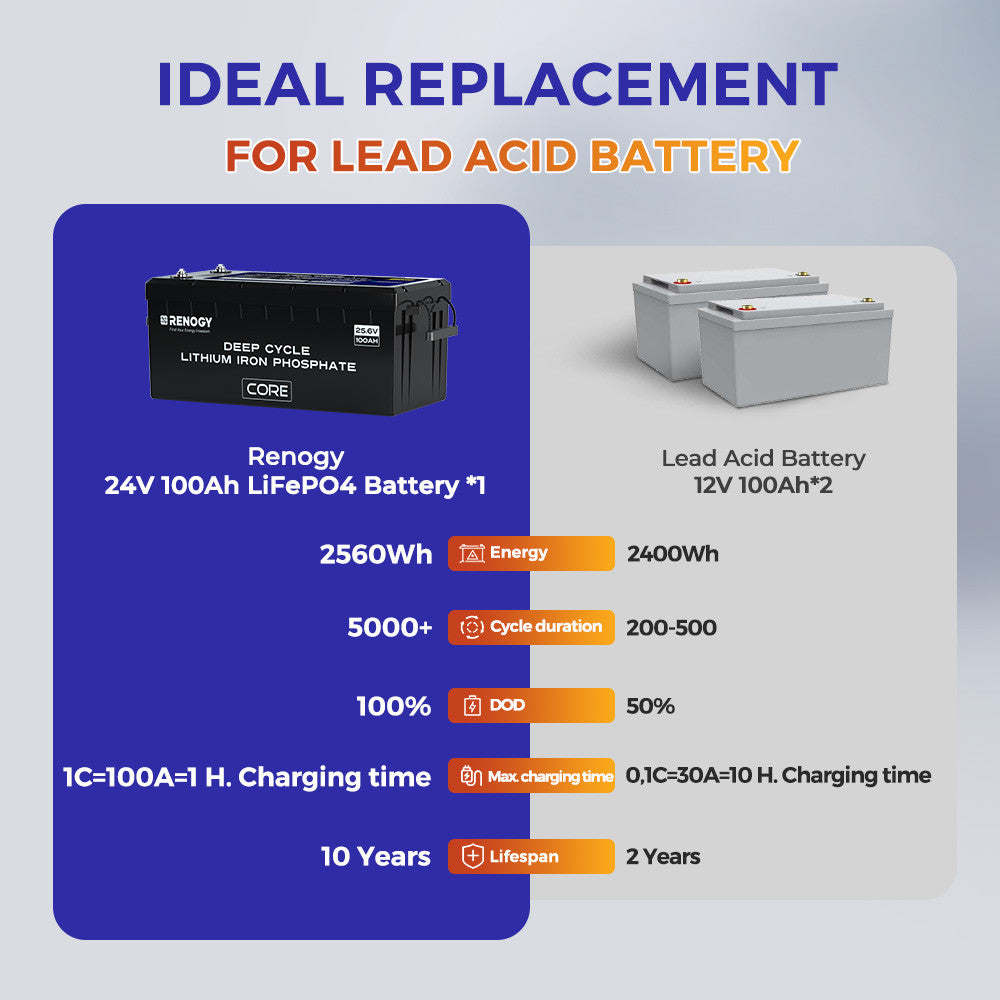

Grade-A prismatic cells boast 5,000 cycles at 80% depth of discharge – that's 10 times longer than traditional lead-acid batteries. With this longevity, enjoy a worry-free 10-year battery lifespan for extended and uninterrupted adventures on the road.
Why a 24V LiFePO4 Battery?
Enjoy a cleaner, more efficient setup with a Renogy 24V 100Ah LiFePO4 battery – that means 30% less wiring needed, and pre-selected cells featuring balanced voltage. Plus, the programmable BMS ensures automatic cell balancing during charging, leaving behind the days of dealing with messy wires and unbalanced cells that come with two 12V 100Ah batteries.

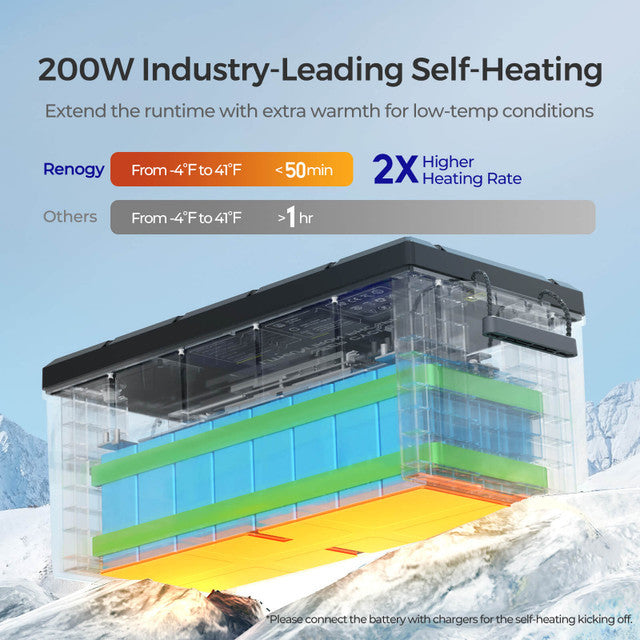

Extra Warmth. Extended Runtime.
With the industry's highest 200W heating element, this 24V 100Ah LiFePO4 Battery can heat up twice as fast as other heated batteries on the market. Please ensure a stable charge current greater than 10A for each battery to initiate the self-heating.
Reliable Power in Winter
When the mercury drops, the low-temperature charging and discharging protection stands by to cut off your 24V battery before it causes permanent damage to the cells.
Expandable Power up to 40.96kWh
Maximize your backup power to 40.96kWh by connecting a total of 16 batteries in a series-parallel connection, covering you for extended blackouts or any high-demand projects.
Ways to Connect
Besides the series-parallel connection, the Renogy 24V 100Ah LiFePO4 Battery allows you to wire up to 8 in parallel or 2 in series for a flexible power setup.
Trusted Performance
Tested to meet rigorous standards of excellence, the Renogy 24V 100Ah LiFePO4 Battery is built to ensure long-lasting power satisfaction.
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist

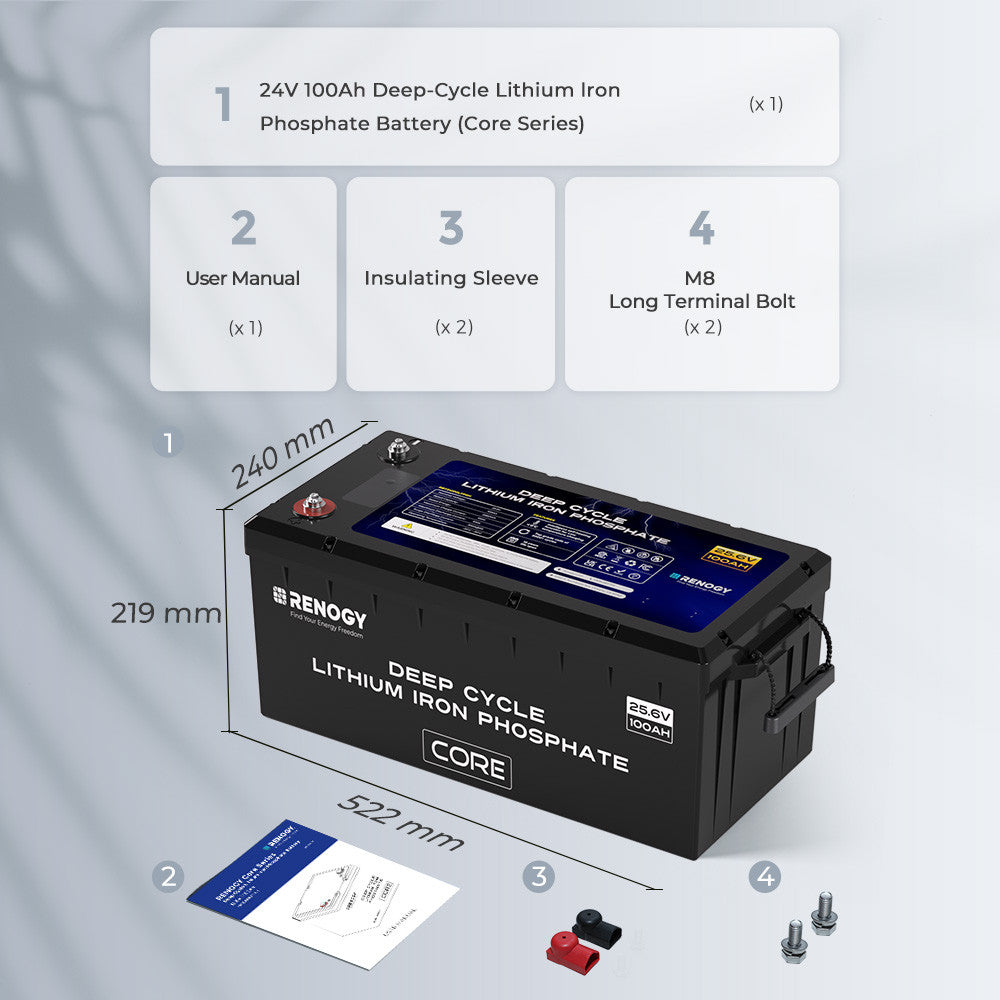

Package Includes
Battery only option
- Core - 24V 100Ah Lithium Iron Phosphate Battery x 1
- User Manual x 1
| Renogy 24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery | |
|---|---|
| Battery Type: Lithium Iron Phosphate | Voltage: 25.6V |
| Rated Capacity: 100Ah (0.5C, 25℃) | Voltage Range: 20.0V to 29.2V |
| Charge Voltage: 29.0V | Maximum Charge Current: 100A |
|
Maximum Discharge Current: 100A |
Peak Discharge Current: 300A @ 5s |
|
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C) |
|
Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C) |
Storage Temperature Range: '-13°F to 149°F (-25C to 65°C) |
|
Operation Relative Humidity: 10% to 95% |
Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P) |
|
Terminal Bolt Size: M8 x 1.25 x 15 mm |
Recommended Terminal Torque: 10 N·m |
|
Housing Material: ABS & PC |
Protection Rating: IP65 |
|
Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm) |
Weight: 46.3 lbs. (21.0 kg) |
Accessories
| Material and workmanship warranty: 1 Year |
|
Warranty
| Material and Workmanship Warranty: 5 Years | Certifications: UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA |
1.Can this battery be used in series to build a 48-volt system？
Yes. Renogy 24V Core Series Batteries can be connected in series to ramp up voltage for a 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.
2. Will this new 24V 100Ah Core LiFePO4 work with 24V batteries from other brands?
We do not recommend wiring batteries with different chemistries, rated capacities, nominal voltages, brands, or models in parallel or series. This can result in potential damage to the batteries and the connected devices, and can also pose safety risks.
3. How many Renogy 24V 100Ah Core Series Batteries can I connect at most?
The 24V 100A Core Batteries support versatile connections, including series, parallel, and series-parallel connections. You can connect up to 2 batteries in series, 8 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
4. How long will the Renogy Core Series Lithium Iron Phosphate Battery last?
Renogy 24V 100Ah Core Series Batteries can deliver 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries integrate self-heating and low-temperature cut-off to provide power in freezing weather.
5. How should I balance my batteries in a 2S2P configuration?
We advise you to connect your four batteries in parallel periodically to rebalance the battery voltages every six months. This helps reduce voltage differences and optimize their performance.
6. How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
7. Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
8. My battery temperature gets too low during operation and the self-heating doesn't work very well.
Each 24V 100Ah Core LiFePO4 Battery requires a charging current greater than 10A to initiate and sustain the heating. Please check the charging current of the charger for each battery more than 10A.
