Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller
Robust 150V solar input guarded by low-temperature protection.
Superior Heat Dissipation
The all-glue-filled design enhances heat transfer to the external metal heat sinks, preventing overheating and ensuring efficient charging.
Maximize Efficiency with Exceptional Value
The Rover Lite 60A delivers 99% MPPT tracking efficiency and 97% conversion efficiency, maximizing your solar power output. Combining top-tier performance with an affordable price, this charge controller offers unmatched value for budget-conscious users.
85% Lower Self-Consumption
With ultra-low self-consumption of just 0.18W in 12V systems — far lower than the typical 0.7w — more of your solar power goes directly to charging your batteries maximizing solar usage.

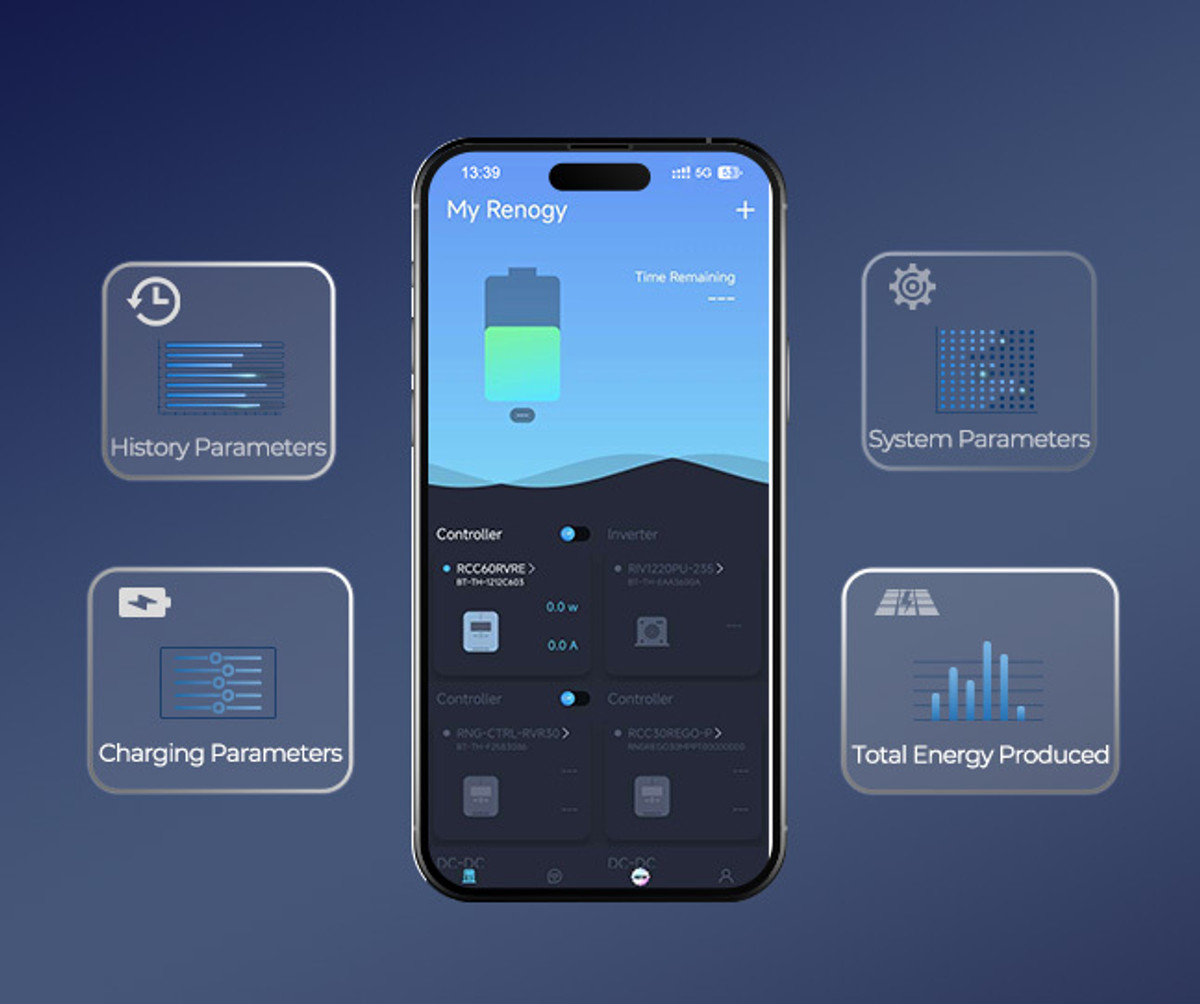

Store Up to 2 Years of Data
Connect this Rover Lite 60A charge controller to the BT-2 Bluetooth module to monitor and store up to two years of data, giving you easy access to historical records and system adjustments.
Simple Controls and Clear Info
Featuring intuitive built-in buttons and a clear LCD screen, this charge controller lets you quickly access and monitor real-time charging information, at a glance.
Stable Performance in Changing Temperatures
A reliable companion on every journey
Dimensional Reference Guide
Before installation, please find a cool, dry, and weather-safe location. Ensure there is enough ventilation space for properheat dissipation.
Package Includes
This package contains a charge controller, a temperature sensor, and a user manual.
Package Includes
Solar Charge Controller
x 1
Manual Book
x 1
Battery Temperature Sensor
x 1
Mounting Screws
x 4
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
General Data
Grounding
Common Negative
Communication
RS485
Operating Temperature
-31℉ -113℉ /-35 ℃ - 45℃
Storage Temperature
-40℉ -176℉ /-40 ℃ - 80℃
-40℉ -176℉ /-40 ℃ - 80℃
0%~95% RH
Cooling
Heat Sink
Enclosure Rating
IP32
Dimensions (LxWxH)
305 x 205 x 99 mm / 12.01 x 8.07 x 3.90 inch
Weight
3.5 kg /7.71 lb
Regulatory and Safety Specifications
FCC Path 15, Class B,CE,RoHS
Charger Data
Rated Battery Input Voltage
Non-Lithium: 12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)
Battery Input Voltage Range
9VDC~64VDC
Rated Charge Current
60A
Maximum Solar Input Power
900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery)
Maximum Solar Input Voltage (Voc)
150VDC
Power Consumption
<15 ma (12V Battery) <11 ma（24V Battery） <8 ma （36V Battery） <7 ma（48V Battery）
MPPT Tracking Efficiency
>99%
Conversion Efficiency
>97%
Temperature Compensation
-3mV / ℃ / 2V (Non-Lithium) 0mV / ℃ / 2V; no compensation (Lithium)
Charger Algorithm
3-stage Lead Acid, Bulk, Boost, Float, Equalize* 2-Stage Lithium, Bulk, Boost
Charger Preset
AGM, Gel, Flooded, Lithium-iron Phosphate, User Custom
Warranty Information
Accessories
2-year material warranty
Frequently Asked Questions
How should I wire my panels with Rover Lite MPPT charge controller?
The panels can be wired in series, parallel, or a series-parallel combination. With a 150V maximum solar input, you can connect up to 6 panels in series and 5 in parallel.
What are the advantages of Renogy MPPT technology?
Renogy Rover Series solar charge controllers use Power Catcher MPPT algorithm to always ensure the charge controller converts most energy by locking to the most optimal maximum power point.
What is a Solar Charge Controller and what is MPPT?
The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.
What would the connections for "Load(optional)" be used for? Also what would it rated for(amps/watts). The way I read the wiring diagram the batteries should get connected to inverter, would these get connected to inverter under certain conditions?
In the load terminal, you can connect any12V or DC appliances in Rover's case any load that does not exceed 20 amps. Even our Rover 60Amp. Also, the charge controller requires to be connected to a battery bank which an inverter is required if we will consume the charge from the battery. For further concerns, you can respond to this email or you can give us a call at (909) 287-7100. We're open Monday through Friday from 8:30 am to 3 pm PST.
If I buy & hook up the 300 Watt 24V solar panel to this controller - will it convert the 24V
The Rover Lite 60A controller's designed to handle 900 watts with a 12 volt battery bank. This charge controller will take the excess voltage coming from the 300 watt/24 volt panel and convert it to amperage. As for your inverter, as long as you do not exceed the max rated voltage of your Inverter (12 volts) , it will be fine.
