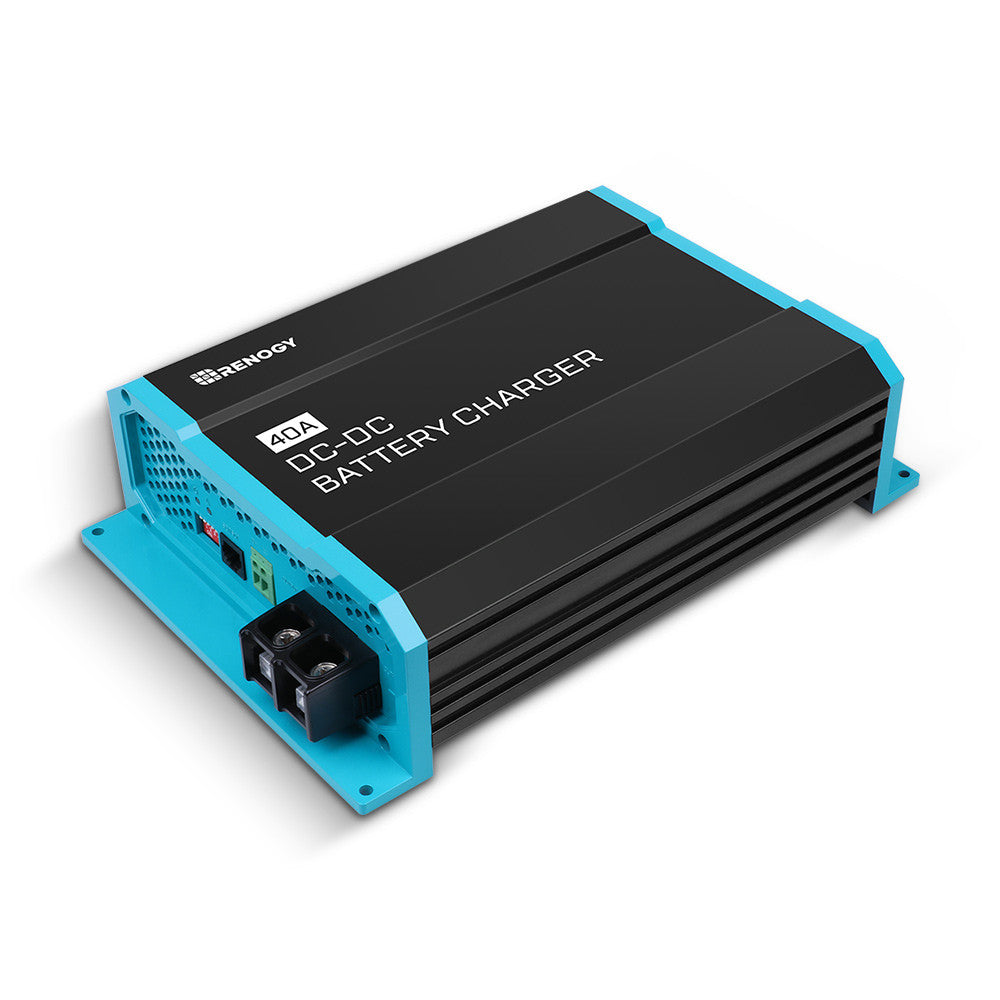

The DCC12 Series battery chargers are the most effective way to charge your auxiliary or house batteries from the alternator/starter battery. Compatible with a multitude of alternator types, the DCC12 offers correct charging for AGM, Flooded, Gel, and even Lithium deep cycle batteries! Featuring a 3-stage battery charger and multiple electronic protections, owners can feel confident that their batteries are being charged optimally and automatically. For added safety to personnel, the DCC12 isolates the input from the output preventing incorrect voltage transmission. Easily install the compact yet sturdy DC1212 on RV’s, commercial vehicles, boats, yachts and many more applications!
If you have any questions regarding this product, please email us at supporteu@renogy.com.
Note: Our product department found that there are some errors in the paper manual attached to the battery charger sold before March , and now the manual on the website has been updated. Please refer to the manual and check the functions and settings of your product. If you have any questions, please contact us in time.
Note: The DCC12 series battery chargers are incompatible with RTSDCC-G1 battery temperature sensor, only compatible with the sensor RTSDCC-G1.

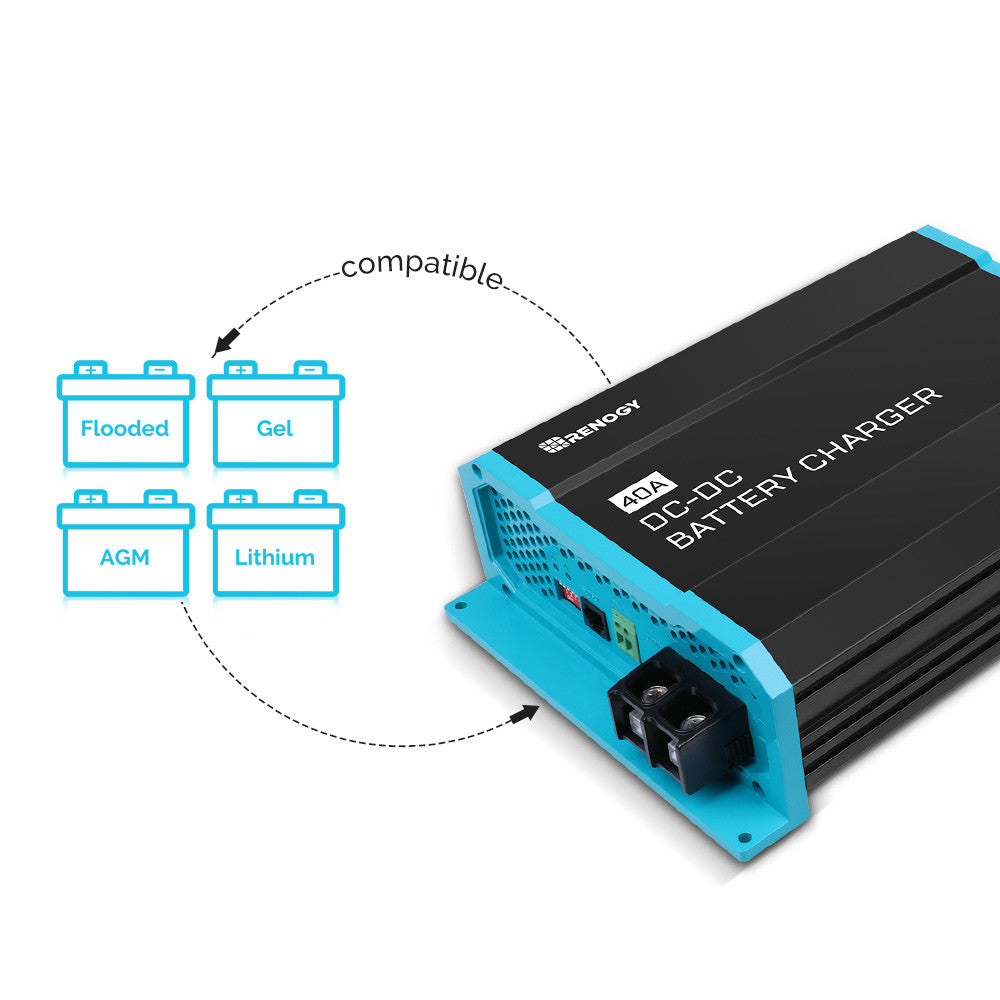

Compatible with a multitude of alternator types, the DC-DC battery charger offers correct charging for AGM, Flooded, Gel, and Lithium batteries.

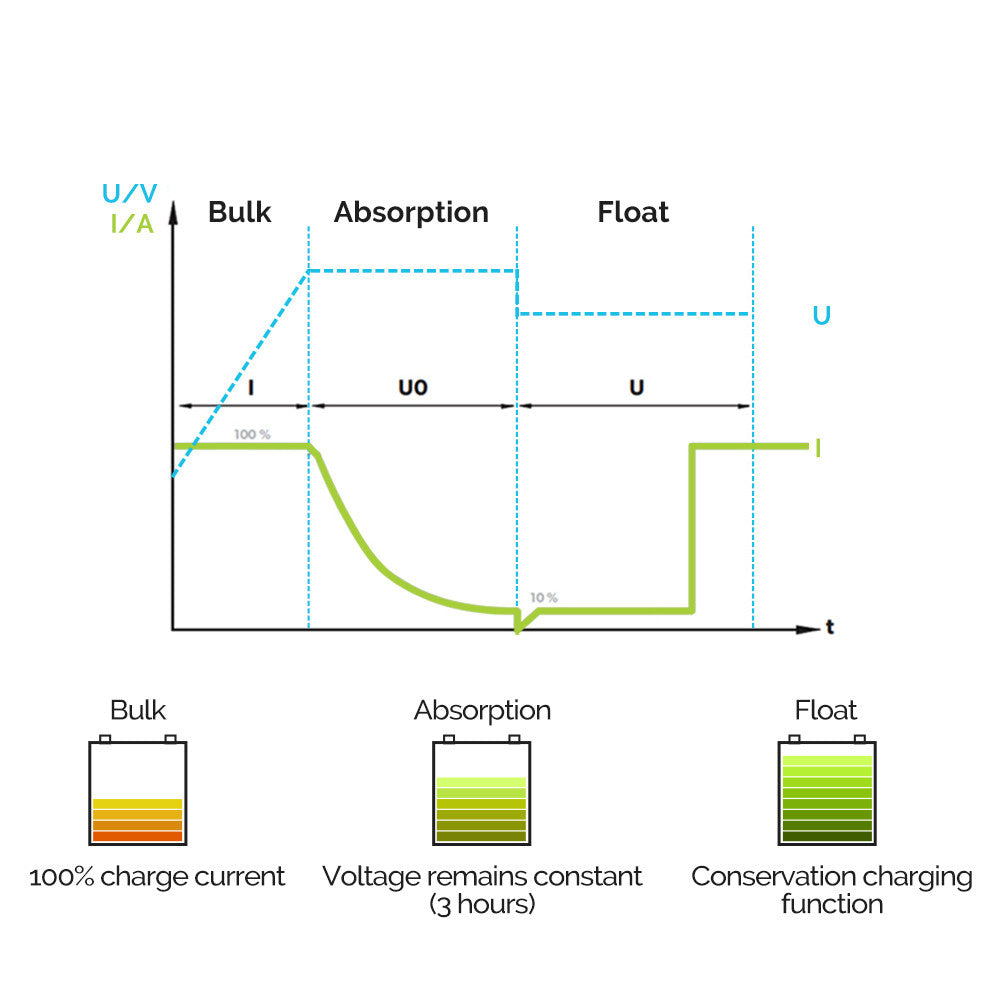

The DC-DC battery charger will charge your house batteries from the starter battery by 3-stage charging (Bulk, Boost, and Float), to make sure it optimally and automatically charge to 100%.

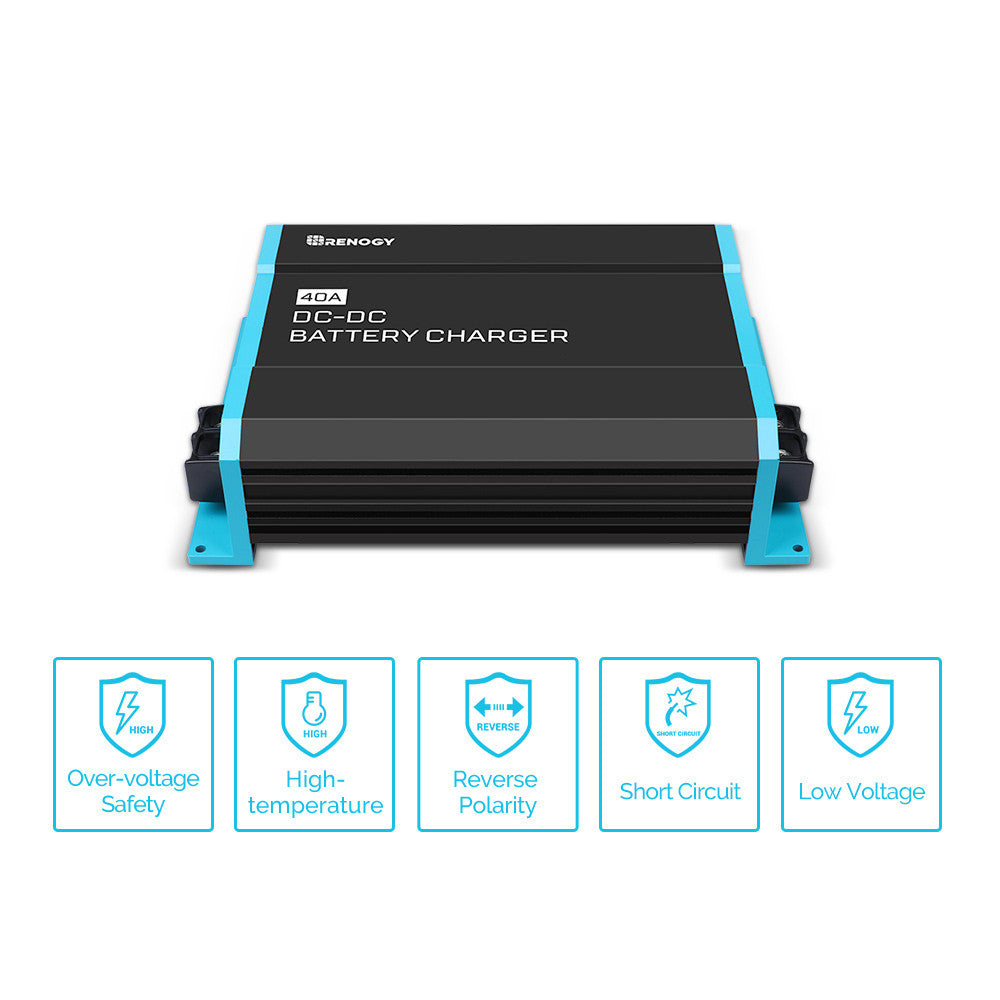

The DC-DC battery charger isolates the input and output to prevent voltage transmission errors and interfere with house battery charging. It has multifunctional safety technology including over-voltage protection, over-temperature protection, and reverse polarity protection to make it safer for use.

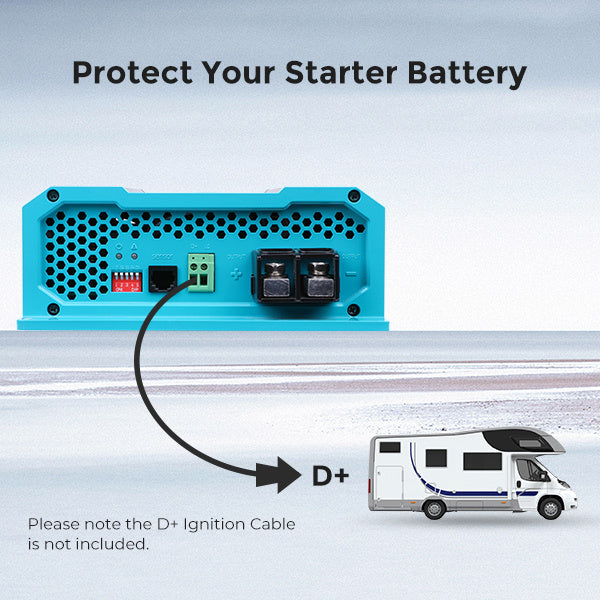

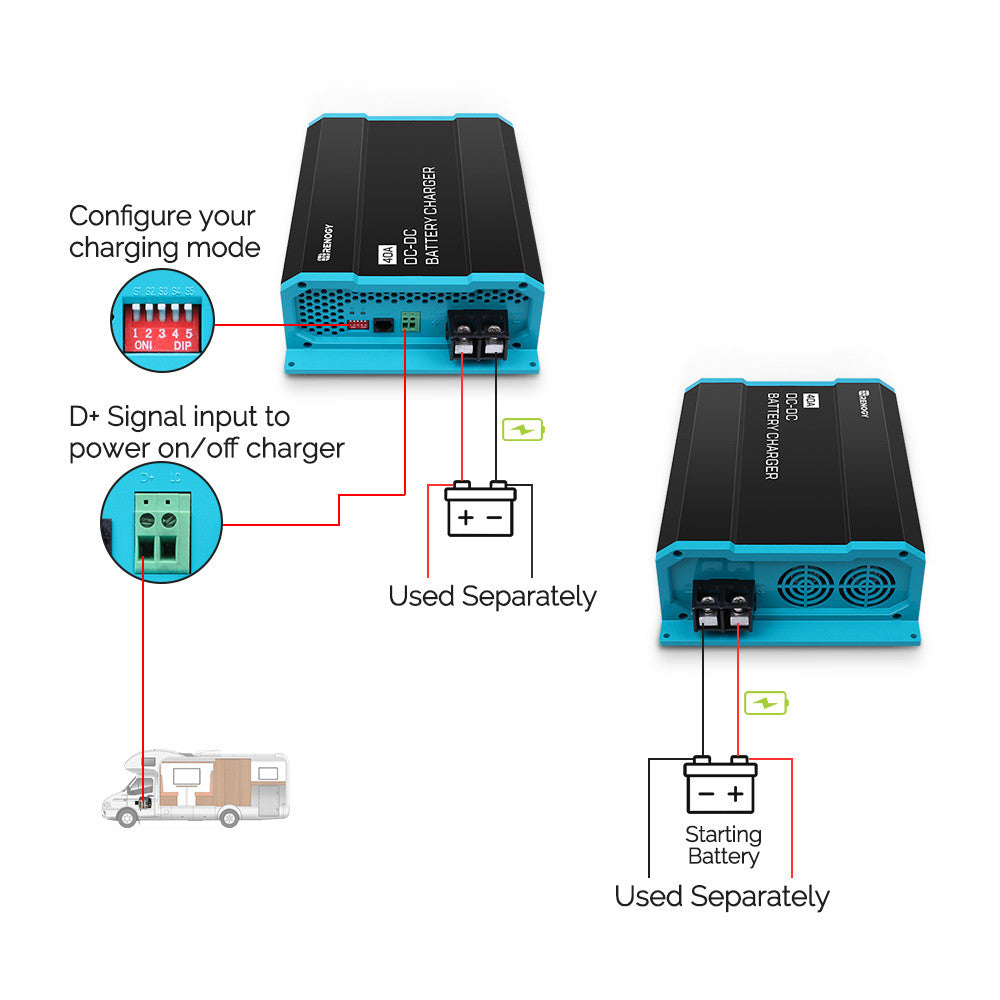

This Renogy DC-DC battery charger is compatible with traditional and smart alternators. The D+ Ignition cable is capable of identifying whether the generator is started, to prevent over-discharge of the starting battery and protect the generator. 18-16AWG copper cable recommended.
Please note the D+ Ignition Cable is not included.

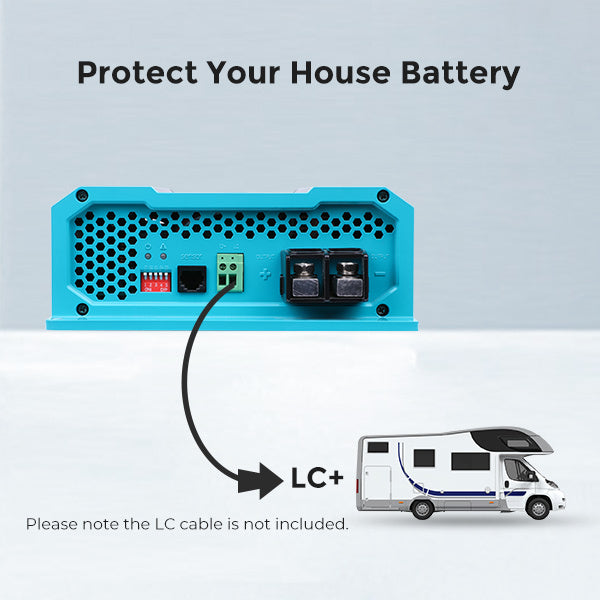

The LC wire can automatically adjust the charging current to prevent excessive charging current from damaging the house battery. 18-16AWG copper cable recommended.
Please note the LC cable is not included.

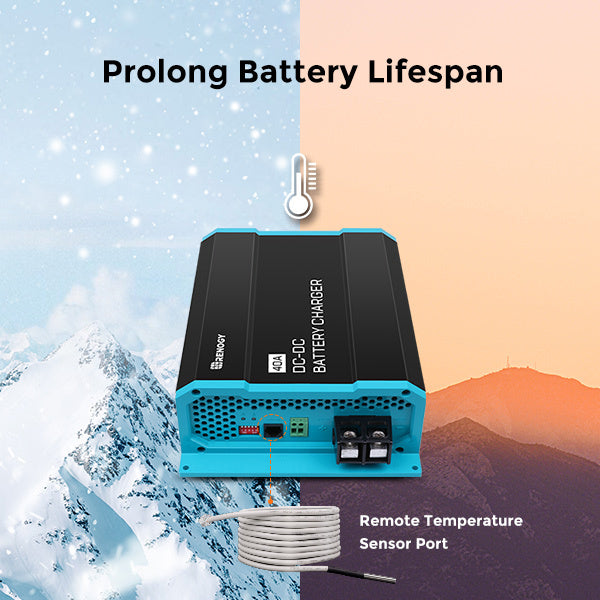

The charger needs to select the charging mode according to the battery voltage. By utilizing the DC-DC temperature sensor, this charger is able to protect your battery from high or low temperature by giving -3mV/°C/2V compensation so that the charger recognizes the voltage more accurately and assures stable and constant charging to the battery.
Please note the temperature sensor is not included and it cannot use with Lithium batteries.

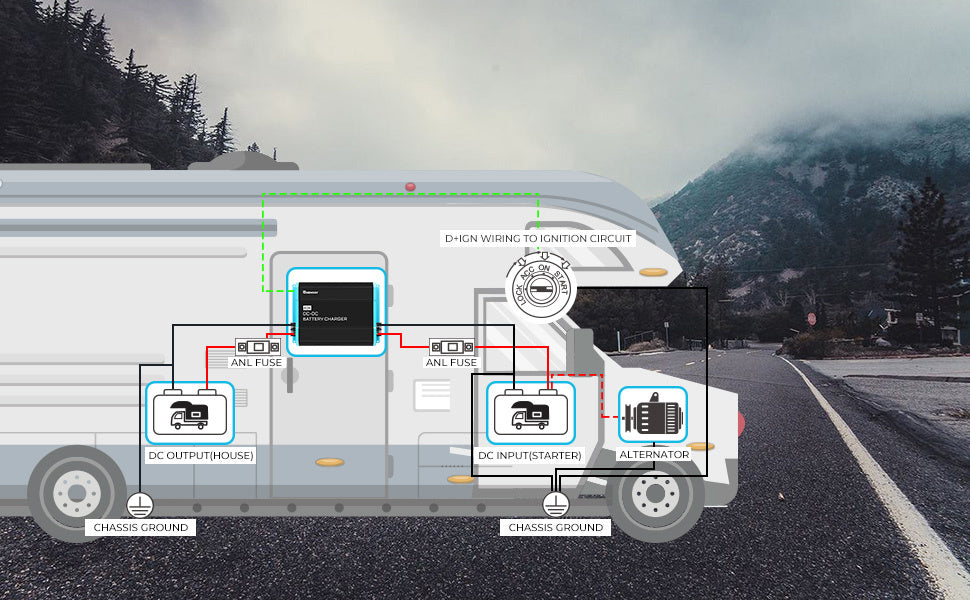

This diagram shows the whole connection of the DC-DC On-Board Battery Charger.
- If you have any questions regarding this product, pleaseemail us at supporteu@renogy.com for troubleshooting assistance.
Package Include
|

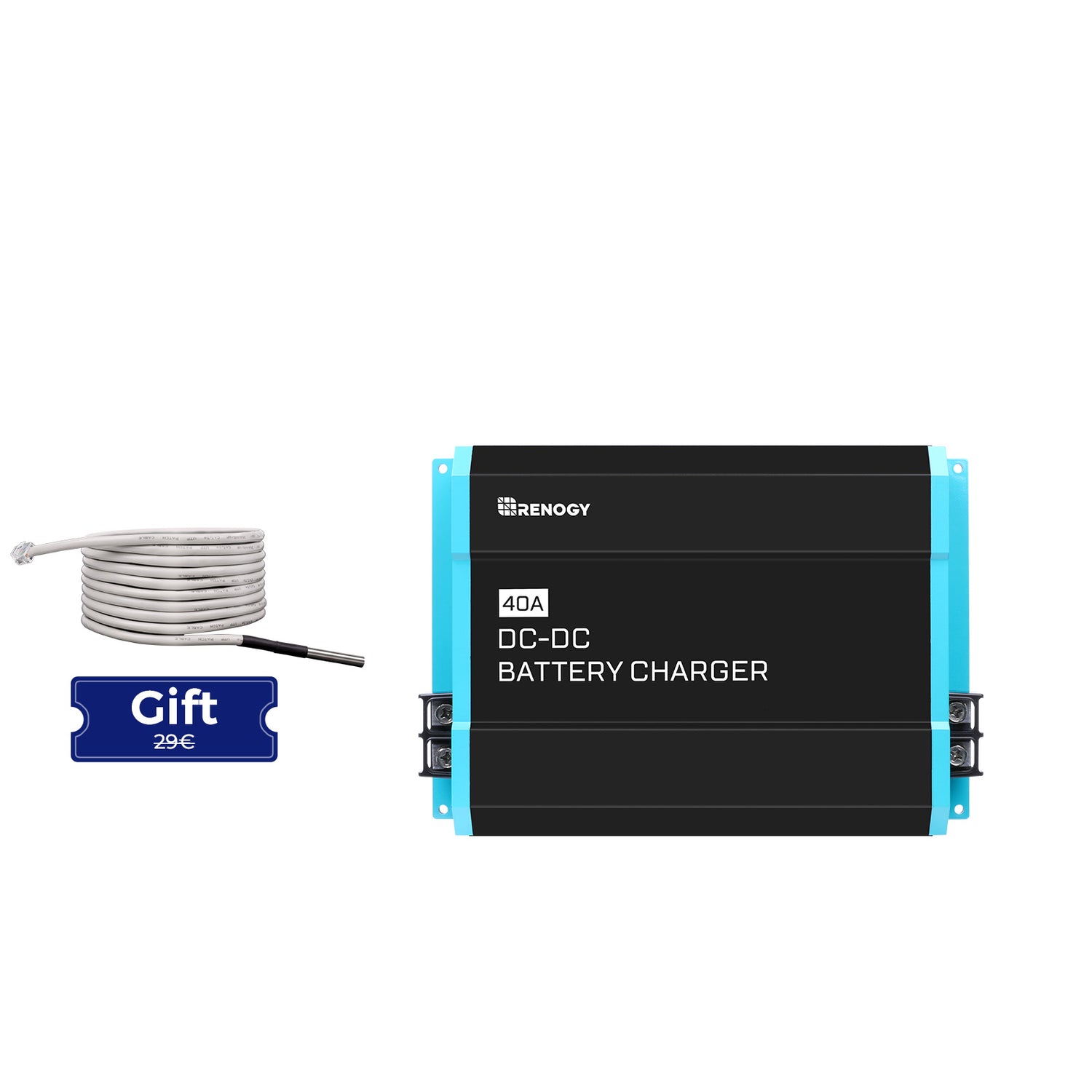

Renogy 40A DC to DC Battery Charger
1 x |
| Renogy 40A DC to DC Battery Charger | |
|---|---|
| Nominal Voltage: 12V | Rated Charge Current: 40A |
| Output: 500W | Idle Power Consumption: <0.4A |
| Input Voltage Range: 8V-16V | Equalization Voltage: N/A |
| Float Voltage: 13.2-13.8v | Boost Voltage: 14.1-14.7v |
| Operating Temperature: -20°C to +50°C | Dimensions: 10.28 x 6.89 x 2.68 inches |
| Weight: 4.14lbs/1.88kg |
Warranty Information
| Accessories | 1-year material warranty |
Certification
 |
1. Make sure that the entire system is a 12V system
2. Ensure that the maximum charging current provided by the DC-DC battery charger does not exceed the maximum charging current allowed by the house battery
The D+ Ignition cable is a design method used to identify whether the generator is started. This design method can well prevent the starting battery from being over-discharged during the charging process. When the generator is started, a signal will be obtained on the D+ Ignition cable, which will light up the indicator light of the charger.
The DC-DC will not power on or operate until the D+ ignition cable is connected.
 |
|||
 |
|||
 |
|||
| Please refer to the manual below if you bought the battery charger before 03/25/2020: | |||
| 12V DC to DC On-board Battery Charger Manual V1.2 | |||
