Description
Take command of your power system with a Renogy Premium Solar Kit. If efficiency and reliability are high on your wish list, the Renogy 200W 12V Premium Kit is your choice.
The included 100W Solar Panels are not only sleek in size and weight, but are made of high-efficiency monocrystalline solar cells.

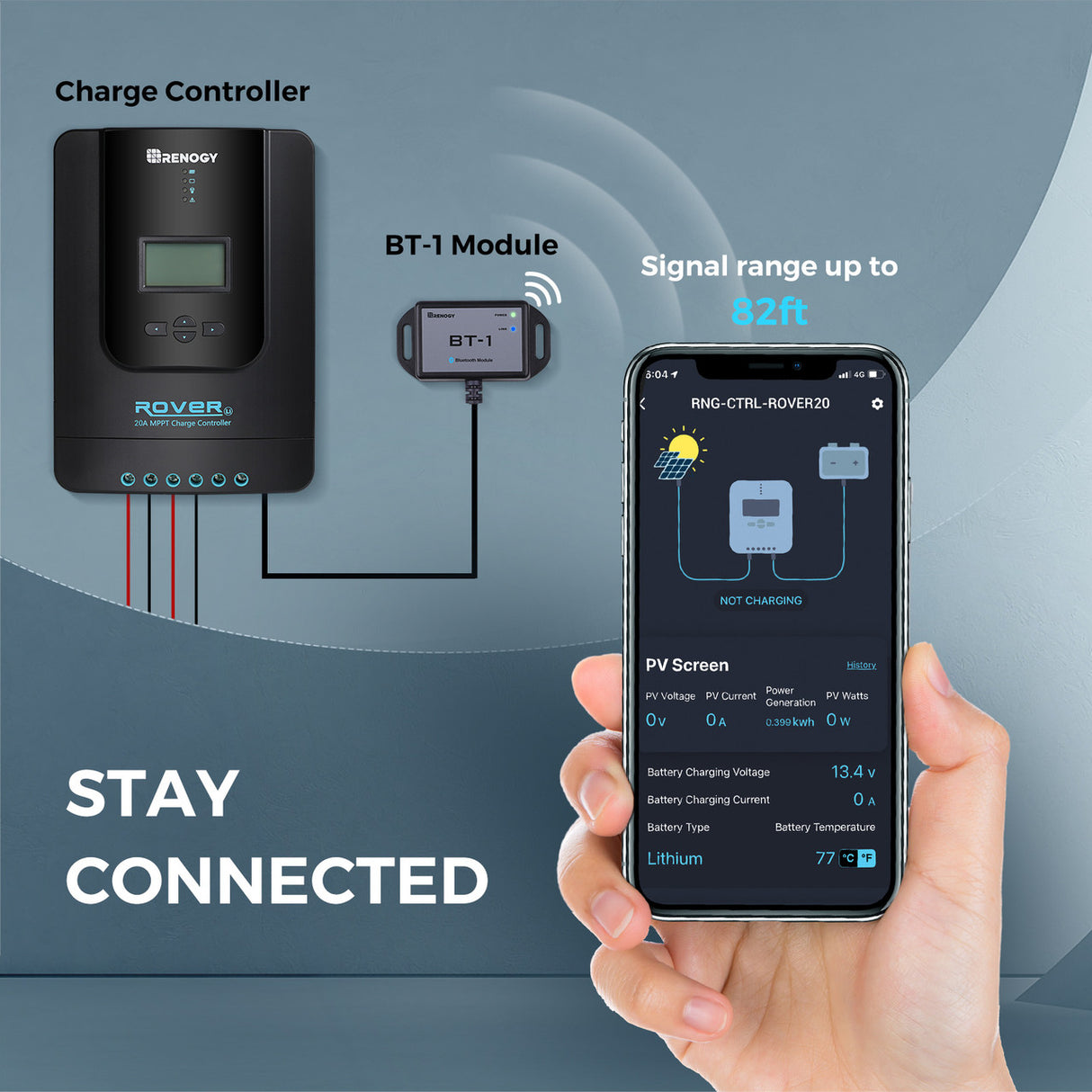

The included Rover 20A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. Our new Bluetooth module is also included which can be paired to the Renogy DC Home smart phone App. The Renogy DC Home smart phone App allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of mounting Z-Brackets, one pair 10ft 10AWG MC4 Adaptor Kit, one pair 8ft 10AWG Tray Cable and fusing components.

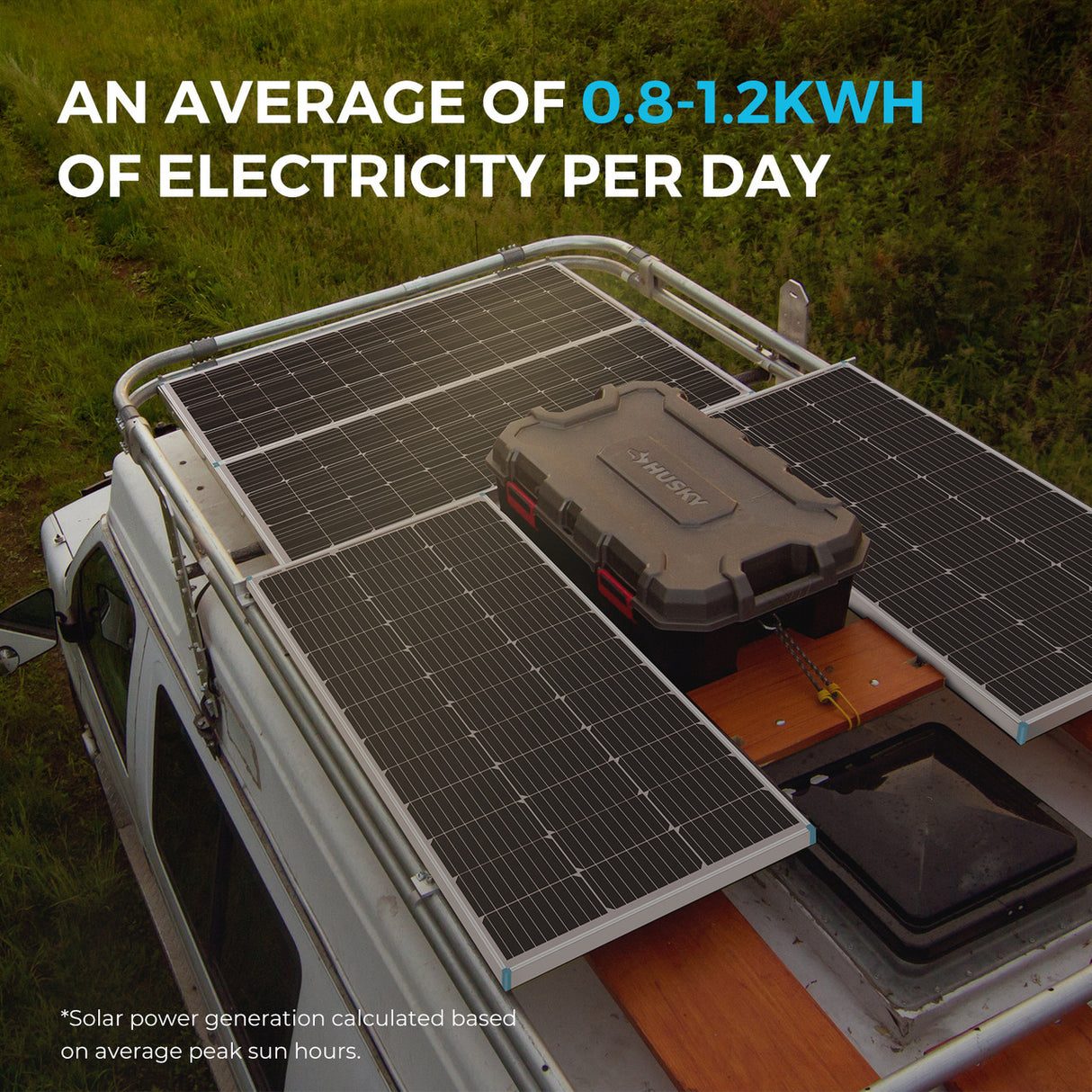

This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite.
If you have any questions regarding this product, please submit a case！
Key Features
Efficient- Monocrystalline panels come with high-efficiency cells. Cell efficiency: Monocrystalline 21%.
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

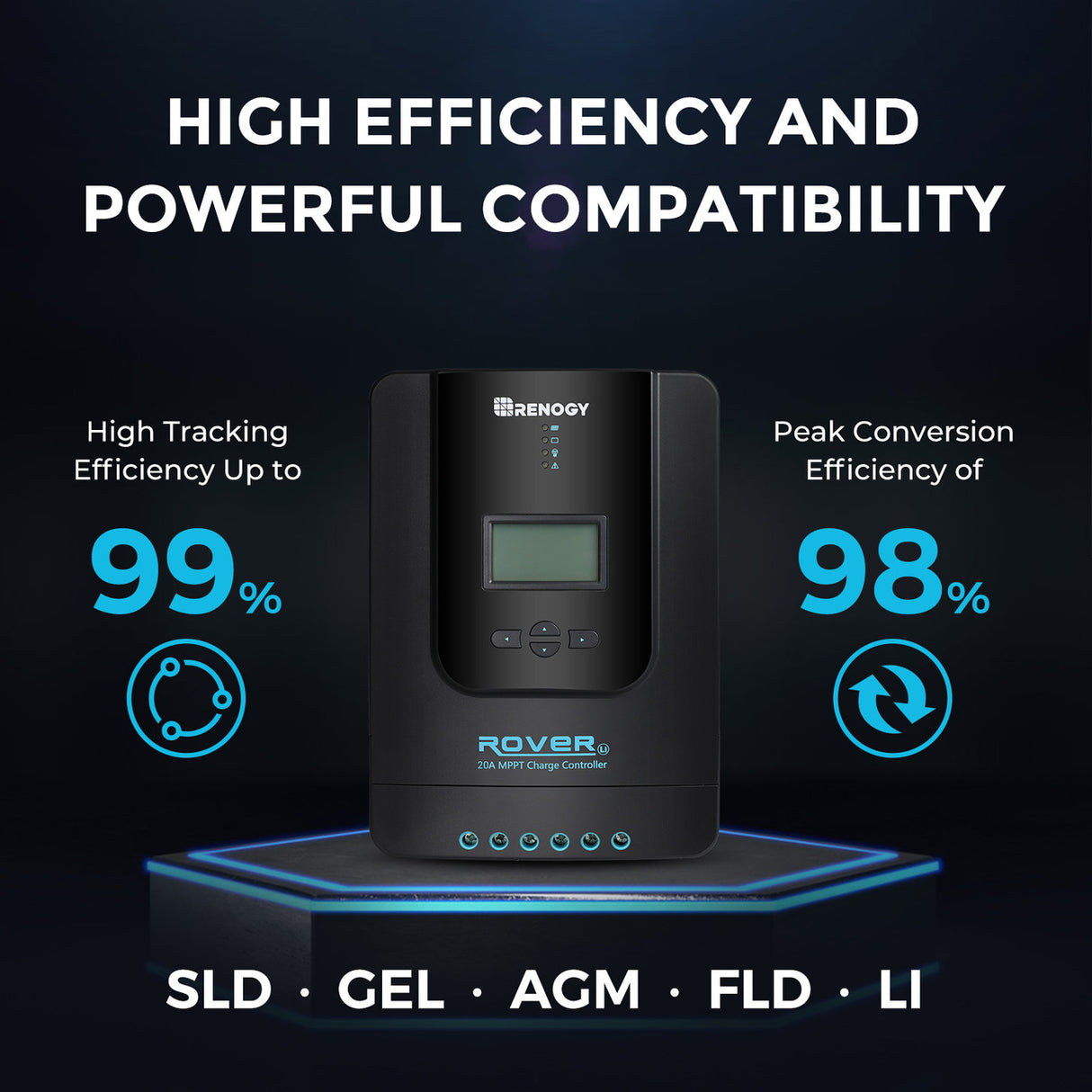

- Rover charge controller brings peak conversion efficiency of 98%, high tracking efficiency of 99%.
- EL tested solar modules: no hot-spot heating guaranteed.
- TPT back sheet ensures smooth performance over a long period of time.
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.
- 4-Stage battery charging process for rapid, efficient, and safe charging.
- RS-232 port compatibility for extra features.
- Compatible with Renogy Bluetooth Module and Renogy BT app for remote monitoring.
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Comes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery.
DOWNLOAD LINKS
Package Includes
|
2 x |
Rover 20A MPPT Charge Controller
1 x |
|
1 x |
2 x |
|
1 x |
10A MC4 and 20A ANL Fuse
1 x |
|
MC4 Branch Connectors MMF+FFM Pair 1 x |
|
| 100W Compact Design Solar Panel | |
|---|---|
| Maximum Power at STC: 100W | Weight: 6.4 kg |
| Maximum System Voltage:600V DC(UL) | Dimensions: 41.8 x 20.9 x1.4 in |
| Open-Circuit Voltage (Voc): 24.3V | Operating Temperature:-40°F to 176°F |
| Short-Circuit Current (Isc): 5.21A | Cell Efficiency:21% |
| Optimum Operating Voltage (Vmp): 20.4V | Maximum Series Fuse Rating: 15A |
| Optimum Operating Current (Imp): 4.91A |
| ANL 20A Fuse Set | Solar Panel MC4 Branch Connectors (Pair) |
|---|---|
| Current Rating: 20A | Withstanding voltage: 1000V DC(TUV), 600V(UL) |
| Voltage Rating: 72V | Contact Resistance: 1m |
| Interrupt Capacity: 180A (48V) | Temperature: -40°F to +194°F |
| Unmating Force:147.51Ft·lb | |
| Contact Material: Copper, silver plated |
| Mounting Z Brackets (Set) | Renogy 8ft 10AWG Tray Cables (A pair) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 10 |
| Four Nuts | Temperature: -40°F to +185°F |
| 20A Rover Charge Controller | BT-1 Bluetooth Module |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Max Solar Input Voltage: 100 VDC |
| Rated Battery Current: 20A | Mounting Oval: 0.76 x 0.46cm (0.30 x 0.18in) |
| Rated Load Current: 20A | Net Weight: 1.4kg/3.08 lb. |
| Max. PV Input Short Current: 25A | Discharge circuit voltage drop: ≤ 0.15V |
| Max. Battery Voltage: 32V | Overall Dimension: 21 x 15 x 5.9 cm (8.27 x 5.94 x 2.34 in) |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
 |
|||
 |
|||
| Please click the links below to download the manuals: | |||
| 100W Compact Panel | |||
| BT-1 Bluetooth Module | |||
| 20A Rover Charge Controller | |||
| Mounting Z Brackets | |||
