5,12kWh Caravan Power System | 3000W Inverter (EU Plug, 2-Pin), 200Ah Lithium Battery x2

SKU: RBD200LFPx2-PUH3-EU
€1.063,99 €1.785,99
Tax included. Shipping by weight.
+ 10630   Renogy Rays after purchase.
Log In Learn More

Inverter (EU Plug, 2-Pin) – Not for Ireland

Option
Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
Reviews

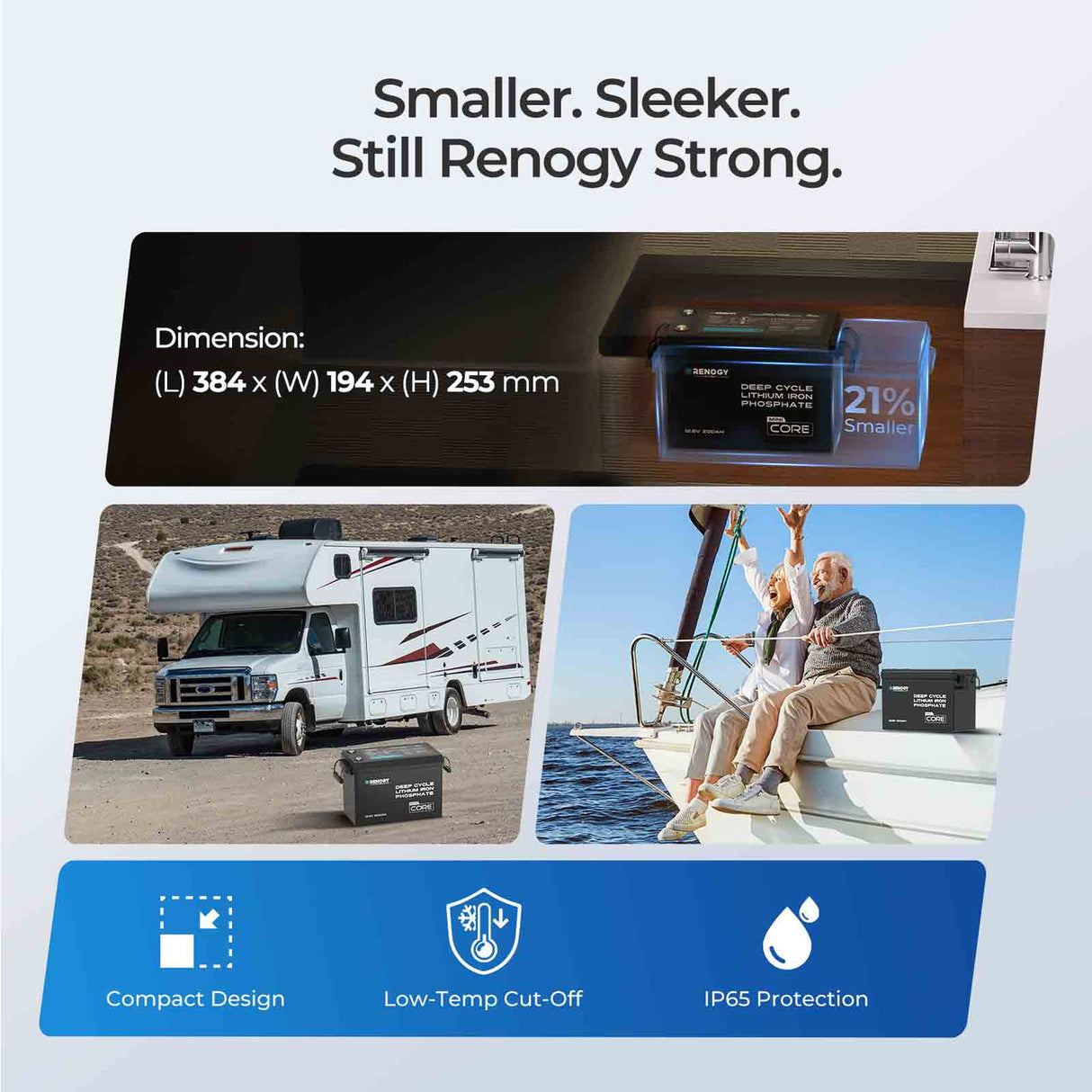

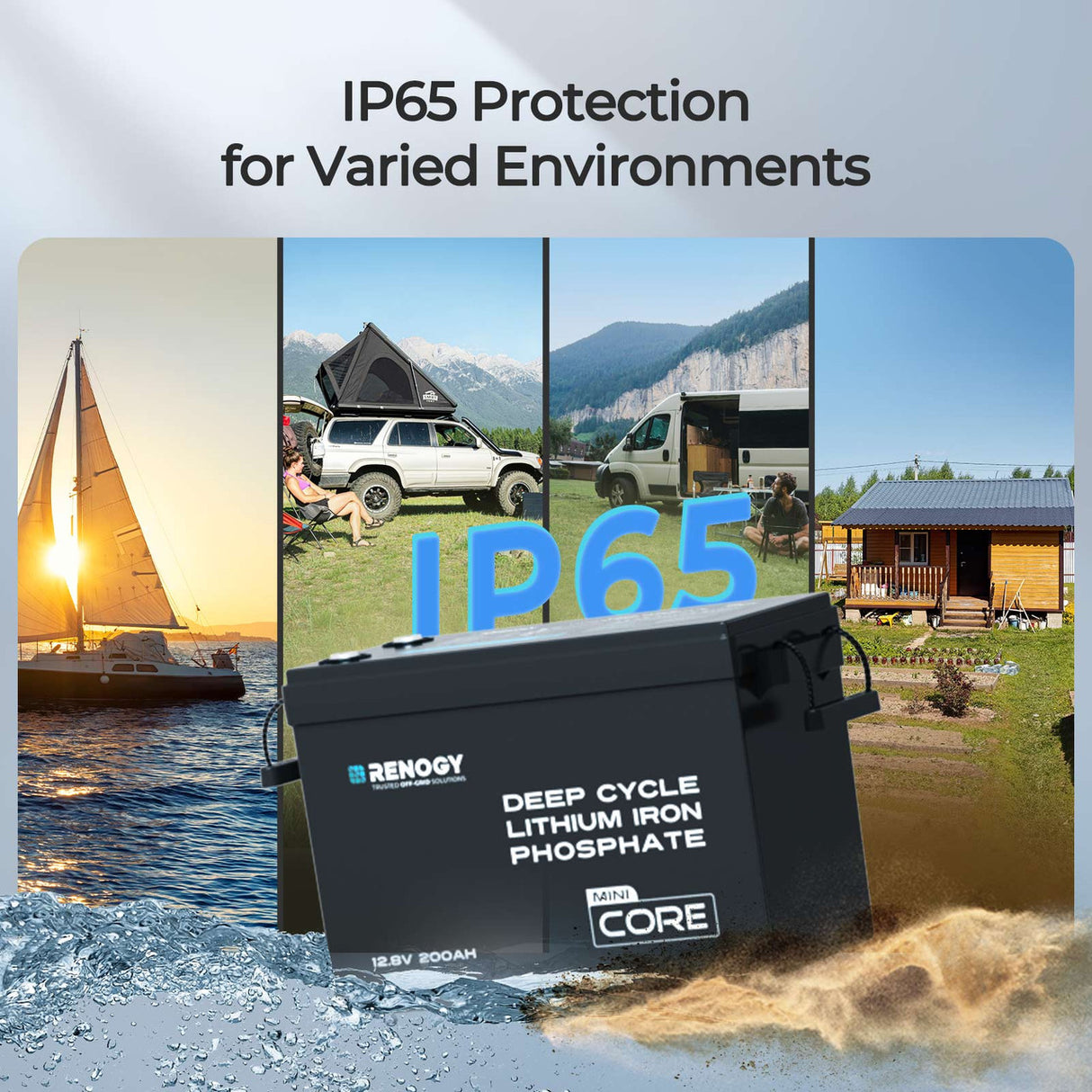

Smaller, Sleeker, Still Renogy Strong.

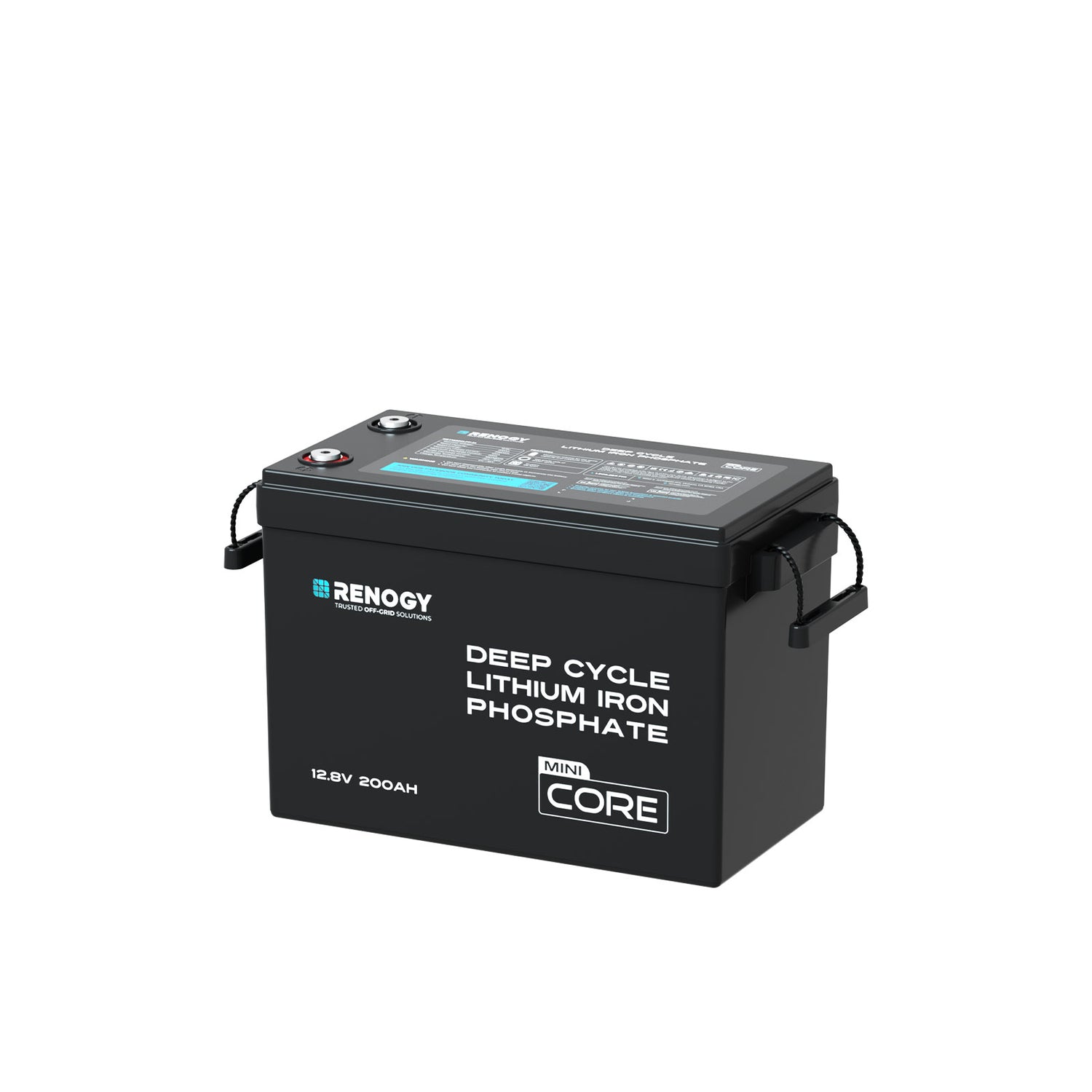

Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

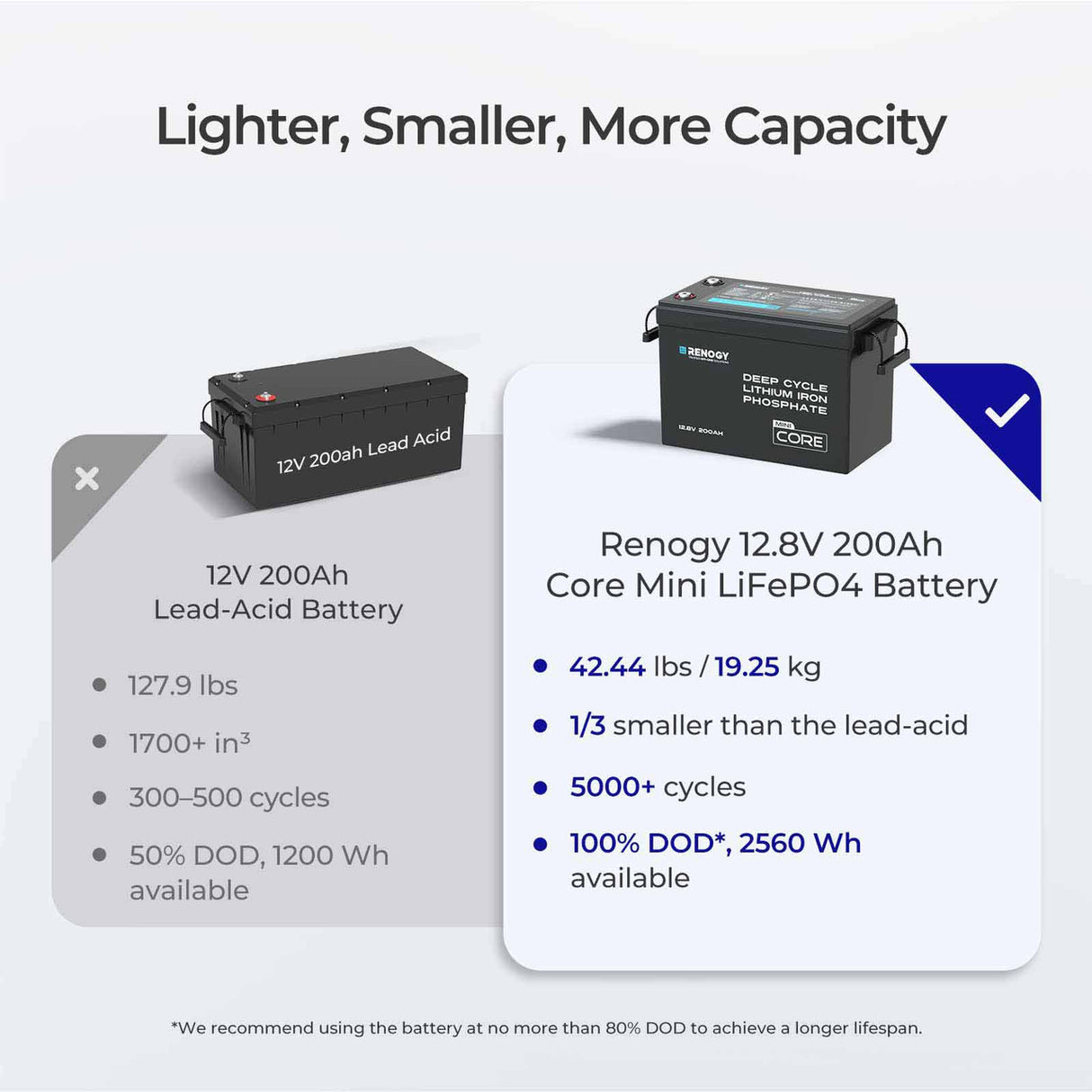

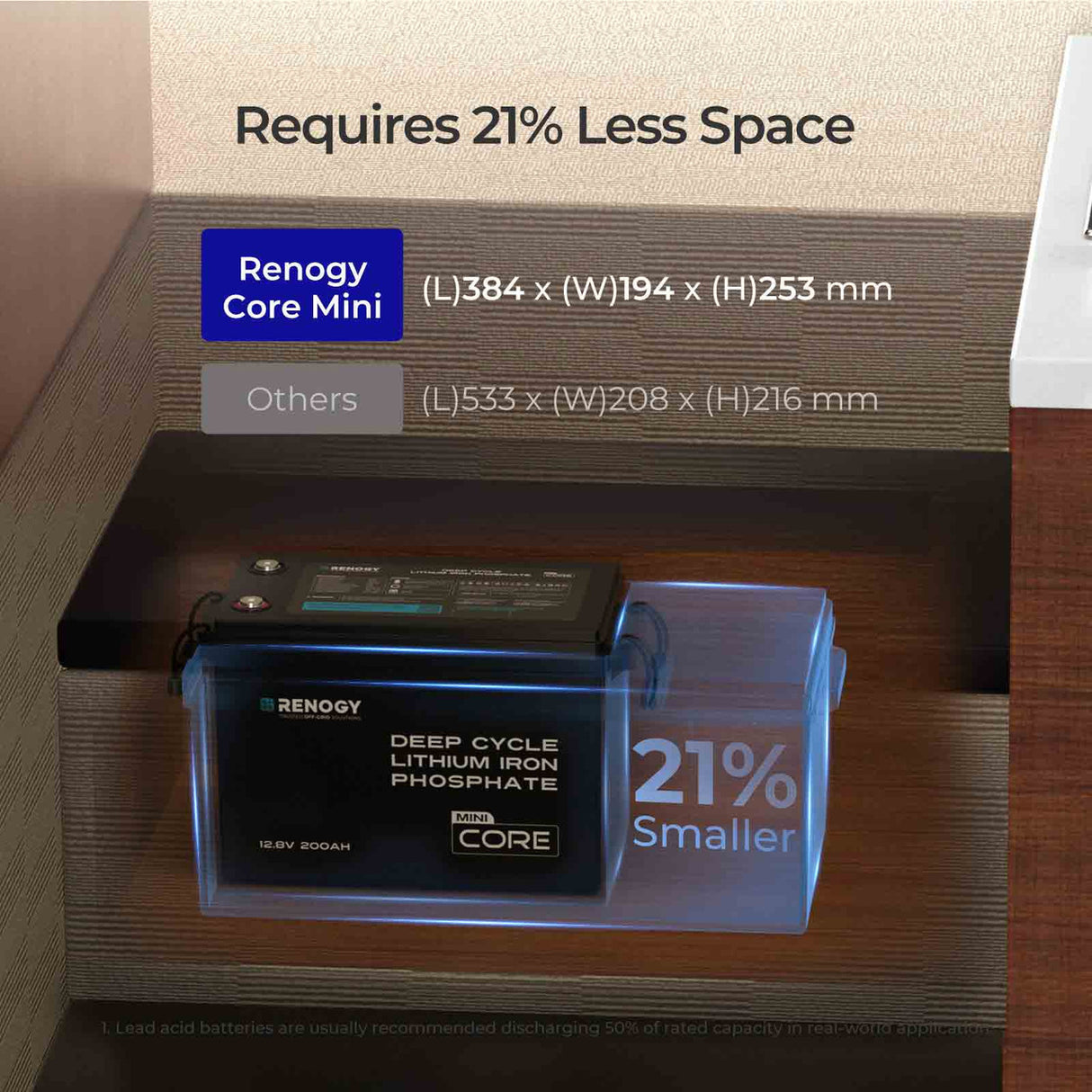

21% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

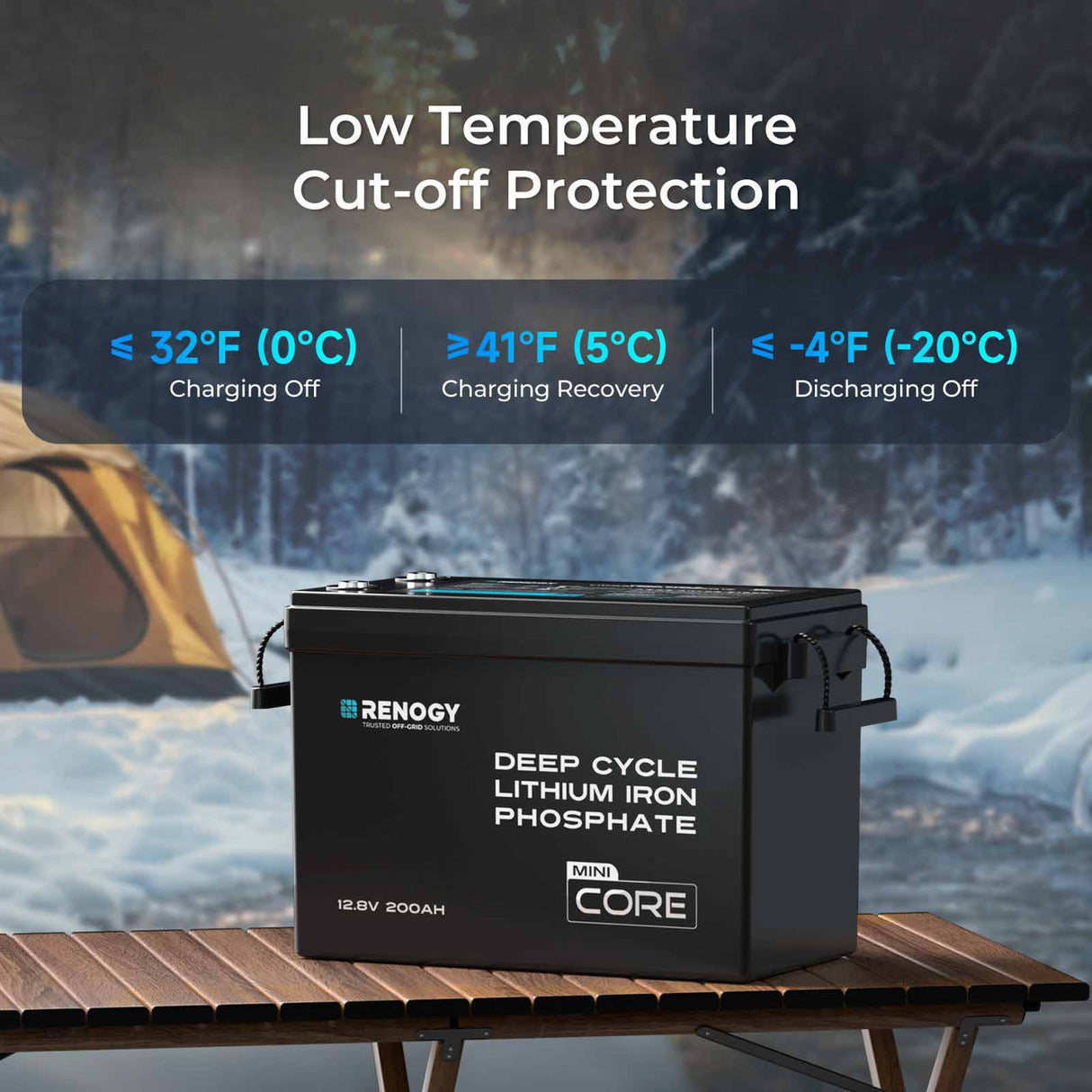

Hands-Free Low-Temp Cut-Off

The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

Peak Power Output
Vibration-Resistant Design
Tested & Trusted Power

Peak Power Output

Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

Vibration-Resistant Design

Metal cell spacers prevent damage in rough terrain and choppy waters.

Tested & Trusted Power

Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

Effortless installation
Wiring diagram

Hassle-free setup

Whether you’re a seasoned solar enthusiast or new to solar, our clear instructions ensure you can start using clean, reliable energy without complications. Make your off-grid adventure easy and confident with the Renogy inverter.

A Complete Solution for Off-Grid Energy Supply

Seamlessly integrates Renogy solar panels, charge controllers, and batteries with the versatile pure sine wave output of the inverter. Reliable, efficient, and the ultimate solution for off-grid power supply.

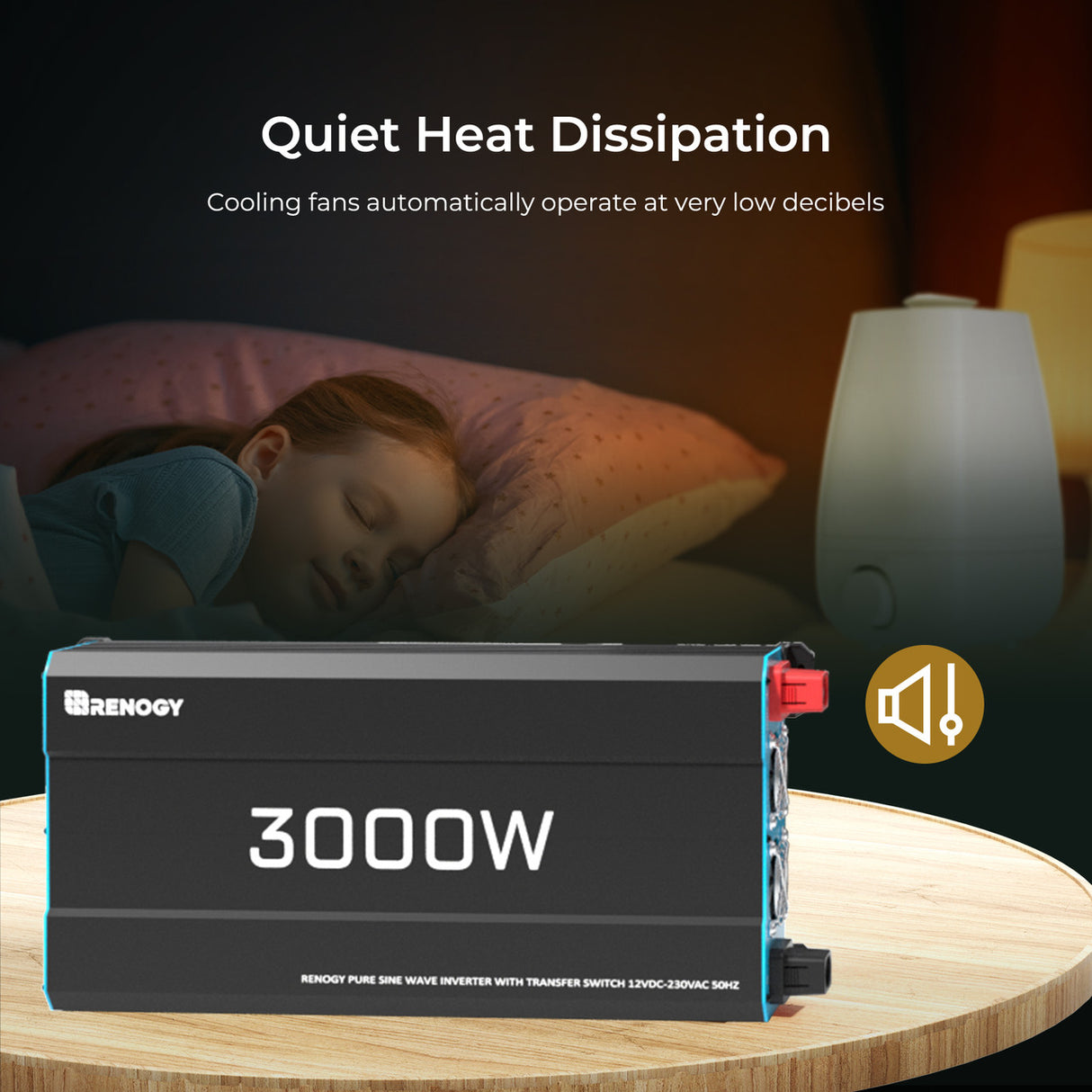

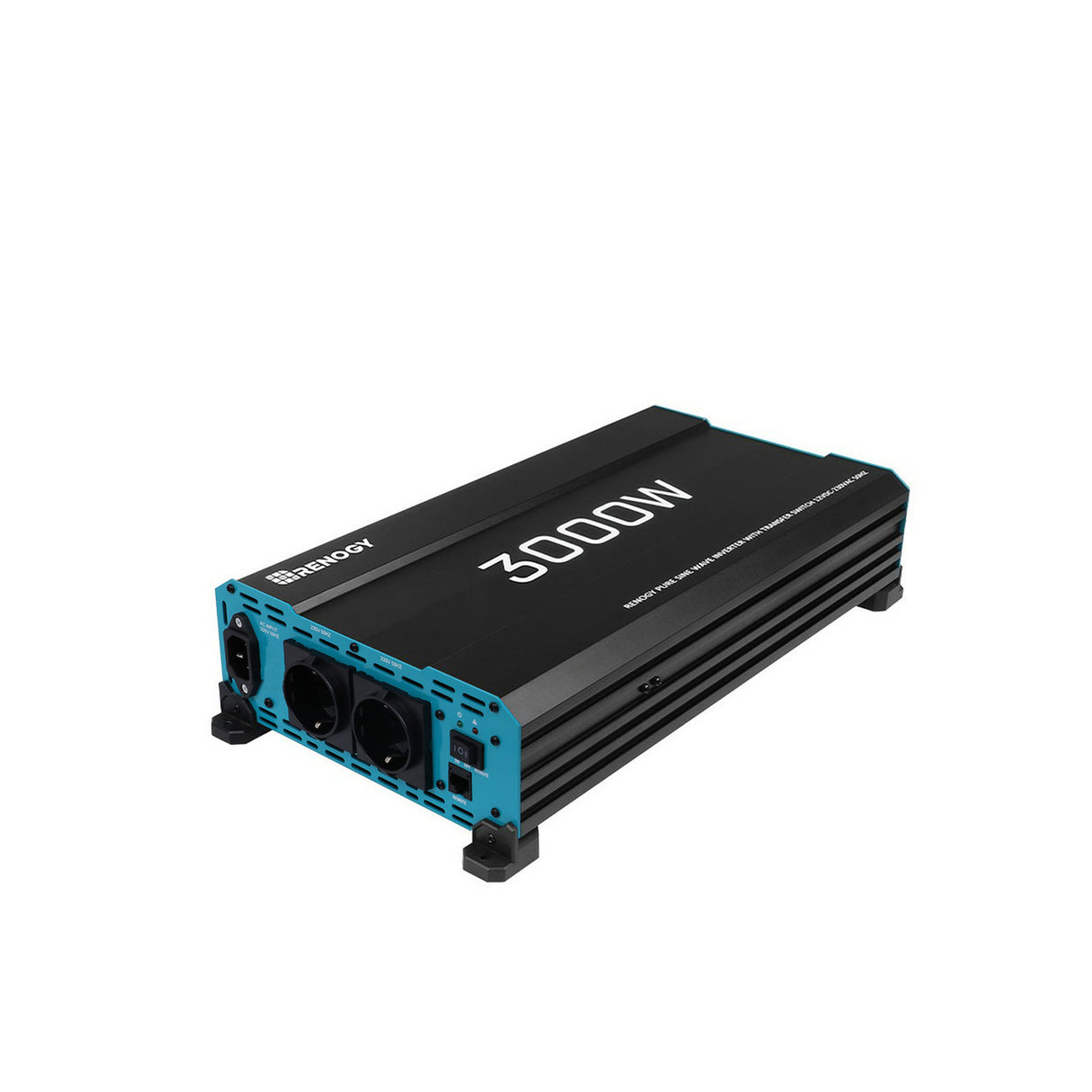

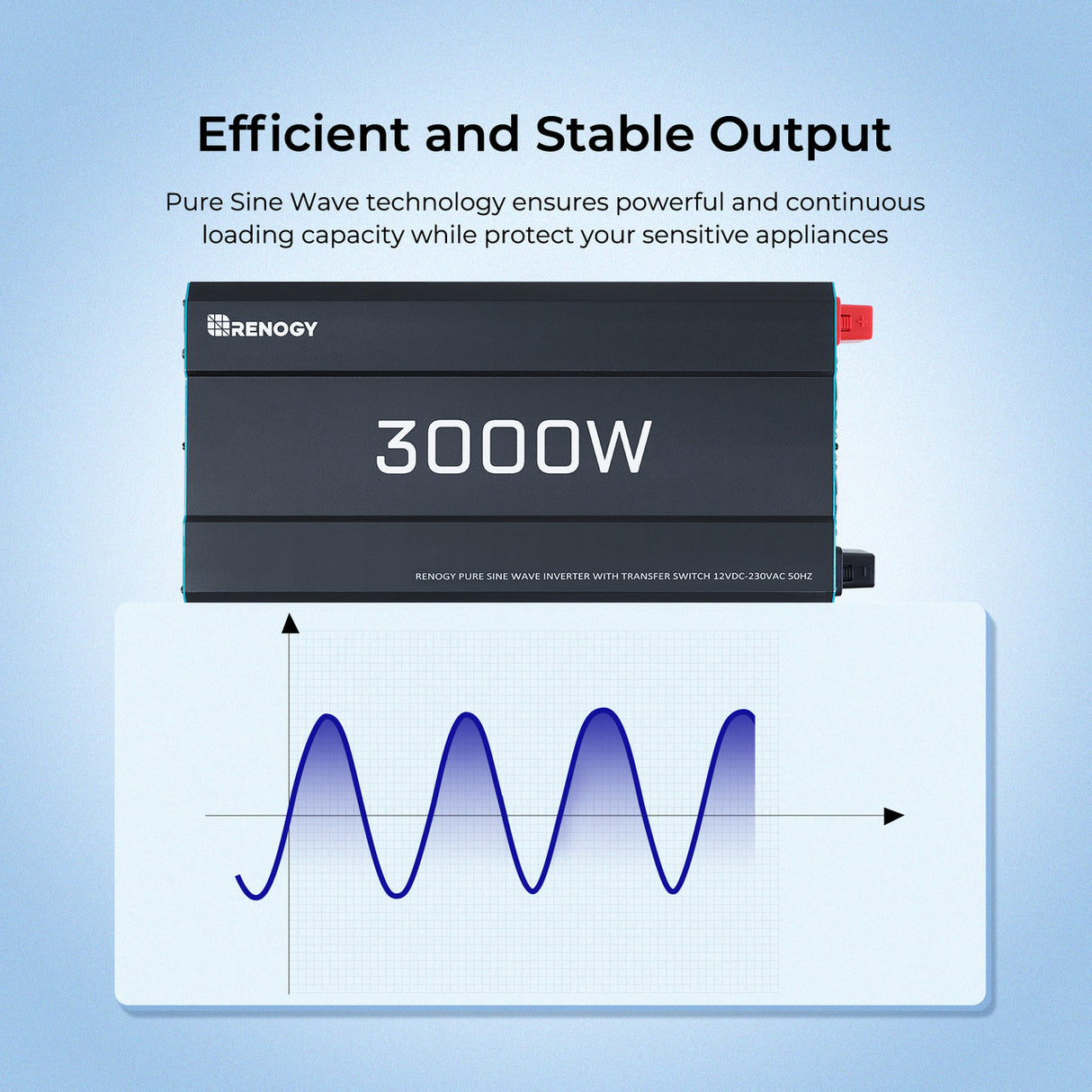

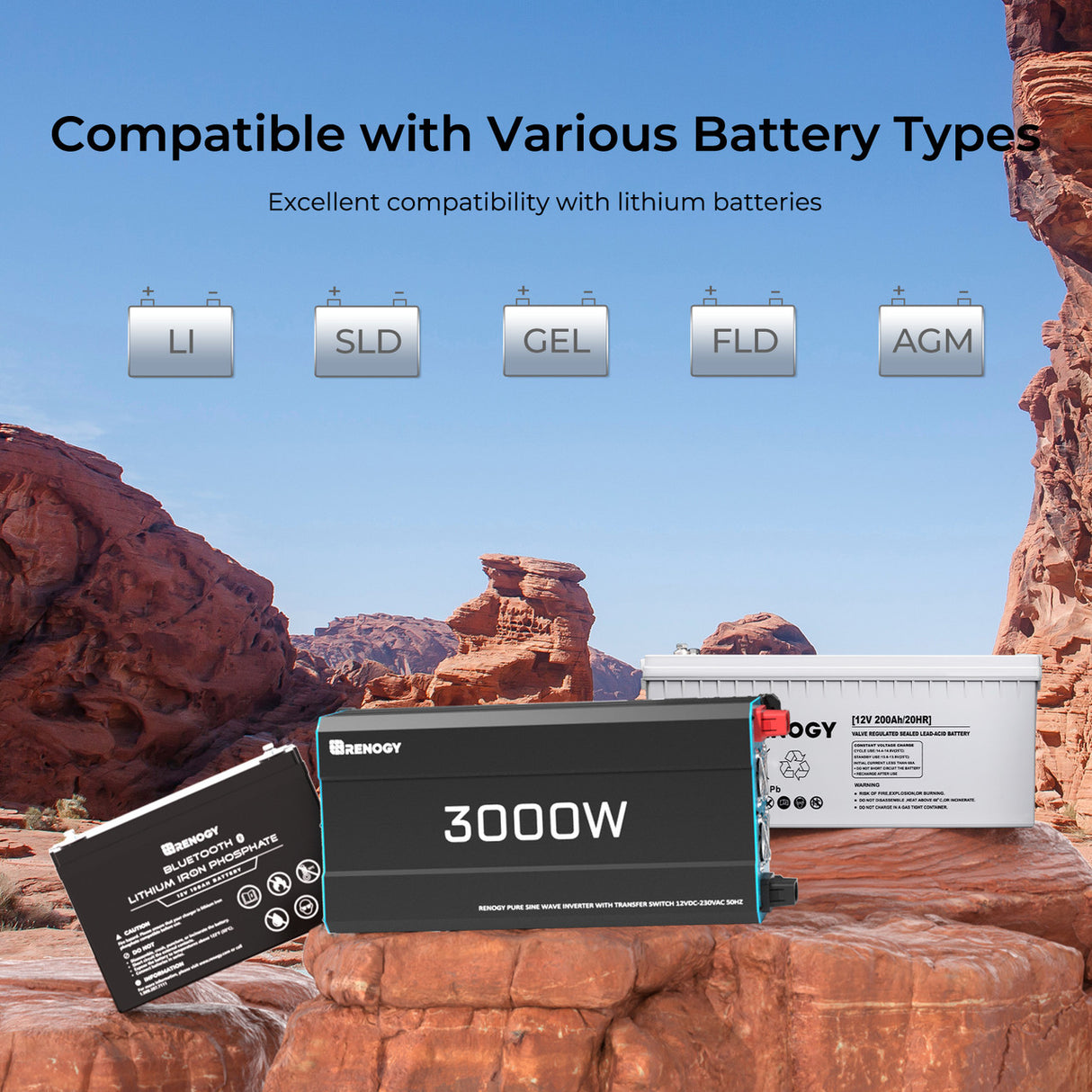

Versatile Pure Sine Wave Output

The pure sine wave output provides a smooth, stable power supply that mimics utility grid electricity, making it highly versatile and compatible with a wide range of electrical appliances. Renogy inverters work seamlessly with sensitive appliances, preventing compatibility issues or interference, extending their lifespan, and ensuring reliable performance.

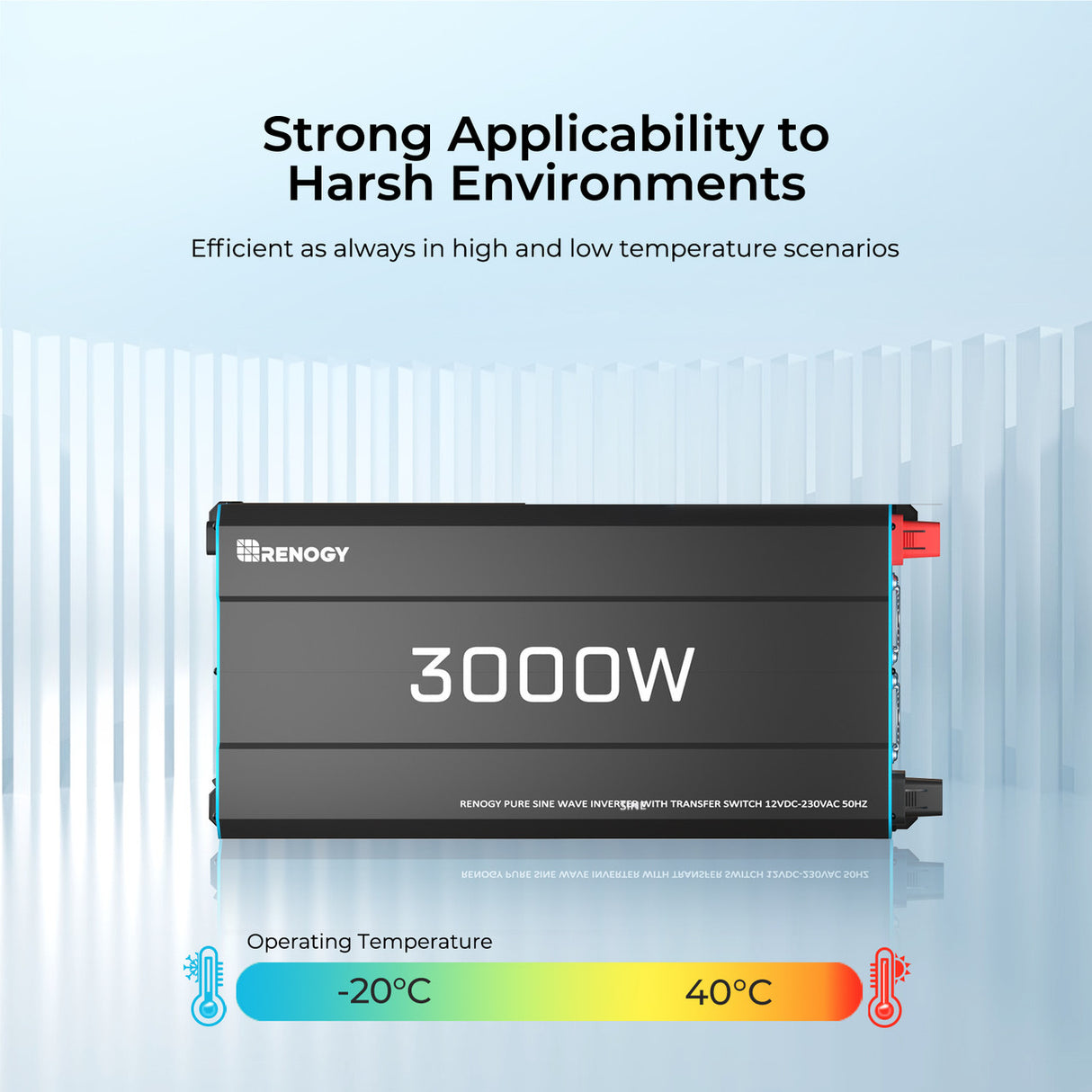

Robust Metal Housing

Made from durable materials with first-class workmanship, it stands the test of time and withstands harsh conditions. It offers exceptional performance and worry-free operation.

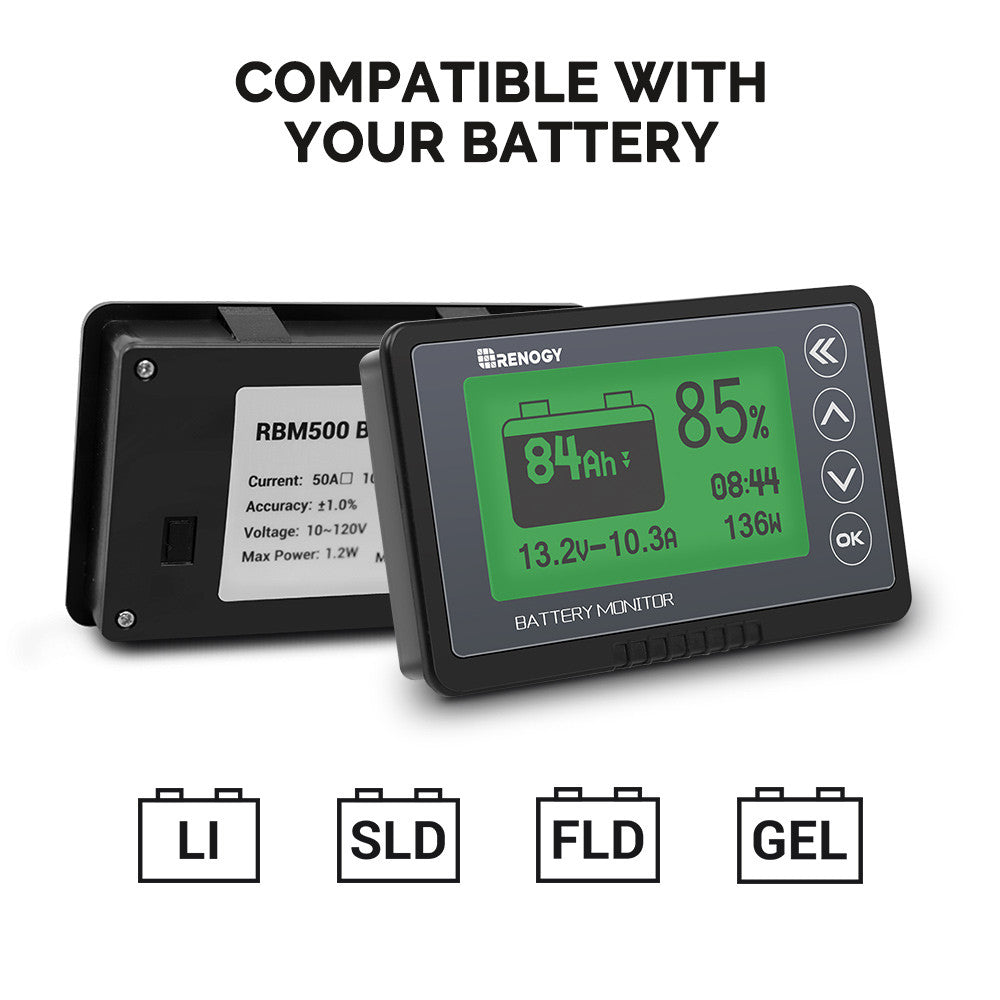

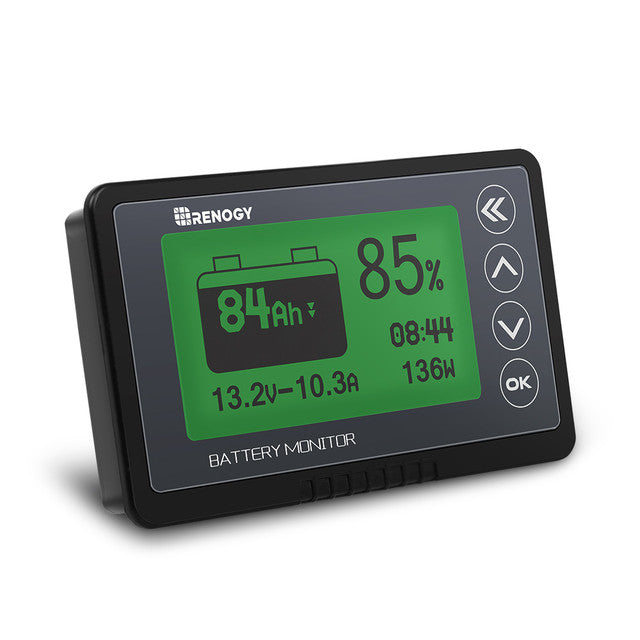

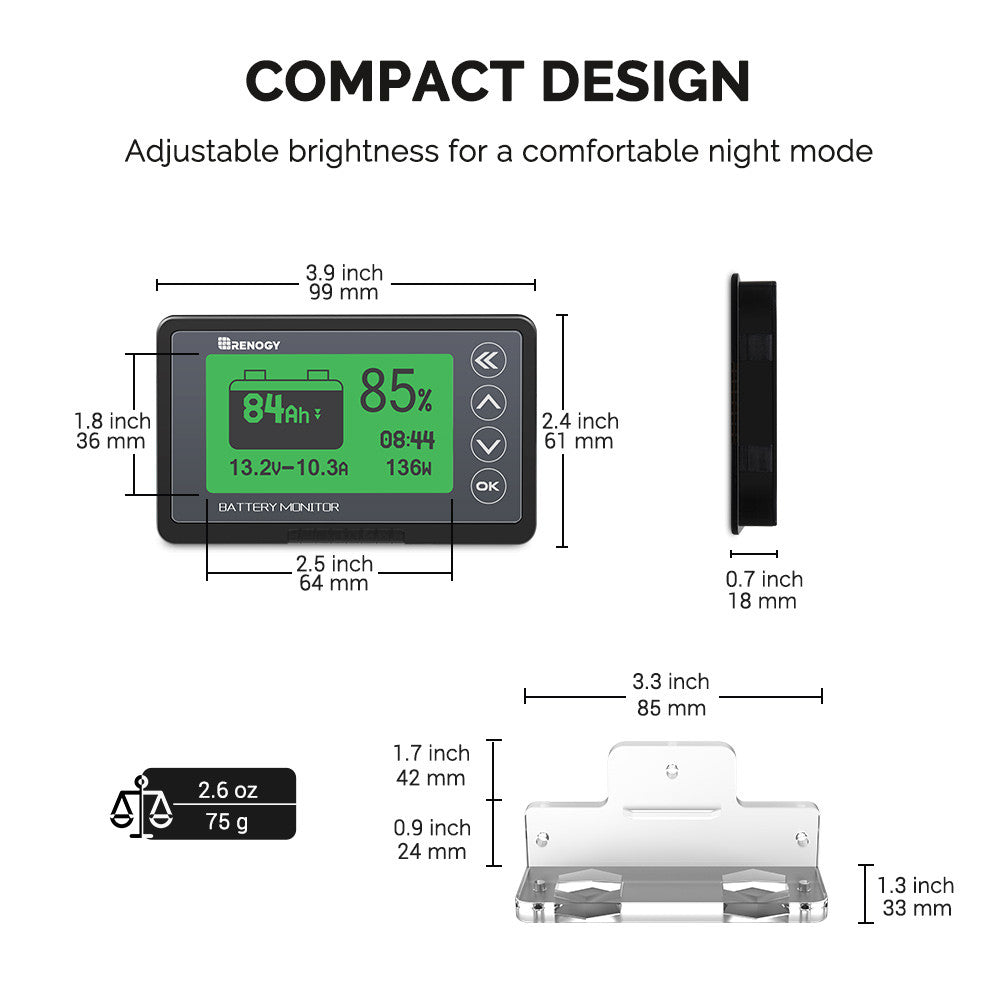

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

PROTECT YOUR BATTERY

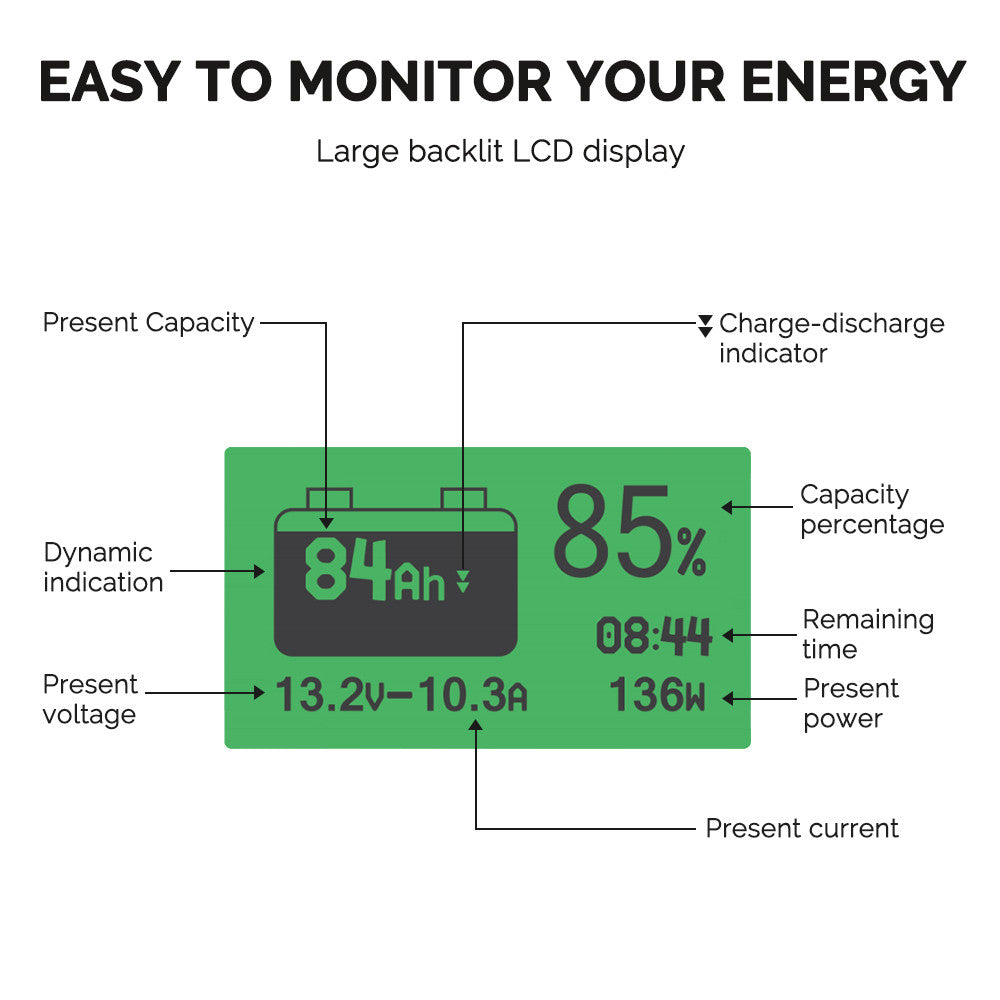

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

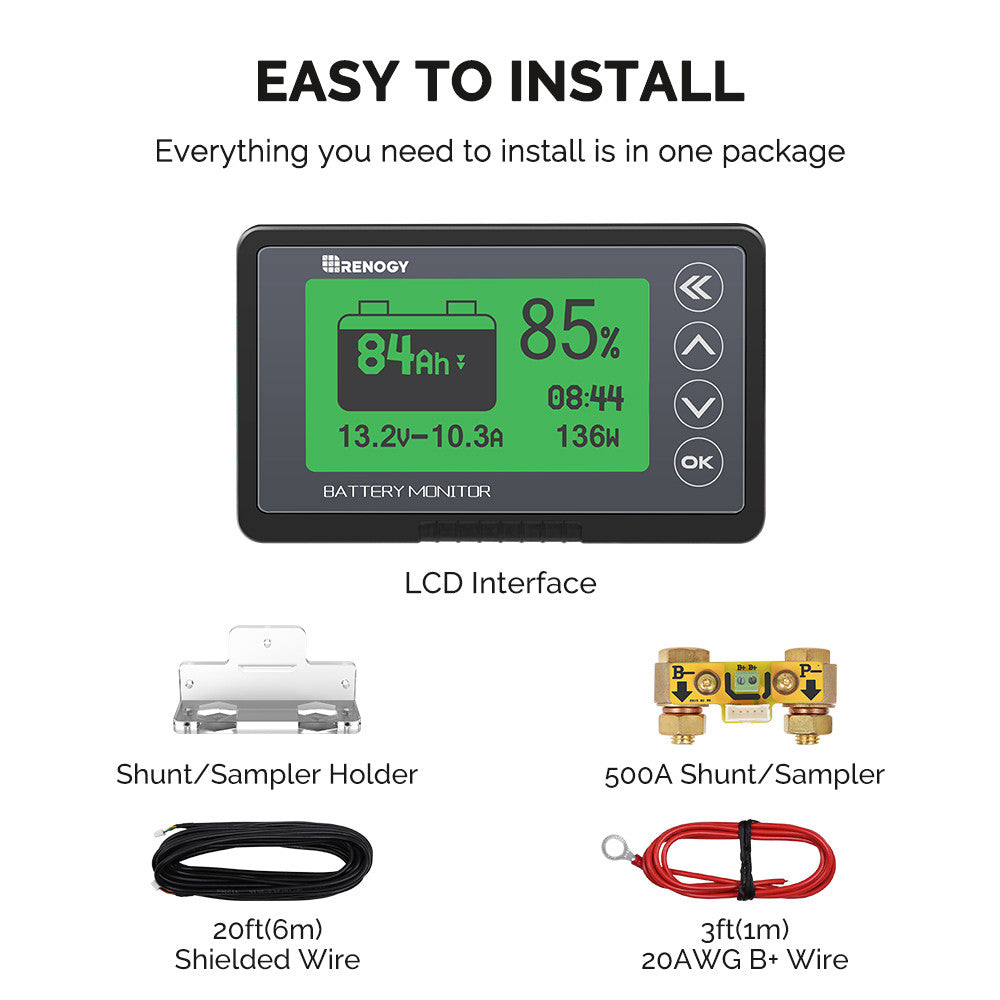

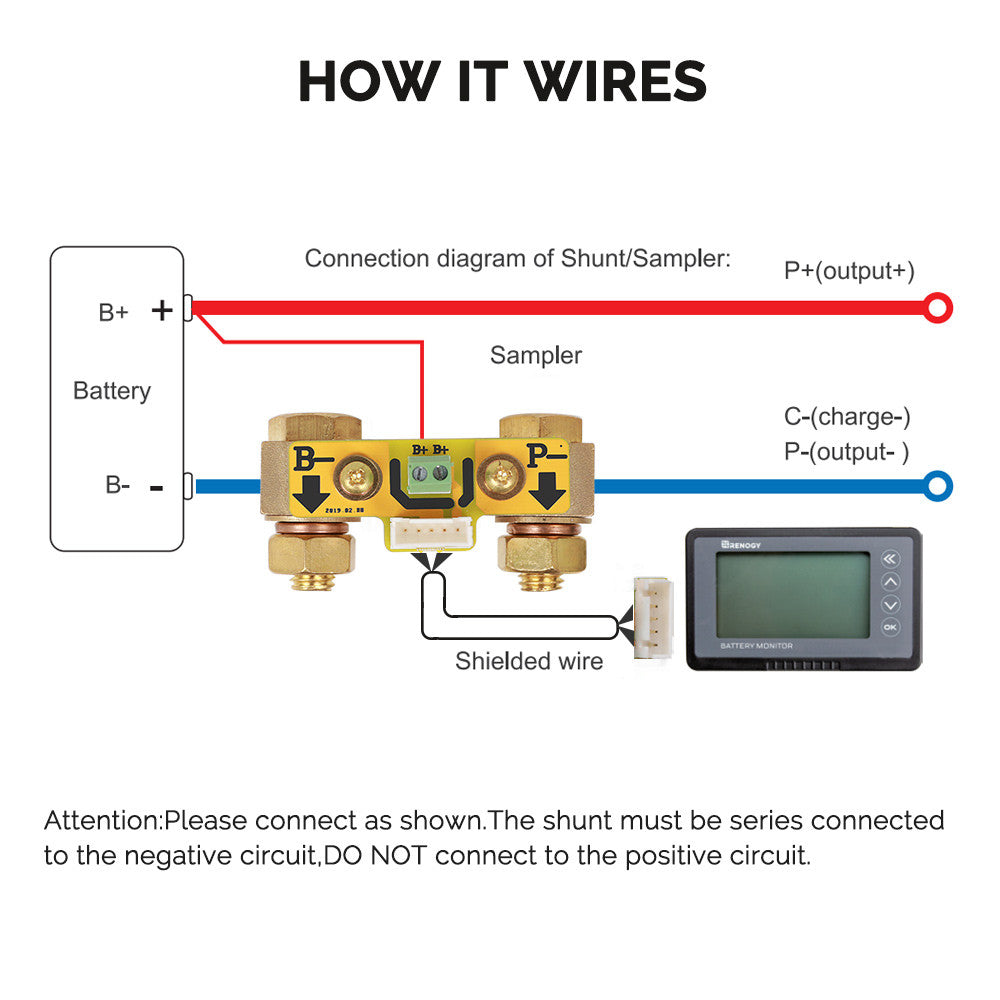

EASY TO INSTALL

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

Monitor your battery degradation with Renogy Battery Monitor!

It is of extreme importance to achieve accurate predictions of the remaining battery lifetime under various operating conditions. With the Renogy New Battery Monitor (RBM500-G3), you will be able to monitor the battery degradation to ensure reliable operation and timely maintenance.

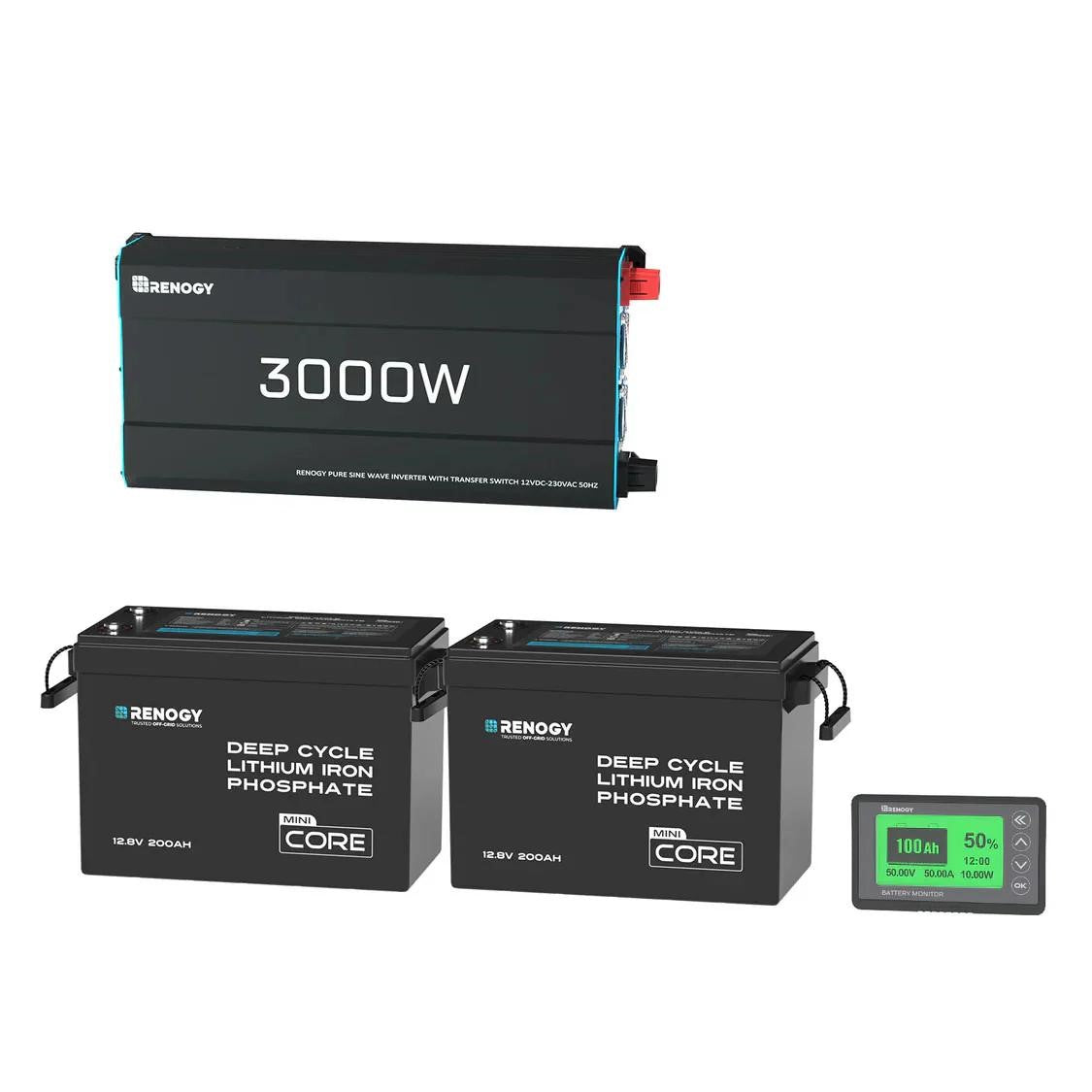

Package Includes

Option: RBD200LFPx2-PUH3-EU

12,8V 200Ah Core Mini Lithium Battery

x 2

3000W 12V Pure Sine Wave Inverter

x 1

500A Battery Monitor

x 1

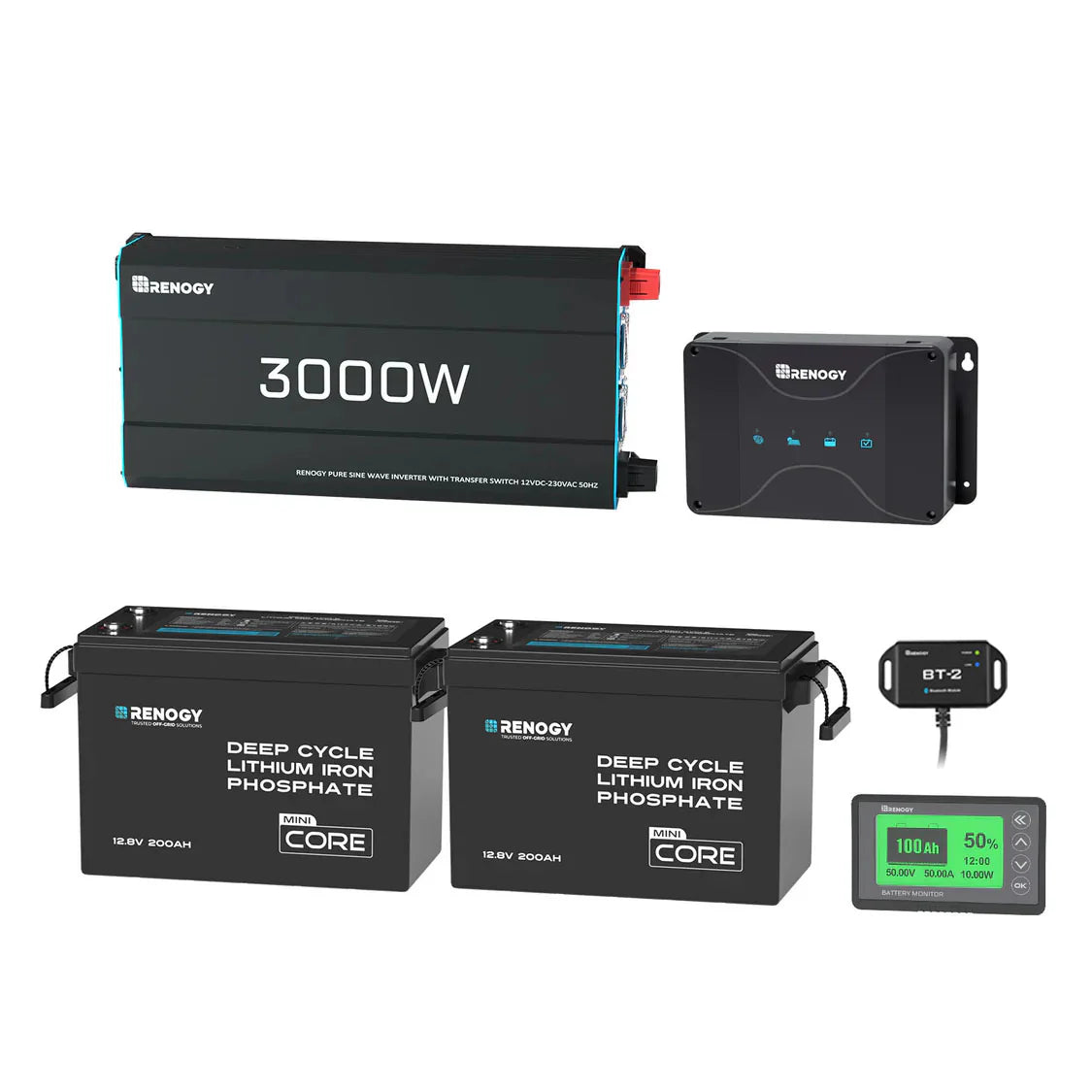

Option: RBT200-Mx2-PUH3-RBC50-EU

12,8V 200Ah Core Mini Lithium Battery

x 2

3000W 12V Pure Sine Wave Inverter

x 1

500A Battery Monitor

x 1

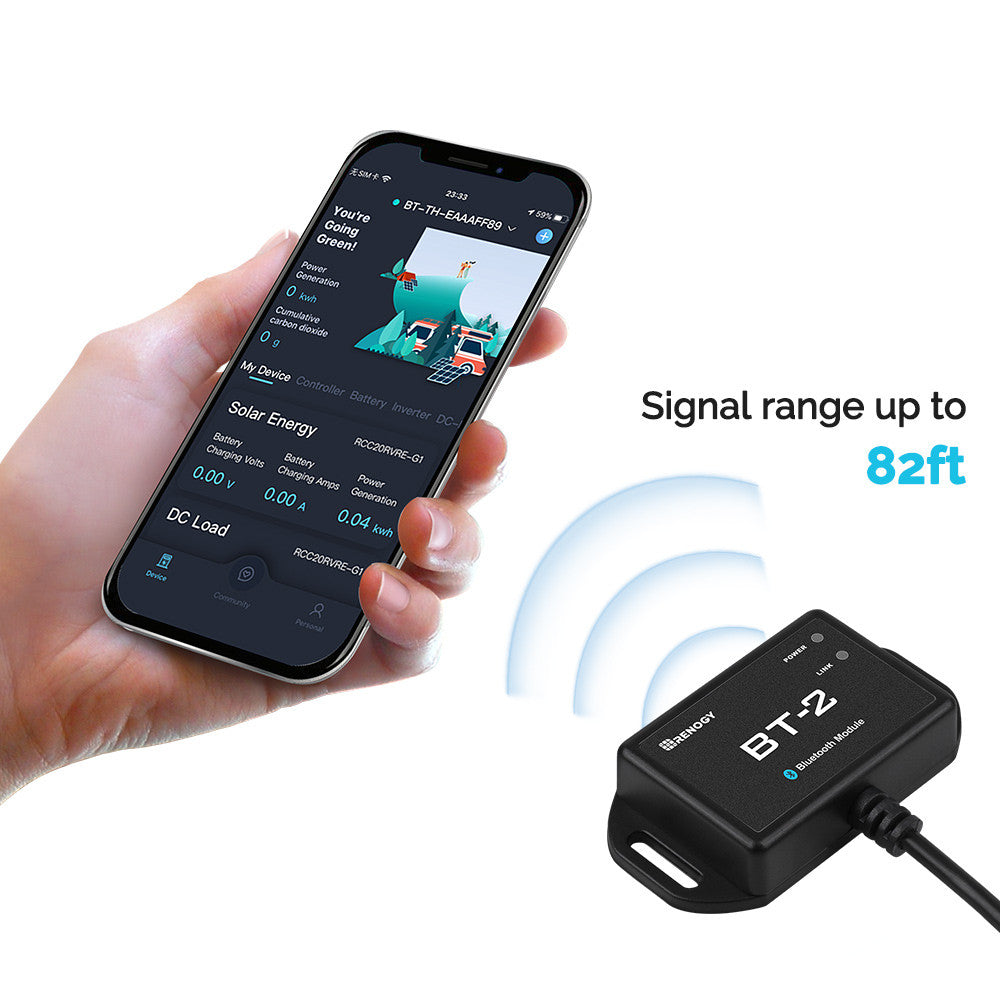

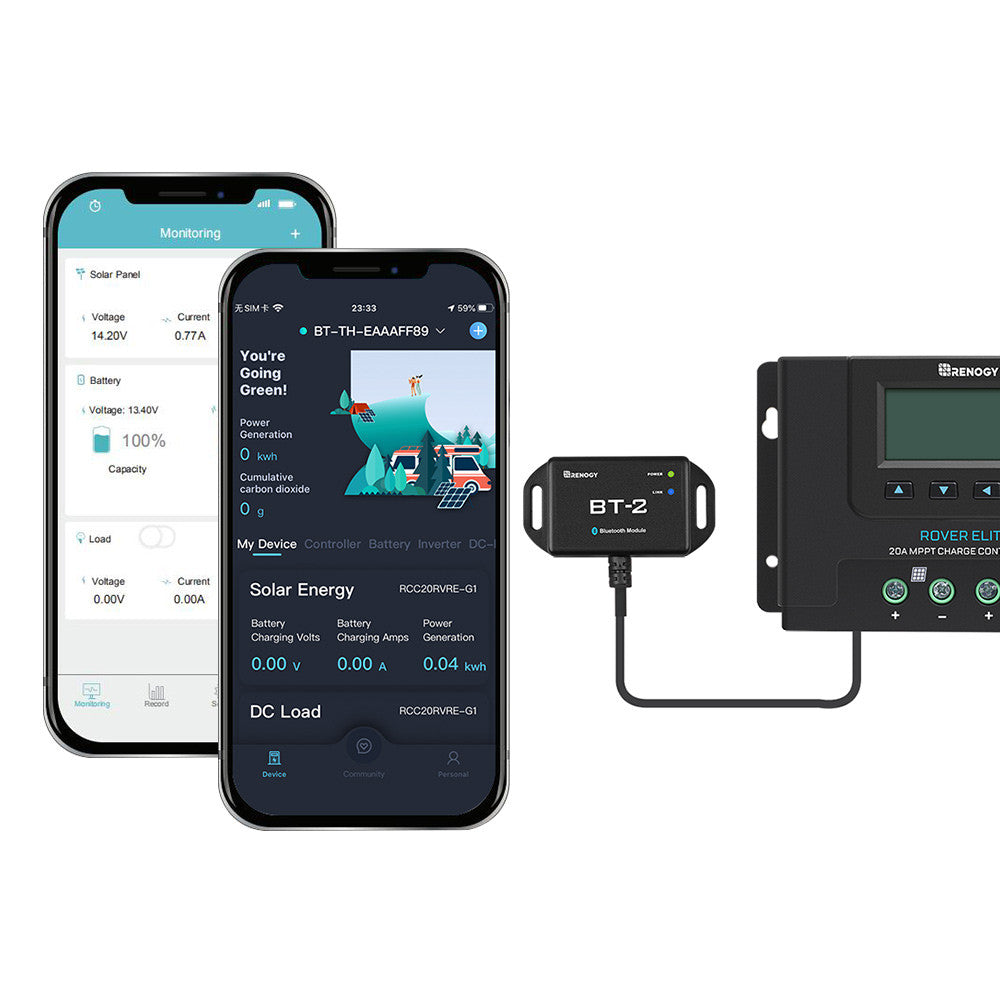

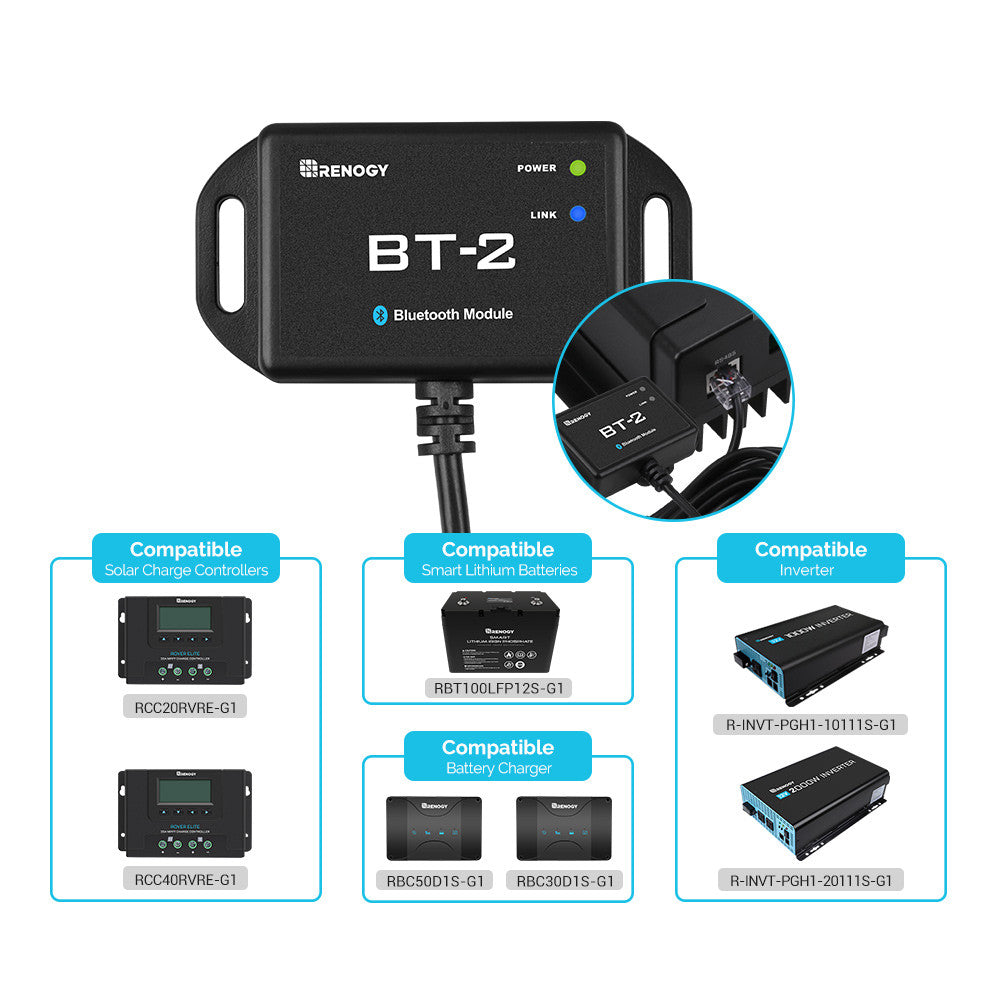

BT-2 Bluetooth Module

x 1

Battery Charger with MPPT-50A

x 1

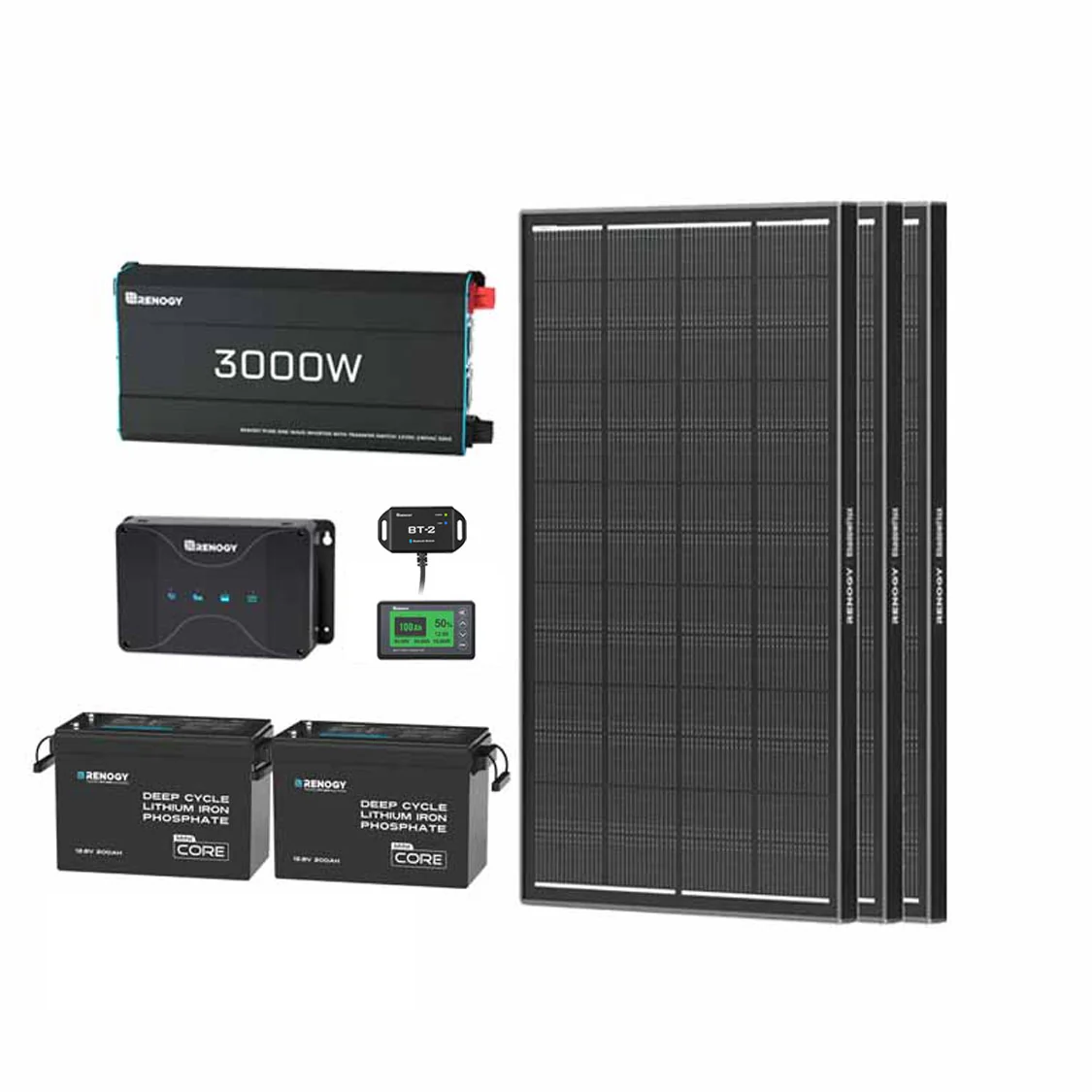

Option: RBT200-Mx2-PUH3-RBC50-200ASR-EU

200W ShadowFlux N-Type Solar Panel

x 3

12,8V 200Ah Core Mini Lithium Battery

x 2

3000W 12V Pure Sine Wave Inverter

x 1

Battery Charger with MPPT-50A

x 1

500A Battery Monitor

x 1

BT-2 Bluetooth Module

x 1

Specifications

12,8V 200Ah Lithium Battery Electrical Specifications

Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

3000W Inverter

Constant output power
3000W
Rated input voltage
12VDC
Peak Power Rating
6000W
Output Voltage
200-240VAC
Output waveform
Pure sine wave
Output frequency
50 Hz
Low voltage shutdown
10VDC
High voltage shutdown
16.3VDC
Weight
6.4kg
Dimensions
482 x 220x 92mm
warranty
1-year material and workmanship warranty

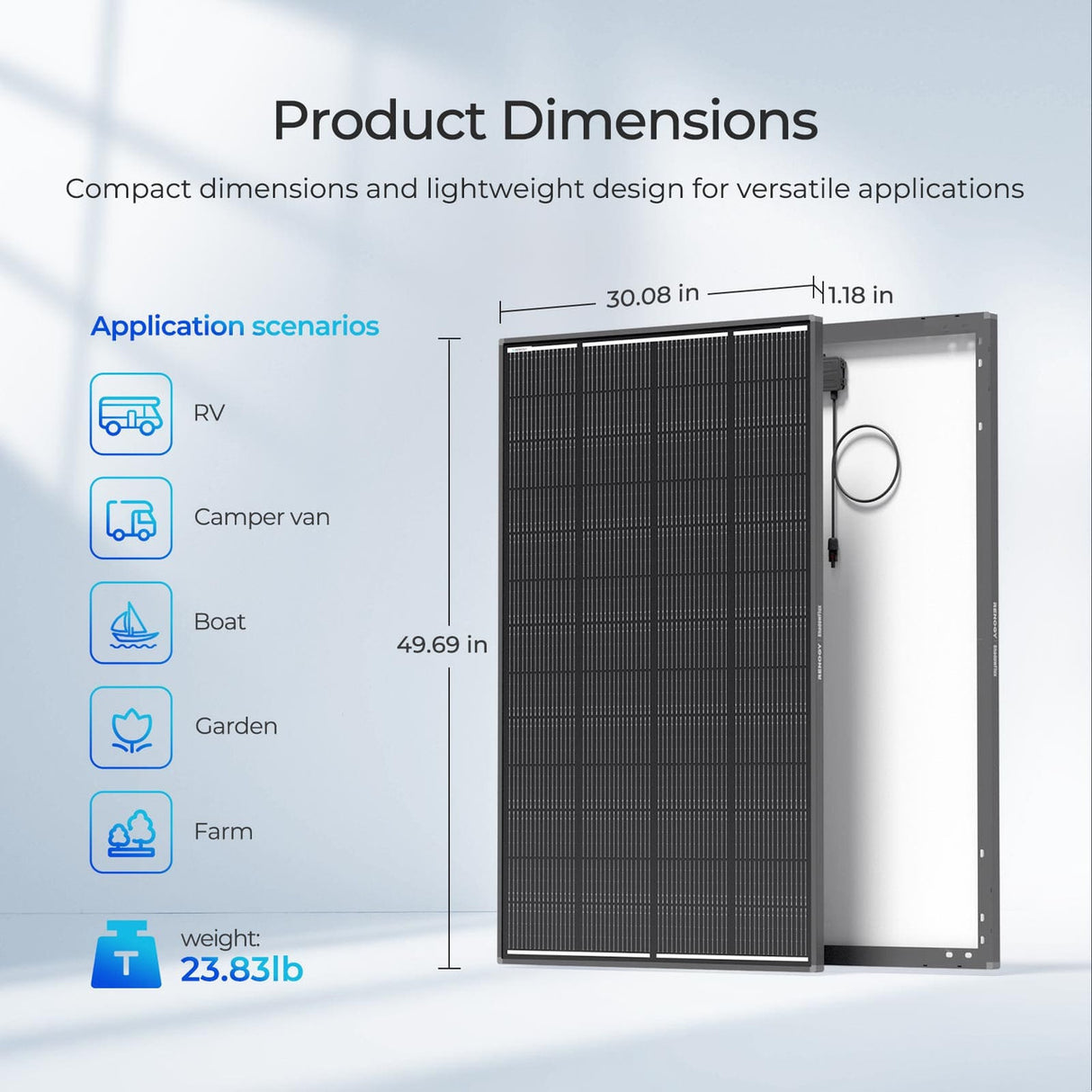

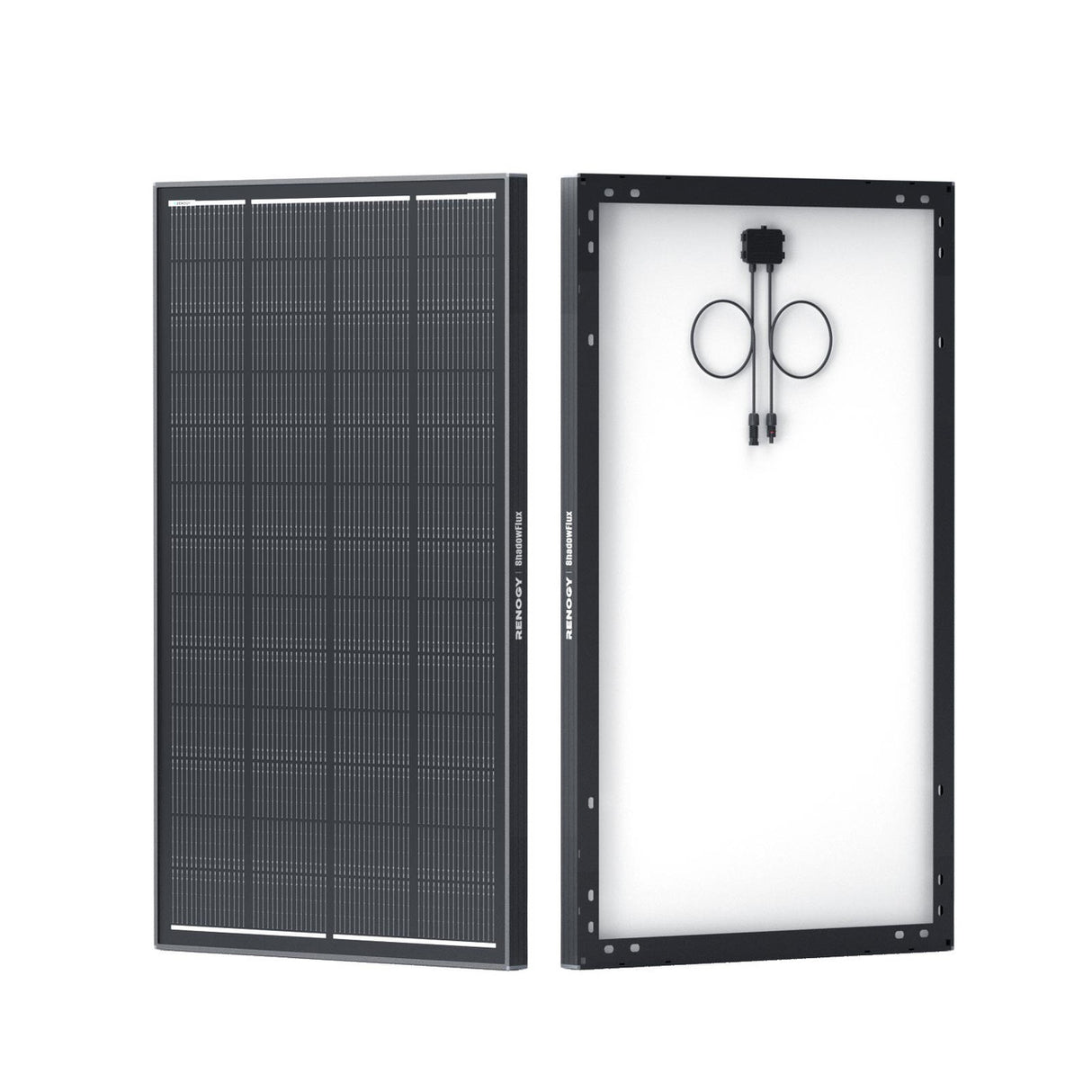

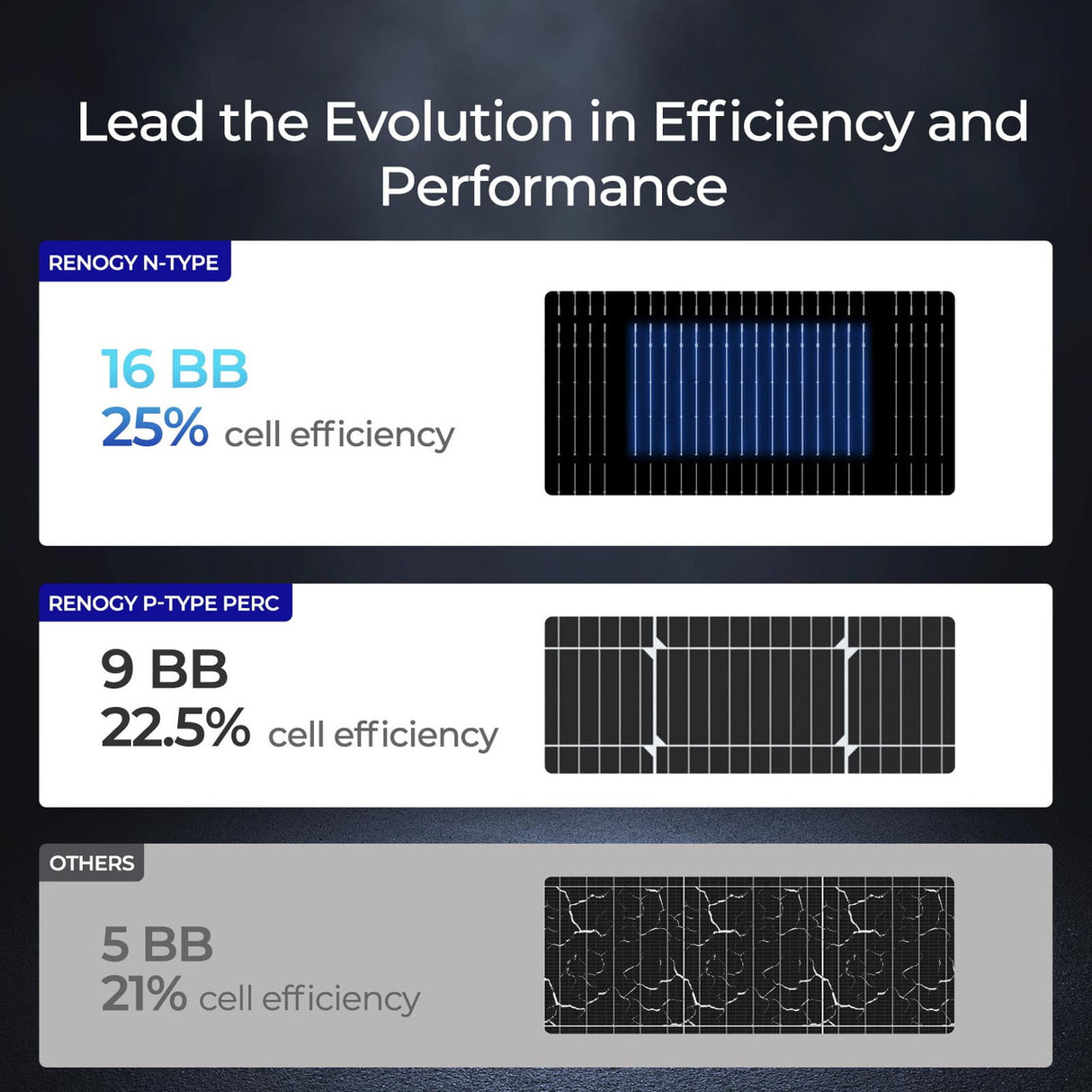

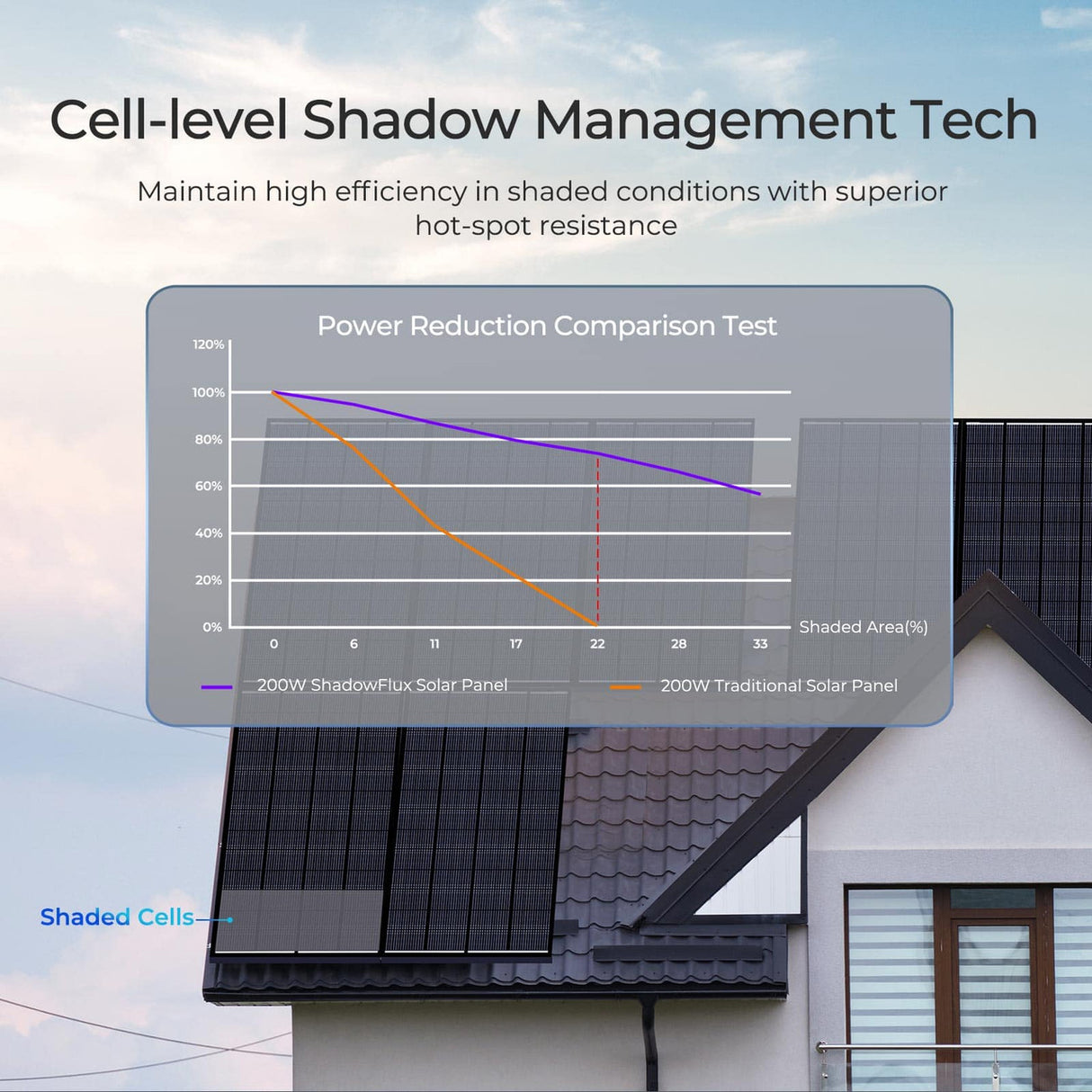

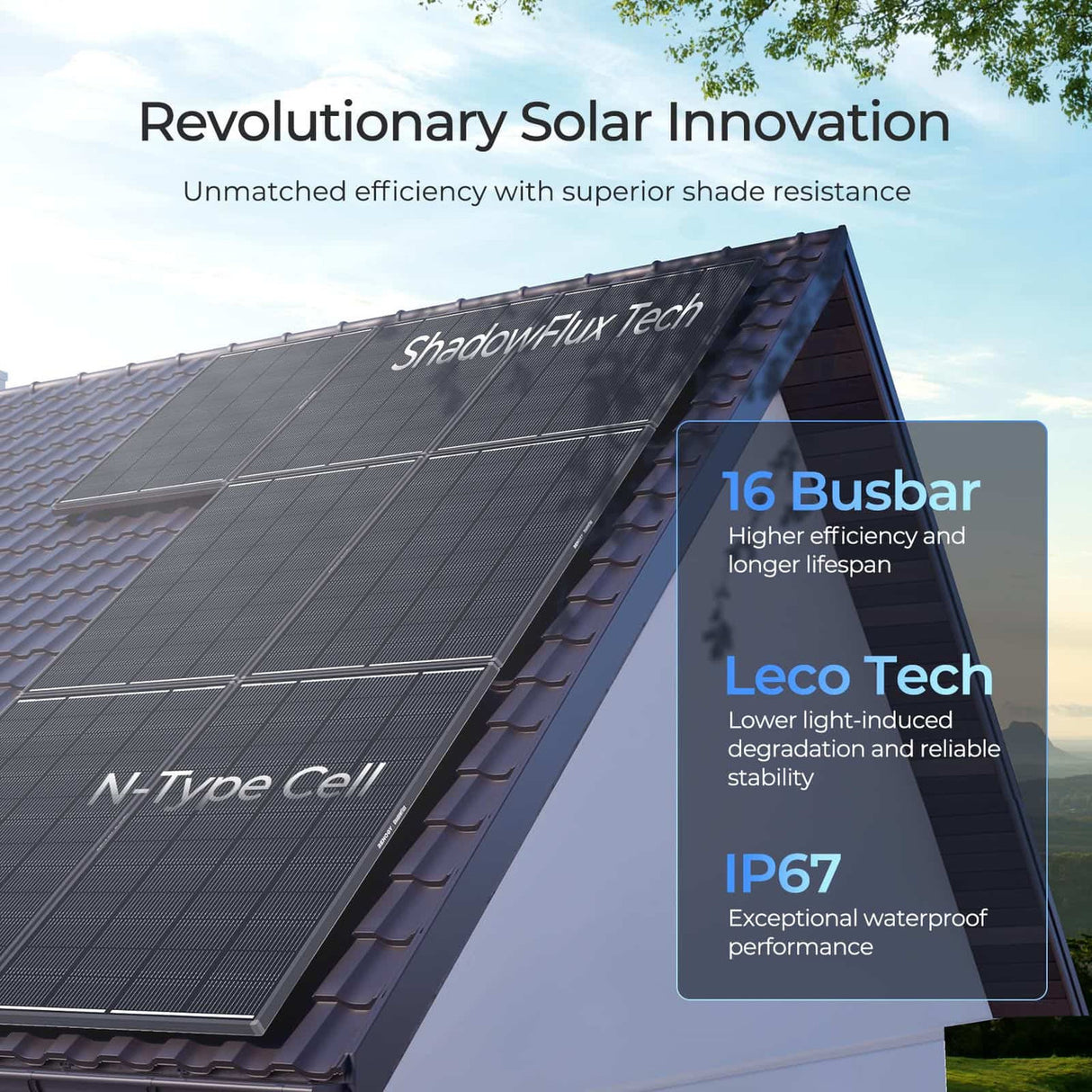

200W Solar Panel Anti-Shadow

Max Power at STC
200W
Open Circuit Voltage
36.5V
Short Circuit Current
6.86A
Optimum Operating Voltage
31.3V
Optimum Operating Current
6.38A
Maximum System Voltage
1000VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature
-40°F~185°F / -40℃~85℃
Dimensions
1262*764*30mm
Weight
10.81kg/23.83lb
Warranty
5-year Material and workmanship warranty
Performance Warranty
25-year 80% output warranty

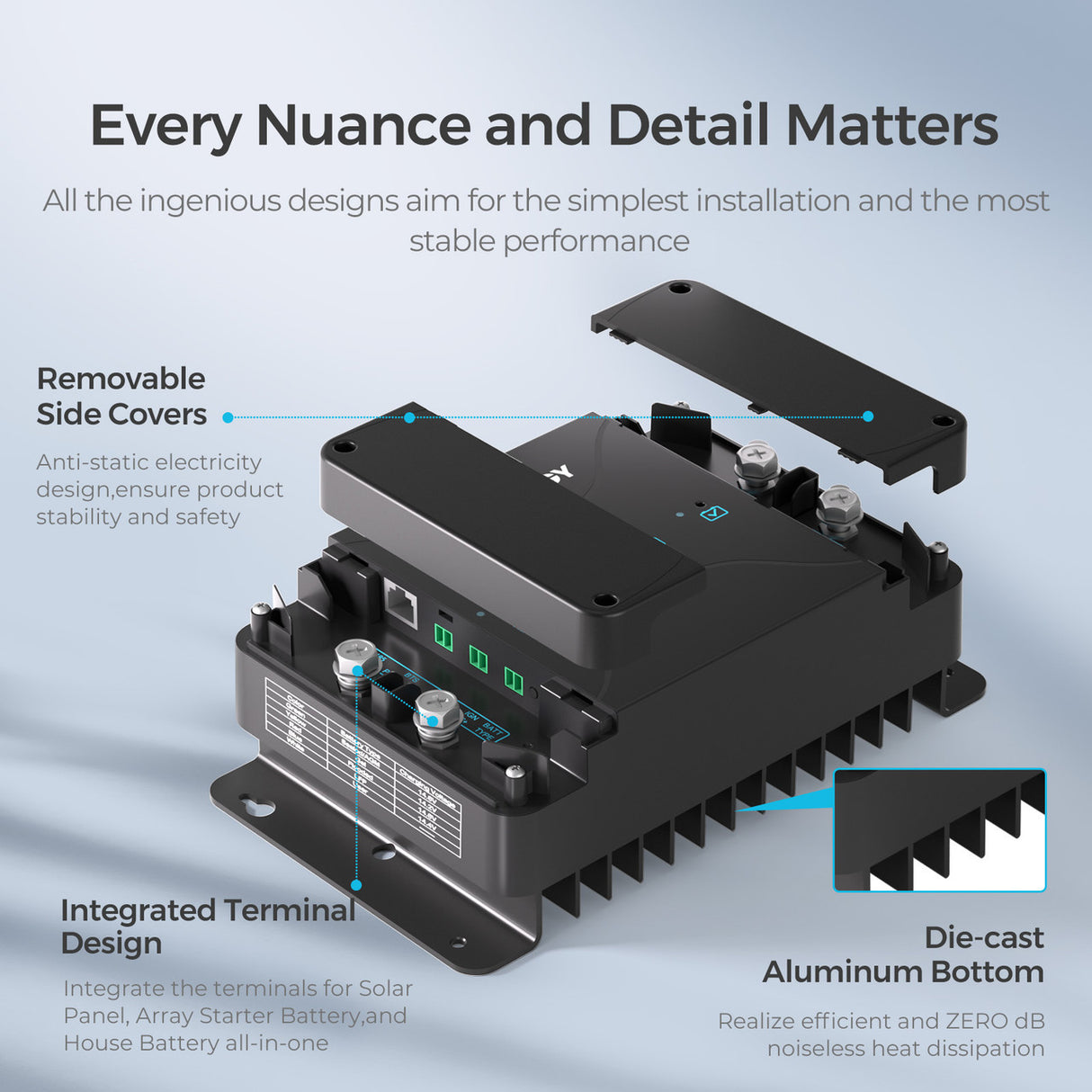

50A Battery Charger MPPT

System Voltage
12V DC
Battery voltage range
9-16VDC
Maximum Charging Current
50A
Battery Type
SLA, GEL, FLD, LI, USER
Auxiliary Battery Charging Mode
MPPT
Charging Efficiency
up to 97%
Max. Solar Input Voltage
50V
Max. Solar Input Power
660W
Alternator Input Voltage
Traditional Alternator: 13.2V to 16V DC Smart Alternator (Euro 6): 12V to 16V DC
Max. Alternator Input Power
660W
Self-consumption
60mA
Operating Temperature Range
-35°C to 65°C
Dimensions
244 x 146 x 96 mm
Weight
1.42 kg
Warranty
3-year material and workmanship warranty

500A Battery Monitor Operation

Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA
Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%

Download

200Ah Core Mini Lithium Battery

Download

Inverter

Download

200W ShadowFlux solar panel

Download

50A Battery Charger MPPT

Download

500A Battery Monitor

Download
