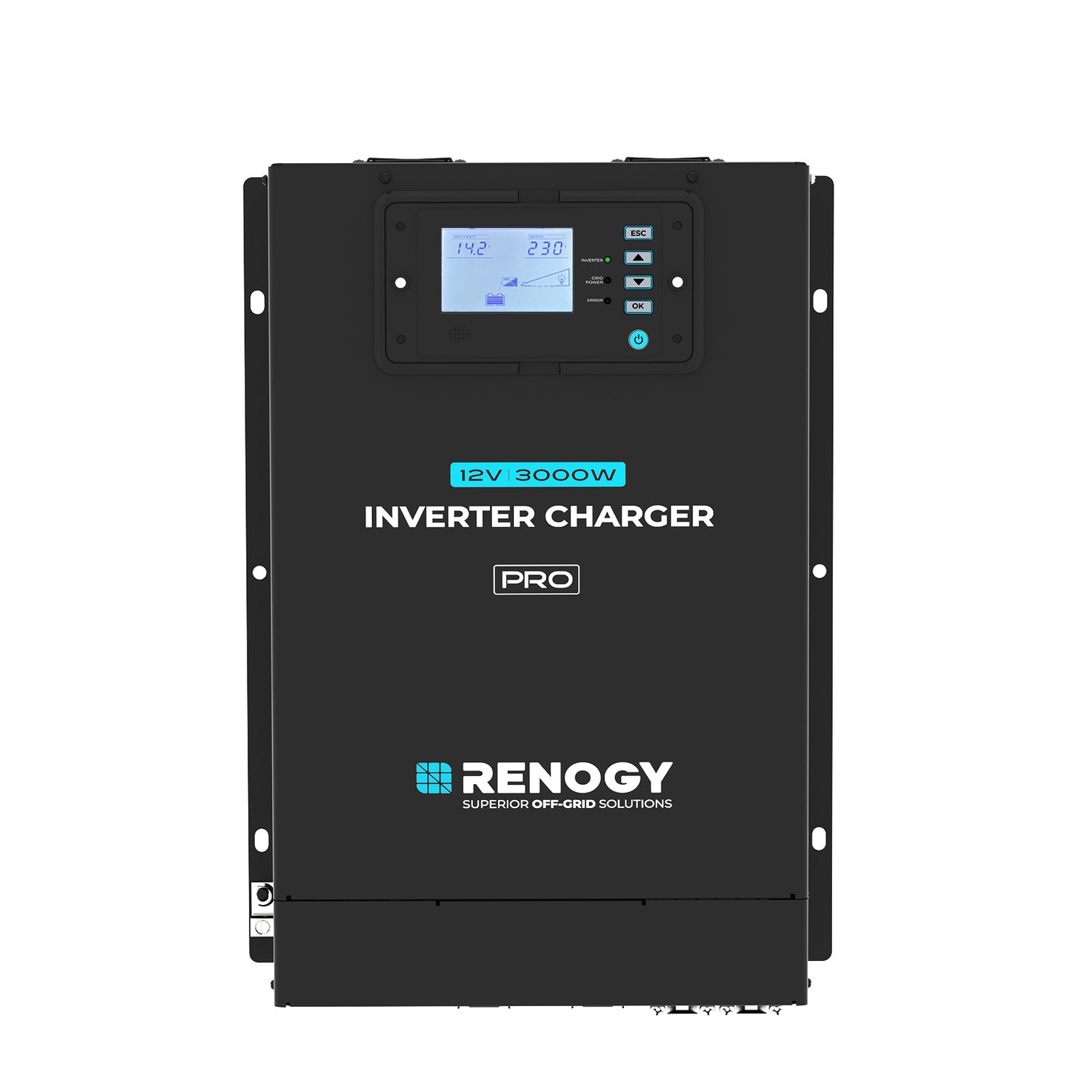

Pro 12V 3000W HF Inverter Charger

SKU: RIV1230PCH-23S-EU
€659,99 €733,99
Tax included. Shipping by weight.
+ 6590   Renogy Rays after purchase.
Log In Learn More

Early bird: €99 Off
valid until 2025-11-02
EB99

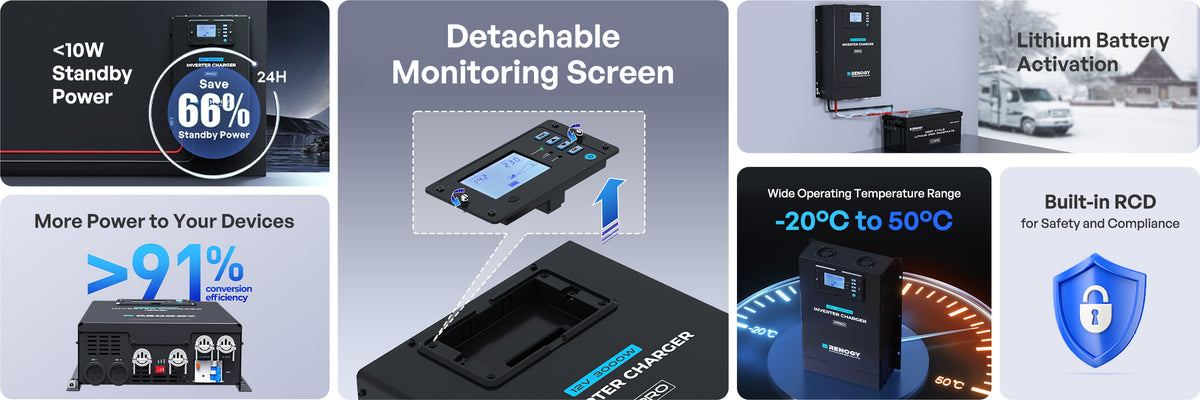

  • Over 91% efficiency and standby power under 10W for longer life
  • Weighs 8.1 kg, compact size fits tight spaces with easy installation
  • Detachable panel and optional BT-2 module enable remote monitoring
  • Built-in RCD protection ensures safety without need for extra modules
  • Supports lithium, lead-acid batteries and AC input with fast switchover
Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
FAQ
Reviews

The Renogy Pro 12V 3000W HF Inverter Charger delivers high efficiency and reliable power for off-grid and mobile applications. With over 91% inverter efficiency and standby power consumption under 10W, it helps extend battery life while minimizing energy waste. Its lightweight, compact design (8.1 kg) allows for easy installation in tight spaces such as RVs and small cabins.
The unit features an innovative detachable control panel for convenient system monitoring and supports remote access via the Renogy App when paired with the optional BT-2 Bluetooth Module (sold separately). Built-in RCD protection enhances user safety without the need for additional devices.
Compatible with a wide range of lithium and lead-acid batteries and supporting AC input, it offers a flexible and complete off-grid power solution. The inverter charger provides seamless switching between AC input and battery power within 20 milliseconds, ensuring uninterrupted operation of connected loads.

Renogy Pro 12V 3000W HF Inverter Charger

No Bulk, Just Pure Efficiency.

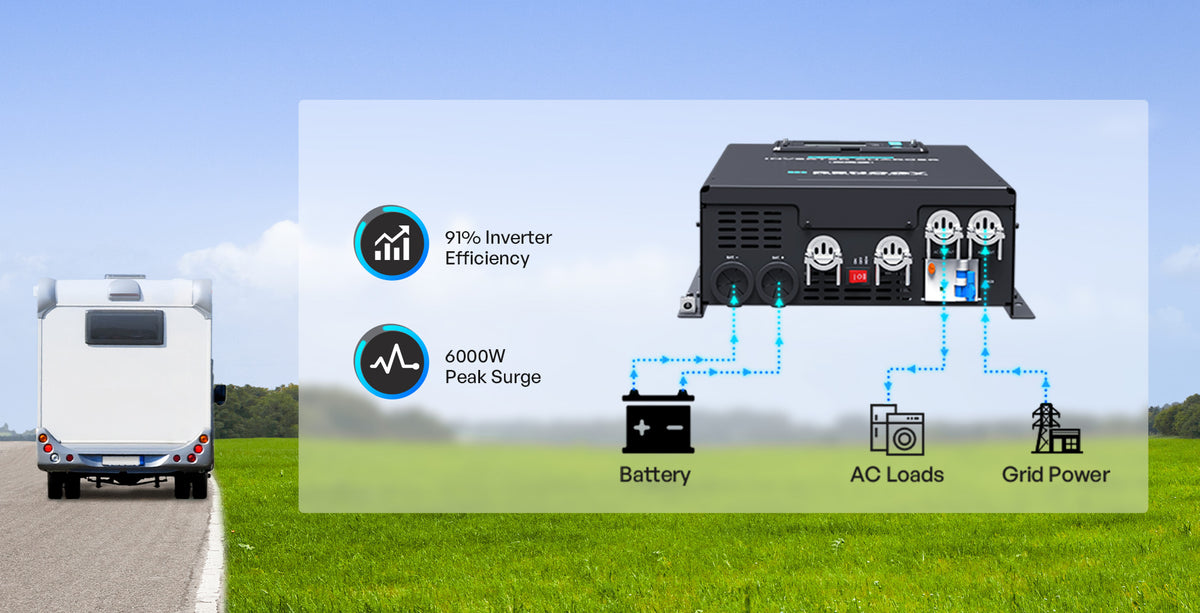

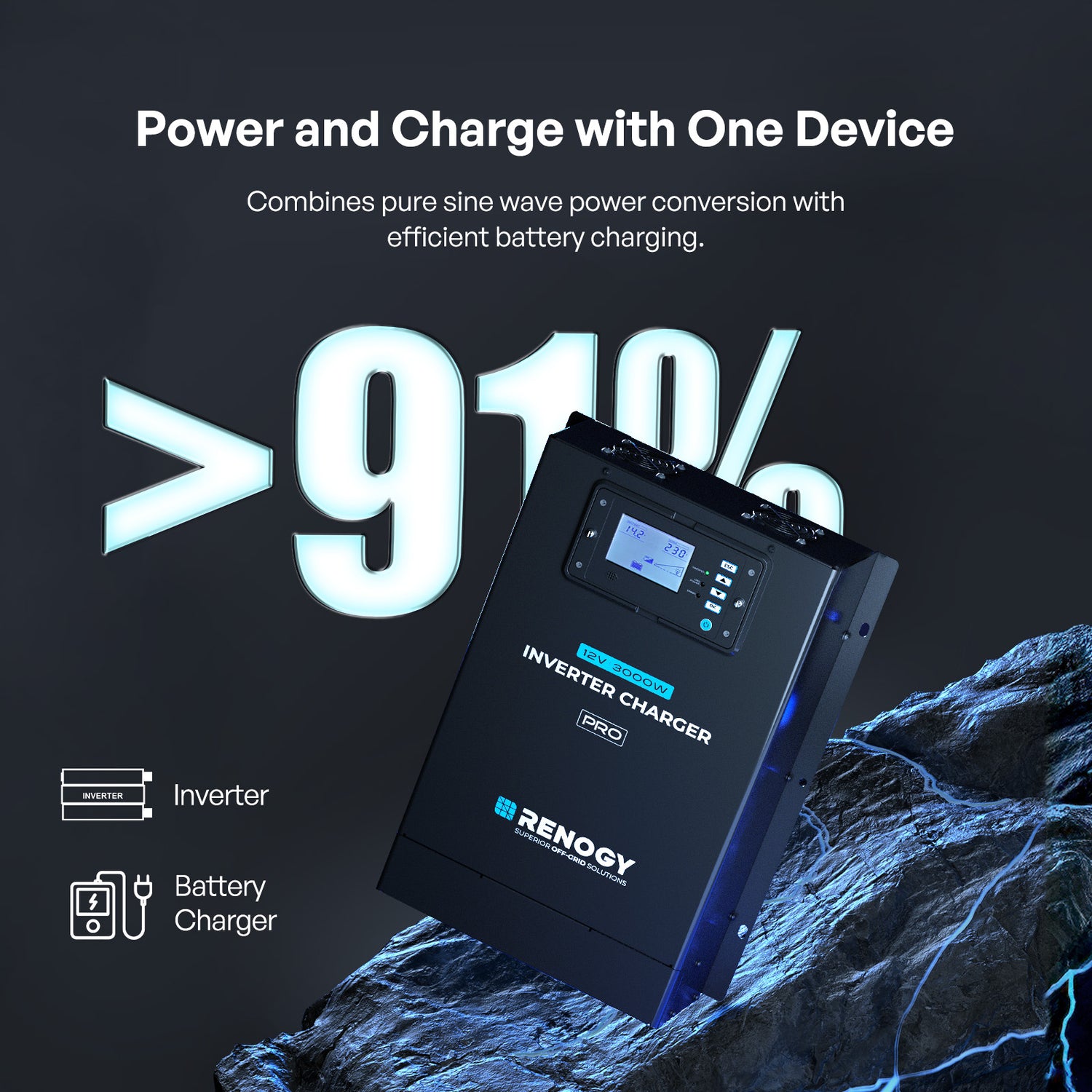

All-in-One Charging and Power Solution

Enjoy seamless battery charging and AC power conversion in a single device.

Low Self-Consumption


Consumes 71% less standby power than others, helping you get more usable energy from every charge.

Seamless Power Switch


Switch from utility power to battery power in just 10 milliseconds, ensuring that your load remains uninterrupted.

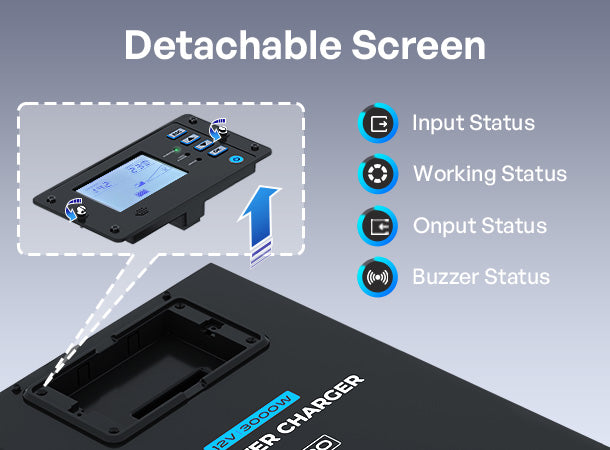

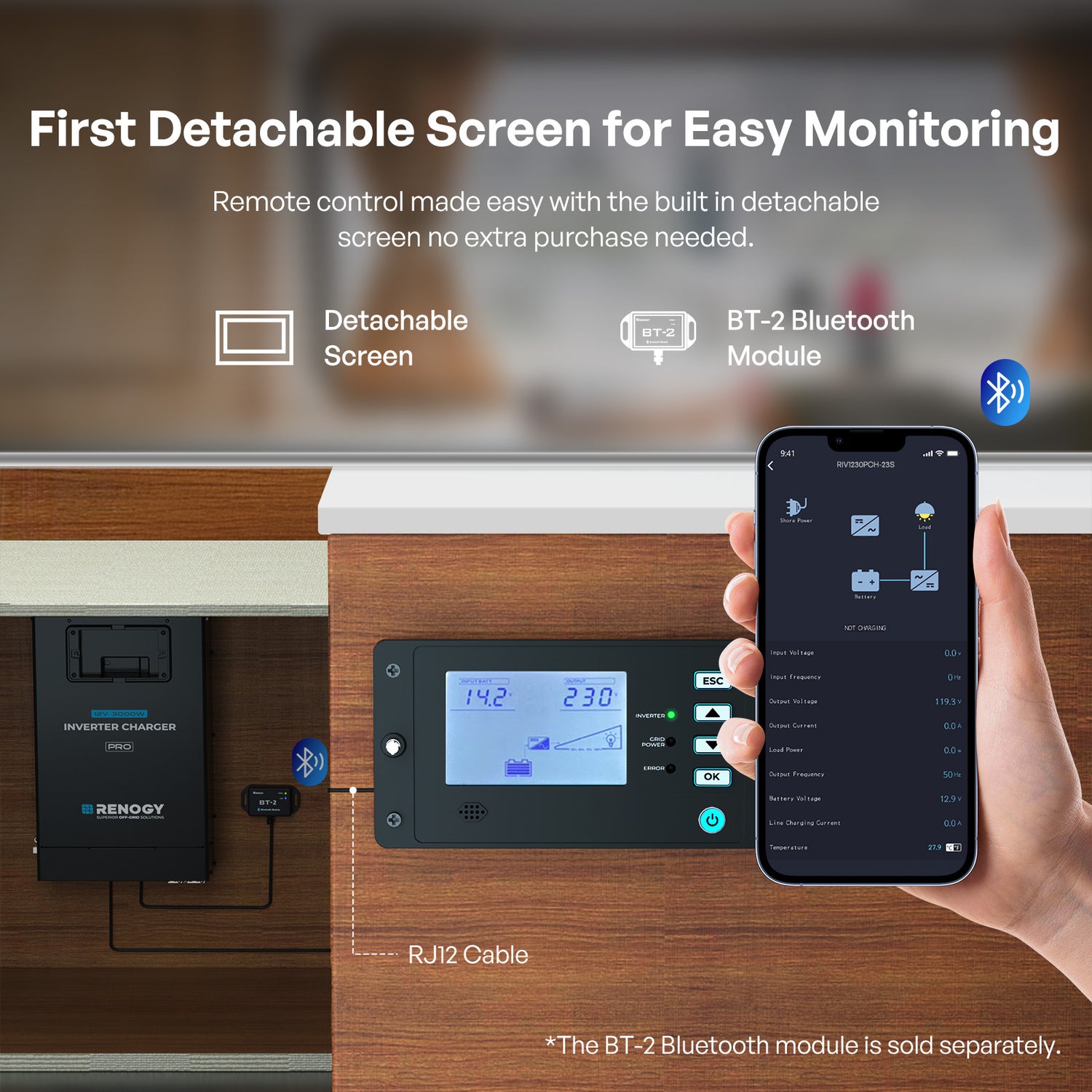

Flush Mount the LCD on Demand


Detach the screen for remote control or monitor data on your phone with a Bluetooth module for added convenience.

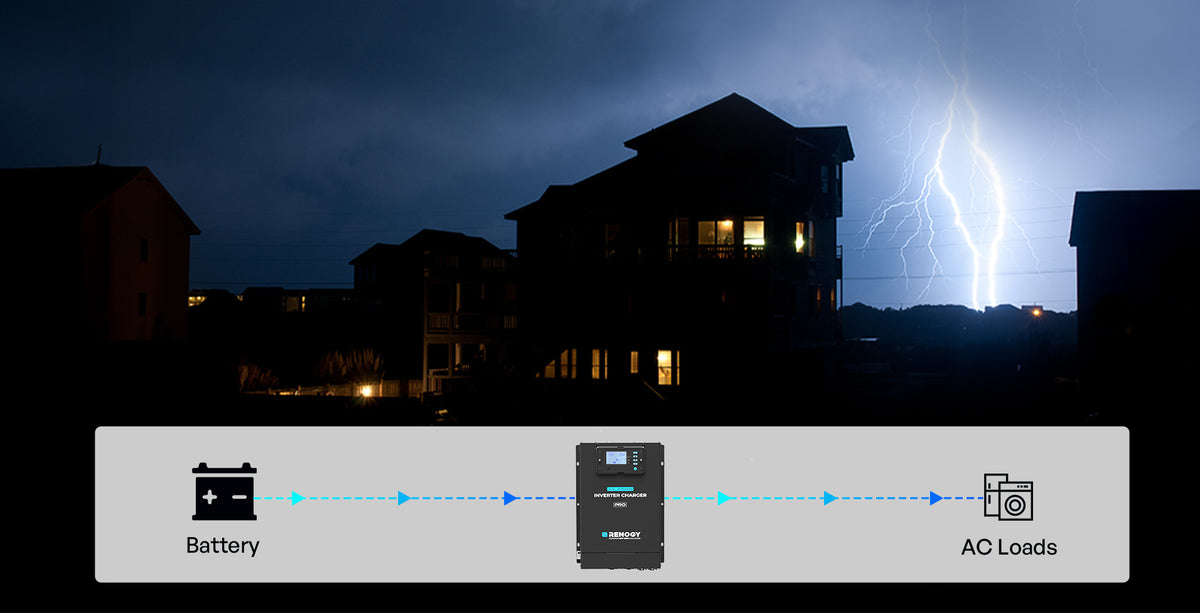

Reliable Backup Power You Can Trust

Keep your home powered during outages without worry, ensuring safety and comfort for your family.

Stay Powered and Prepared Anytime

Efficiently charge your batteries and power your home with stable grid electricity for continuous energy and total preparedness.

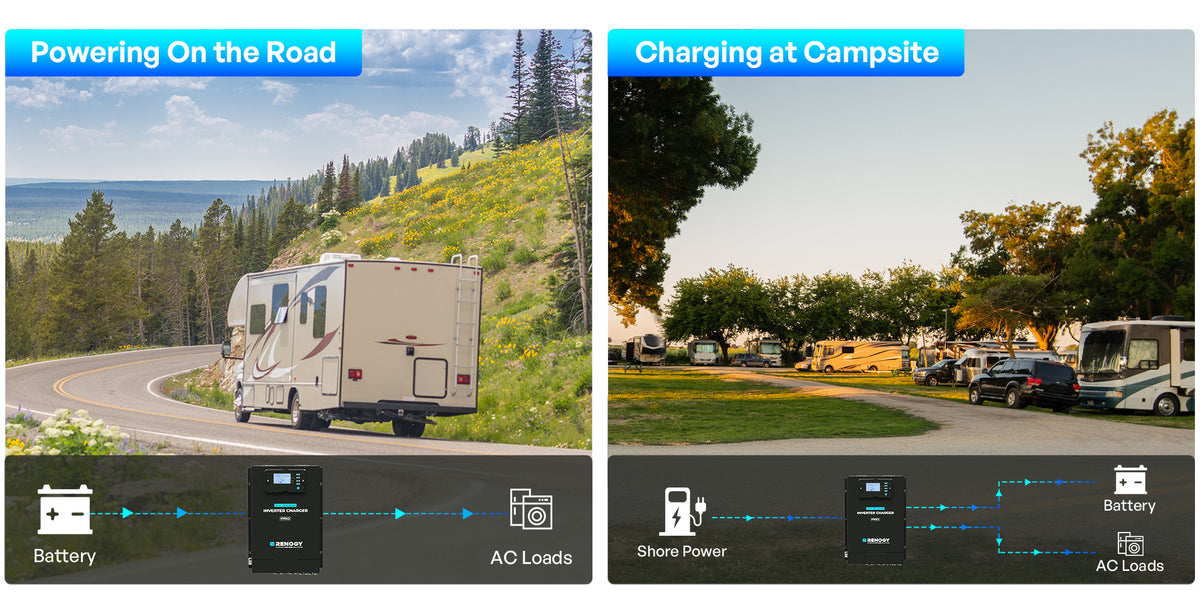

Partner for Every Journey

Power your RV on the road and recharge with shore power at camp.

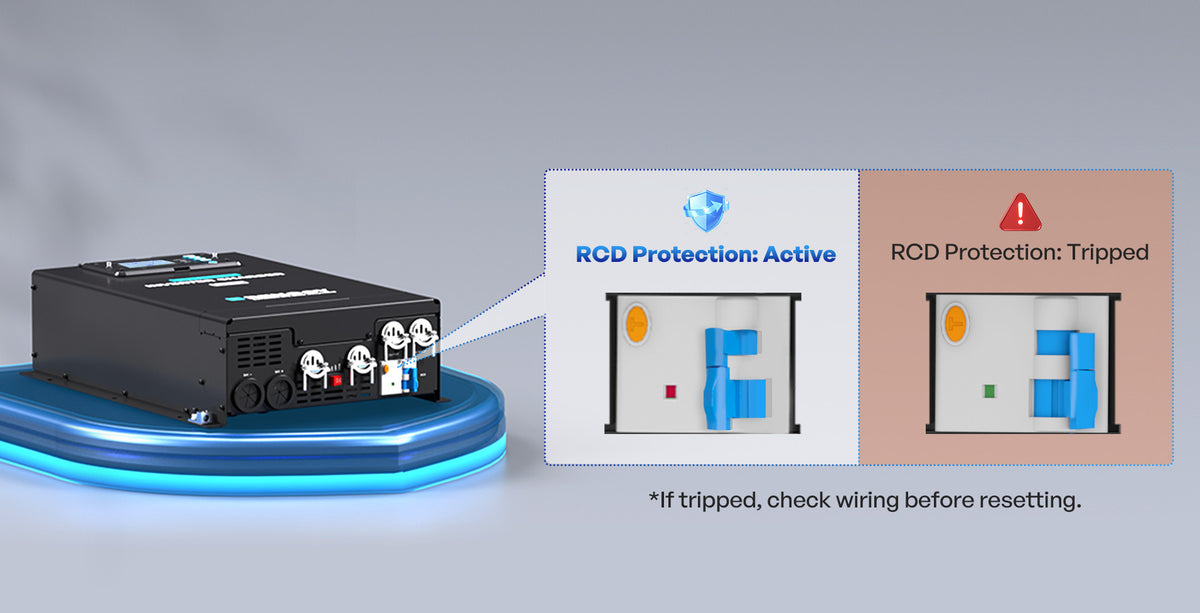

Stay Safe with Internal RCD Protection

Detects leakage faults instantly, cuts off power automatically, and restores with a simple switch flip.

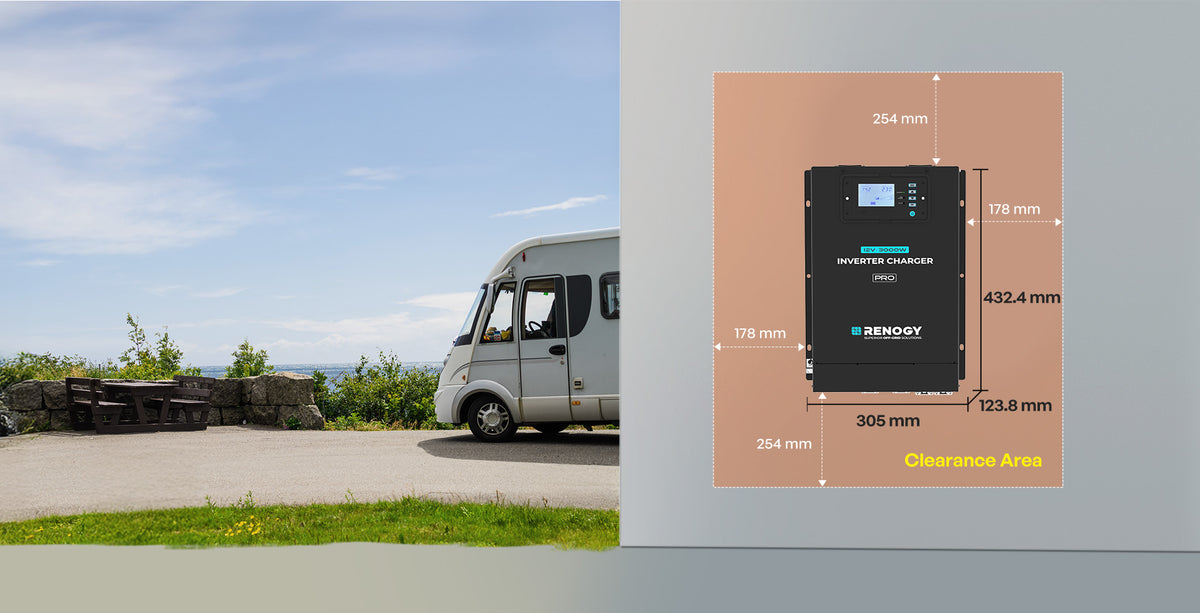

Ensure Clearance for Ventilation

Maintain required spacing around the unit for safe and efficient operation.

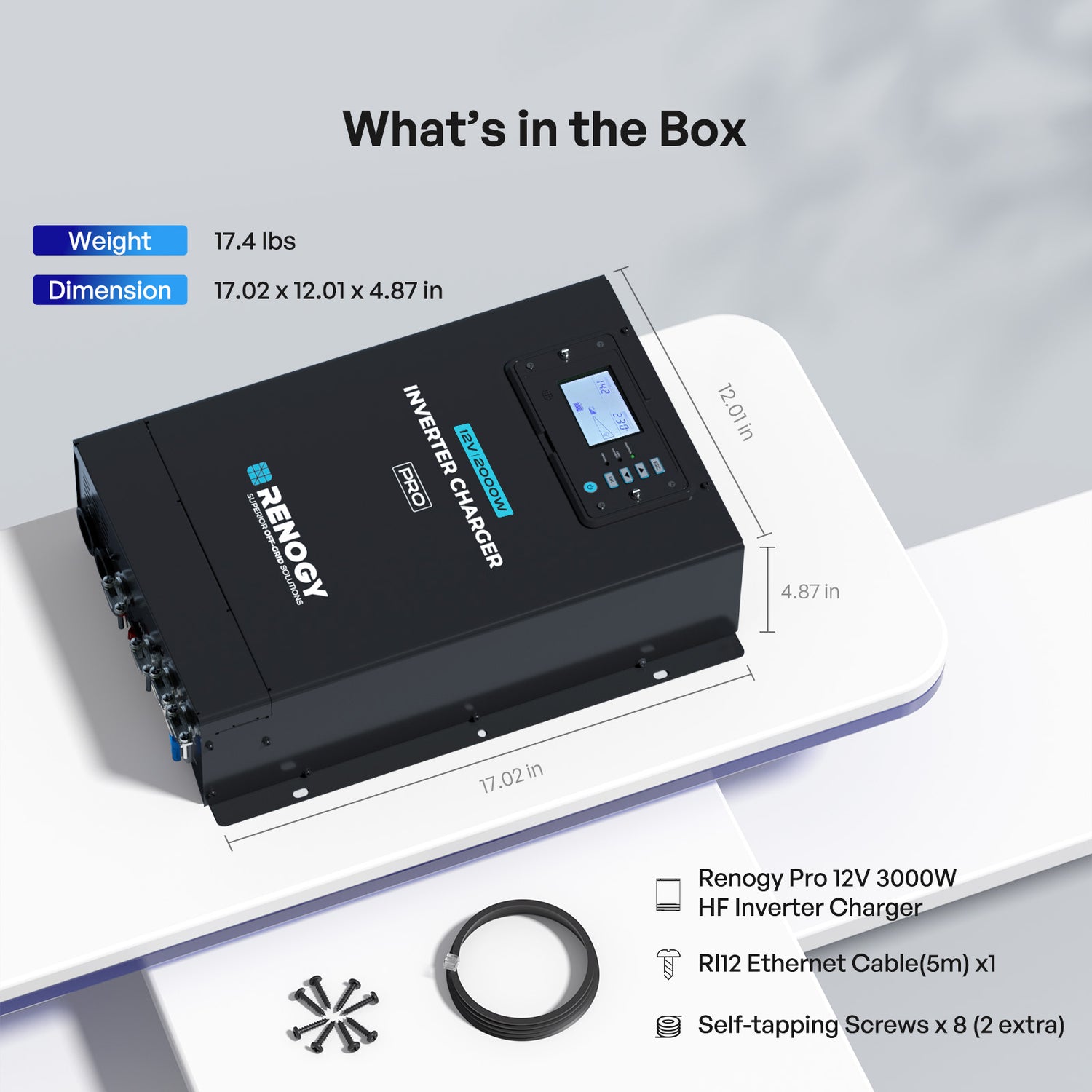

PACKAGE INCLUDES

User Manual

x 1

RJ12 Ethernet Cable (5m)

x 1

Self-tapping Screws ST6.3*16mm

x 8

Pro-12V 3KW HF Inverter Charger

x 1

Specifications

Continuous Power
3000W
Surge Power
6000W
AC Output Voltage Range
230VAC
Output Frequency (Nominal)
50/60 Hz ± 0.1Hz，default 50Hz
Output Waveform
Pure Sine Wave
Efficiency
＞91% peak
THD
＜4%
DC Input Voltage
DC12V
DC Input Voltage Range
10.5-15.5VDC
No Load Current Draw
<10W

Charger Specifications

Output Current
5-120A Aadjustable,5A intervals
Optimal Efficiency
＞85% Peak
Nominal Input Voltage
187-265Vdc
Input Frenquency Range
40Hz-70Hz

General&Transferswitch Specifications

Transfer Time
Max.20ms
Transfer Rating
16A Automatic Transfer Switch
Battery Types
GEL, AGM, SLA, FLD, CAL, LI, USER
Noise
<55dB

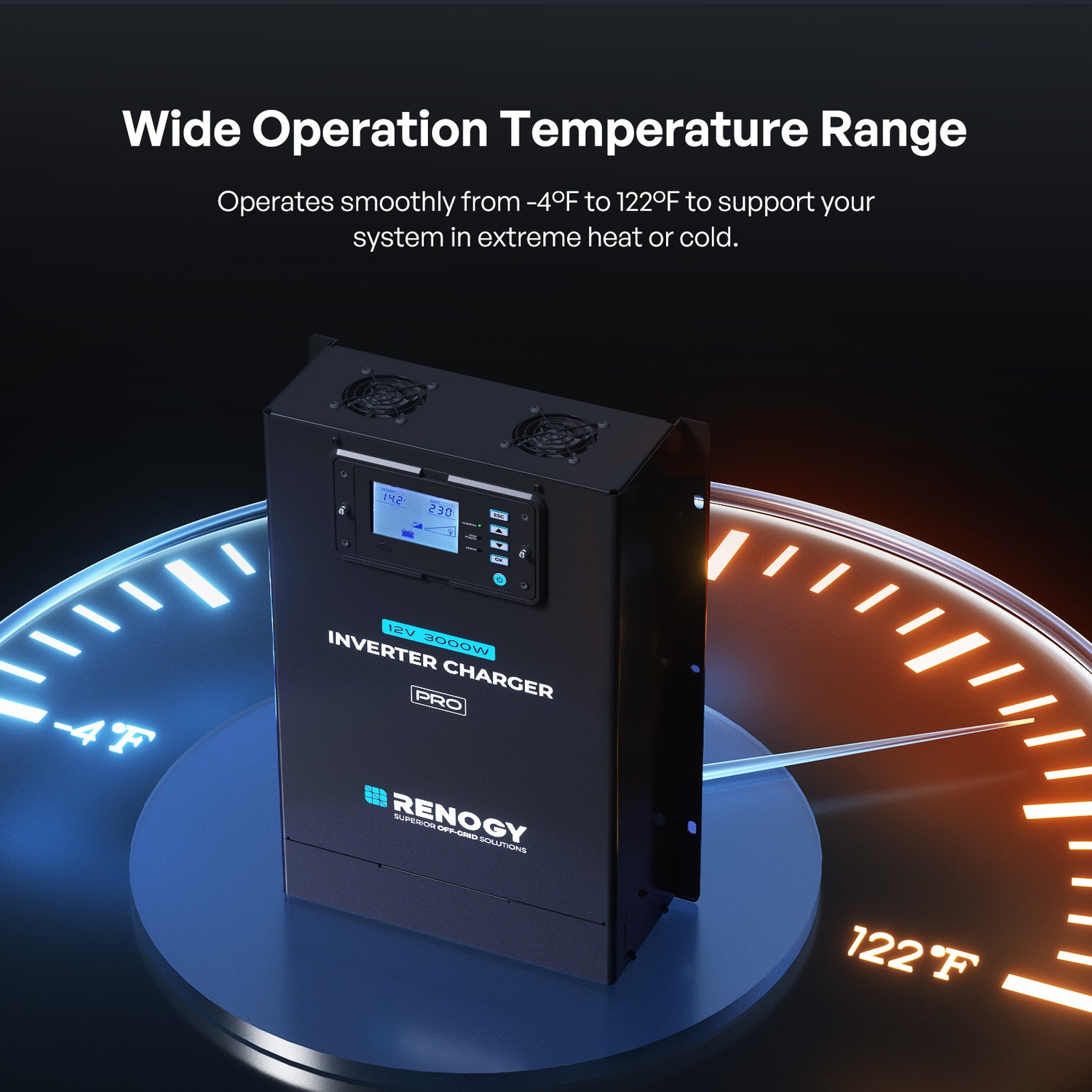

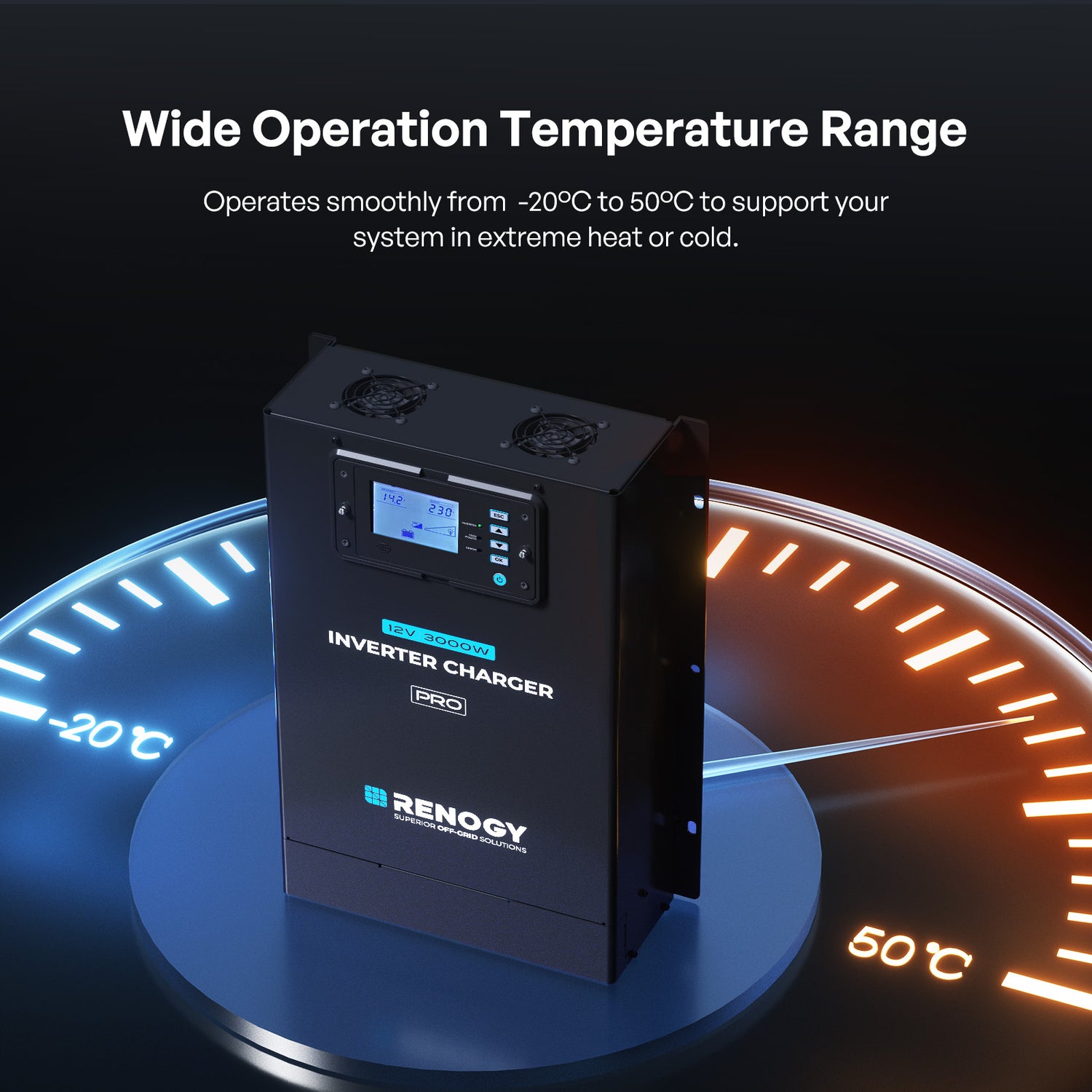

Operating Temperature
-20-50℃/-4-122°F (Output power degrading at 86°F/30°C or higher)
Dimensions
17.02 x 12.01 x 4.87in/432.4 x 305 x 123.8mm
Storage Temperature
-30-70℃/-22-158°F
Weight
17.4 lbs / 7.9 kg
Humidity
0% ~ 95%

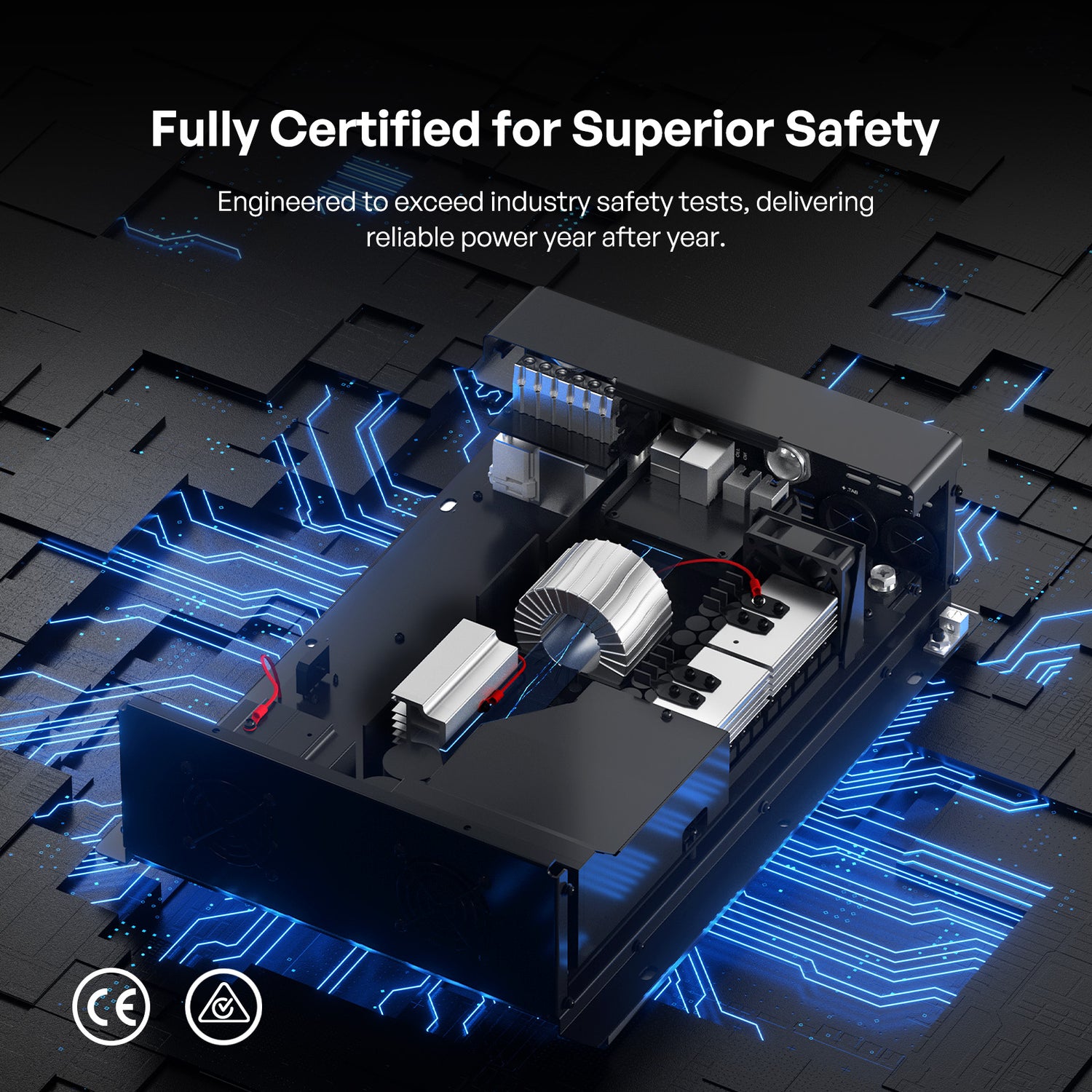

Warranty&Certifications

Inverters
3 year
Accessories
3 Year
EMC
"EN IEC 61000-6-1，EN IEC 61000-6-3， BS EN IEC 61000-6-1，BS EN IEC 61000-6-3"
Safety
"EN 62477-1，EN 60335-1，EN 60335-2-29， BS EN IEC 62477-1，BS EN 60335-1， BS EN IEC 60335-2-29"

Download

Warranty

Download

FAQ

Can I use 2 x 100Ah lithium-ion batteries with a 3000W inverter?

I think I read somewhere that it requires 3 x 100 Ah batteries.Yes, you can use two 100Ah lithium-ion batteries with a 3000W inverter, but be mindful of the current limitations of your batteries. Many 100Ah batteries come with a Battery Management System (BMS) that limits continuous discharge to around 100 amps. This means that two 100Ah batteries may provide a total of 200 amps, which would likely support around 2000W of power, but might not be enough to reliably run the full 3000W load. For maximum efficiency and to run 3000W continuously, 3 x 100Ah batteries would be ideal.

How do I attach the temperature sensor to the batteries?

The temperature sensor can typically be placed between the battery terminals or leads.

Can I Bluetooth my phone to monitor the inverter?

What APP do I need to download?Yes, you can monitor the inverter via Bluetooth using your phone. To do so, download the "DC HOME" app, which is specifically designed for this purpose. It allows you to keep track of performance, battery status, and other key metrics.
