BT-1 Bluetooth Module for Renogy Products w/ RS232 Port
BT-1 Bluetooth Module for RS232 Port
€59.99
€59.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Want to purchase in bulk? Request Bulk Purchase Prices

Return & refund policy
Review
(No reviews yet)
Write a Review
Free Shipping
Reliable Warranty
Secure Payment


Description

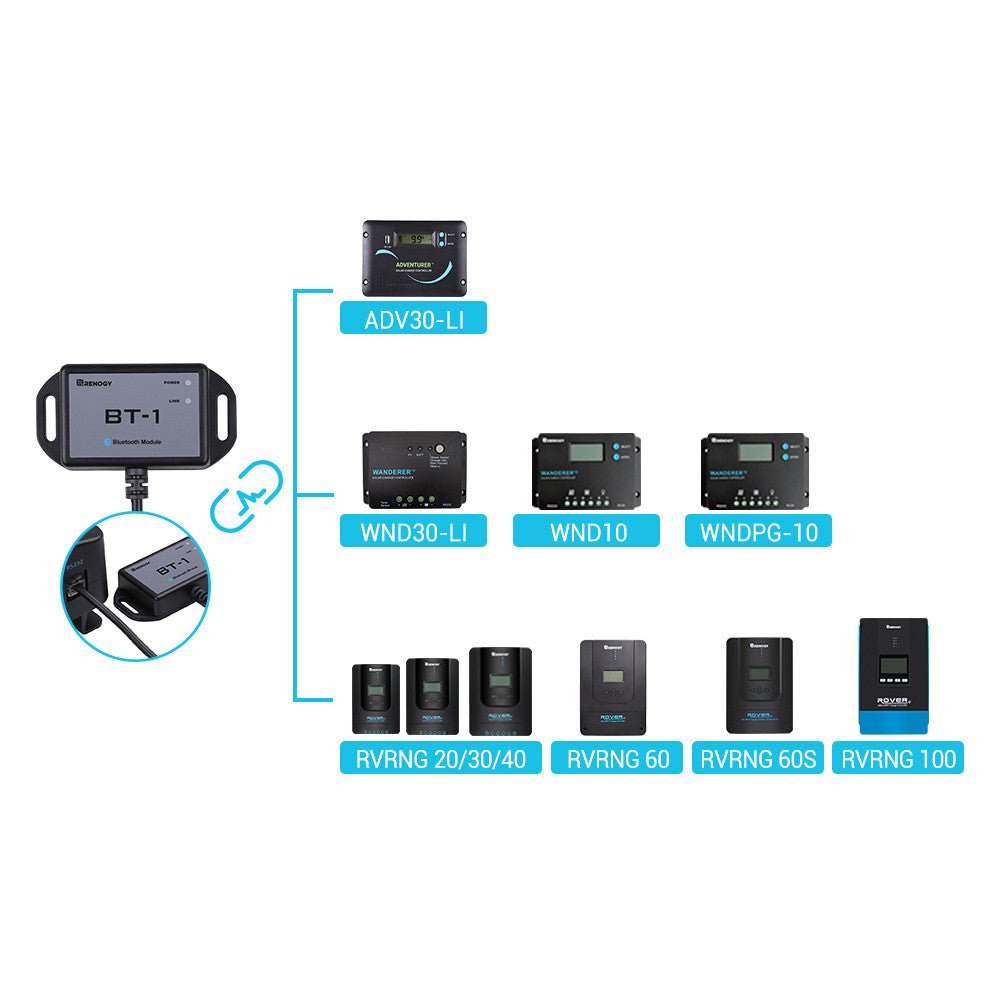

The Renogy BT-1 Bluetooth Module (New Version) pairs great with any compatible Renogy solar charge controller. This updated model boasts an increased signal range of up to 82 feet and an additional LED to indicate when your devices have synced. Plug the BT-1 into your controller's RJ12 port to seamlessly monitor and change settings straight from your smart device. Compatible with DC Home App, the Renogy DC Home App is available in both the App Store and Google Play.

If you have any questions regarding this product, please submit a case

  • Wirelessly monitor and adjust compatible solar charge controllers via Bluetooth
  • Connect to our user-friendly smartphone Apps — Renogy DC Home, to keep track of your system
  • Embedded Bluetooth chip with high efficiency and low energy consumption
  • Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication

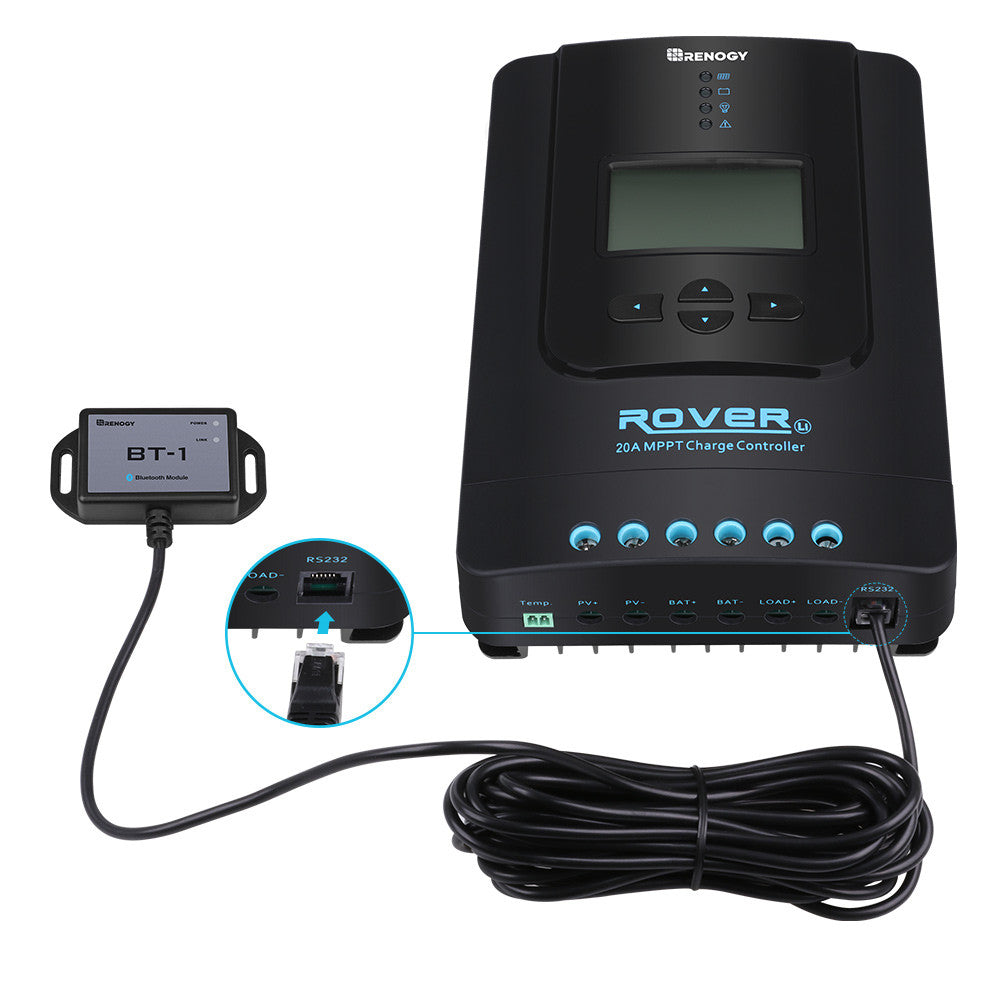

  • Powered directly through the controller's RJ12 communication port
  • Signal range of up to 82 feet

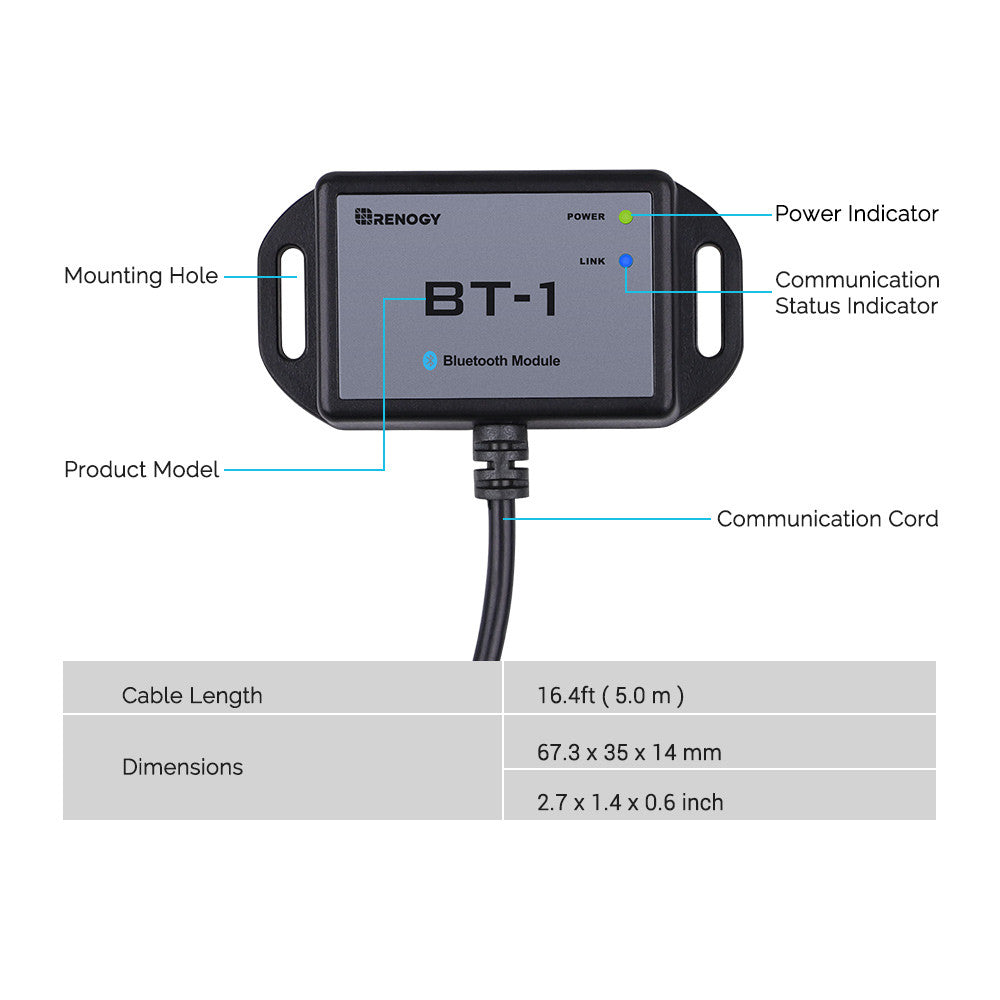

  • Two LED lights that indicate the BT-1's power and Bluetooth connection status



Download Links


Package Includes

BT-1 Bluetooth Module (New Version)

Renogy BT-1 Bluetooth module

1 x




Specifications
Communication Protocol: RS232 Port Type: RJ12
Input Voltage: 5V Protection Grade: IP54
Standby Power Consumption: 0.04W Operating Power Consumption: 0.05W
Communication Range: ≤82ft Serial Baud Rate: Fixed Baud Rate 9600bps
Cable Length: 5.00 m (16.4 ft) Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 φ3.5mm (2.66 φ 0.14in) Operation Temperature: -20¡æ~85¡æ (-4°F to 185°F)
Weight: 130g (4.58oz)


Warranty Information

Accessories 1-year material warranty


Certification


BT-1 Bluetooth Module


Please click the links below to download Renogy App manuals:
Renogy DC-Home App for Renogy products with communication ports
