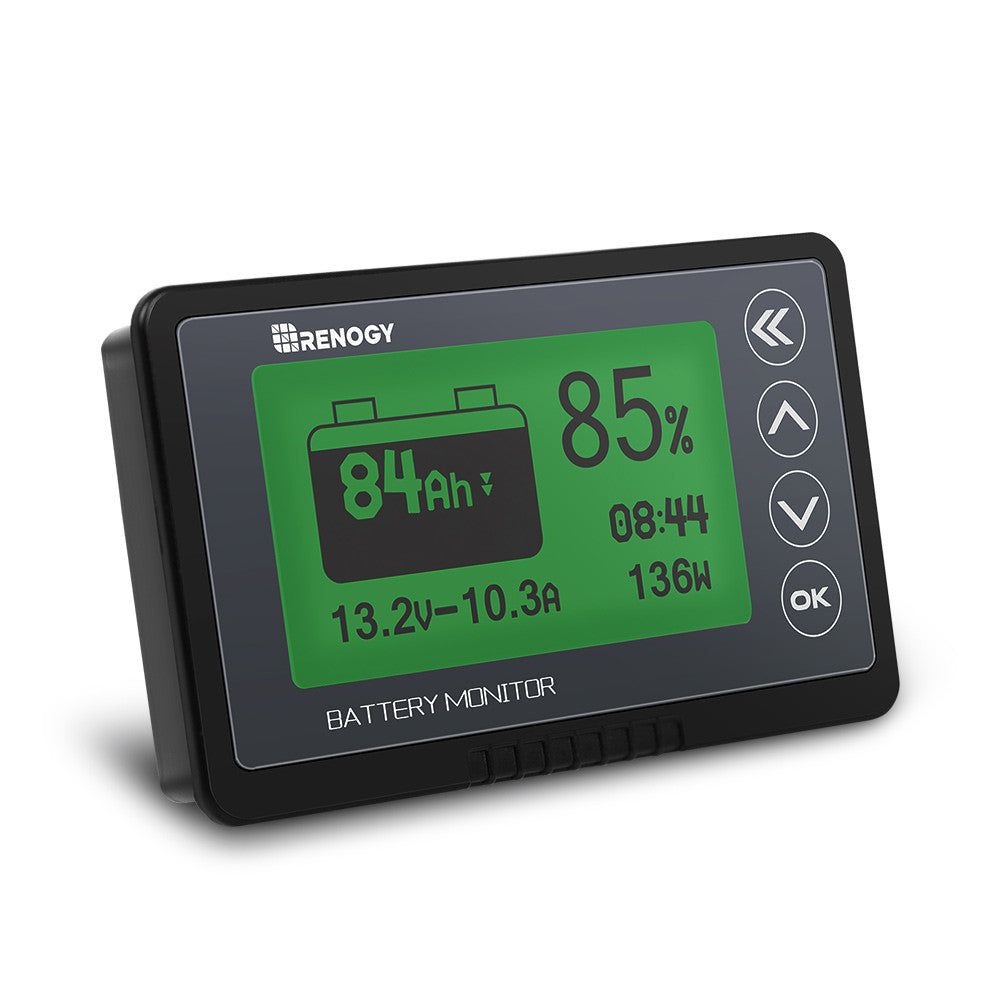

500A Battery Monitor with Shunt/Sampler (Coulomb meter)

SKU: RBM500-EU
€68,39 €75,99
Tax included. Shipping by weight.
+ 680   Renogy Rays after purchase.
Log In Learn More

  • 【1% Accuracy Measurement】Shunt-type monitor design provides much more accurate real-time voltage and current draw measurement.
  • 【Protect the batteries】With High and low capacity alarm functions, our battery monitor with shunt will alarm, and backlight and voltage value will flash simultaneously to protect the batteries from getting over-discharged.

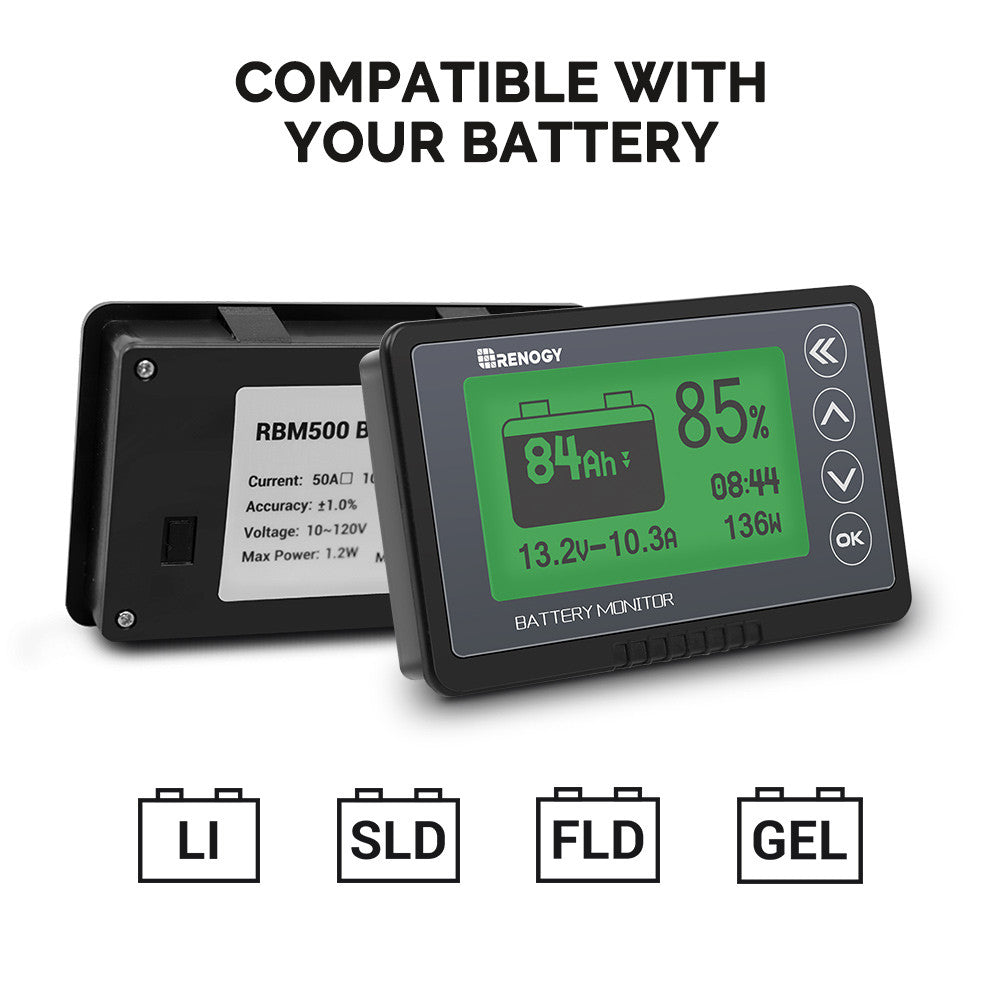

  • 【Fit for all battery】Compatible with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.

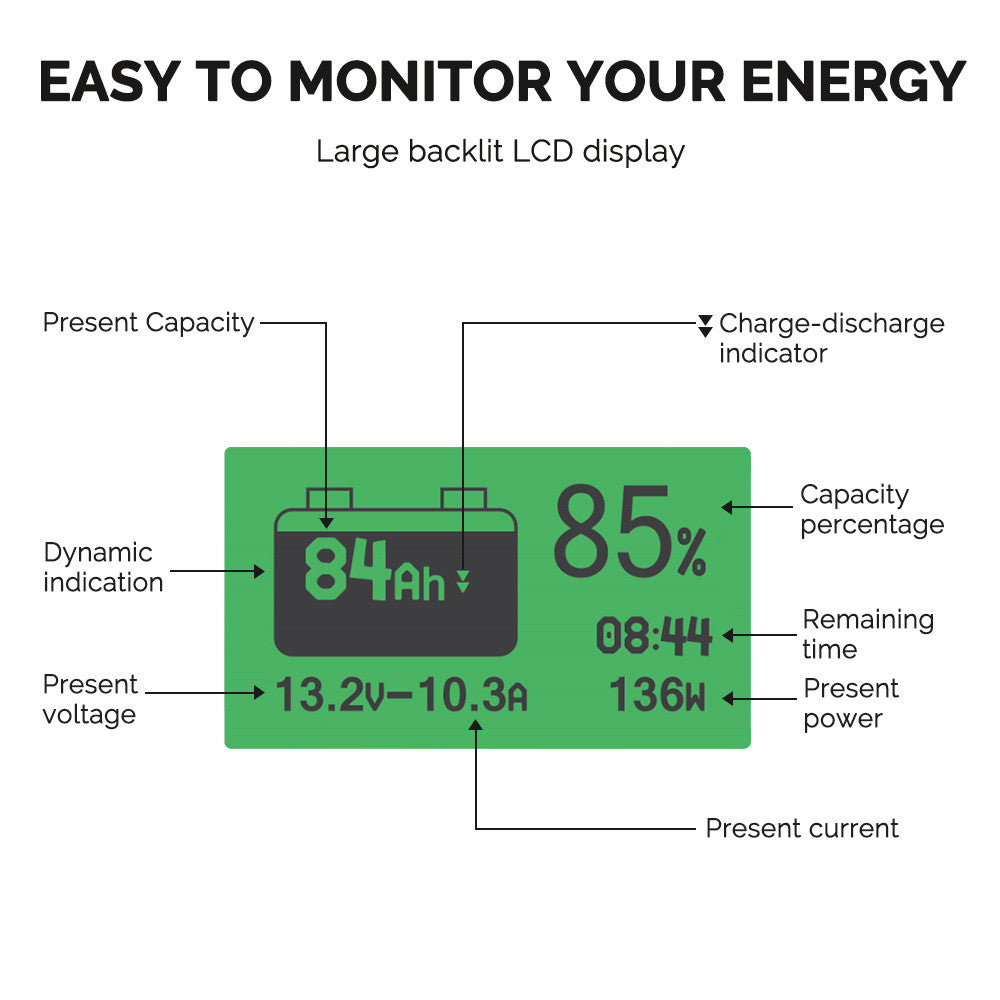

  • 【Easy To read】Displays multiple electronic parameters, including Voltage, Current, Consumed Power, Battery Capacity, and battery degradation rate with a customized brightness high-definition Backlight Display.
  • 【Easy to Install】Transparent shunt holder makes it easier to mount the shunt. And the 20ft Shielded cable allows you to monitor the battery status from a distance.
Quantity：
Enjoy payments with
Return & refund policy

What is Renogy's Return Policy?

Return within 30 Days

You may return your product(s) to Renogy within 30 days of delivery. The item(s) must be in the original packaging, be unused, undamaged, and unmodified. A refund will be issued after the returned item is inspected by Renogy.

Start a Member ReturnStart a Guest Return

Renogy will pay for the return shipping label for items that fall within the following categories:

  • Carrier damage/ warehouse mishandling
  • Defective product
  • Incorrect product was delivered
  • Additional product(s) you did not order were delivered

For any other reason not listed, customers are responsible for any return shipping fees. Renogy will NOT accept returns with any modifications to the product as it voids our warranty. Any modified products returned to Renogy will be shipped back to you at your own expense.

Return after 30 Days

Return requests outside of 30 days require special authorization. You can submit a case through our online portal to request a late return.

Submit a Case

FAQs

Can I exchange my Renogy order?

Renogy does not offer exchanges. If you purchase the wrong item by mistake, you will need return the item and place a separate order for the correct one. The return shipping expenses shall be borne by you.

Where is my refund?

Once we have confirmed that the return requirements are met, we will issue a full refund within 2-5 business days. Actual deposit times may vary according to your banking institution. Additionally, an email notification will be sent out when the refund is issued.

What about defective or faulty items?

We stand behind all of our products. If the item(s) you received is defective or flawed in any way, please submit a case  on our online portal and describe the issue you are encountering.

----

Click here to view the full content of Return & Refund Policy.

Description
Includes
Specs
Downloads
FAQ
Reviews

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

EASY TO INSTALL

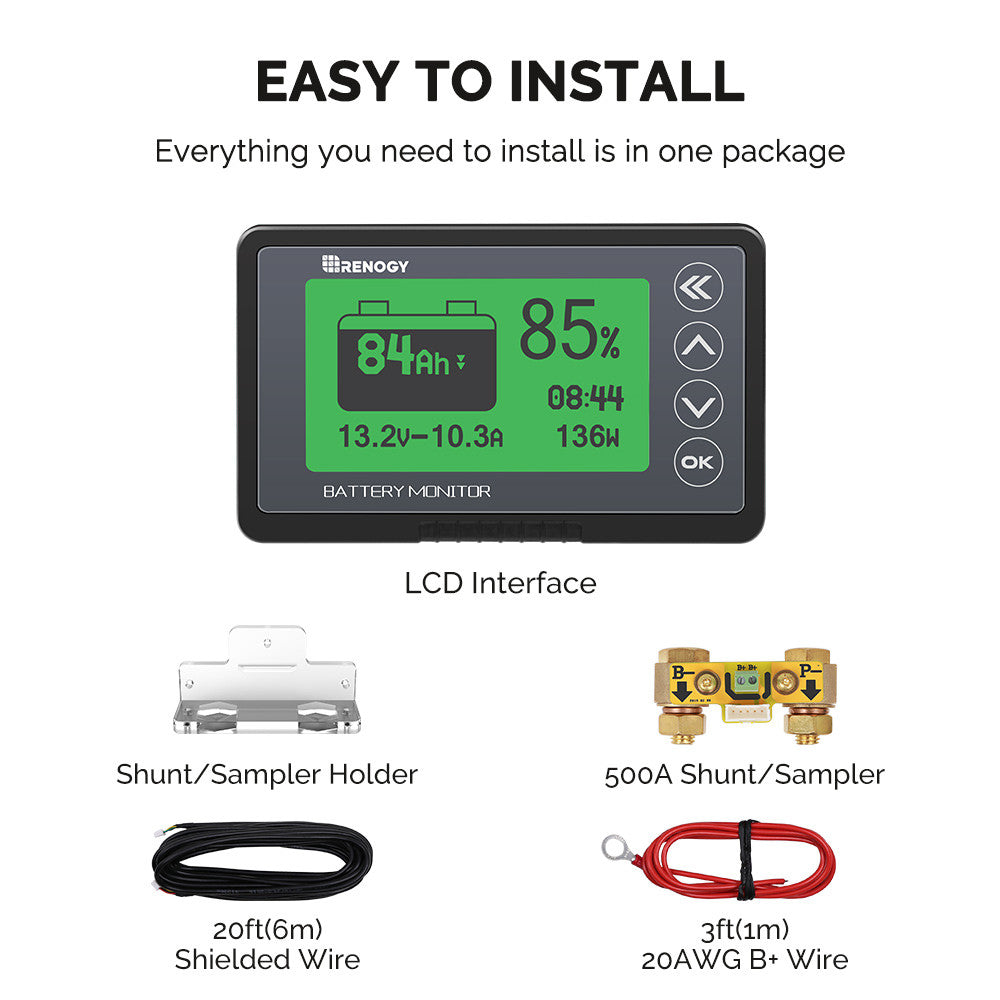

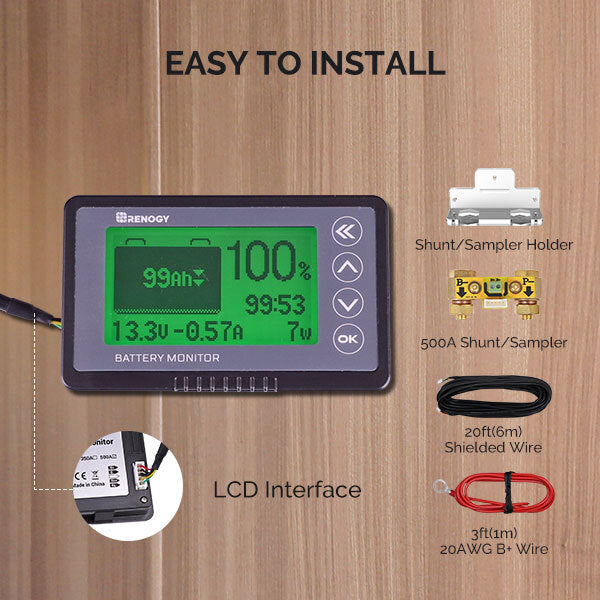

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

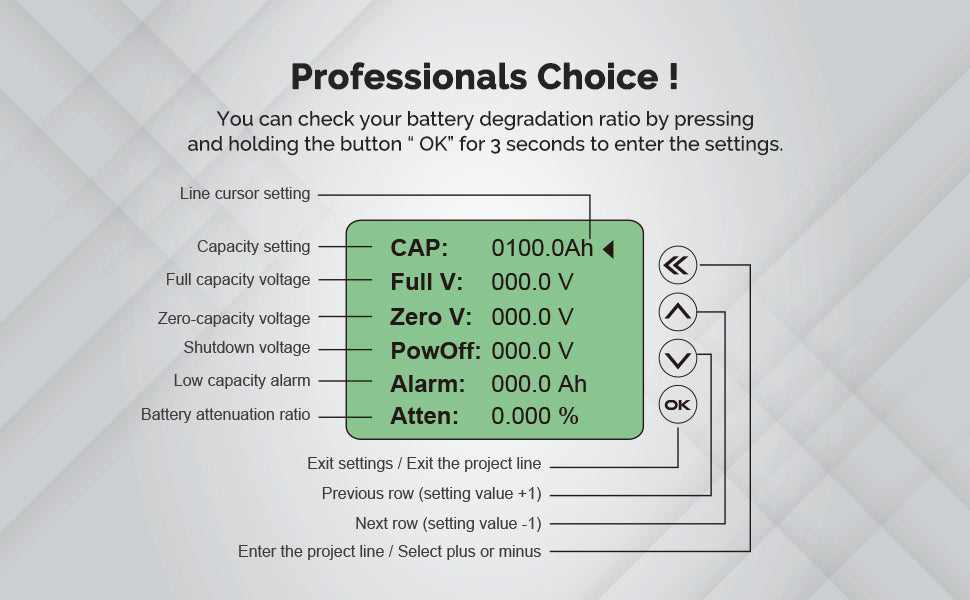

Monitor your battery degradation with Renogy Battery Monitor!

It is of extreme importance to achieve accurate predictions of the remaining battery lifetime under various operating conditions. With the Renogy New Battery Monitor (RBM500-G3), you will be able to monitor the battery degradation to ensure reliable operation and timely maintenance.

Please follow the following steps for battery degradation monitor and calculation:
* 30 days data collection: record the effective battery capacity and nominal battery capacity on a daily base
* Effective Battery Capacity = Nominal Battery Capacity - (Current CAP * Battery Degradation Rate)
* Battery Degradation Rate = Nominal Battery Capacity- Effective Battery Capacity/Current CAP

Package Includes

LCD Interface

x 1

500A Shunt/Sampler

x 1

Shielded Wire

x 1

B+ Wire

x 1

Shunt Holder

x 1

500A BATTERY MONITOR WITH SHUNT

Operation Specifications

Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA
Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%

Mechanical Specifications

Shielded Wire Length
20 ft/6 m
Weight (LCD Interface)
2.6 oz / 75 g

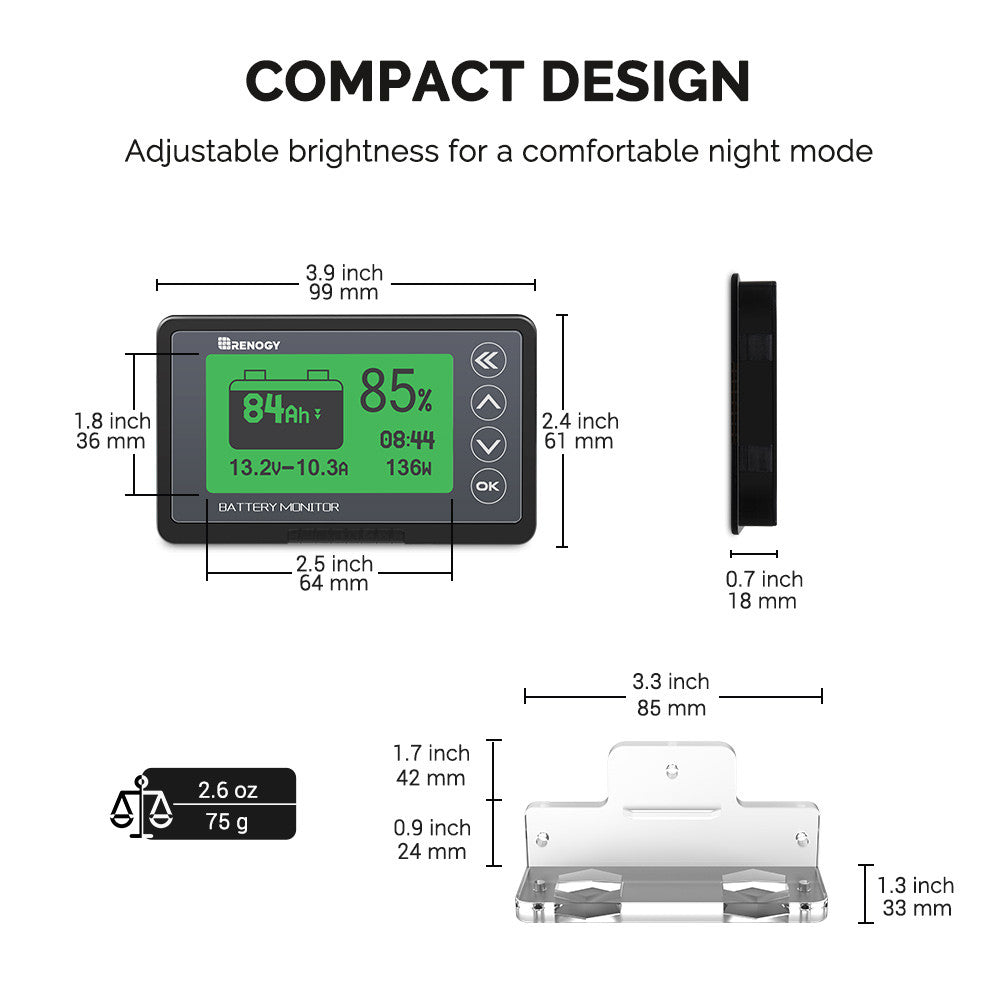

Size (LCD Interface)
3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm
B+ Wire Length
3 ft/1 m
Temperature range
14-140°F(-10-60°C)

Accessories

LCD Interface
x 1
500A Shunt / Sampler
x 1
Shielded Wire
x 1
B+ Wire
x 1
Shunt Holder
x 1

Warranty

Material Warranty
1 Year

Certifications

ROHS
Yes

Resources Download

Manual Book

Download

Warranty

Download

Frequently Asked Questions

1. Is there a purpose to having both the Renogy 500A Battery Monitor and the Bluetooth Module?

"The Battery Monitor is a good idea for anyone without a smartphone or who doesn’t mind staying close to their system to keep tabs. This monitor can also work with all sorts of other battery applications, such as golf carts, electric scooters, medical devices, etc. The Bluetooth Module caters to anyone with a smartphone or tablet and those who want a bit more freedom in keeping tabs on their system. · Renogy LifePO4 Battery has an RJ45 communication port connected with BT-2 and monitors the battery data directly from the APP. · Lead-acid battery has no communication port, and the Bluetooth module detects battery data from the charge controller. You may find more from BATTERY MONITOR VS BLUETOOTH MODULE: WHAT'S BEST TO MONITOR YOUR SYSTEM? (https://www.renogy.com/blog/battery-monitor-vs-bluetooth-module-whats-best-to-monitor-your-system/)"

2. Can I monitor more than two batteries with one Renogy Battery Monitor?

Yes. Please follow the instruction carefully when you connect the system.

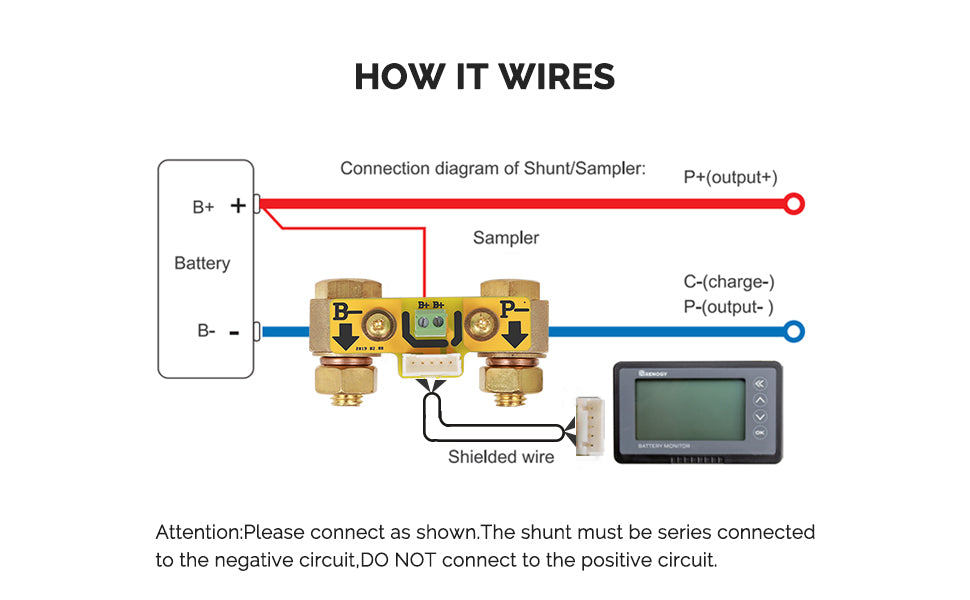

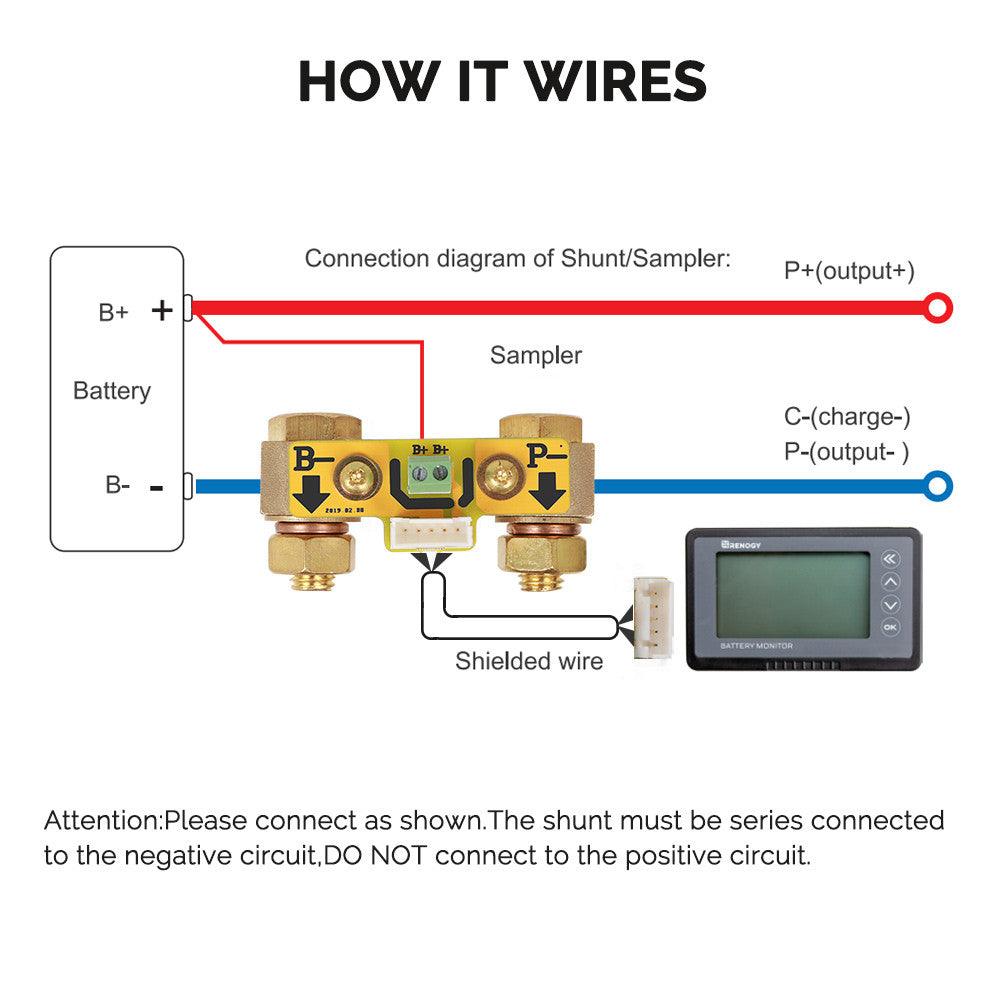

3. How to wire and calibrate the battery monitor?

Please find more information from the Video https://www.youtube.com/watch?v=-vrQsKZ7CdE

4. Can I use Renogy Battery Monitor with other brand's batteries?

Yes. The Renogy Battery Monitor is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
