400W 12V/24V Solar Premium Kit w/Rover 40A MPPT Charger Controller for Camper RV Caravan Boat System Off Grid

SKU: RNG-KIT-PREMIUM400DC-RVR40-EU
€399,99 €889,99
Tax included. Shipping by weight.
+ 3990   Renogy Rays after purchase.
Log In Learn More

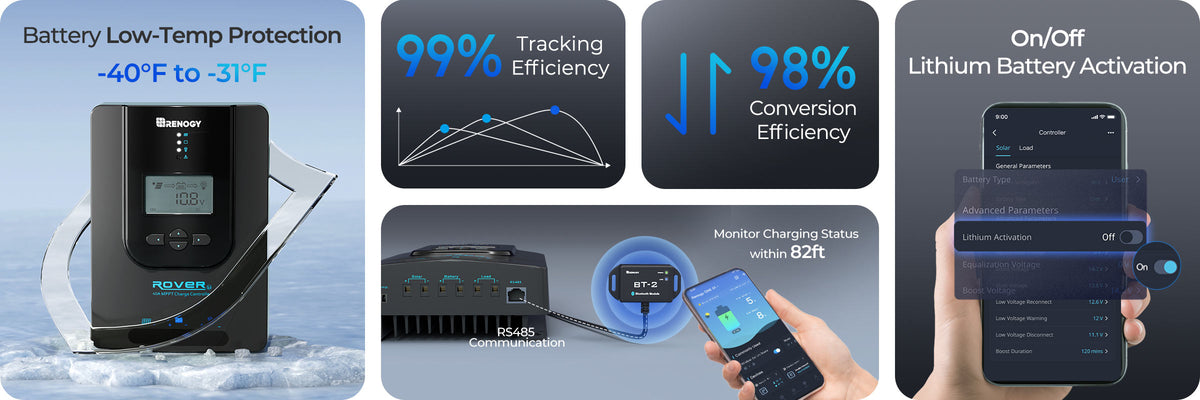

  • Efficient High-efficiency monocrystalline panels (21%) with bypass diodes for reduced shade loss. Rover controller delivers up to 98% conversion and 99% tracking efficiency.

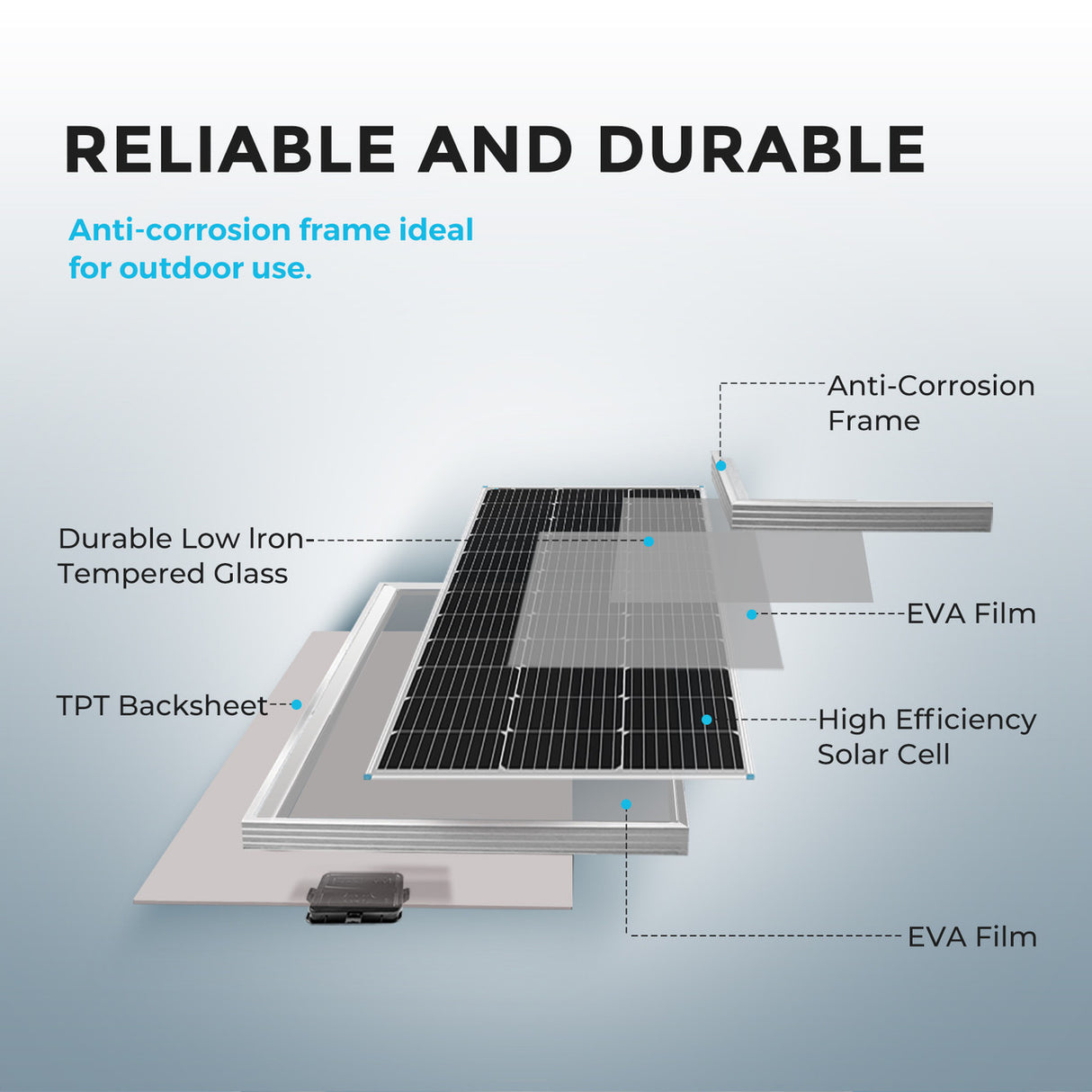

  • Reliable EL-tested modules ensure no hot-spot issues, with durable TPT back sheet and IP65 junction box for long-term outdoor performance.
  • Intuitive 4-stage charging for fast and safe battery replenishment. RS-232 compatible and supports Renogy Bluetooth Module + BT App for remote monitoring.
  • Safe Pre-drilled mounting holes for quick installation. Includes MC4 inline fuse and ANL fuse for enhanced controller and battery protection.Safe Pre-drilled mounting holes for quick installation. Includes MC4 inline fuse and ANL fuse for enhanced controller and battery protection.
Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
Reviews

Description

The Renogy 400W 12V Premium Kit is the most economical choice for the off-grid adventurer. With the ability to access energy wherever there is sun, the options for your journey are limitless.

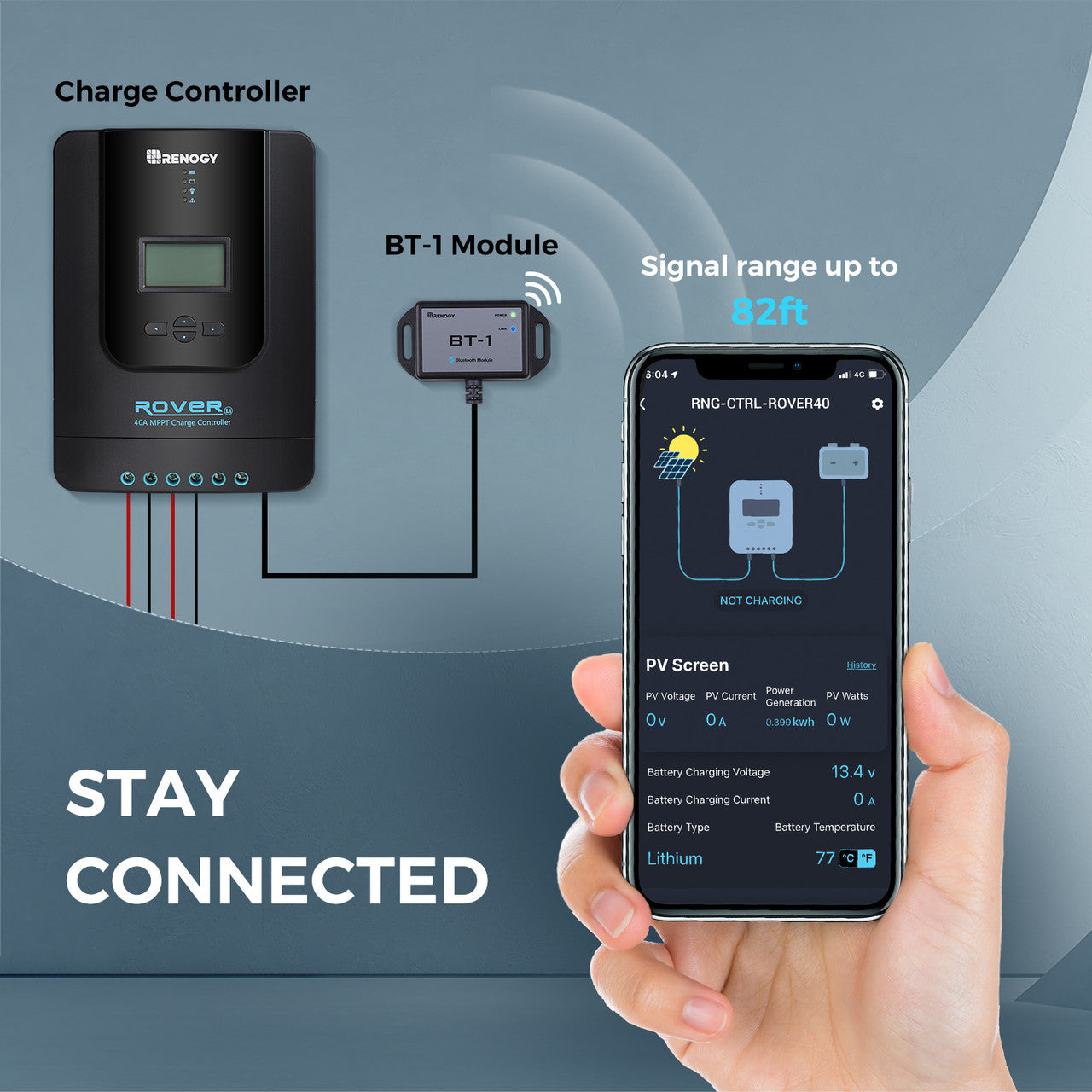

The Rover Li 40A MPPT Charge Controller included in this kit features multi-phase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. Our new Bluetooth module is also included, which can be paired with the Renogy DC Home smartphone app. The Renogy DC Home smartphone app allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet.

The included 100W Solar Panels are not only sleek in size and weight, but are made of high-efficiency monocrystalline solar cells. For convenience, this kit also consists of four sets of mounting Z-Brackets, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 10AWG Tray Cable.

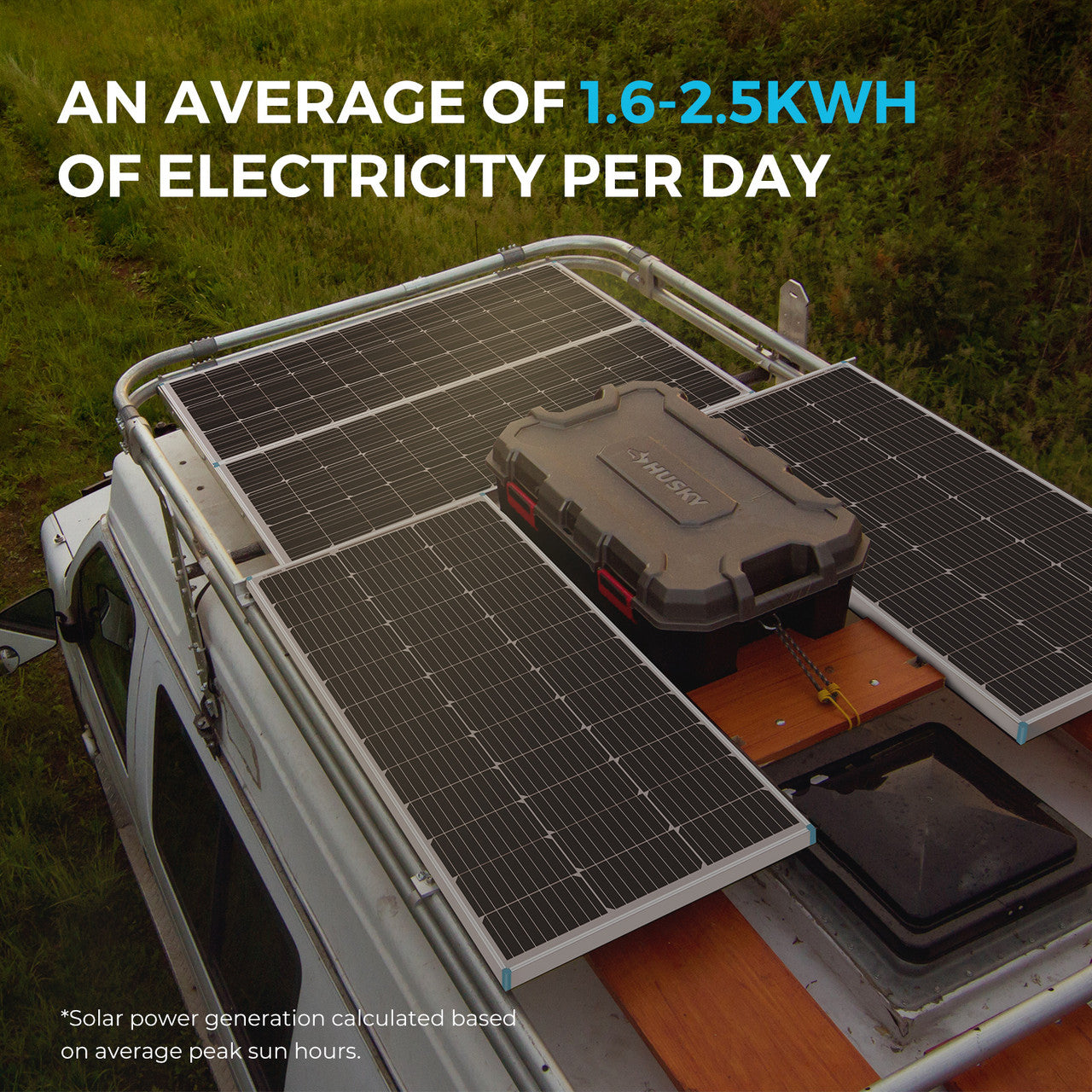

This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.

If you have any questions regarding this product, please submit a case！

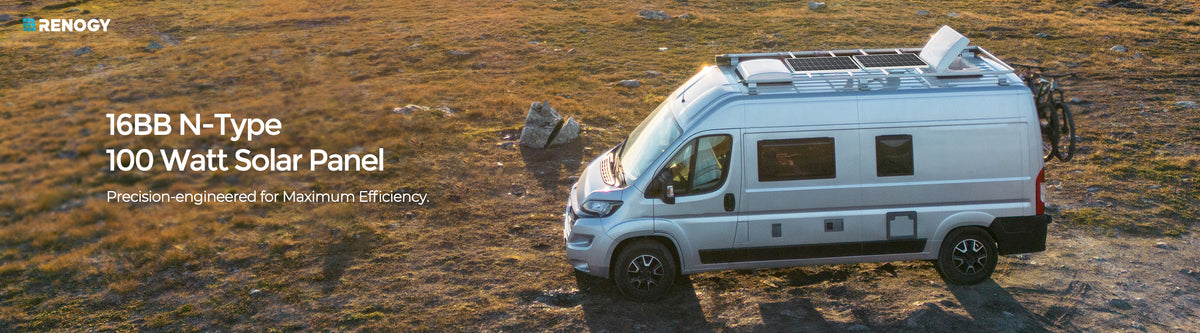

Designed to Fit Your Class B Van Roof

7.5% smaller and 11.7% lighter than previous 200W PERC panels, maximizing space for that perfect edge-to-edge fit.

Unrivaled Power in Extreme Environments

Advanced N-Type solar cells ensure consistent power output even in high-temperature environments.

Installs Fast and Travels Easy

A durable frame with PA66 GB30 reinforced corners ensures safer handling and easier setup.

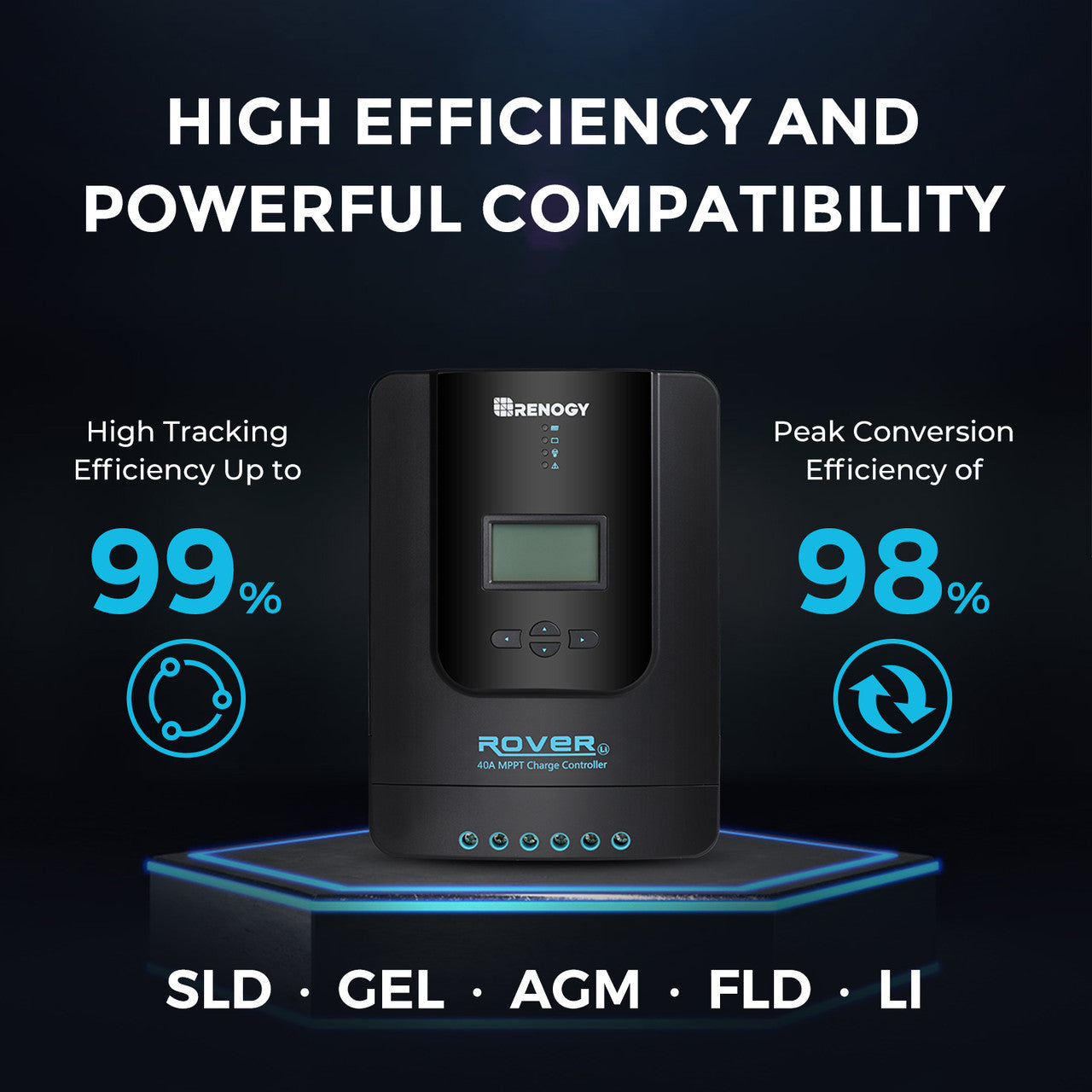

Rover Li 40 Amp MPPT Solar Charge Controller

An advanced charge controller that maximizes the performance of your solar system.

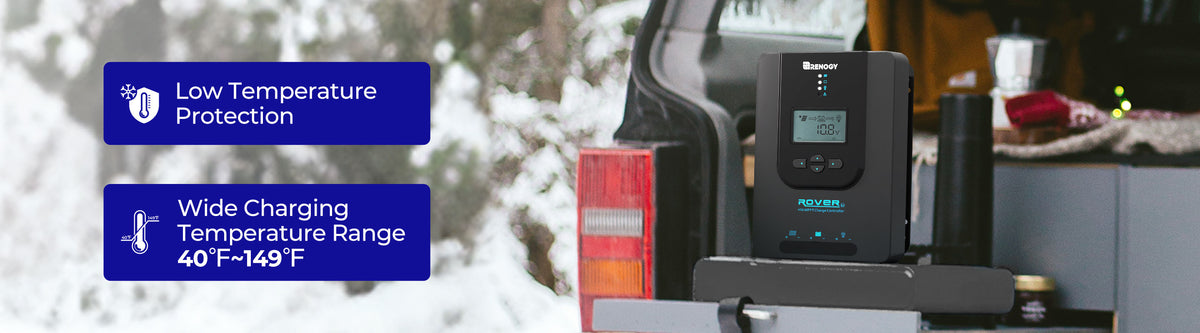

Upgrade Your Charging Controller

Upgrade to an MPPT charge controller with low-temperature protection for the most efficient solar charging of your batteries in any environment.

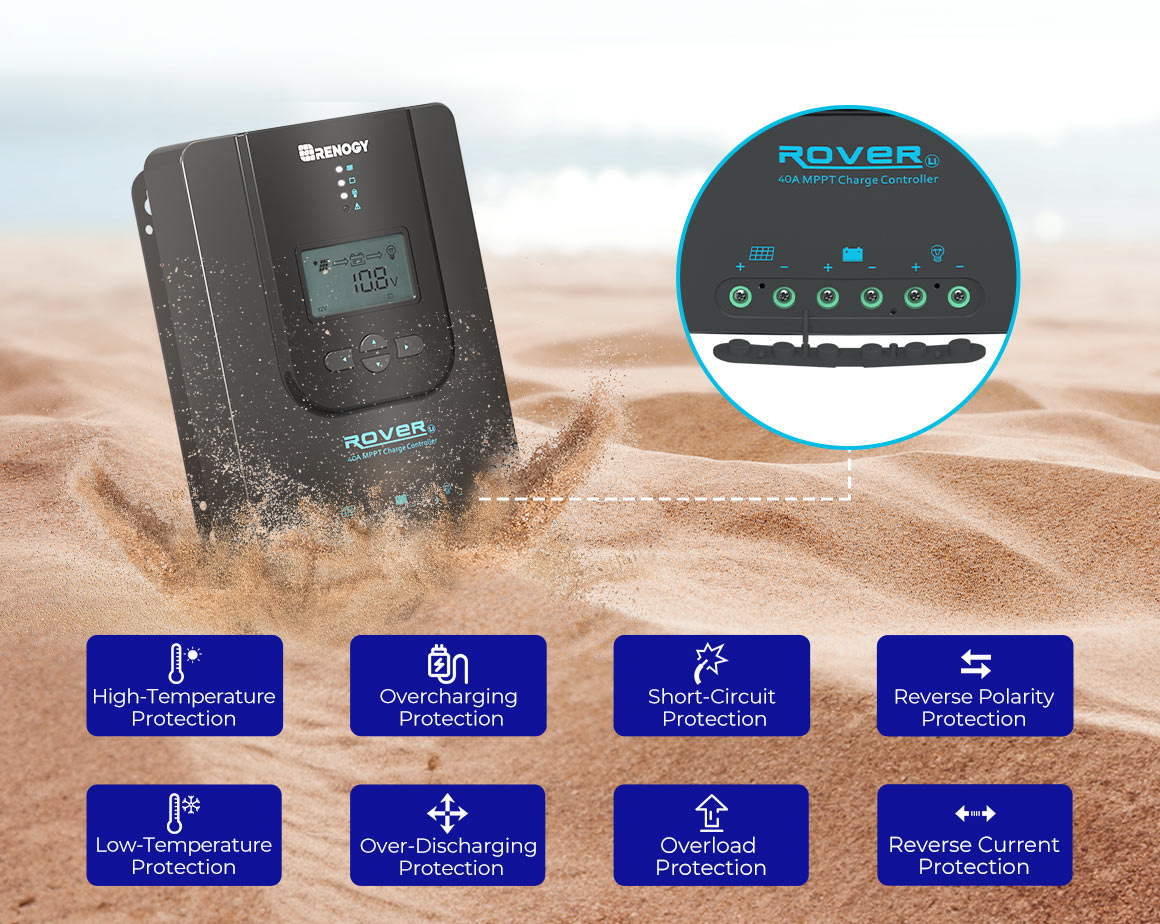

Comprehensive Internal and External Protection

The high-quality casing materials and the addition of a rubber strip make this charge controller more effective in preventing rust, corrosion, and contamination while safeguarding wiring for optimal functionality. Internally, the controller boasts multiple protection mechanisms, ensuring the safety and longevity of your system.

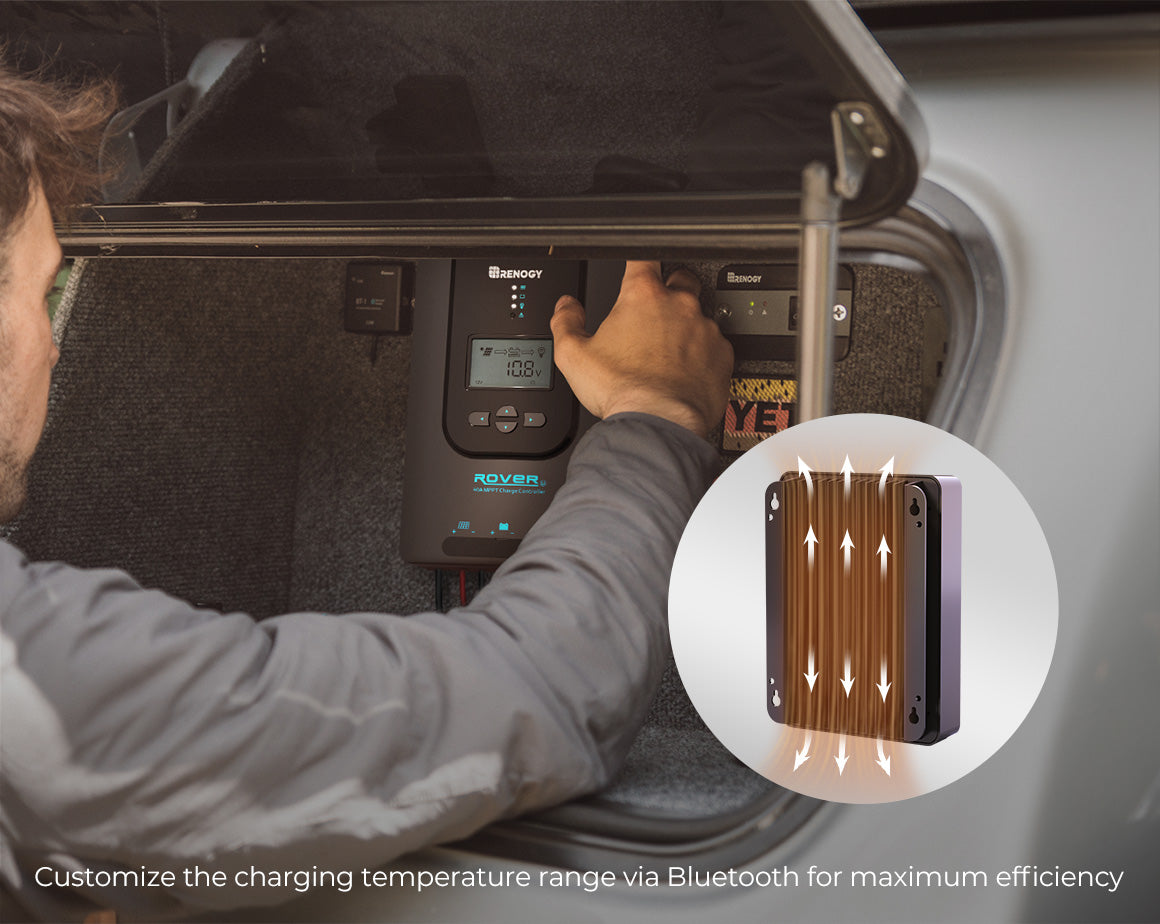

Rapid Heat Dissipation

Rover charge controller stands out with its rapid heat dissipation capabilities, ensuring efficient performance even in the most demanding environments. With the ability to quickly dissipate heat, this controller maintains peak performance, safeguarding your batteries and system components.

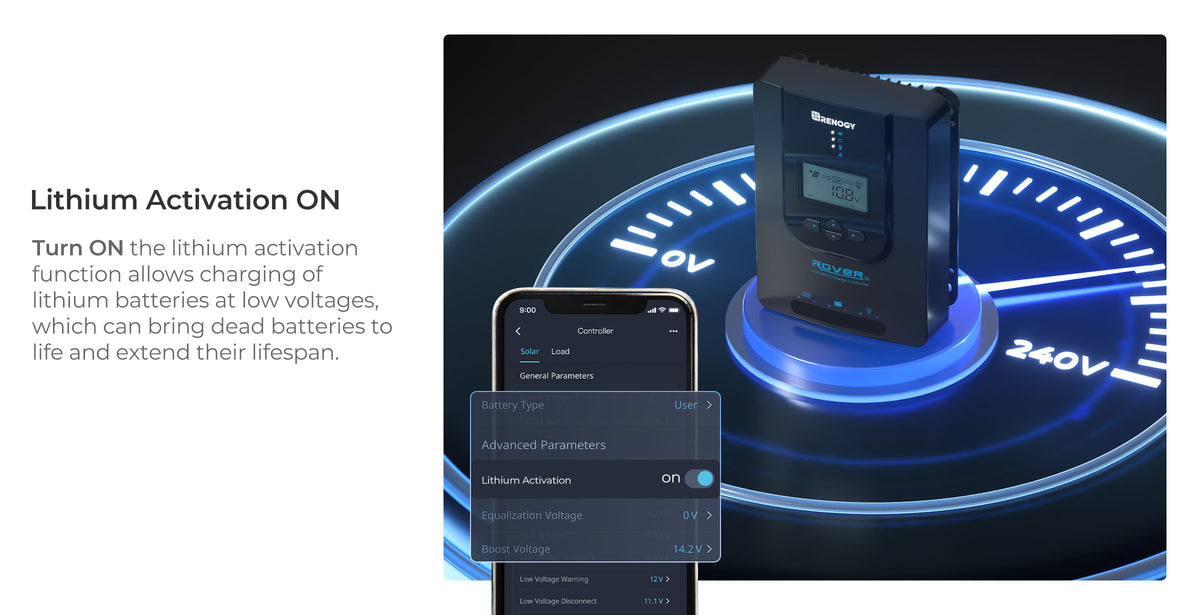

Lithium Activation ON

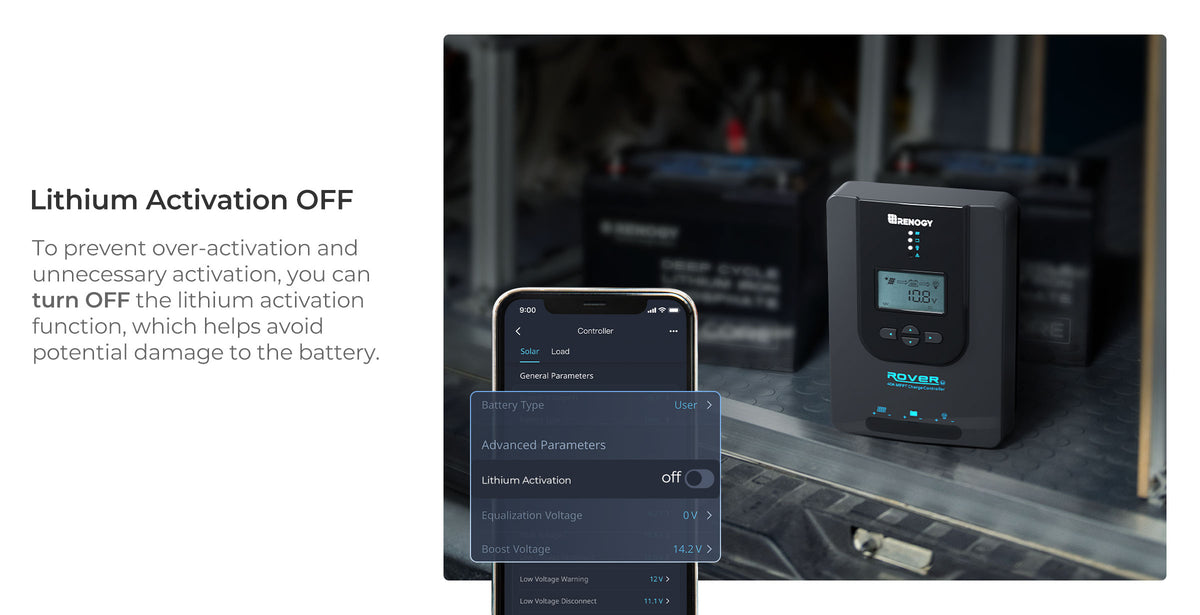

Lithium Activation OFF

Revive Your Lithium Batteries When You Need

Tailor the lithium activation feature to your needs, ensuring your lithium batteries are protected in any scenario.

Revive Your Lithium Batteries When You Need

Tailor the lithium activation feature to your needs, ensuring your lithium batteries are protected in any scenario.

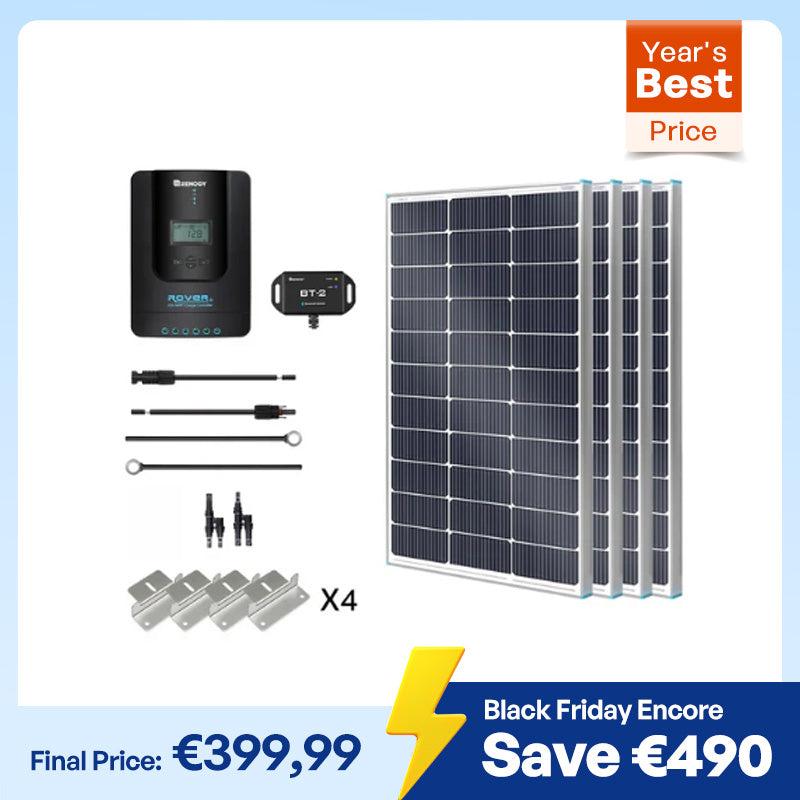

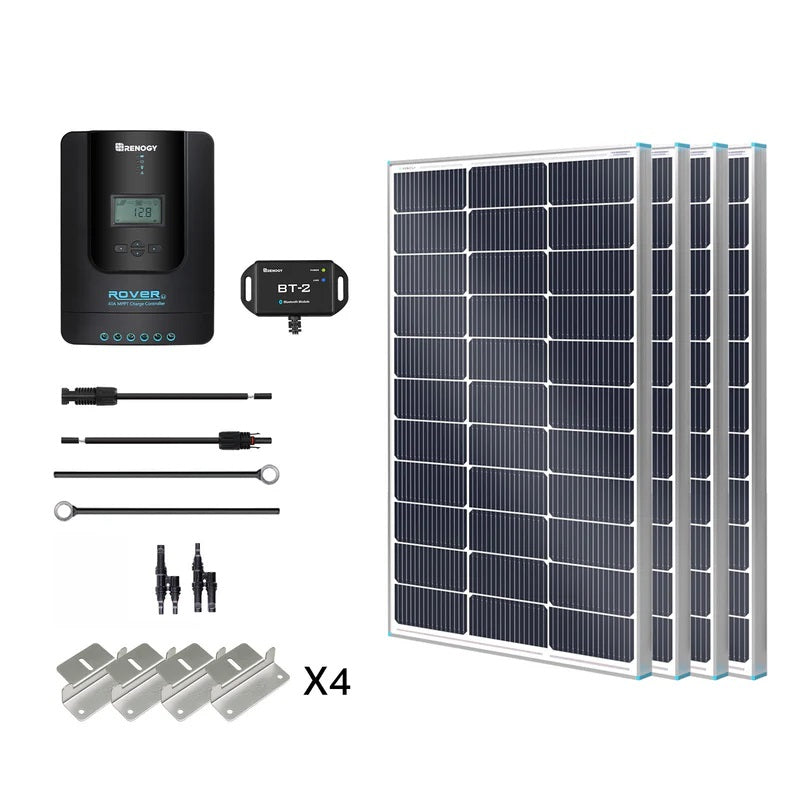

What's in the box

Include

Rover Li 40 Amp MPPT Charge Controller

x 1

Renogy 16BB N-Type 24V Solar Panel

x 4

BT-2 Bluetooth Module

x 1

Mounting Z Brackets (Set)

x 4

20FT 10AWG Adaptor Kit

x 1

8ft 10AWG Tray Cable

x 1

2 to 1 Solar Branch Connectors

x 1

RSP100DC

100W - Module Performance

Max Power at STC:
100W
Module Efficiency:
20%
Open Circuit Voltage:
22.79V
Short Circuit Current:
5.31A
Optimum Operating Voltage:
19.97V
Optimum Operating Current:
5.01A
Maximum System Voltage:
600VDC
Maximum Series Fuse Rating:
15A
Max Power at STC:
100W
Module Efficiency:
20%
Operating Temperature:
-40°F~194°F / -40℃~90℃
Dimensions:
865x578x30mm/34.1x22.8x1.2in
Weight:
5.9kg/13.0lbs
warranty
10-year output warranty & material and workmanship warranty

Electrical Parameters

Nominal System Voltage
12/24V Auto-Detect
Rated Charge Current
40A
Solar Input Voltage Range (Voc)
15VDC~100VDC
Max. PV Input Power
12V/520W, 24V/1040W
Power Consumption
＜100mA/12V; ＜58mA/24V
Battery Input Voltage Range
10VDC~32VDC
Ground Type
Negative
Electrical Protection
Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.

Environmental Data

Protection Level
IP32
Operating Temperature Range
-35°C to 45°C; -31°F to 113°F
Storage Temperature Range
-35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity
≤ 90%, No Condensation
Temperature Compensation
-3mV/°C/2V

Mechanical Specifications

Dimensions
238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
Weight
2.0kg
Max. Terminals Size
8 AWG 10mm2

information

Temperature Sensor
9.8ft cable length
CE
Yes
FCC Class B Part 15 Compliant
YES
Material and workmanship warranty
3 Year
Compatible MPPT Charge Controller
RNG-CTRL-RVR20/RNG-CTRL-RVR30-RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100
Compatible App
Renogy DC Home App available in both the App Store and Google Play

Mechanical &Operation Specifications

Communication Protocol
RS485 Modbus
Port Type
RJ12
Input Voltage /repeat1
5V
Protection Grade
IP54
Standby Power Consumption
0.04W
Operating Power Consumption
0.05W
Serial Baud Rate
Fixed Baud Rate 9600bps
Communication Range
≤82ft (25m)
Cable Length
16.4 ft (5.00m )
Dimensions/repeat3
2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Weights/repeat4
4.58oz (130g )
Operation Temperature
-31℉ to 113℉/-35℃ to 45℃
Storage Temperature
-31℉ to 167℉/-35℃ to 75℃
Operating Altitude
≤3000m
FCC Class B Part 15 Compliant/repeat6
YES

Download

Warranty

Download

100DC

Download

40 MPPT

Download
