2.56kWh Caravan Power System | 2000W Inverter, 200Ah Lithium Battery

SKU: RBD200-PUH2-EU
€621,99 €1.025,99
Tax included. Shipping by weight.
+   Renogy Rays after purchase.
Log In Learn More

Inverter (EU Plug, 2-Pin) – Not for Ireland

Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
Reviews

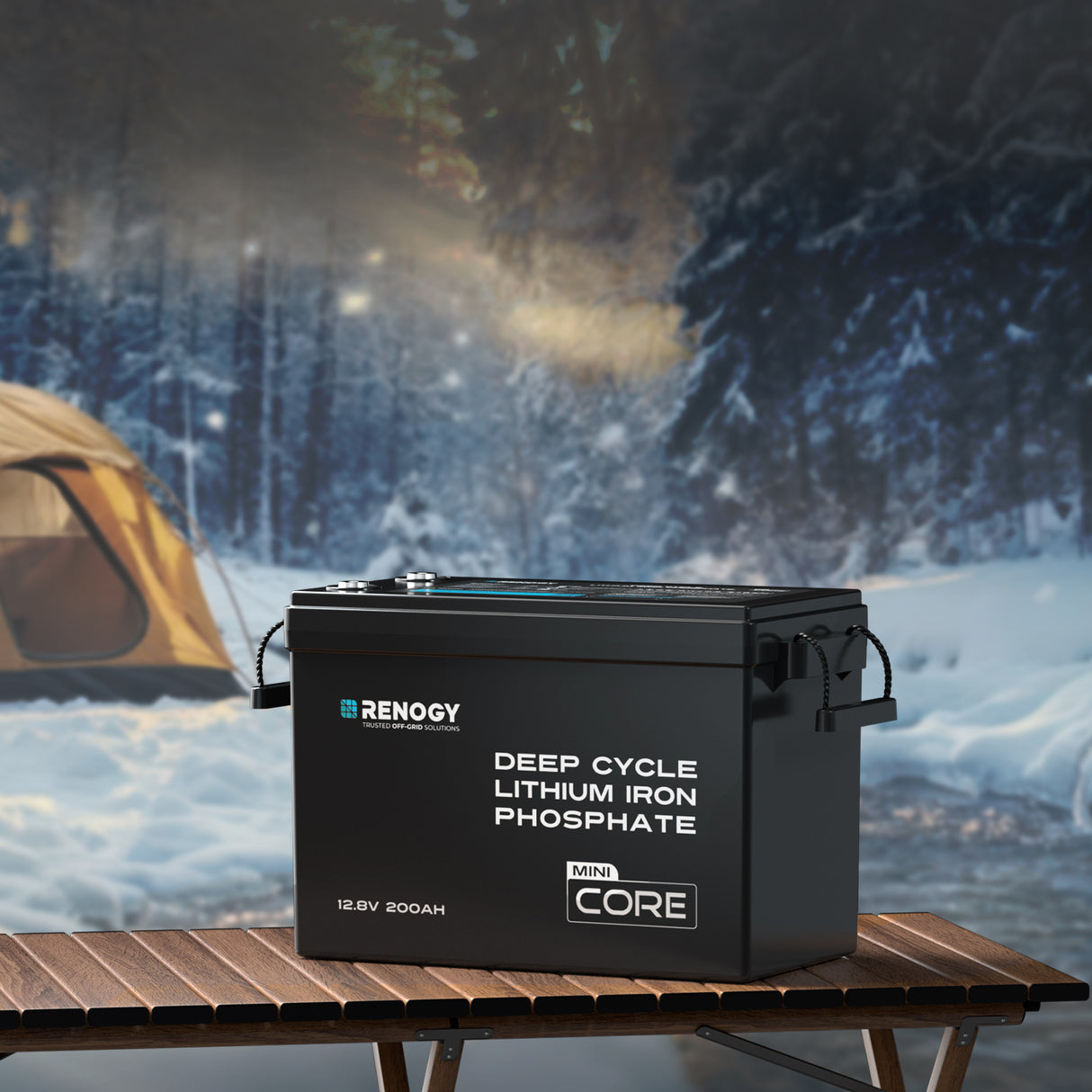

Smaller, Sleeker, Still Renogy Strong.

Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

21% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

Hands-Free Low-Temp Cut-Off

The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

Peak Power Output
Vibration-Resistant Design
Tested & Trusted Power

Peak Power Output

Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

Vibration-Resistant Design

Metal cell spacers prevent damage in rough terrain and choppy waters.

Tested & Trusted Power

Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.

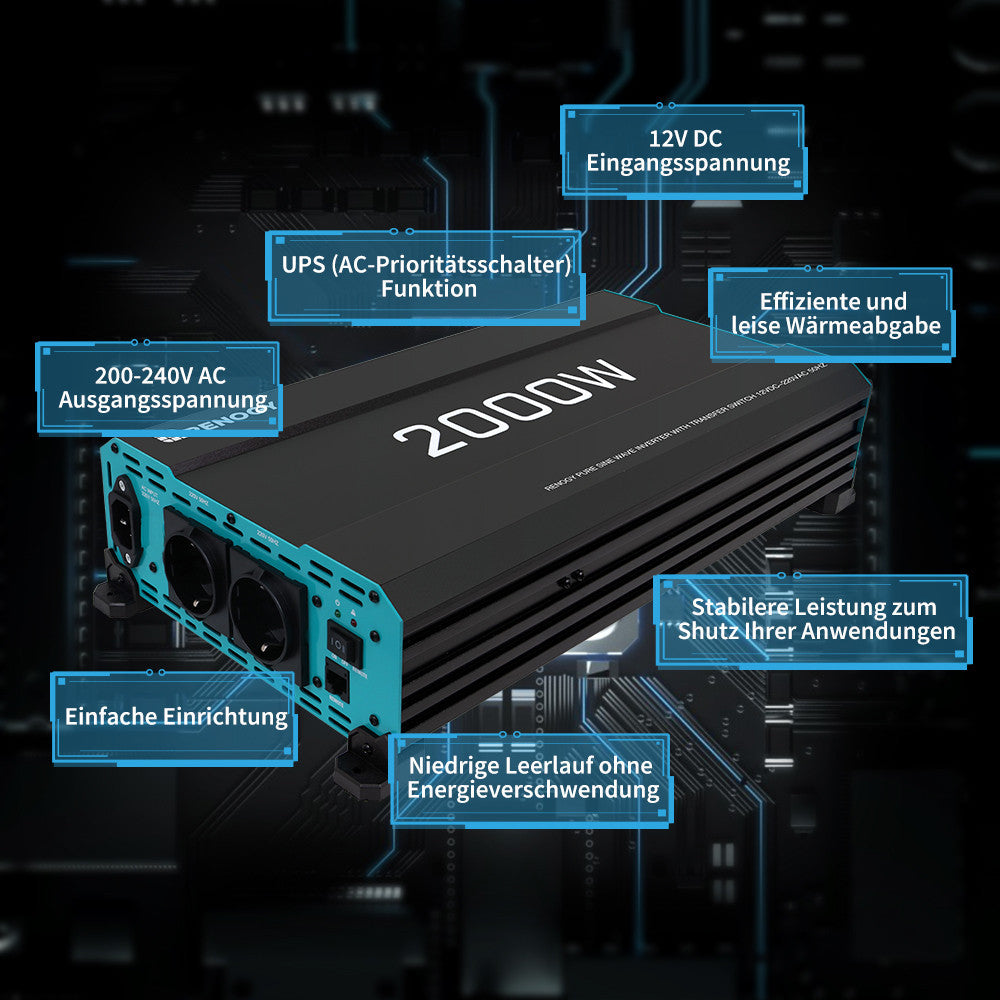

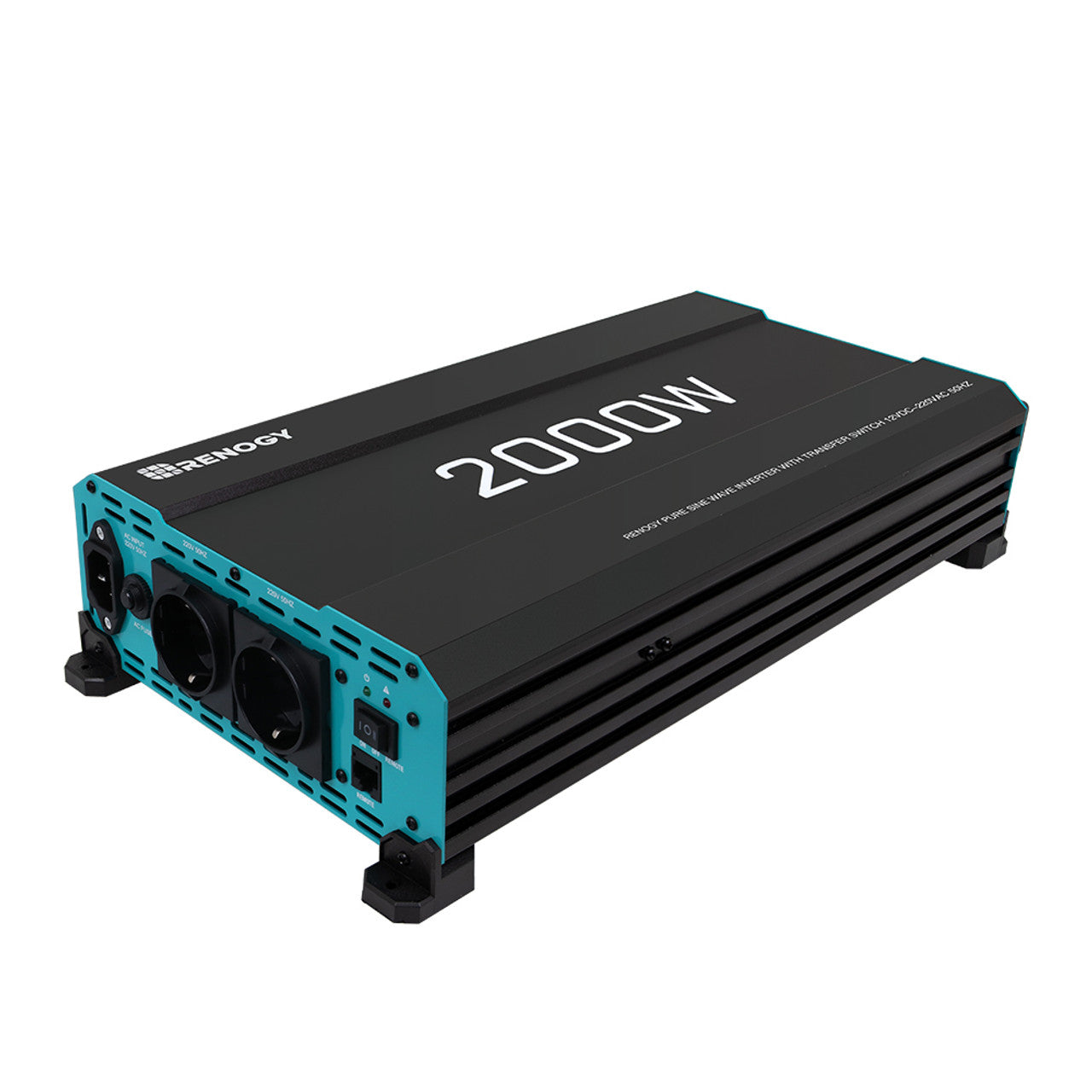

2000W 12V Pure Sine Wave Inverter

Advanced pure sine wave technology ensures clean, stable power for optimal system performance.

Versatile Pure Sine Wave Power

The pure sine wave output provides a smooth and stable power supply that closely resembles the power of the utility grid, making it extremely versatile and compatible with a wide range of electrical devices. Renogy inverters work seamlessly with sensitive devices without compatibility issues or interference, helping to extend device lifespan and ensure reliable performance.

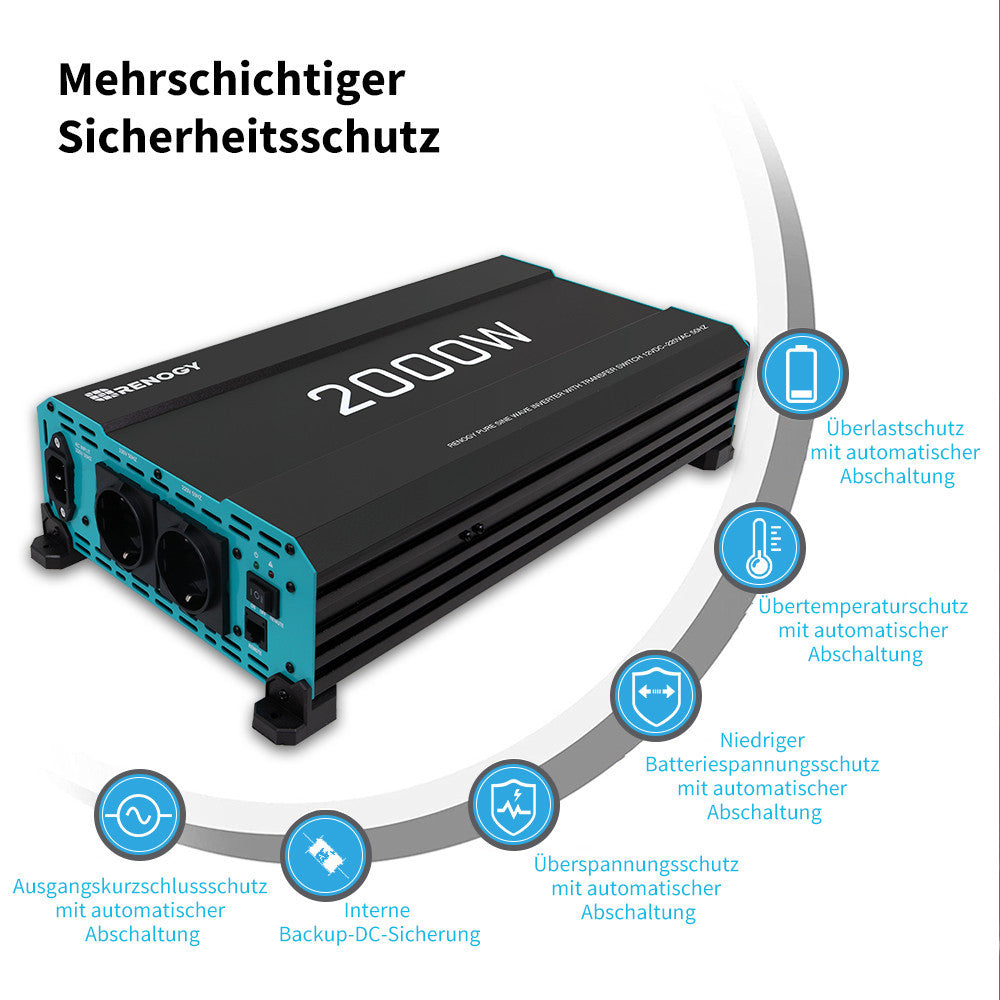

Robust Metal Housing

Constructed with durable materials and premium craftsmanship, Renogy inverters are built to last, withstand harsh conditions, and deliver reliable performance.

Effortless installation
Circuit diagram

Easy, Hassle-Free Installation

Whether you're an experienced solar enthusiast or a beginner, our clear instructions and included accessories make installation simple. Start using clean, reliable energy with ease and confidence using the Renogy inverter.

A Complete Off-Grid Power Solution

Seamlessly integrates with Renogy solar panels, charge controllers, and batteries to deliver reliable and efficient power. The ultimate off-grid solution for your RV, camper van, or remote power needs.

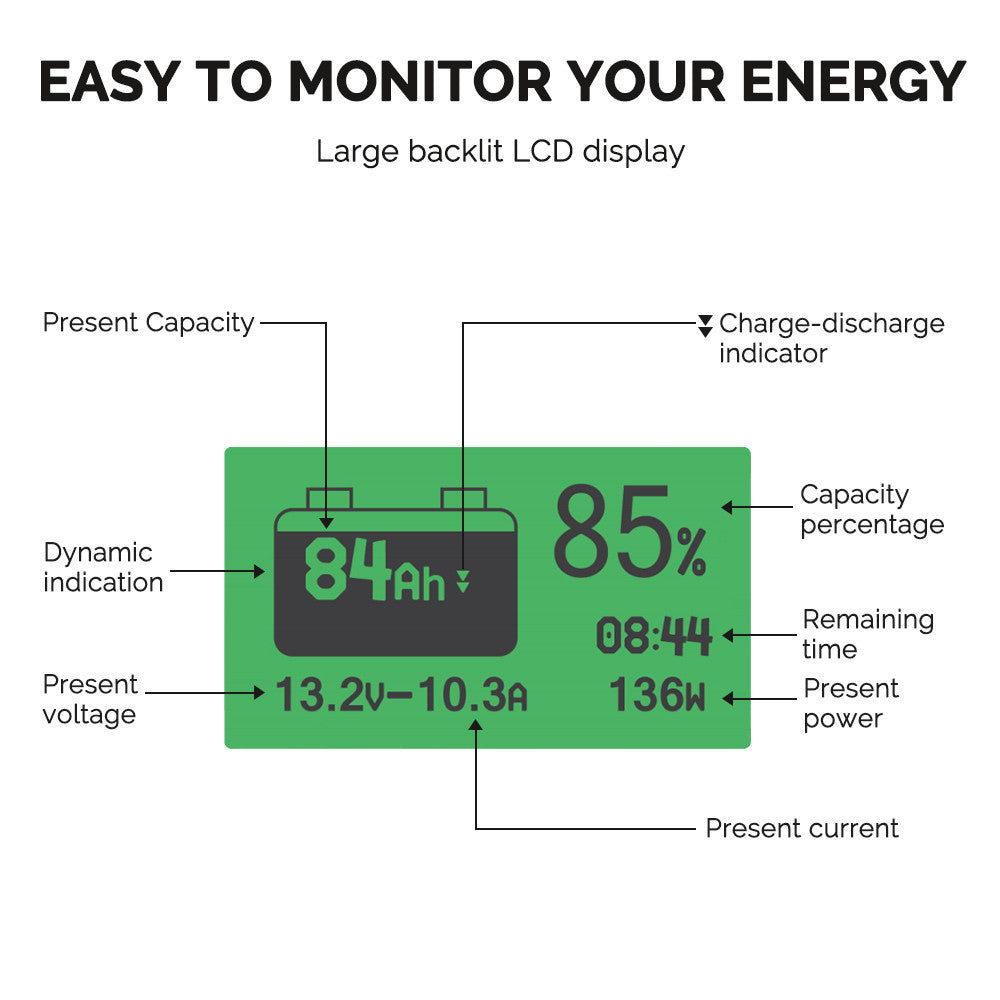

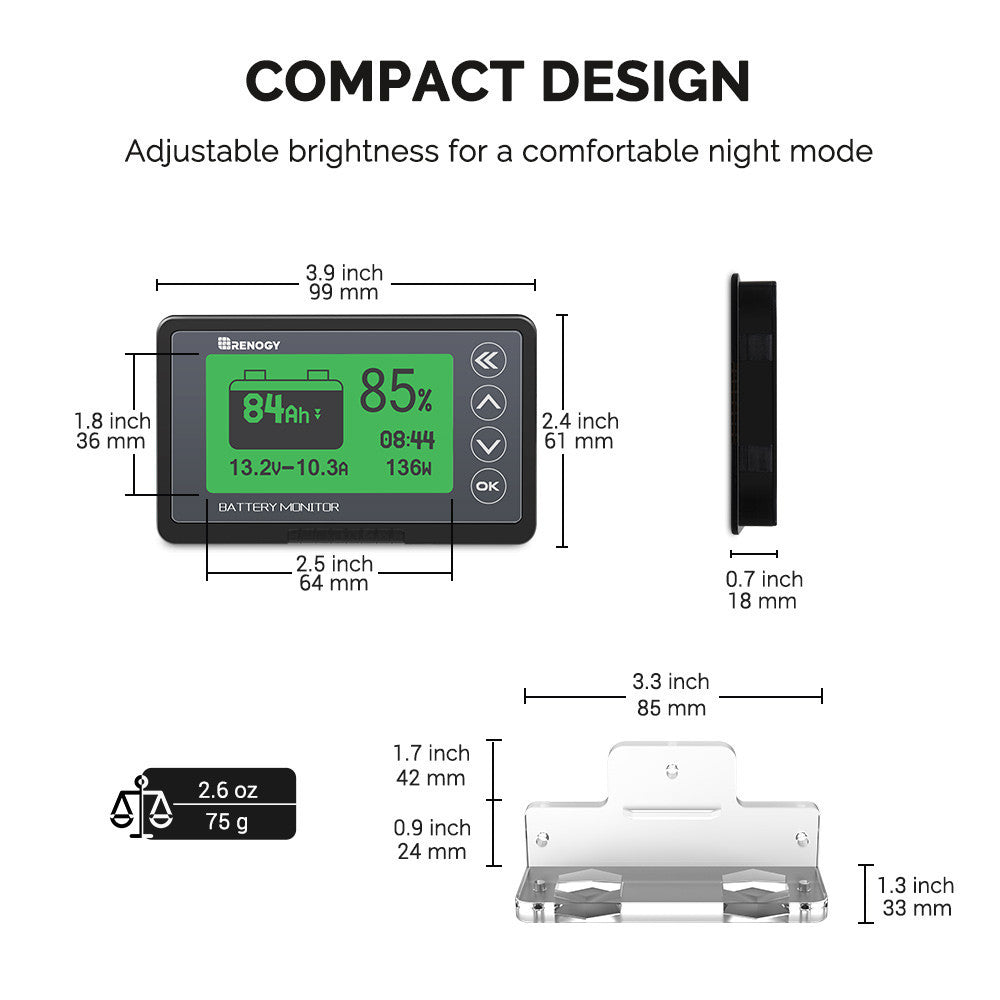

The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!

It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

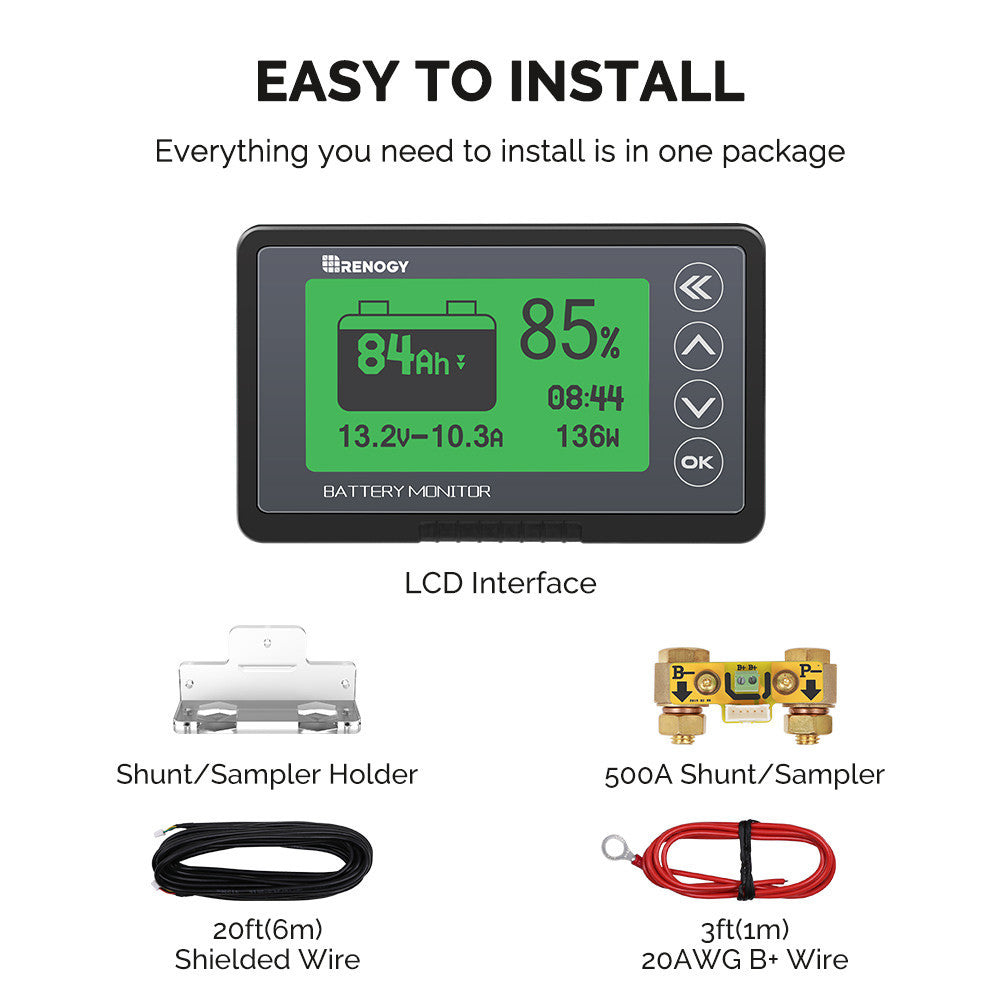

EASY TO INSTALL

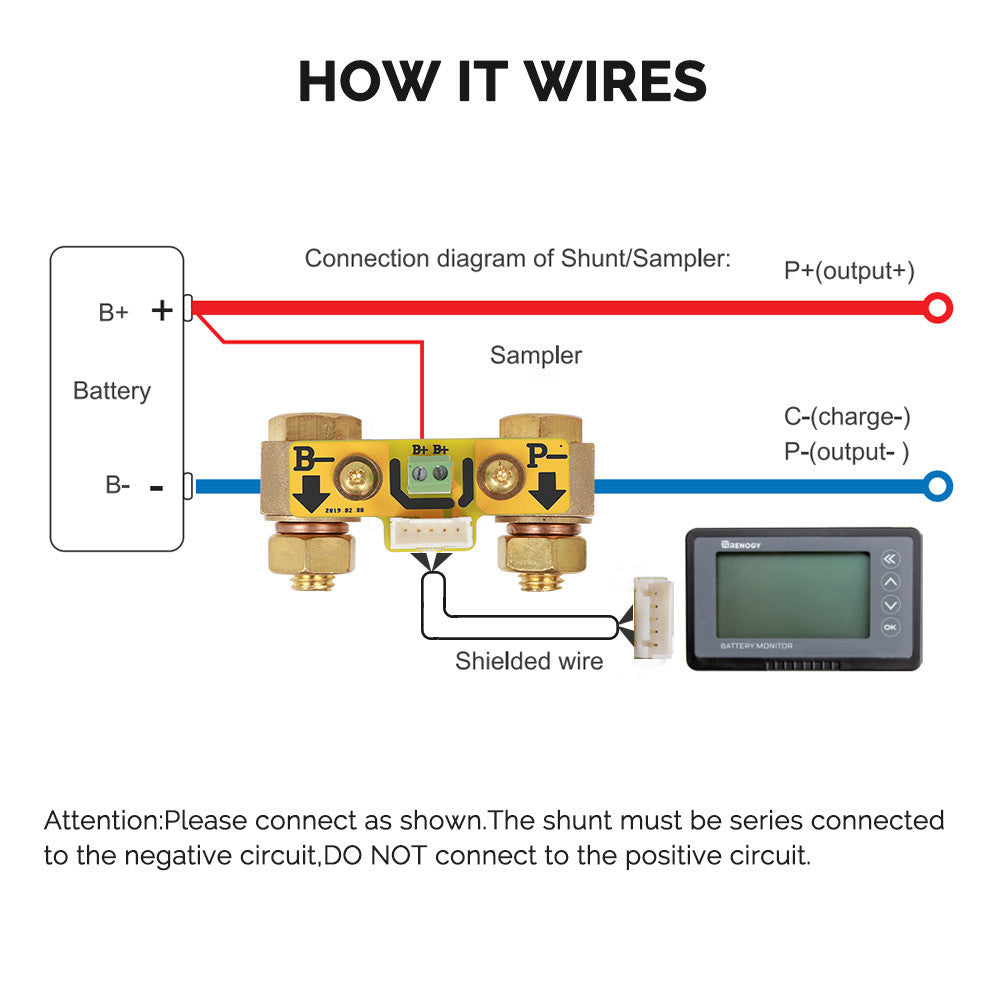

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

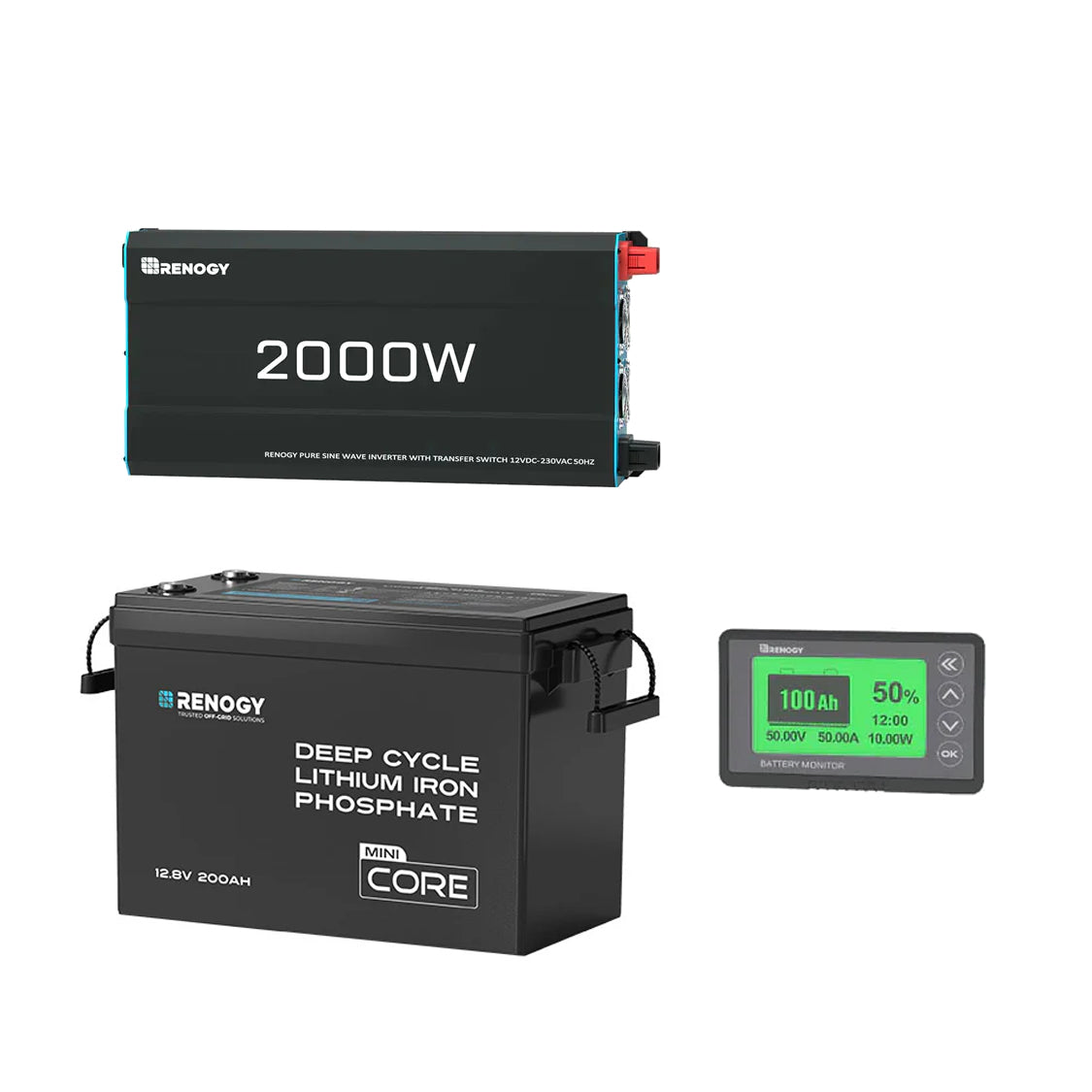

Package Includes

200Ah Lithium Battery

x 1

Renogy 2000W 12V Pure Sine Wave Inverter

x 1

500A Battery Monitor

x 1

Specifications

12,8V 200Ah Lithium Battery Electrical Specifications

Rated Capacity
200Ah (0.5C, 25℃)
Voltage
12V
Energy
2560Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)

2000W Pure Sine Wave Inverter

Constant output power
2000W
Rated input voltage
12VDC
Peak power
4000W
Rated AC input voltage range
200-240VAC
Output waveform
Pure sine wave
Output frequency
50 Hz
Low voltage shutdown
10VDC
High voltage shutdown
16.3VDC
Output voltage
220-240VAC
Static current
1.3A
Ambient temperature
0℃ - 40℃
Weight
4.8kg
Dimensions
442 x 220x 92mm

500A Battery Monitor Operation

Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA

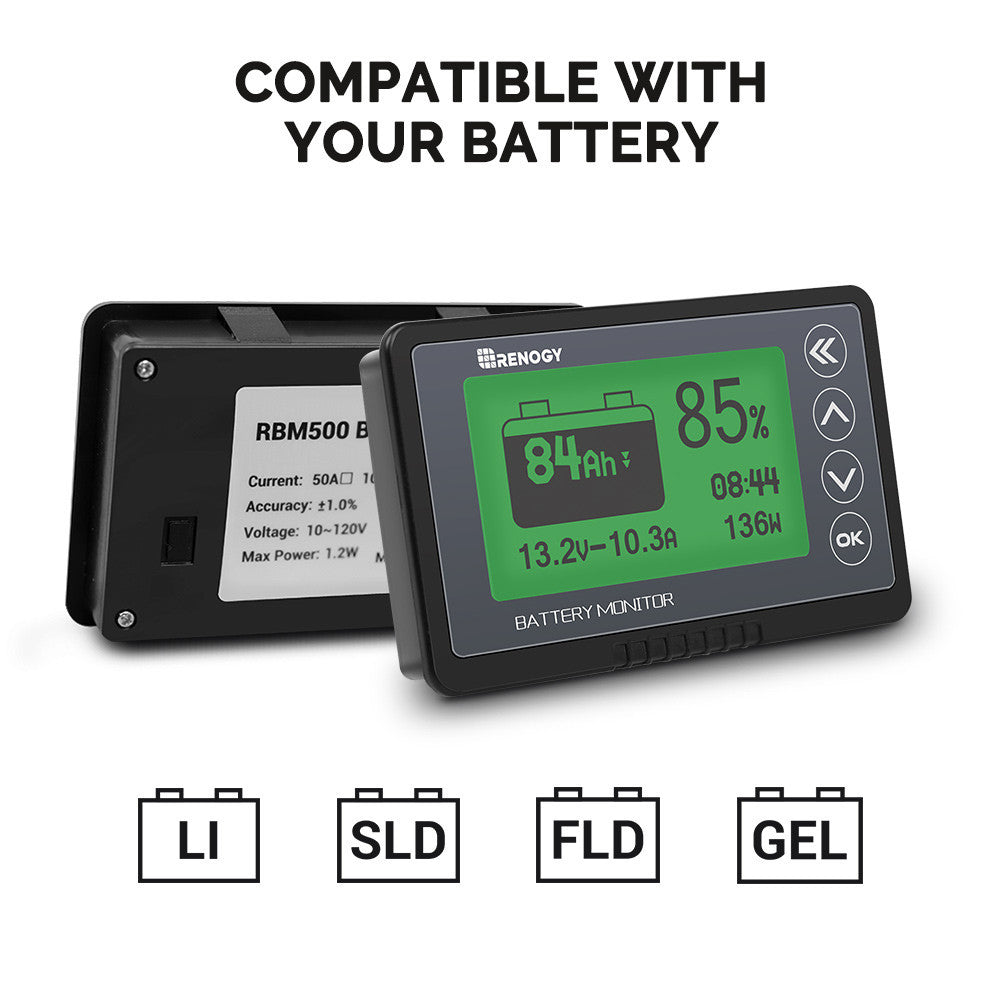

Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%

Download

300Ah Core Mini Lithium Battery

Download

Inverter

Download

500A Battery Monitor

Download

Warranty

Download
