Description

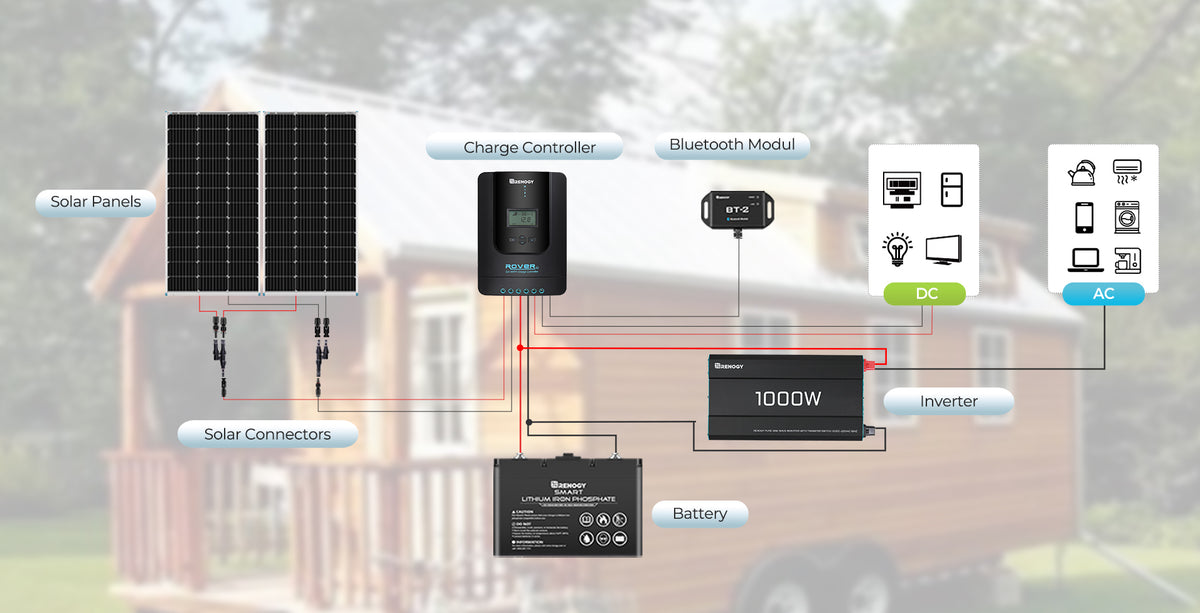

The perfect addition to any off-grid system, whether for a van or a cabin, the Renogy 1000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 1000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics and this one includes multiple protections to help things run smoothly and safely.
The AC priority switch function enables the inverter automatically switch from the battery (DC) to the mains (AC) and vice versa whenever the utility company takes/loses power!
If you have any questions regarding this product, please submit a case！
Key Features
- Electronic overload protection with automatic shutdown.
- Built-in internal backup DC fuse provides added safety.
- Low battery voltage protection with automatic shutdown.
- Over temperature protection with automatic shutdown.
- Output short circuit protection.
UPS (AC priority switch) function: Transfers input power between battery supply & AC main within 50mS
Minimum 12V Lithium Battery Bank Sizing
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.
| Battery Bank Qty/ Inverter Size | 50Ah | 100Ah | 170Ah |
|---|---|---|---|
| 700W | 1 | 1 | 1 |
| 1000W | 2 | 1 | 1 |
| 2000W | 4 | 2 | 2 |
| 3000W | 6 | 3 | 2 |
Package Includes
|
1000W 12V Pure Sine Wave Inverter
1 x |
Inverter Cables
1 x |
Inverter Remote Control
1 x |
| Renogy 1000W 12V Pure Sine Wave Inverter | |
|---|---|
| Input Voltage: 12VDC | Continuous Power: 1000W |
| Surge Power: 2000W | Output Voltage: 230VAC±10 |
| Output Frequency (Nominal): 50Hz±0.3 | Output Wave form:Pure Sine Wave |
| No Load Current Draw: < 1A | Input Voltage Range: 11-16Vdc |
| Low Voltage Shutdown: 10Vdc | Recover from low voltage protection |
| Battery supply & AC main transfer time within 50ms | Efficiency: > 90% |

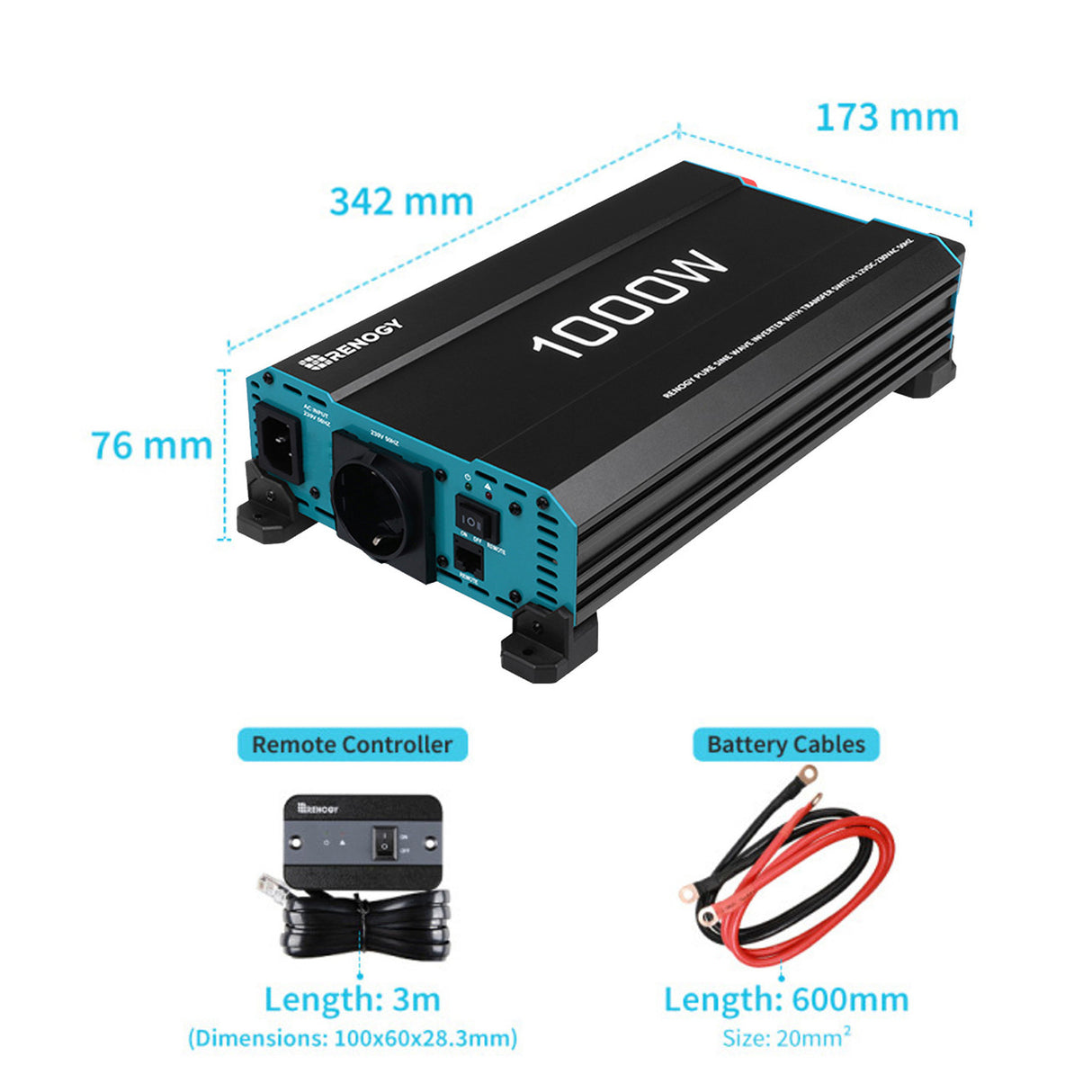

| Dimensions: 34.2 x 17.3 x 7.6 cm | Weight: 2.6Kg |
Warranty Information
| Inverters |
1-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
 |
