1,28kWh Caravan Power System | 2000W Inverter, 100Ah Lithium Battery

SKU: RBD100-PUH2-EU
€448,99 €615,99
Tax included. Shipping by weight.
+ 4480   Renogy Rays after purchase.
Log In Learn More

Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
Reviews

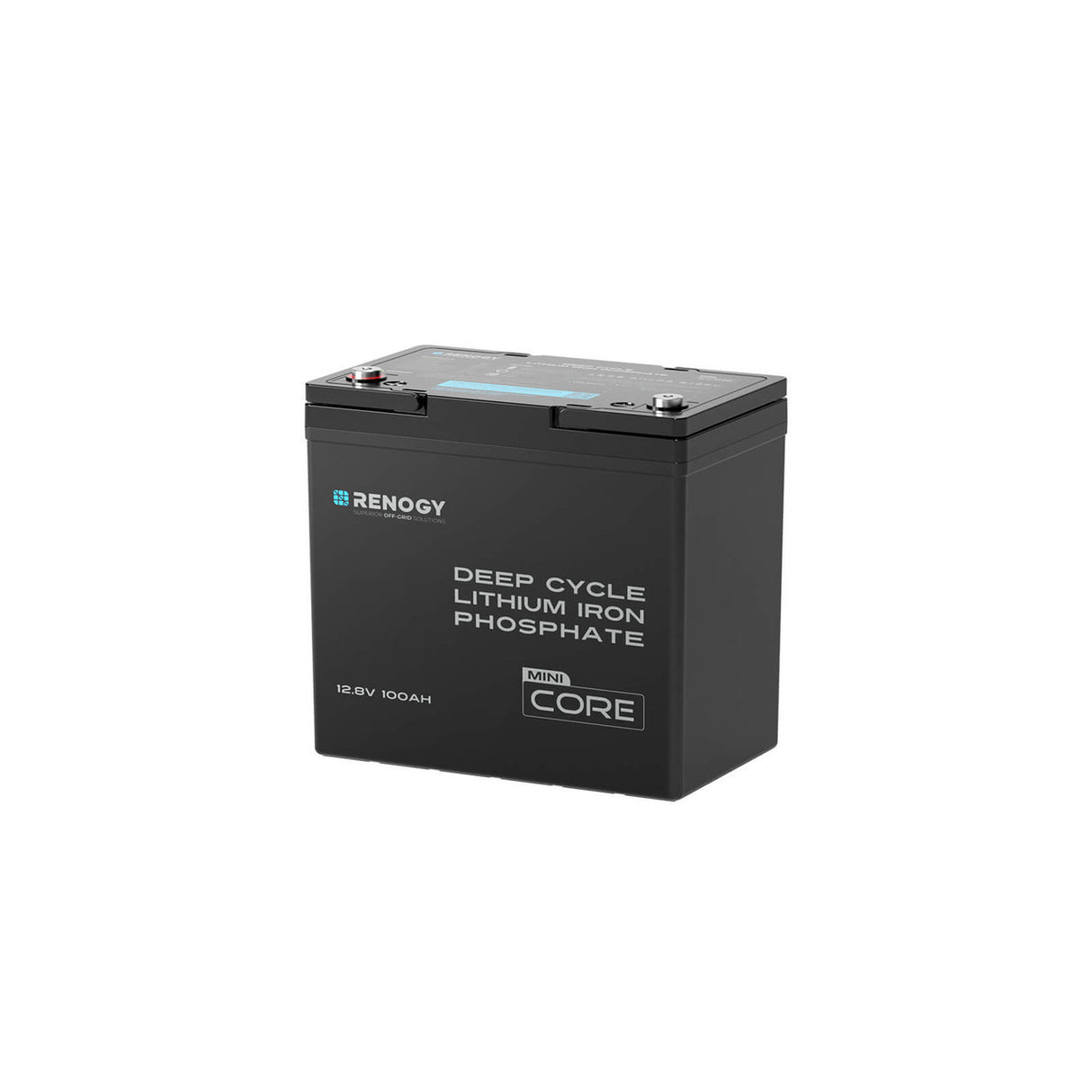

Discover Renogy's Smallest 12.8V 100Ah LiFePO4 Battery

Sizing Guide

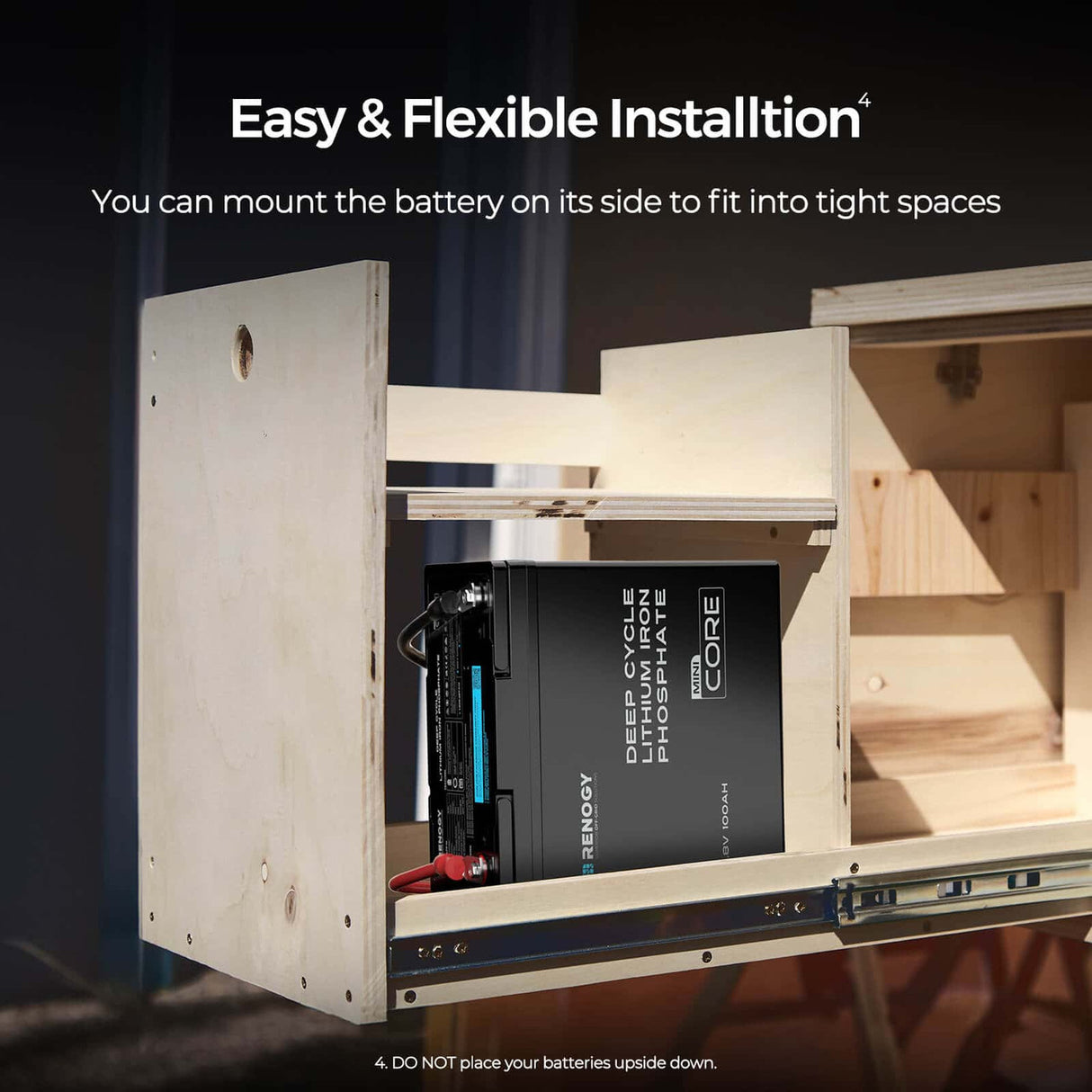

Before installing the battery, leave 1.97-3.94 inches (50-100 mm) of clearance above the battery. The busbar side requires at least 7.87 inches (200 mm) of clearance.

Our Battery Compared to Lead-Acid

Enjoy the same powerful performance in a smaller, lighter package.

Prismatice Cells
Peak Output Current
Rugged Design
Certified Safety

10x Longer-Lasting Power

The latest 12.8V 100Ah Core Mini LiFePO4 Battery is built with UL-listed, EV-grade prismatic cells, boasting 5000 cycles at 80% depth of discharge. Its lifetime and performance surpass those of lead-acid batteries with the same capacity.

Peak Power Output

Capable of discharging 300A for up to 5 seconds, this portable power source can smoothly power high-demand appliances with high start currents, such as microwaves.

Enhanced Vibration Resistance

Integrated metallic cell spacers securely hold the cells in place, preventing movement and minimizing the risk of cell damage or short-circuiting, even during rugged off-road driving or rough water conditions.

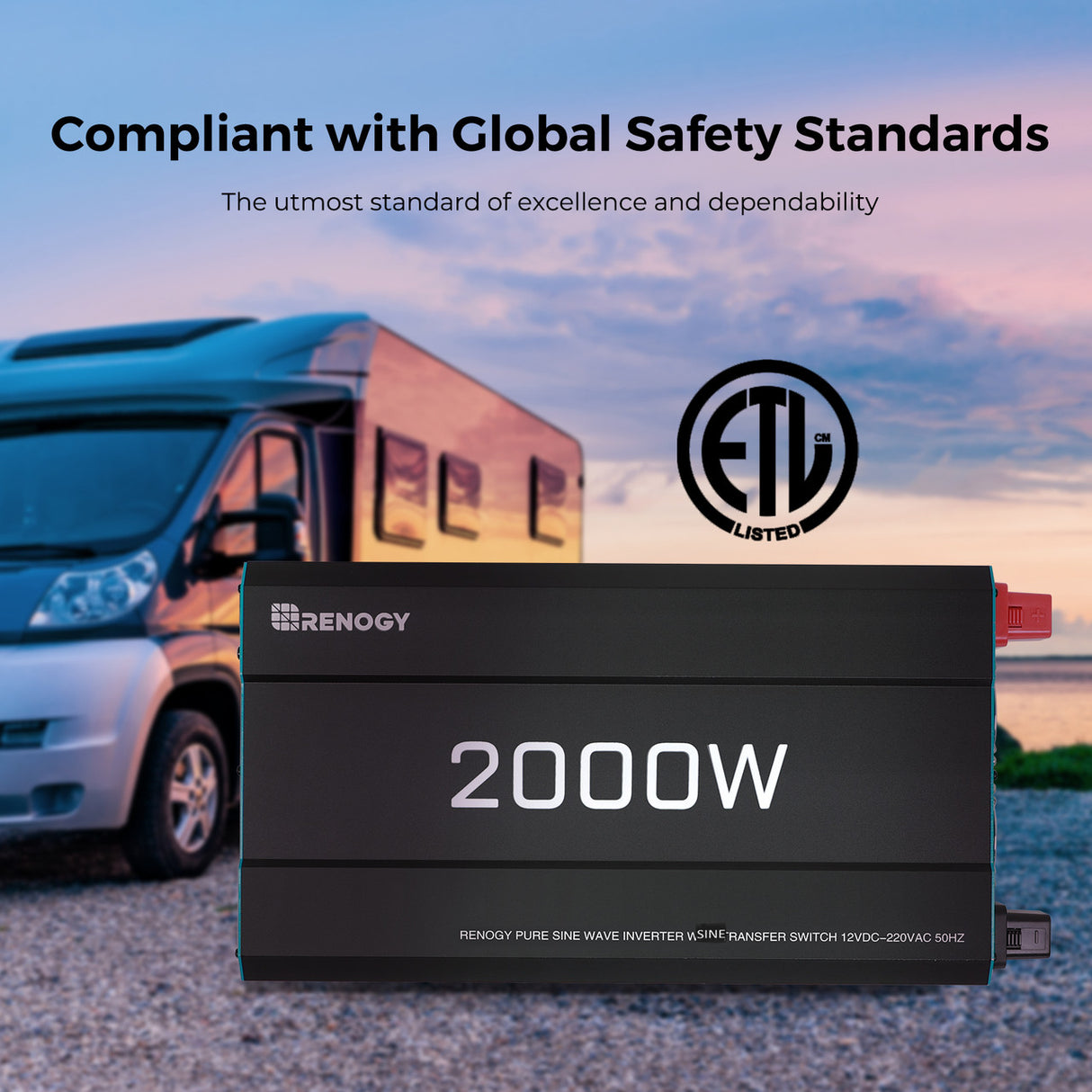

Tested & Trusted Power

Backed by rigorous testing and certifications, including UL, FCC, and CE, this compact 12.8V 100Ah LiFePO4 battery delivers unmatched reliability and is ready for a wide range of applications.

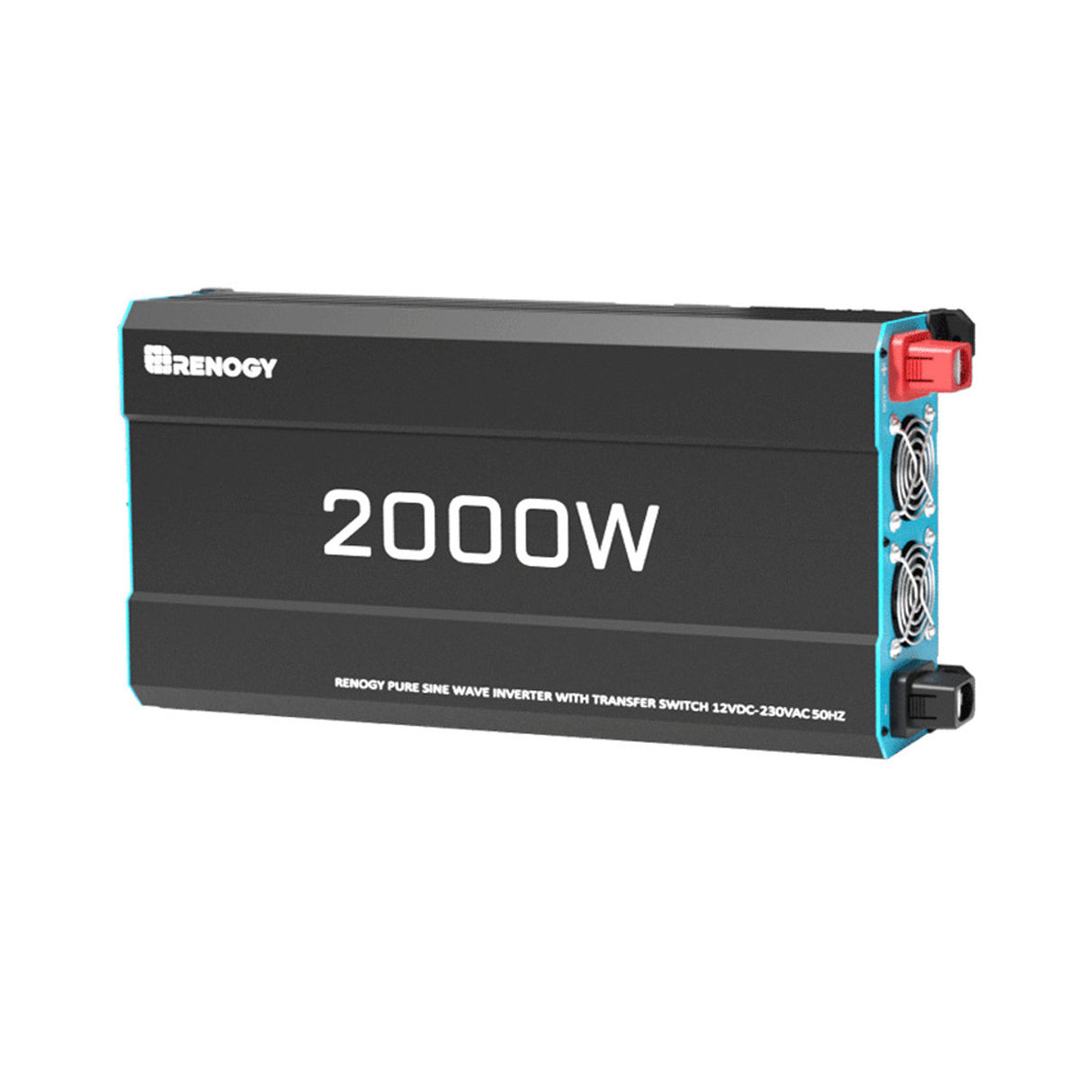

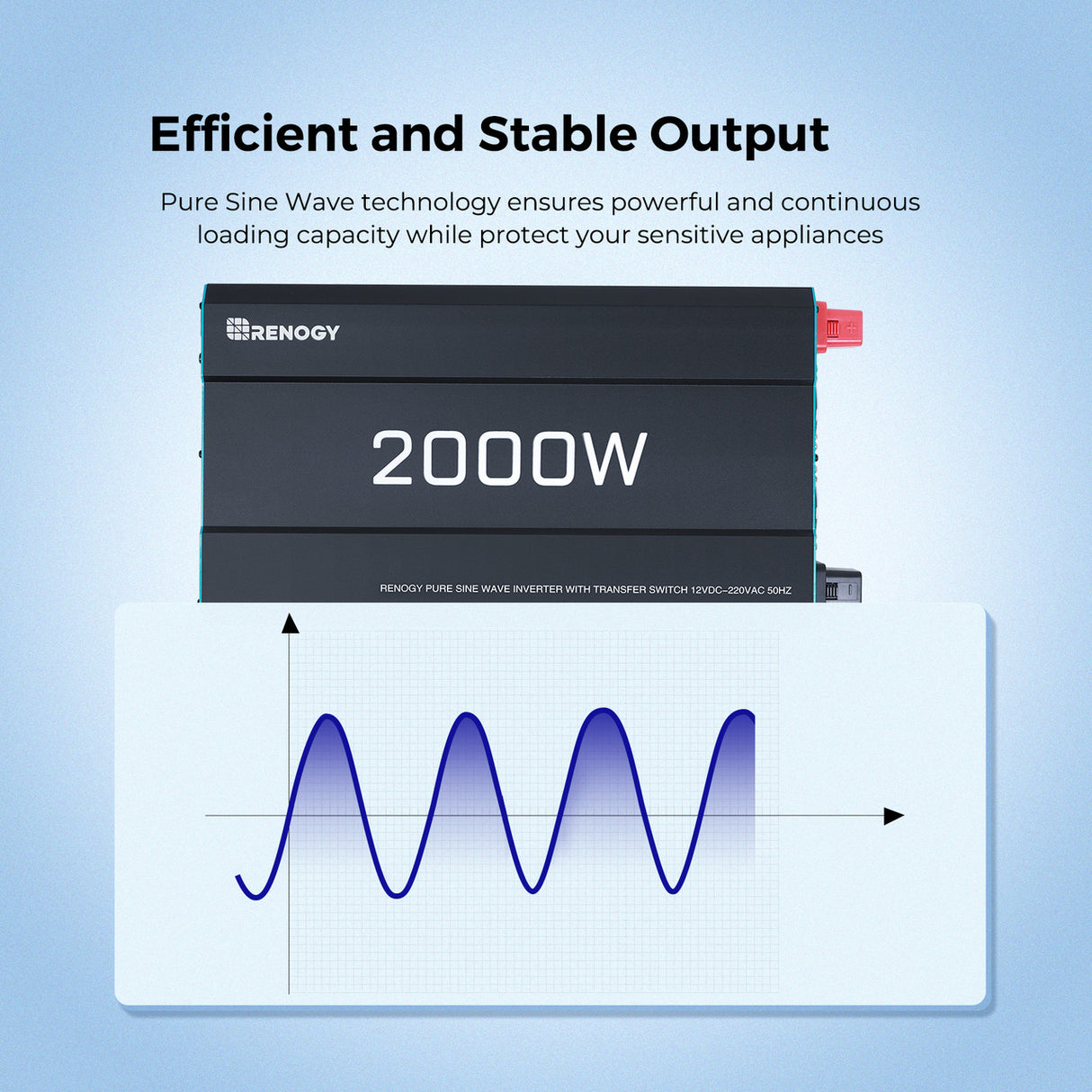

2000W 12V Pure Sine Wave Inverter

Advanced pure sine wave technology ensures clean, stable power for optimal system performance.

Effortless installation
Circuit diagram

Easy, Hassle-Free Installation

Whether you're an experienced solar enthusiast or a beginner, our clear instructions and included accessories make installation simple. Start using clean, reliable energy with ease and confidence using the Renogy inverter.

A Complete Off-Grid Power Solution

Seamlessly integrates with Renogy solar panels, charge controllers, and batteries to deliver reliable and efficient power. The ultimate off-grid solution for your RV, camper van, or remote power needs.

Robust Metal Housing

Constructed with durable materials and premium craftsmanship, Renogy inverters are built to last, withstand harsh conditions, and deliver reliable performance.

LOW POWER CONSUMPTION DESIGN

The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.

PROTECT YOUR BATTERY

This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.

EASY TO INSTALL

The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.

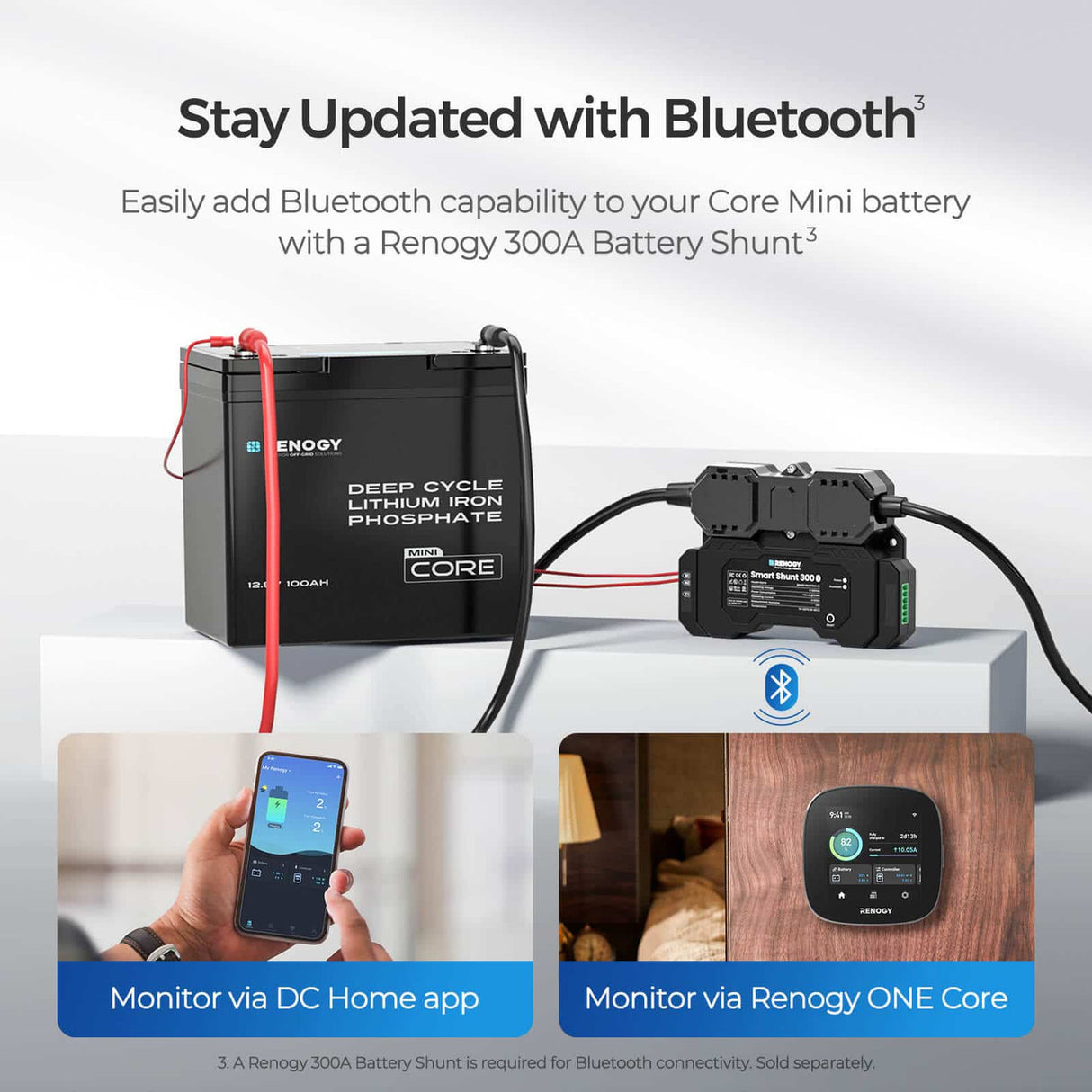

Monitor your battery degradation with Renogy Battery Monitor!

It is of extreme importance to achieve accurate predictions of the remaining battery lifetime under various operating conditions. With the Renogy New Battery Monitor (RBM500-G3), you will be able to monitor the battery degradation to ensure reliable operation and timely maintenance.

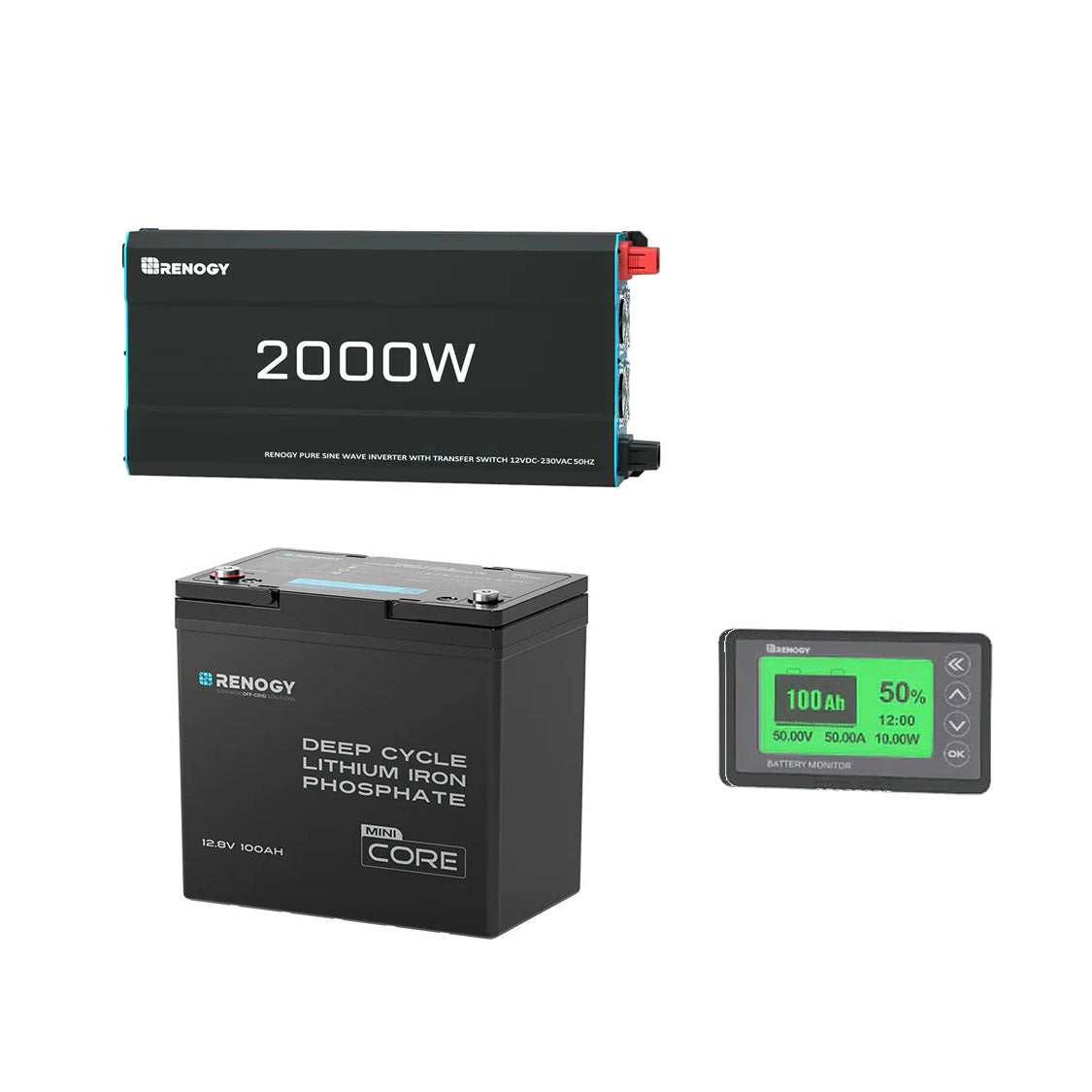

Package Includes

Core Mini 12V 100Ah LiFePO4 Battery with

x 1

2000W 12V Pure Sine Wave Inverter

x 1

500A Battery Monitor

x 1

Specifications

100Ah Lithium Battery

Battery Type
Lithium Iron Phosphate
Nominal Voltage
12V
Rated Capacity
100Ah (0.5C, 77°F/25°C)
Voltage Range
10V to 14.8V
Cycle Life (0.5C, 77°F/25°C)
5000 Cycles (80% DOD)
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
9.9 kg
Connection Method
Series & Parallel (up to 4S4P)
Terminal Bolt Size
M8 x 1.25 × 12 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Protection Rating
IP65 (Dust-tight & splash-resistant)
Material and Workmanship Warranty
5-year prorated material and workmanship warranty

2000W Pure Sine Wave Inverter

Constant output power
2000W
Rated input voltage
12VDC
Peak power
4000W
Rated AC input voltage range
200-240VAC
Output waveform
Pure sine wave
Output frequency
50 Hz
Low voltage shutdown
10VDC
High voltage shutdown
16.3VDC
Output voltage
220-240VAC
Static current
1.3A
Ambient temperature
0℃ - 40℃
Weight
4.8kg
Dimensions
442 x 220x 92mm

500A Battery Monitor Operation

Working Voltage
10-120V
Standby Dissipation
1-2mA
Working Dissipation
10-15mA
Preset capacity value
0.1-9999.0 AH
Backlight on current (>50A)
100mA
Compatible Battery
Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
Display
LCD with Green Backlight (brightness is adjustable)
Capacity Accuracy
±1%
Current Accuracy
±1%
Voltage Accuracy
±1%
