Name: 175 Watt 12 Volt Flexible Monocrystalline Solar Panel
Brand: Renogy
SKU: RNG-175DB-H-EU
Price: 265.99 EUR
Availability: PreOrder
Rating: 5 (1 reviews)

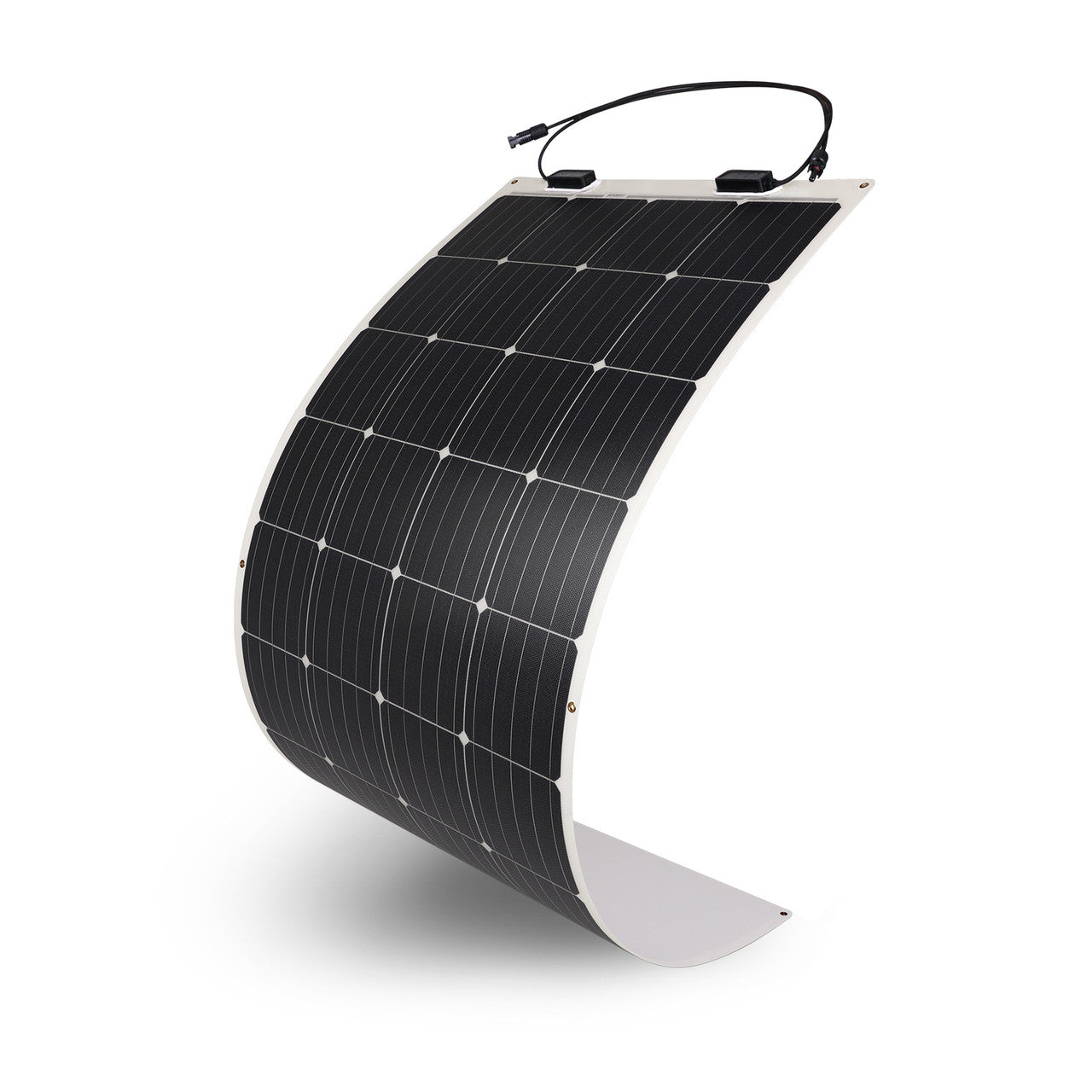

Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 175W Flexible Solar Panel is your perfect solution for a power-independent journey! IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use. At a weight of 6.2 lbs, this flexible solar panel weighs 70% less than its rigid counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, campers, boats, and many others. If you want to keep the speed of your vehicles and enjoy off-grid power freedom, this is your best solution.

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

175 Watt 12 Volt Flexible Monocrystalline Solar Panel

Super Flexible

This 175 Watt panel can flex up to 248 degrees, perfect for installation on curved surfaces, such as on teardrop trailers or boats.

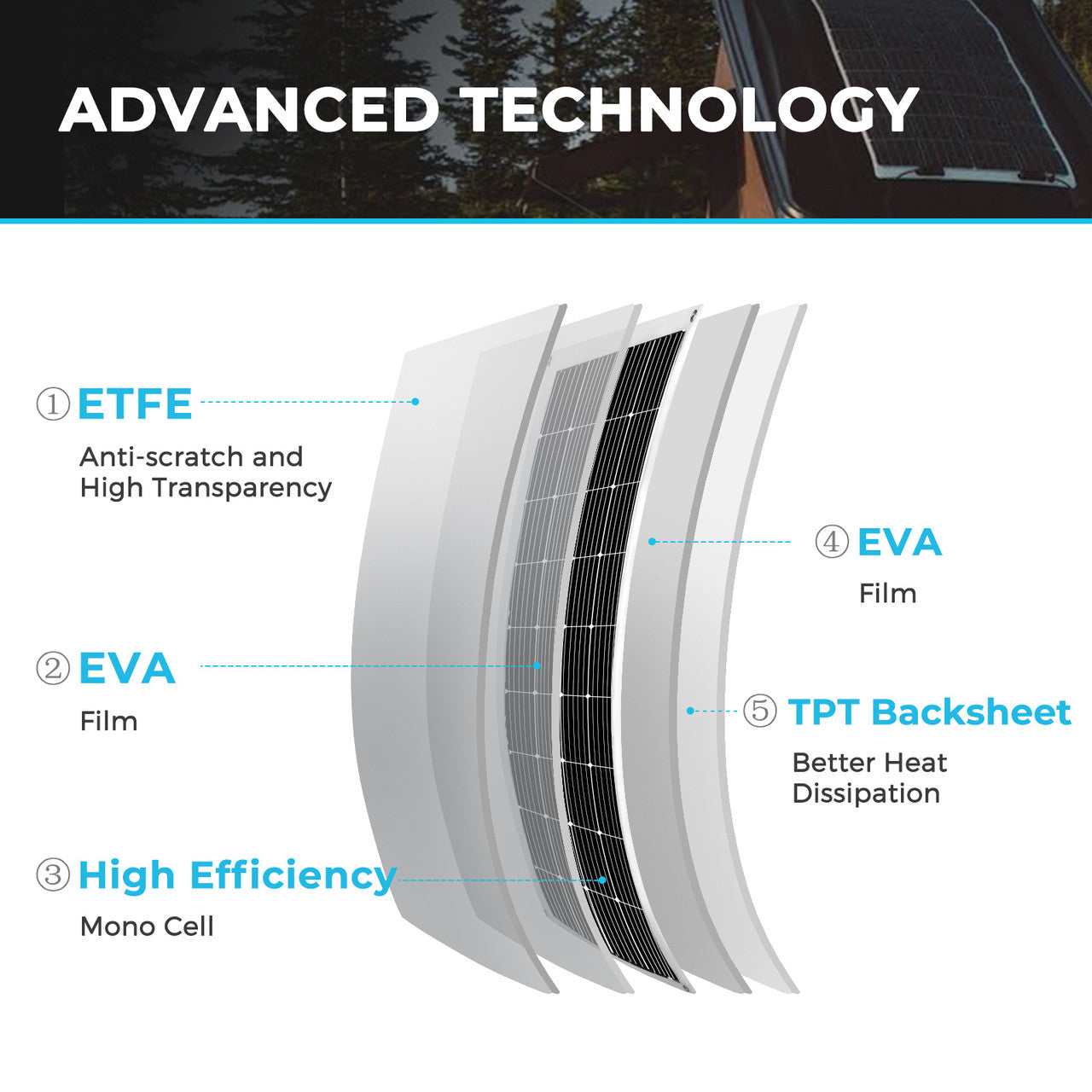

Advanced ETFE Lamination

Well laminated with ETFE material, provide thin but durable protection. Anti-scratch and durable ETFE film can protect the cell for outdoor use. High transparency ensures a higher conversion rate.

Light and Thin

Light as 6.2 pounds and thin as 0.08 inches, it is an ideal choice for load-sensitive structures and uneven surface mounting.

Water-proof

Adopts IP68 Junction Box and IP67 Solar Connector. Ensure a longer lifespan for outdoor and marine use.

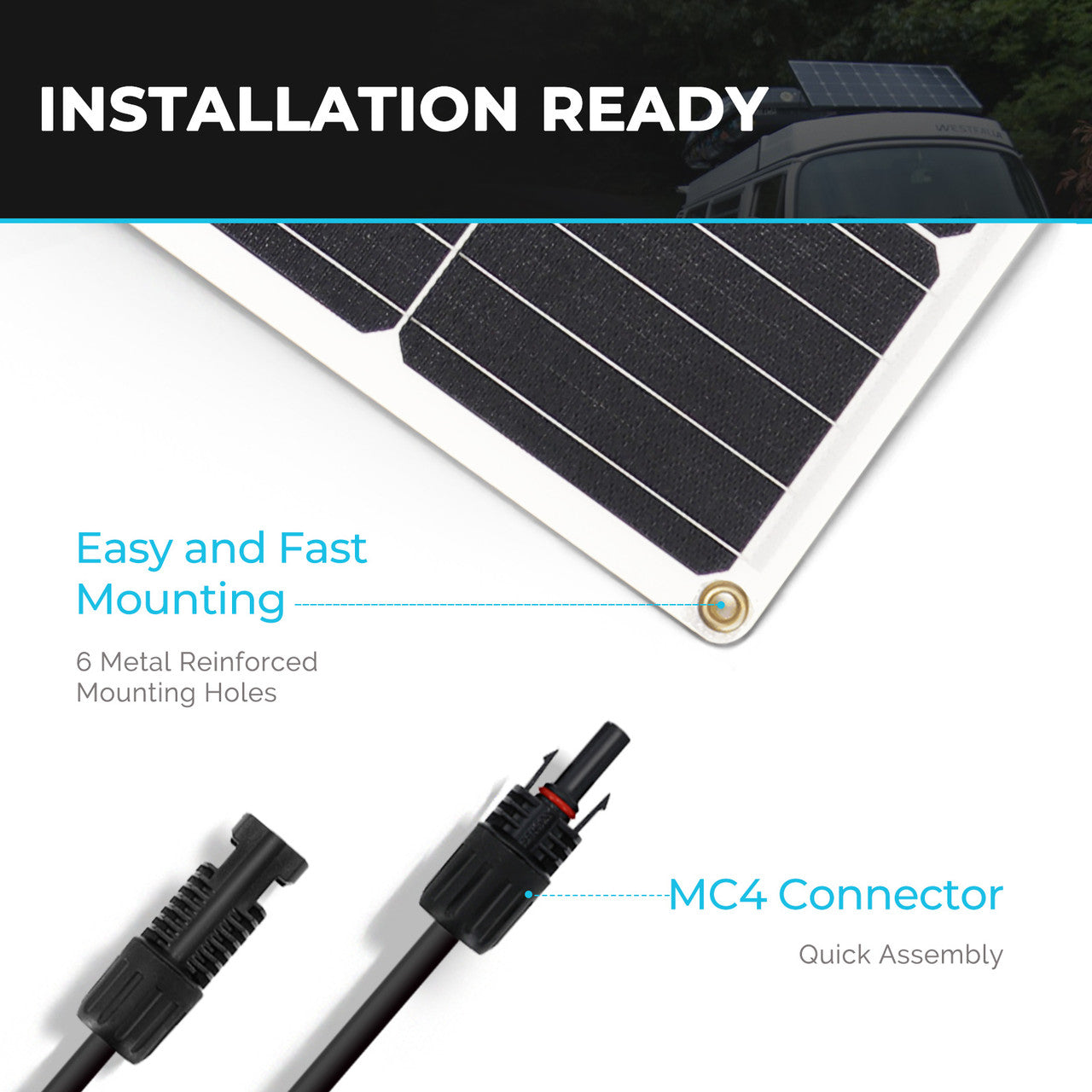

Easy Setup

6 pre-drilled metal reinforced mounting holes, allowing for quick installation.

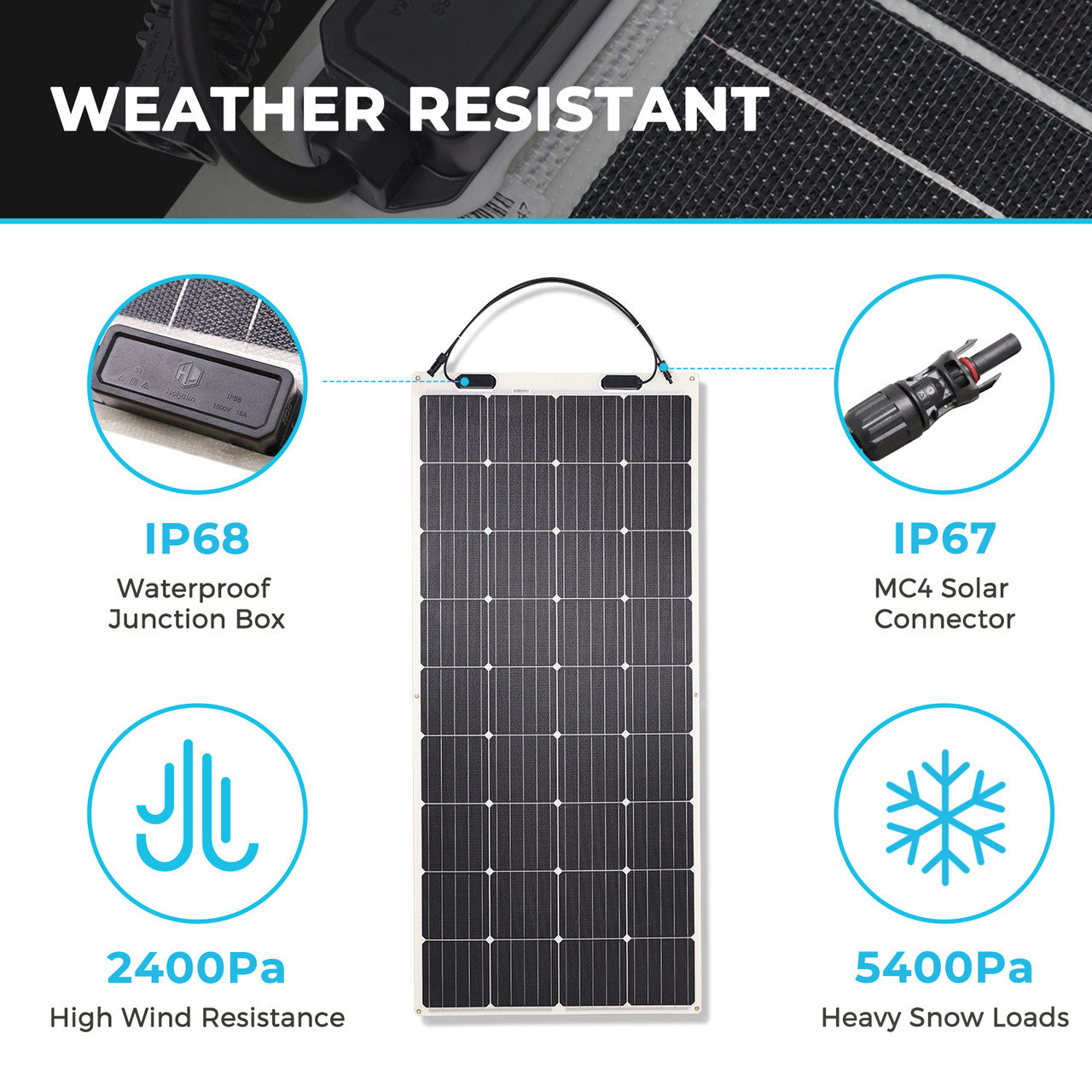

Weather Resistance

Withstands high winds (2400 Pa) and snow loads (5400Pa). Reliable in harsh outdoor environments, ensures longer lifespan. Fearless of extreme climates, backup your brave journey.

NOTE

If you have any questions regarding this product, please submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

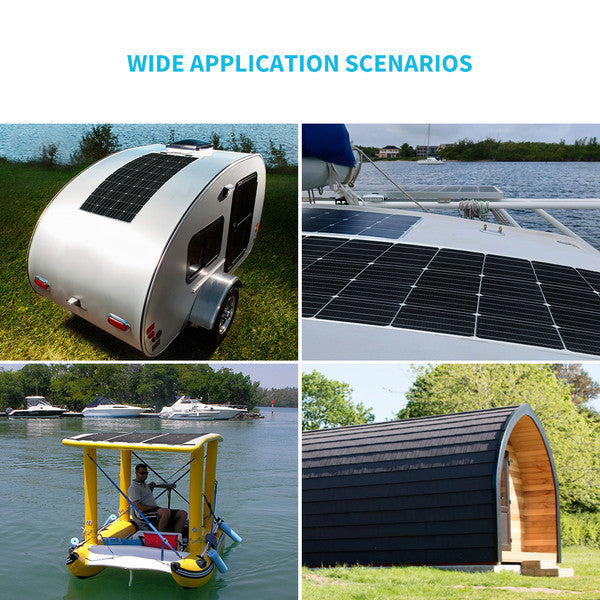

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

Renogy 175W Flexible Solar Panel 1 x

Built-in Components
175 Watt Flexible Monocrystalline Solar Panel	Output Cables: 12 AWG (2.30 ft)
Cell Type: Monocrystalline (6.17 x 6.17 in)	Number of Cells: 36 (4 x 9)
IP68 Rated Waterproof Junction Box	IP67 Rated Waterproof Solar Connectors

Specifications
Maximum Power at STC: 175W	Module Efficiency: 17.3%
Optimum Operating Voltage (Vmp): 19.5V	Open-Circuit Voltage (Voc): 23.9V
Optimum Operating Current (Imp): 8.89A	Short-Circuit Current (Isc): 9.50 A
Operating Temperature: -40°F to 185°F (-40ºC to +85ºC)	Maximum Series Fuse Rating: 15A
Maximum System Voltage: 600V DC (UL)	Certifications: CE, ISO

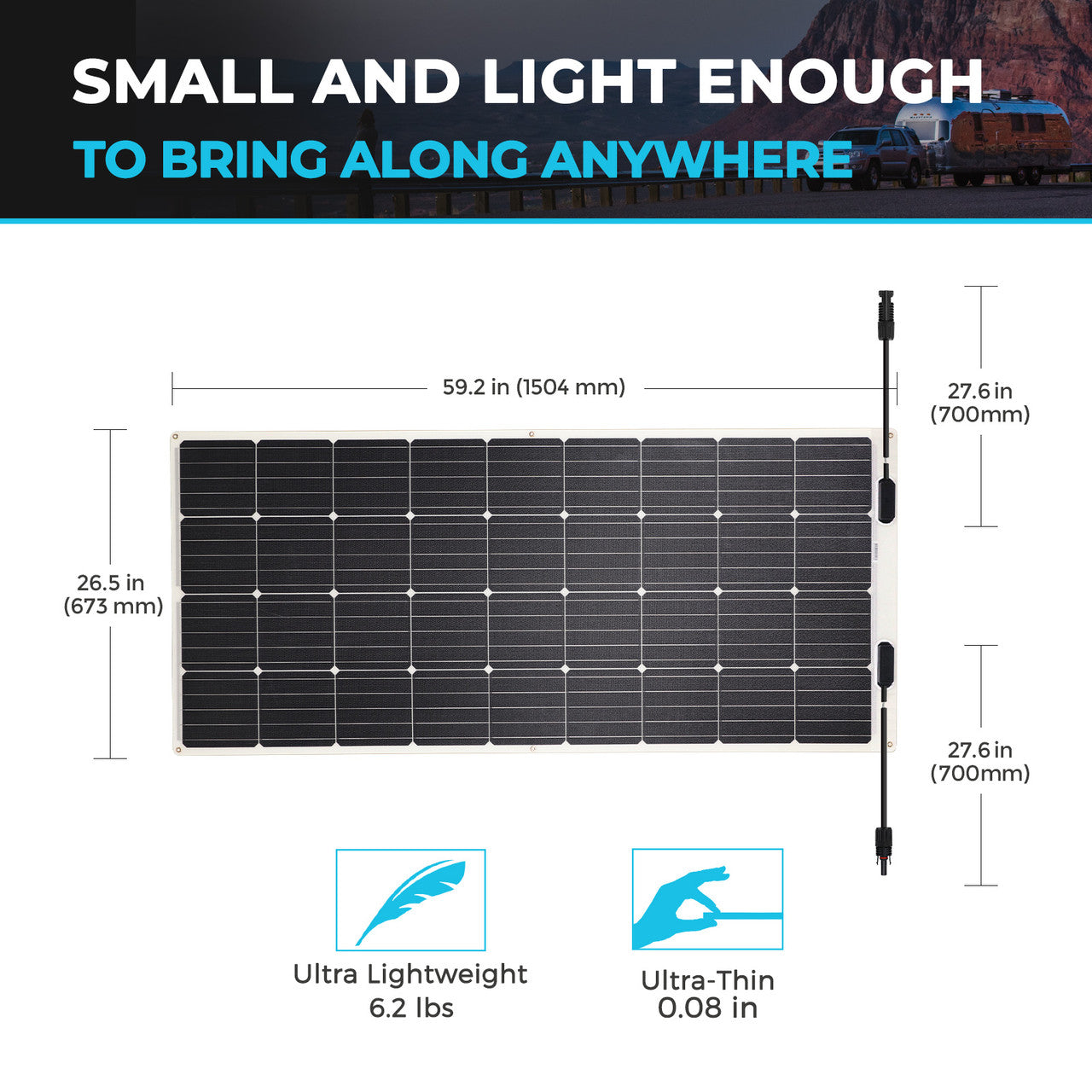

Weight: 6.2 lbs (2.8 kg)	Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)
Material and workmanship warranty: 5 years	Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty

1.What do I need to complete my off-grid solar power system ?

A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

2. Why is my solar panel under producing ?

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

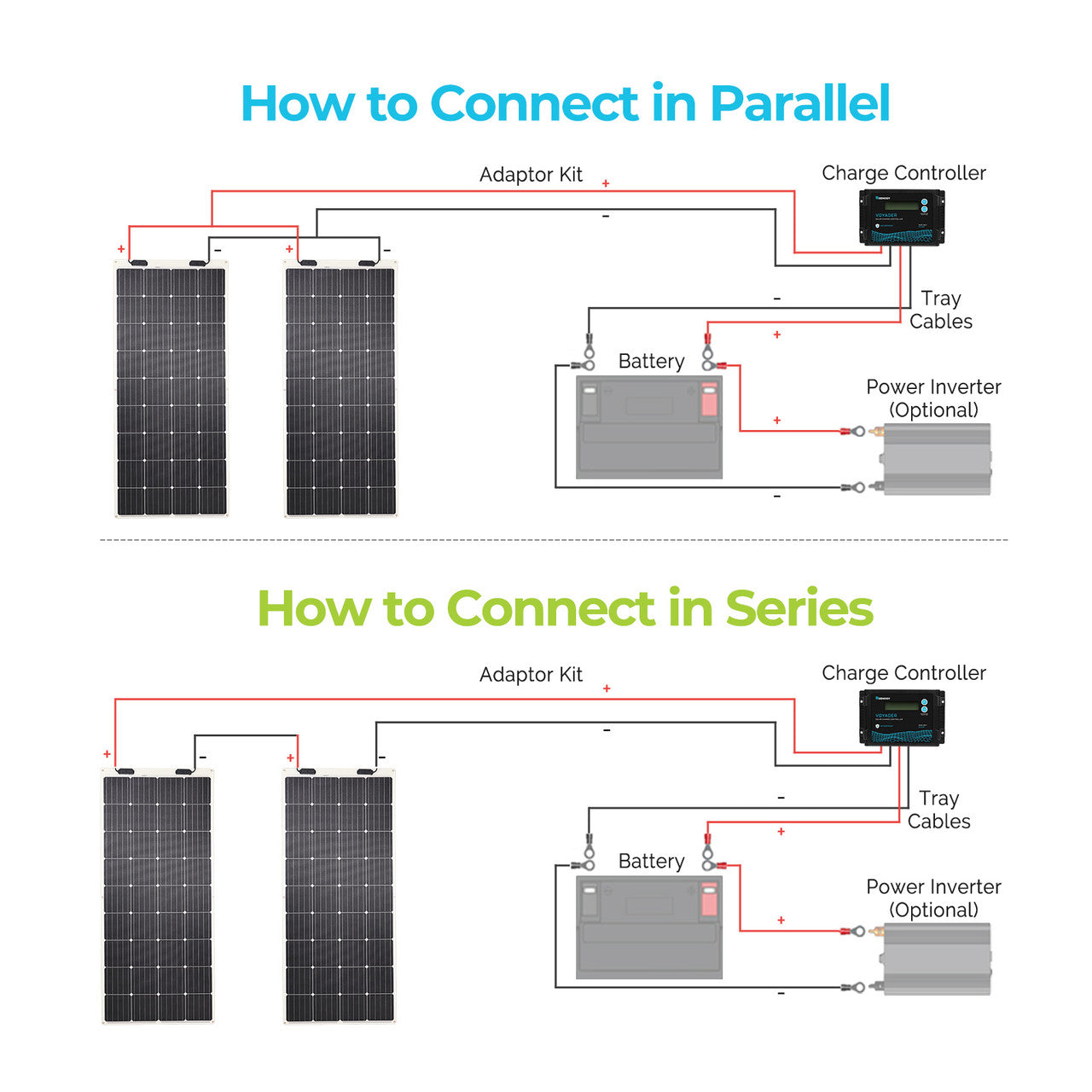

3. How should I connect solar panels in my electrical circuit (series vs parallel)

It depends on your electrical circuit size and power demand. Connecting solar panels in series: add up their operating voltage output, while system current output will be the same as that for one panel. Connecting solar panels in parallel: individual panels operating current output add up to the system output current, while system output voltage will be the same as of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.

4. How many solar panels do I need ?

The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.

5. Can I walk on flexible solar panels?

We suggest not. Walking on solar panels will exert excessive pressure on a small area, it may cause cracks and damage to the panel.

6. How to clean solar panels?

You can clean the panels with a non-abrasive sponge and water. We suggest regular maintenance to wipe the dust, sand, and other dirt away. Built-up dirt and stain will reduce the power output of the panel.

More questions about your off-grid power system? Learn more from Renogy Learning Center!

1 Review Hide Reviews Show Reviews

5
Quality item.

Posted by Julie Rodgers on Jul 20th 2023

Appears to be a good quality product compared to my old cheaper one that packed up. Renogy was recommended to me by many people on a campervan group I follow. Only had it installed a week ago but it’s doing a good job of powering my 12v compression fridge perfectly so far. I’m happy with my purchase.
