This guide is written for European users who want a practical overview before choosing components. It is not a substitute for the product manual or a qualified installer. For high-current 12V wiring, fixed 230V AC circuits, shore power integration or permanent vehicle modifications, have the design checked by a competent professional.
What a Caravan or Campervan Solar Kit Usually Includes
A solar kit is not just a panel. A usable caravan or campervan system normally includes generation, charging, storage, protection and monitoring. Before buying parts, make sure each component is compatible with the others.
| Component | What it does | What to check | Renogy EU example |
|---|---|---|---|
| Solar panel | Produces DC power from sunlight. | Roof space, shading, open-circuit voltage, mounting method and output wattage. | 200W ShadowFlux anti-shading solar panel for fixed roof use. |
| Portable panel | Adds solar input without permanent roof mounting. | Storage space, cable length, controller compatibility and wind safety. | 200W/400W solar panel blanket or 400W portable solar suitcase. |
| Charge controller | Regulates solar charging into the leisure battery. | Battery voltage, battery chemistry, solar input voltage/current and MPPT/PWM type. | A DC-DC charger with MPPT when you want solar and alternator charging in one setup. |
| Leisure battery | Stores power for lights, fridge, pumps, devices and inverter loads. | Usable capacity, BMS current, low-temperature charging protection, size and weight. | Core Mini 200Ah LiFePO4 battery or Core Mini 300Ah LiFePO4 battery. |
| DC-DC charger | Charges the leisure battery from the vehicle alternator while driving. | Alternator type, starter battery, lithium profile, current rating and cable route. | 12V 50A DC-DC charger with MPPT or 12V 40A DC-DC charger. |
| Inverter | Turns 12V DC battery power into 230V AC for selected appliances. | Continuous power, surge power, battery BMS current, fuse, cable and ventilation. | 1000W, 2000W or 3000W 12V pure sine wave inverter. |
Step 1: Decide What You Are Trying to Power
Do not start with the panel size. Start with the loads. A weekend caravan that only runs LED lights and phone charging needs a different system from a motorhome running a fridge, laptop, fan, induction hob or coffee machine.
List each appliance, its wattage and daily use time. Multiply watts by hours to get watt-hours. This tells you how much energy the solar kit and battery need to cover.
| Use case | Typical loads | Planning direction |
|---|---|---|
| Weekend caravan | Lights, phone charging, water pump, occasional tablet or laptop. | Small fixed panel or portable panel, modest LiFePO4 battery, simple charging setup. |
| Regular campervan touring | Fridge, lights, fan, laptop, camera charging, water pump. | Fixed roof panel plus leisure battery and DC-DC charging for driving days. |
| Motorhome with 230V loads | Fridge, entertainment, laptop, coffee machine, microwave or tools. | Larger battery, suitable inverter, careful current calculation and professional review. |
| Off-grid camping in winter | Lights, heating fan, devices, fridge, longer cloudy periods. | More battery reserve, backup charging and conservative solar expectations. |
For panel sizing logic, use the related guide How Many Solar Panels Do I Need?. That article explains how to estimate daily watt-hours, battery size and panel wattage before installation.
Step 2: Choose Fixed, Portable or Hybrid Solar

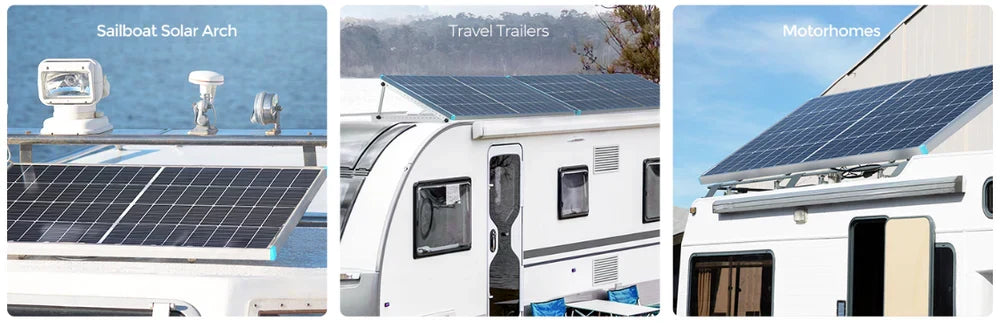

For a caravan or campervan, solar panel placement is often a bigger decision than panel wattage. A fixed roof panel charges whenever the vehicle is outside, but it is limited by roof space, roof shape and shade. A portable panel can be moved into better sunlight, but it must be set up, secured and stored every time.
| Solar type | Best for | Tradeoff | Example product direction |
|---|---|---|---|
| Fixed rigid panel | Motorhomes and campervans that need regular charging with little setup. | Needs secure roof mounting and cable entry. Output drops when parked in shade. | ShadowFlux panel where partial shading and limited roof space matter. |
| Portable suitcase or blanket | Caravan users, campsites, shaded parking and temporary charging. | Needs manual setup, cable management and safe placement in wind. | Solar blanket or lightweight portable solar suitcase. |
| Hybrid setup | Users who want roof charging on travel days and extra solar at camp. | Requires controller input planning and careful connector management. | Fixed roof panel plus portable panel, if the controller and wiring support it. |
Image suggestion: insert a comparison image showing fixed roof solar, portable suitcase solar and solar blanket placement beside a caravan. This should help users understand when portable panels are more practical than permanent mounting.
Step 3: Plan the Roof Mounting and Cable Route
Before drilling or bonding anything, inspect the roof. Check available flat space, roof ribs, vents, skylights, aerials, shade from roof boxes, and where the cable can enter the vehicle. A clean roof plan avoids awkward cable routes and poor panel placement.
For fixed panels, the key installation questions are:
- Can the roof safely support the panel and mounting hardware?
- Will the panel be shaded by roof accessories during the day?
- Where will cables enter the vehicle?
- How will the cable entry point be sealed against water?
- Can the cable route avoid sharp edges, heat sources and moving parts?
- Is there enough service access near the charge controller and battery?
Use the mounting hardware and instructions that match the panel and roof type. Do not rely on generic adhesive or improvised brackets unless the product manual and vehicle roof construction support that approach.
Step 4: Install the Charge Controller Close to the Battery
The charge controller should usually be installed near the leisure battery, in a dry and ventilated location. Shorter battery-side cable runs reduce voltage drop and make protection easier to plan. The solar panel cables then run from the roof or portable panel input to the controller.
If your travel pattern includes long driving days, a DC-DC charger can be more useful than solar alone. A 12V 50A DC-DC charger with MPPT can combine alternator charging and solar charging for a 12V auxiliary battery system. If the solar side is handled separately, a 12V 40A DC-DC charger may be a simpler alternator charging option.
Always confirm the correct charging profile for your battery chemistry. Lithium batteries, AGM batteries and flooded lead-acid batteries do not use the same charging behaviour.
Step 5: Install and Protect the Leisure Battery
The leisure battery should be secured against movement, protected from water and installed where it can be inspected. In a caravan, campervan or motorhome, weight and space matter. Many European users upgrade from lead-acid to LiFePO4 because lithium batteries can offer more usable capacity with lower weight, but compatibility must be checked.
A compact 200Ah LiFePO4 battery can suit moderate caravan or campervan loads. A 300Ah Core Mini battery or self-heating 300Ah LiFePO4 battery may fit heavier use, colder travel or larger inverter loads.
Before installing lithium, check the battery BMS current, low-temperature charging behaviour, charger compatibility, cable size, fuse rating and physical mounting space. If the battery is placed under a seat or in a storage compartment, leave room for safe routing and inspection.
Step 6: Add an Inverter Only If You Need 230V AC
Not every solar kit needs an inverter. Many caravan and campervan loads can run on 12V DC, including lights, USB charging, water pumps and some fridges. An inverter is needed when you want to run selected 230V AC appliances from the battery.
Choose the inverter by the appliances you may run at the same time, not by the solar panel size. A small laptop and camera charging setup may only need a modest inverter. A coffee machine, microwave, kettle or power tool can demand far more power and a much stronger battery path.
| Inverter level | Typical use | What to check |
|---|---|---|
| 1000W 12V pure sine wave inverter | Laptop charging, camera equipment, small AC devices. | Continuous load, surge load and battery current. |
| 2000W 12V pure sine wave inverter | Heavier AC loads, larger campervan or caravan setup. | Battery BMS current, cable, fuse and ventilation. |
| 3000W 12V pure sine wave inverter | High-load systems where the battery bank and wiring are designed for it. | Very high 12V current, installation space and professional review. |
Safety note: fixed 230V AC wiring, shore power integration and inverter transfer arrangements should not be treated as casual DIY work. Follow the inverter manual and local requirements, and use a qualified professional where required.
Step 7: Connect in the Right Order and Test the System
Always follow the manuals for your exact products. As a general principle, many small solar systems are connected in this order: battery to controller first, then solar panel input, then loads or inverter. Disconnecting is often done in reverse. The correct order can vary by product, so do not rely on a generic rule if the manual says otherwise.
After installation, test the system before depending on it for a trip:
- Check all cable polarity before connecting.
- Confirm the controller recognises the correct battery voltage and chemistry.
- Check solar input voltage and charging current in sunlight.
- Confirm fuses or breakers are correctly placed and rated.
- Test 12V loads before testing inverter loads.
- Run the inverter with a small load first before testing heavier appliances.
- Inspect cable temperature, ventilation and any warning lights after a real-use test.
| Pre-trip test | What to check | Why it matters |
|---|---|---|
| Polarity | Confirm positive and negative connections before powering the system. | Reverse polarity can damage controllers, chargers or connected devices. |
| Fuse and breaker placement | Check that protection is installed in the correct locations and rated for the cable and device. | Protection reduces the risk of cable overheating or fault damage. |
| Controller settings | Confirm battery voltage and chemistry, especially for LiFePO4 batteries. | The wrong charge profile can undercharge the battery or shorten its life. |
| Solar charging | Check solar input voltage and charging current in usable sunlight. | This confirms the panel, cable route and controller input are working. |
| Battery voltage | Watch battery voltage before and after adding typical loads. | Voltage drop can reveal weak connections, undersized cable or low battery capacity. |
| Inverter load | Start with a small AC load before testing heavier appliances. | This avoids overloading the inverter or battery path immediately. |
| Cable temperature | After a real-use test, feel for unusual heat near cables, fuses and terminals. | Heat can indicate excessive current, loose terminals or undersized wiring. |
Common Installation Mistakes to Avoid
- Buying a kit before calculating loads: the right kit depends on your daily watt-hours, not only the panel wattage.
- Ignoring shade: roof vents, boxes and parking position can reduce output more than expected.
- Using undersized cable: low-voltage DC systems can draw high current, especially with inverters.
- Skipping fuses or breakers: protection should be planned around the battery, charger, inverter and cable size.
- Mixing incompatible components: battery chemistry, charger profile and controller input limits must match.
- Installing an inverter because it feels complete: 12V DC loads are often simpler and more efficient.
- Treating Europe as one rulebook: vehicle modifications, insurance, campsite use and electrical work can vary by country.
When a Complete Caravan Power System Makes More Sense
If you do not want to select every component separately, a more integrated caravan power system can reduce compatibility decisions. It still needs correct installation and load checking, but it may be easier than combining unrelated panels, batteries, charger and inverter from scratch.
For example, the 3.84kWh Caravan Power System is relevant when the user wants battery storage, inverter capacity and charging components to work as a planned system. It should still be checked against the actual loads, available space and installation requirements of the vehicle.
FAQs About Caravan and Campervan Solar Kit Installation
Can I install a caravan solar kit myself?
Some users can install simple 12V solar components themselves if they understand DC wiring, fusing, polarity, mounting and product manuals. However, high-current wiring, lithium battery upgrades, inverter installation and fixed 230V AC work should be checked by a qualified professional where required.
Is a fixed solar panel better than a portable solar panel?
Fixed panels are convenient because they charge whenever the vehicle is outside. Portable panels are useful when you park in shade or do not want roof mounting. Many users combine both, but only if the controller and wiring are designed for the extra input.
Do I need a DC-DC charger if I already have solar?
Not always. If you stay parked in sunny places, solar may cover much of your demand. If you drive often, camp in cloudy regions or travel in winter, DC-DC charging can make the system more reliable by charging the leisure battery while driving.
Can I connect solar panels directly to a lithium battery?
No. Solar panels should charge the battery through a suitable charge controller or charger. The controller manages charging voltage and current for the battery type.
What size inverter do I need for a campervan or motorhome?
Size the inverter by the AC appliances you may run at the same time, plus surge demand. Then check whether the battery BMS, cable and fuse can support that current safely.
Should I install solar before upgrading the battery?
Plan both together. A larger panel array with a small or old battery may not solve your power problem, and a large lithium battery with weak charging may not recharge properly. The best setup balances panels, charging and storage.
Conclusion: Build the System Around the Vehicle, Not the Kit Name
A good caravan, campervan or motorhome solar setup starts with your loads, travel pattern and available space. Choose the solar panel type, battery, charger and inverter as one system instead of treating the kit as a one-size-fits-all purchase.
For EU users, the safest path is to keep the article's logic practical: calculate your loads, choose fixed or portable solar, protect the wiring, match the charger to the battery, add an inverter only when needed, and follow the product manuals. When the system involves high current, lithium upgrades or 230V AC, get professional review before relying on it on the road.
Next step: compare Renogy EU solar panels, solar kits, LiFePO4 batteries, battery chargers and pure sine wave inverters after you know your daily energy use and installation space.
