Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

SKU: RBT12100LFP-M-EU
€207,99 €259,99
Tax included. Shipping by weight.
+ 2070   Renogy Rays after purchase.
Log In Learn More

  • Renogy's smallest 12.8V 100Ah LiFePO4 battery (Group 22NF)

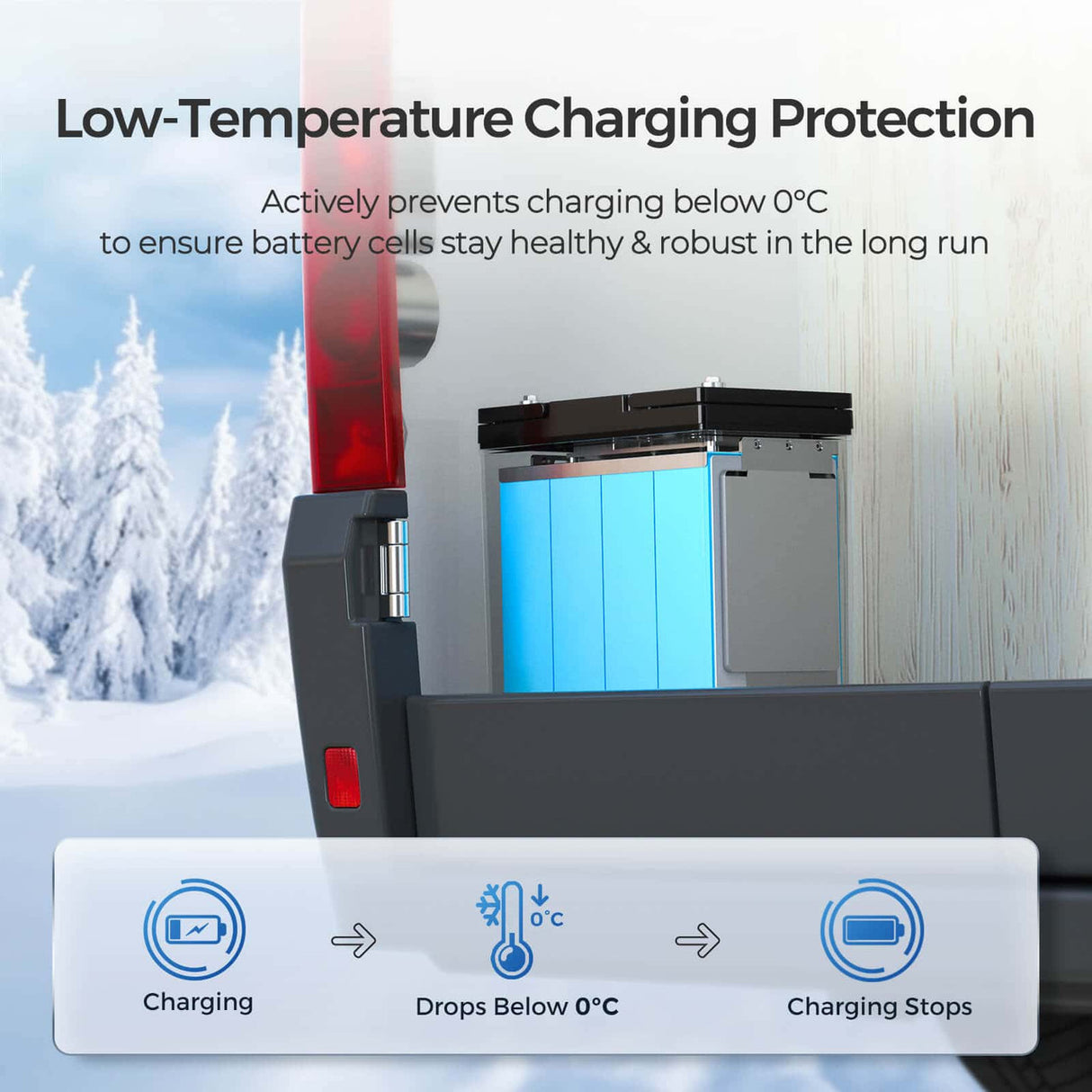

  • Low-temperature cutoff for safer charging in freezing weather

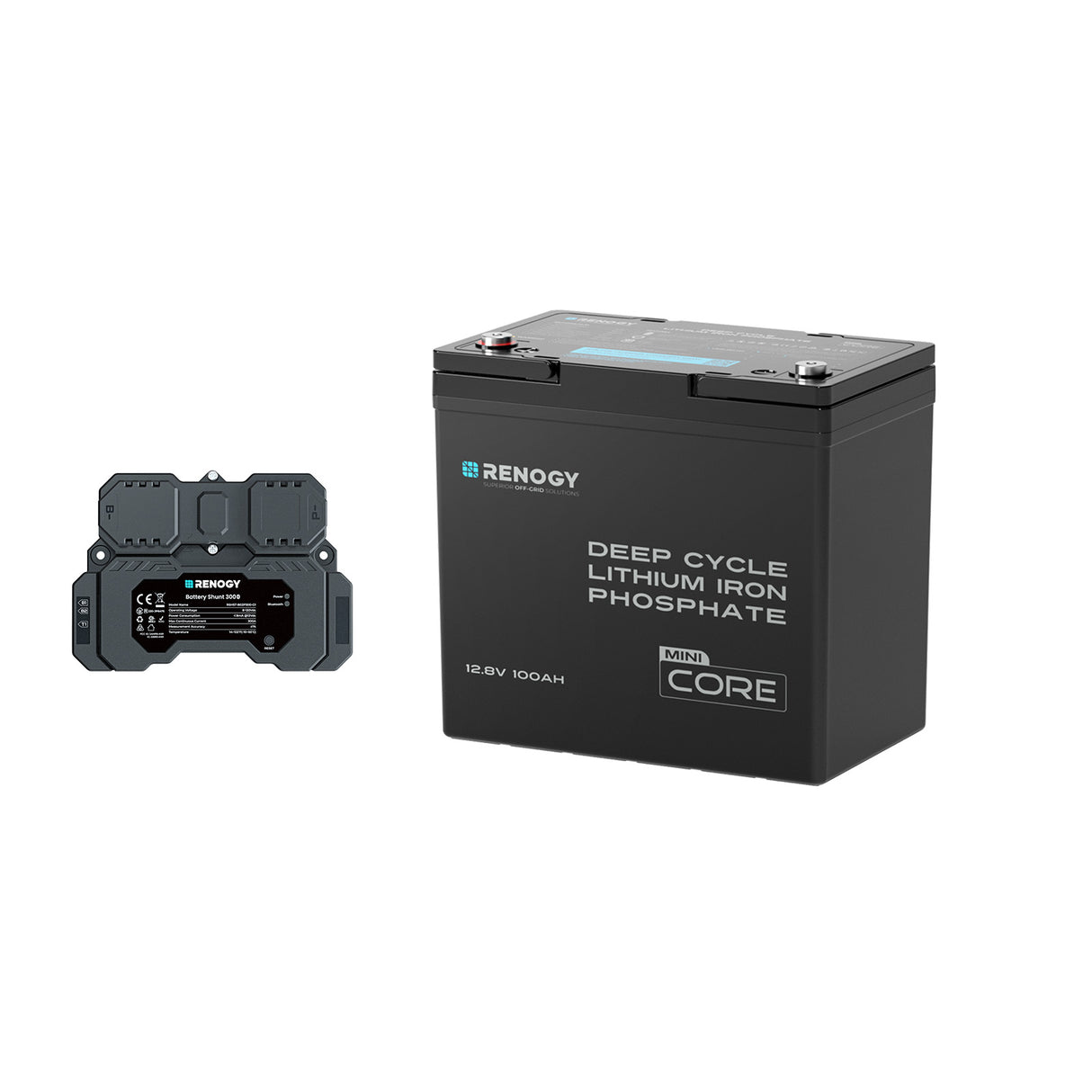

  • Compatible with the Renogy 300A Battery Shunt for remote monitoring.

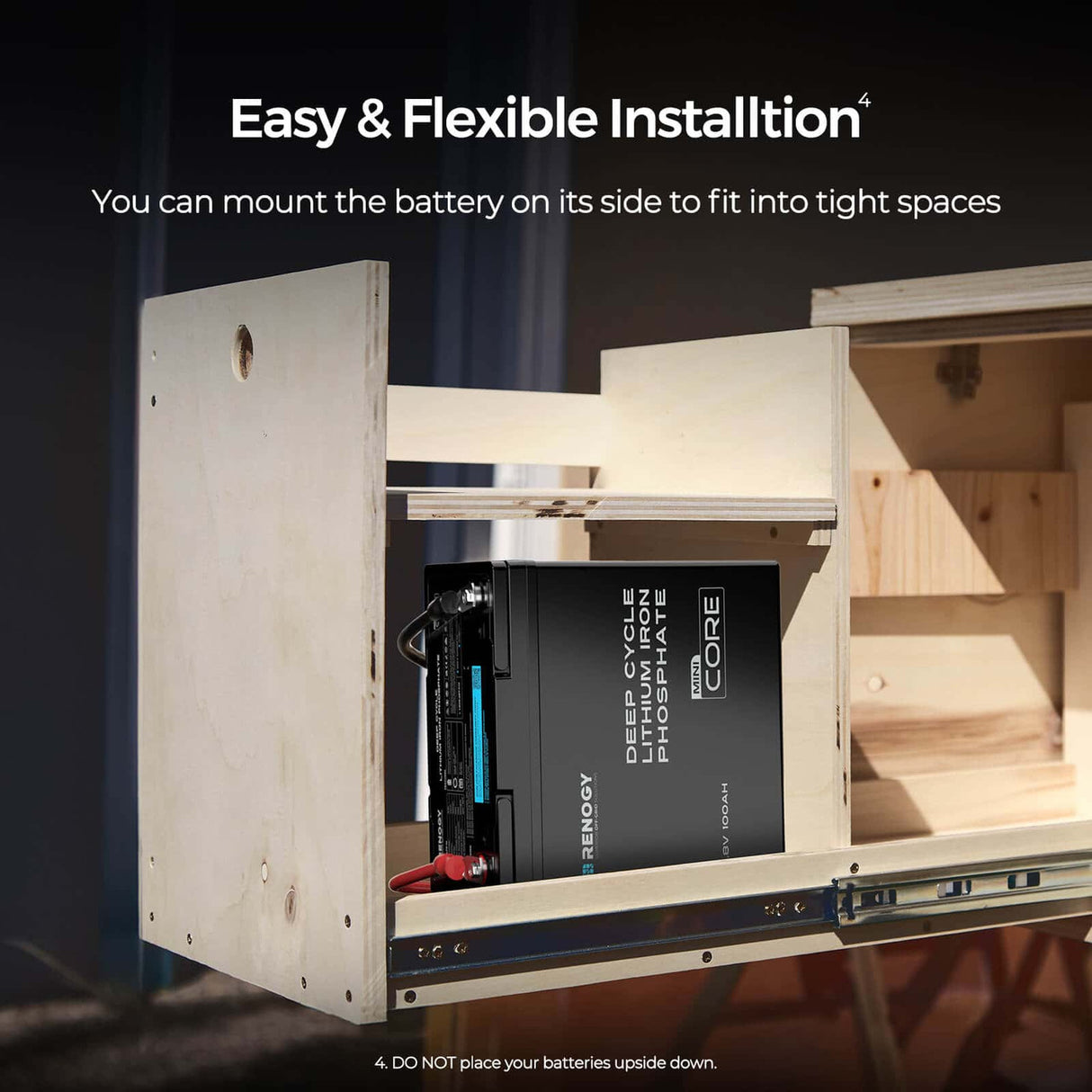

  • Mountable on its sides to fit in tight spaces.
  • IP65-rated and vibration-resistant, designed for enhanced outdoor performance.
Option
Quantity：
Payment Methods
Delivery Methods
Delivery time: 4-9 business days. (Excludes LTL shipping.) Shipping by weight
Description
Includes
Specs
Downloads
FAQ
Reviews

Discover Renogy's Smallest 12.8V 100Ah LiFePO4 Battery

Our Battery Compared to Lead-Acid

Enjoy the same powerful performance in a smaller, lighter package.

Our Battery Compared to Other LiFePO4 Batteries

Experience next-gen compact design with uncompromised safety and power.

Prismatice Cells
Peak Output Current
Rugged Design
Certified Safety

10x Longer-Lasting Power

The latest 12.8V 100Ah Core Mini LiFePO4 Battery is built with UL-listed, EV-grade prismatic cells, boasting 5000 cycles at 80% depth of discharge. Its lifetime and performance surpass those of lead-acid batteries with the same capacity.

Peak Power Output

Capable of discharging 300A for up to 5 seconds, this portable power source can smoothly power high-demand appliances with high start currents, such as microwaves.

Enhanced Vibration Resistance

Integrated metallic cell spacers securely hold the cells in place, preventing movement and minimizing the risk of cell damage or short-circuiting, even during rugged off-road driving or rough water conditions.

Tested & Trusted Power

Backed by rigorous testing and certifications, including UL, FCC, and CE, this compact 12.8V 100Ah LiFePO4 battery delivers unmatched reliability and is ready for a wide range of applications.

Teardrop Trailers
Kayak Fishing

Mini-sized Powerhouse. Unlimited Possibilities.

Maximize your space and reduce weight with Renogy's Core Mini LiFePO4 battery. It's the perfect power solution for teardrop trailers and other smaller RVs.

Fish Smarter, Not Harder.

Renogy's 12.8V 100Ah Core Mini LiFePO4 battery provides reliable power for your trolling motors, fish finders, and other essential kayak fishing gear, keeping them running smoothly for your next big catch.

Sizing Guide

Before installing the battery, leave 1.97-3.94 inches (50-100 mm) of clearance above the battery. The busbar side requires at least 7.87 inches (200 mm) of clearance.

Package Includes

Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

x 1

Long Terminal Bolts (M8 x 1.25 x 15 mm)

x 2

Manual Book

x 1

Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery

Specifications

Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
100Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
100A
Maximum Discharge Current
100A
Peak Discharge Current
300A@5s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range
32°F to 122°F (0°C to 50°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity
10% to 95%
Connection Method
Series & Parallel (4S4P)
Terminal Bolt Size
M8 x 1.25 x 12 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Protection Rating
IP65
Dimensions
9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight
21.8 lbs / 9.9 kg

Accessories

Long Terminal Bolts (2)
2 x M8 x 1.25 x 15 mm

Warranty

Material and Workmanship Warranty
5 Years

Certifications

MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Yes

Resources Download

Warranty

Download

Manual Book

Download

Frequently Asked Questions

1. Can this battery be used in series to build a 24-volt system?

Yes, you can connect Renogy 12.8V 100Ah Core Mini Batteries in series to build a 24V off-grid power system.

2. Does this Core Mini LiFePO4 battery have low-temperature cutoff?

Yes, it has built-in low-temperature charging protection to prevent charging below 32°F (0°C).

3. How many Renogy 12.8V 100Ah Core Mini Series Batteries can I connect?

You can connect up to 16 batteries in series or parallel to expand power to 20.48kWh. Batteries of the same model and similar capacity are required.

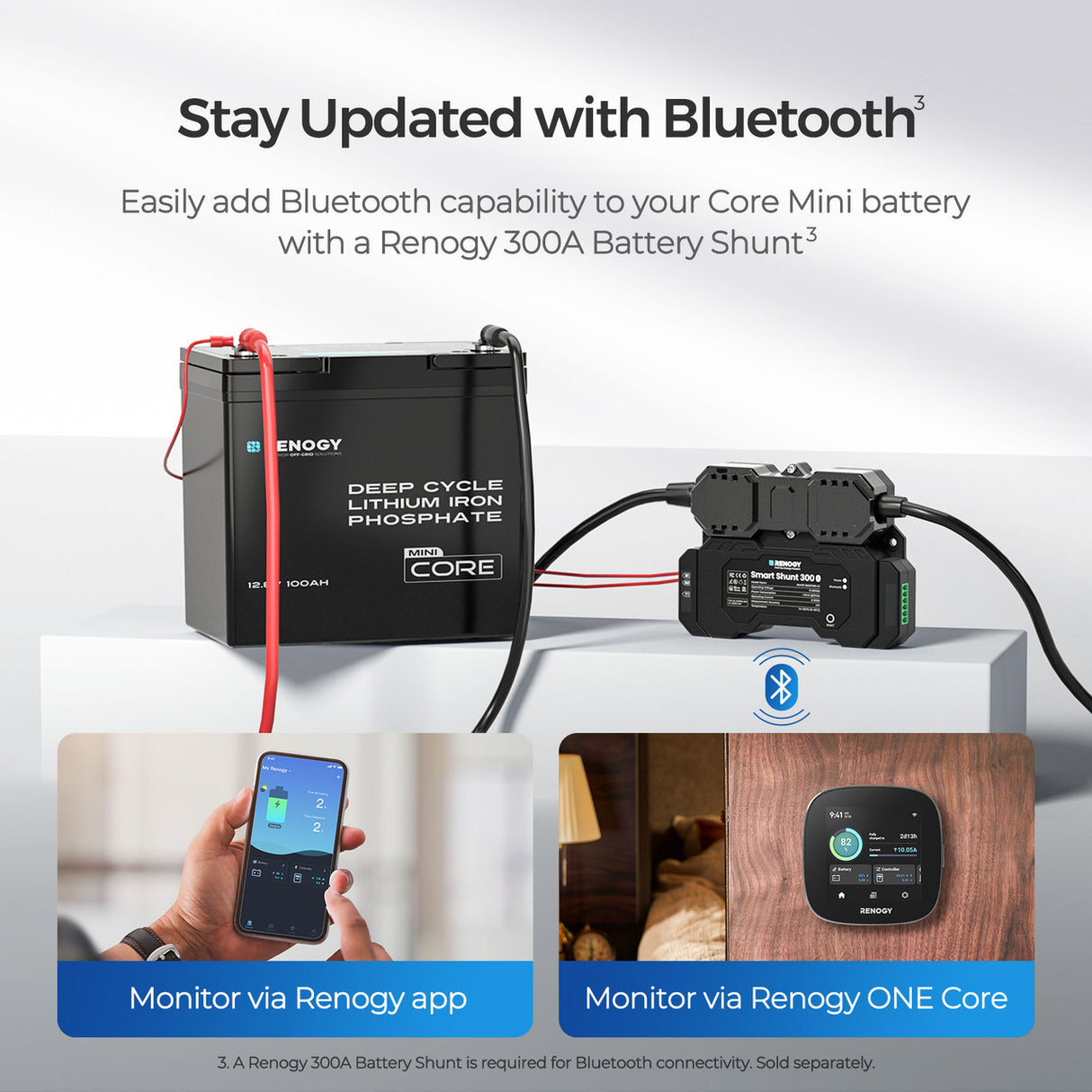

4. Can I pair a Bluetooth Module to monitor the battery status on my phone?

No. This battery does not have a Bluetooth port for a Bluetooth Module. However, you can connect your battery with a Renogy 300A Battery Shunt (sold separately), which can send data to the DC Home app via Bluetooth, allowing you to track battery status in real time.

5. How do I recharge my LiFePO4 batteries?

Whether you prefer charging via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend using a solar charge controller/charger compatible with LiFePO4 batteries.
