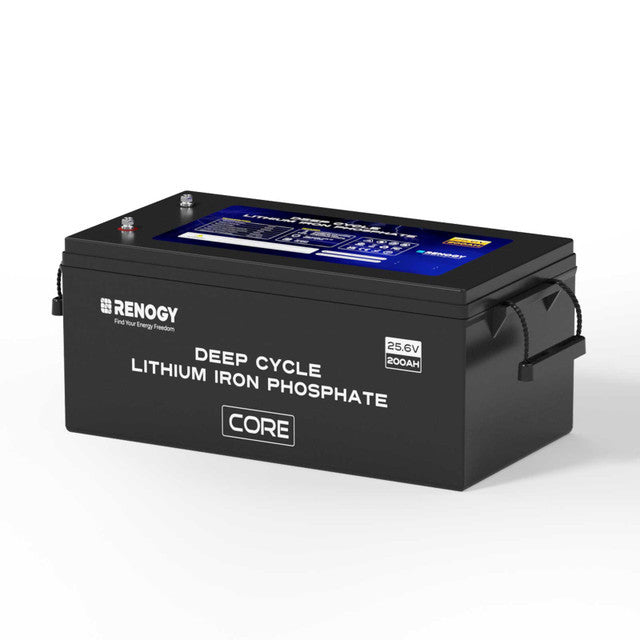

Core-24V 200Ah Deep Cycle Lithium Iron Phosphate Battery
SKU:
RBT24200LFPSH-EU
€1.399,99
Unit price
/
Unavailable
Tax included.
Shipping Policy.
Key Features

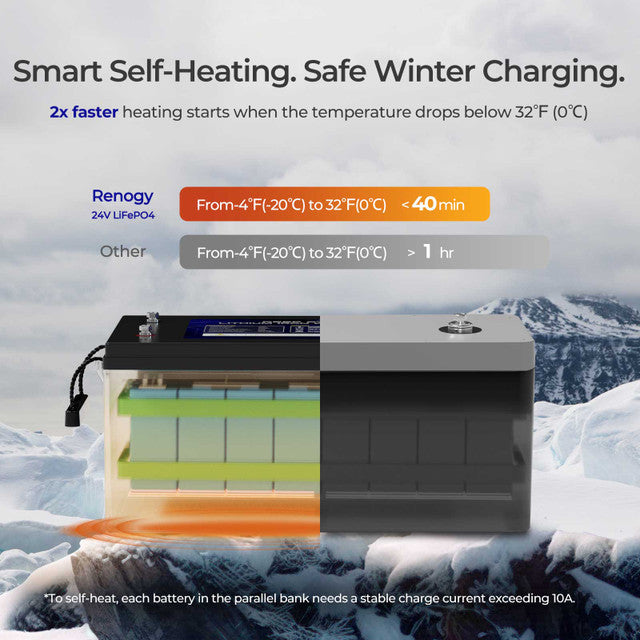

- Intelligent 2x faster self-heating.
- Light EV-class cells (Grade A) with a 15-year lifespan.

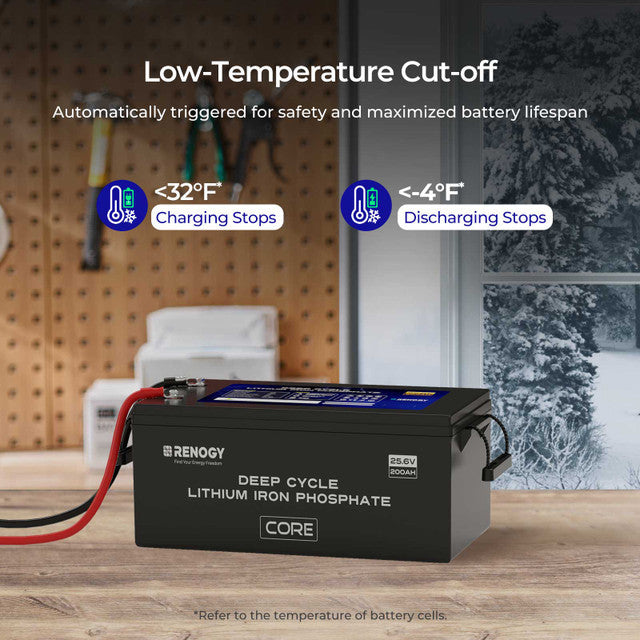

- Low-temperature cut-off for maximized battery lifespan.
- Built-in BMS & IP65-rated.
- Up to 40.96kWh expansion.
Core-24V 200Ah Deep Cycle Lithium Iron Phosphate Battery is backordered and will ship as soon as it is back in stock.
Payment Methods
Delivery Methods
Delivery time: 7–12 business days due to winter weather. (Excludes LTL shipping.) Shipping by weight
Return & refund policy
Description
Specs
Downloads
Reviews







24V 200Ah Core LT (Low Temperature) Series Deep Cycle Lithium Iron Phosphate Battery
Specifications
Battery Type
Lithium Iron Phosphate
Voltage
25.6V
Energy
5120Wh
Rated Capacity
200Ah (0.5C)
Charge Voltage
29.0V

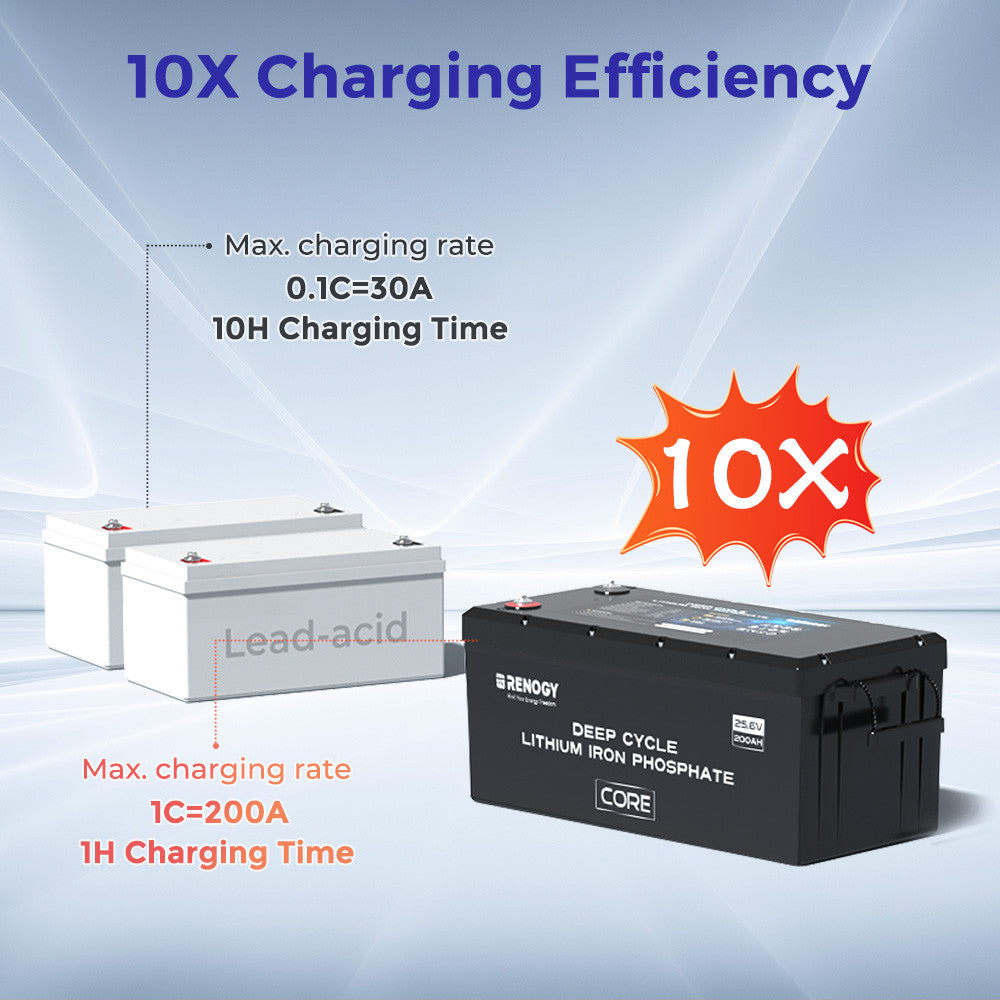

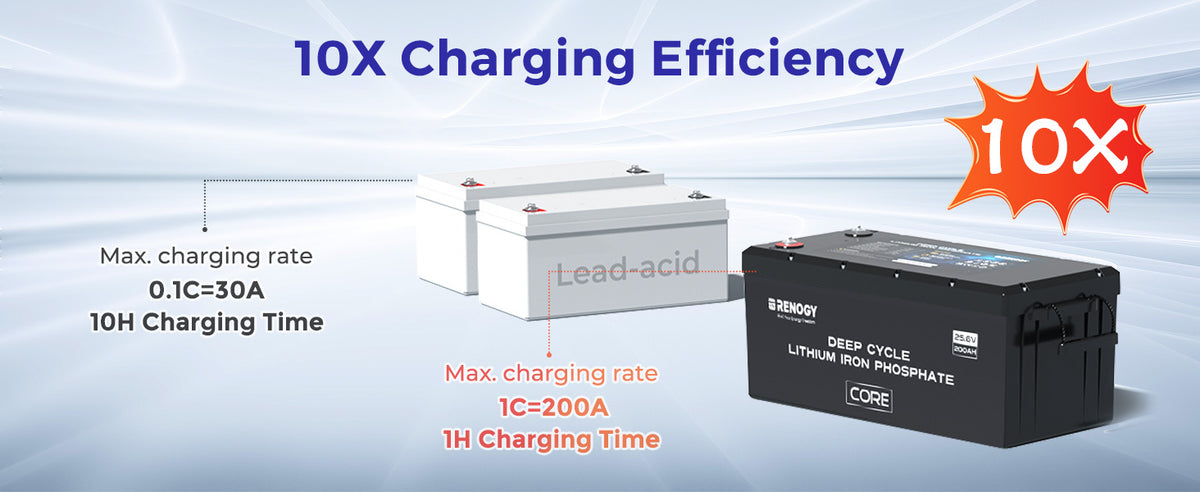

Maximum Charge Current
200A
Maximum Discharge Current
200A
Peak Discharge Current
390A@5s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD)
Automatically Self-heating
Yes
Charge Temperature Range
'-4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range
'-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
'-13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity
10% to 95%
Connection Method
Series & Parallel (2S4P)
Terminal Bolt Size
M8 x 1.25 x 15 mm
Recommended Terminal Torque
88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m
Housing Material
ABS
Protection Rating
IP65

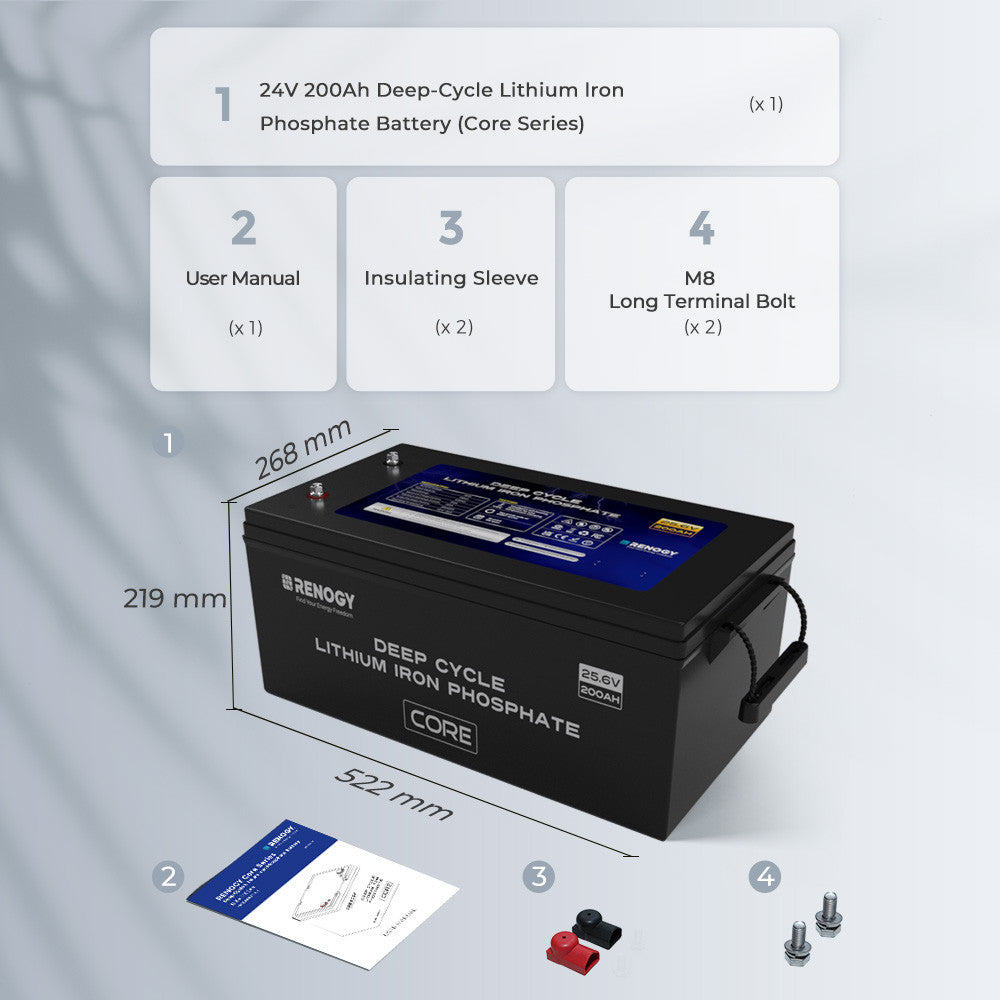

Dimensions
20.55 x 10.55 x 8.62 in / 522 x 268 x 219 mm
Weight
88.6 lbs. / 40.2 kg

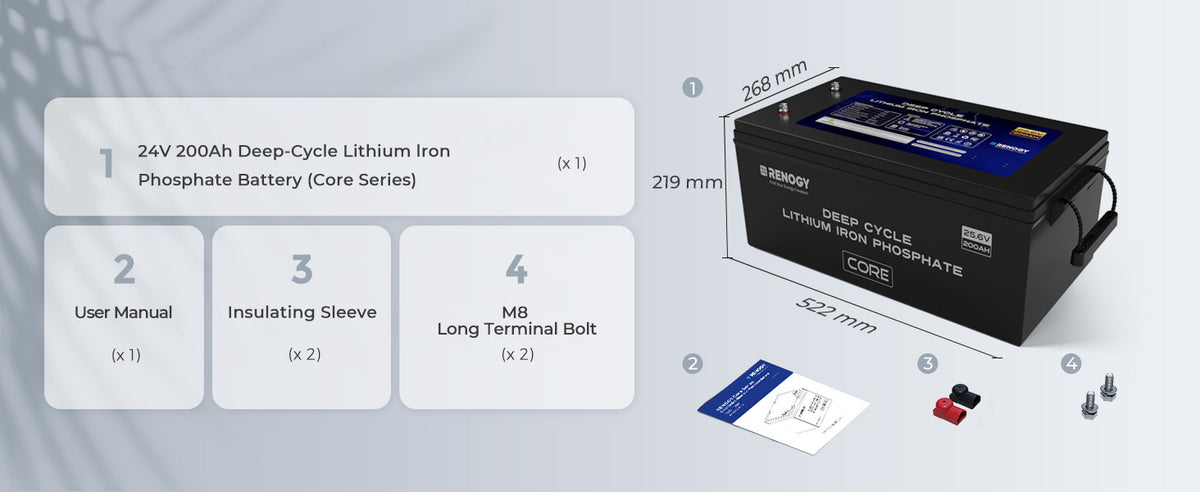

Accessories
Long Terminal Bolts x 2
M8*1.25*20 mm
Insulating Sleeve × 2
Yes
Warranty
Material and Workmanship Warranty
5 Years
Certifications
MSDS, UN38.3, FCC, CE, PSE, and UKCA
Yes
