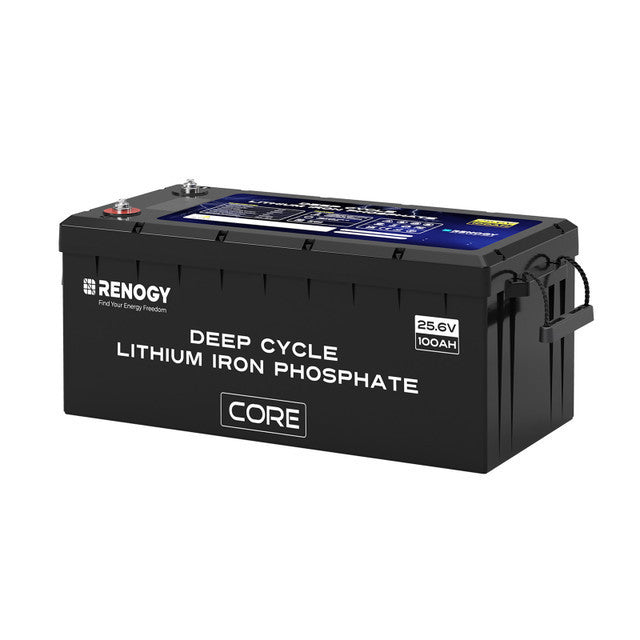

Open Box - 24V 100Ah lithium LiFePo4 battery with self-heating

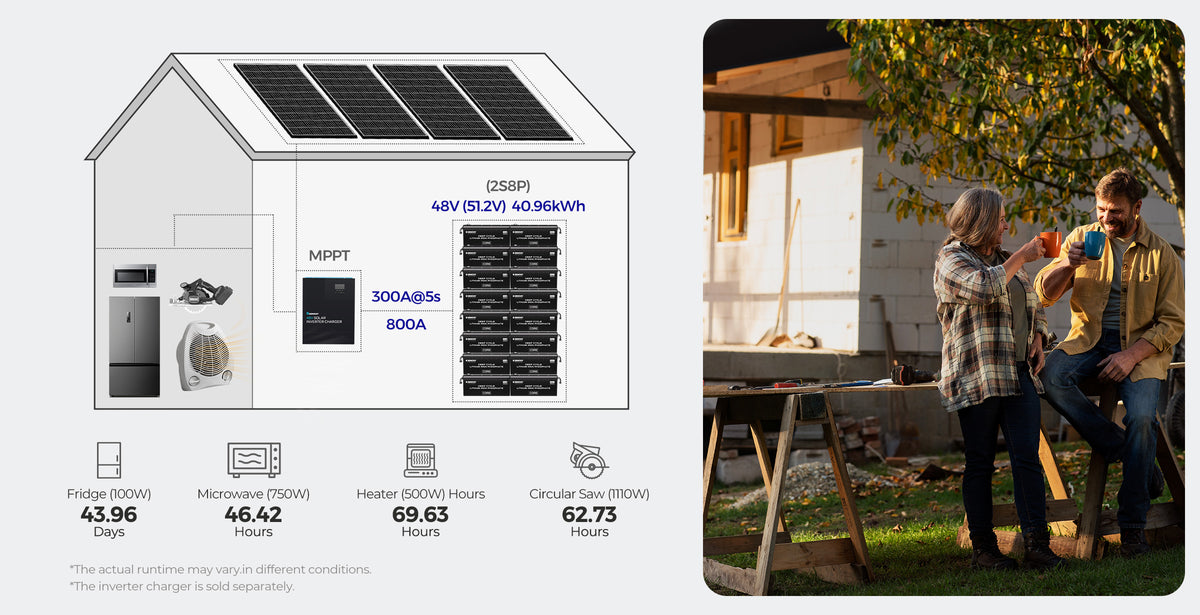

Yes. Renogy 24V Core Series Batteries can be connected in series to ramp up voltage for a 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.

We do not recommend wiring batteries with different chemistries, rated capacities, nominal voltages, brands, or models in parallel or series. This can result in potential damage to the batteries and the connected devices, and can also pose safety risks.

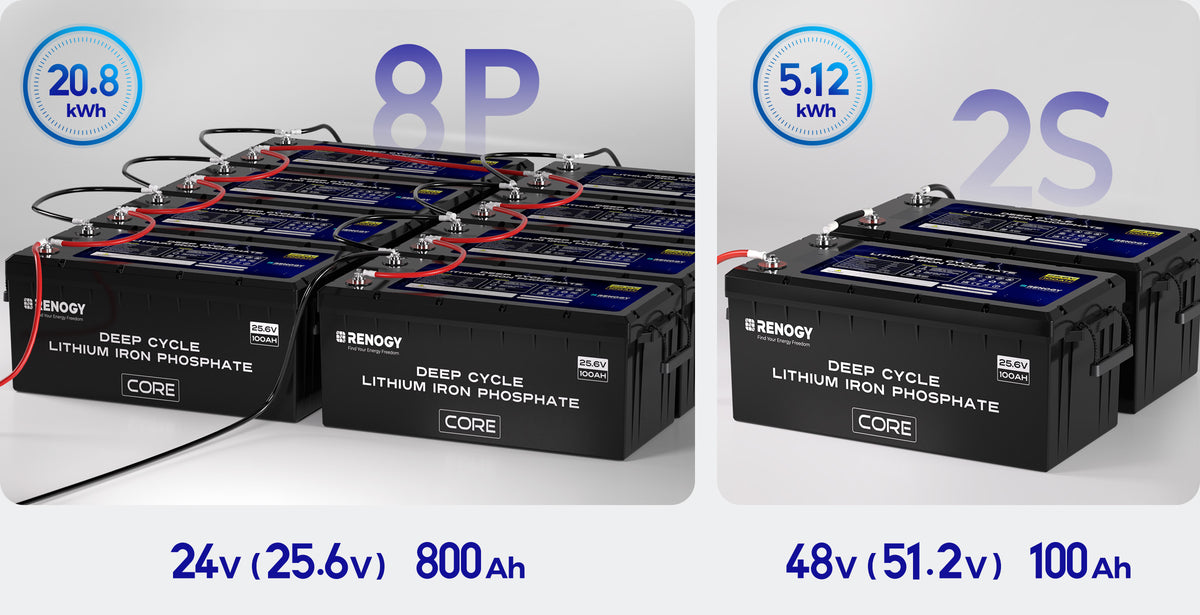

The 24V 100A Core Batteries support versatile connections, including series, parallel, and series-parallel connections. You can connect up to 2 batteries in series, 8 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.

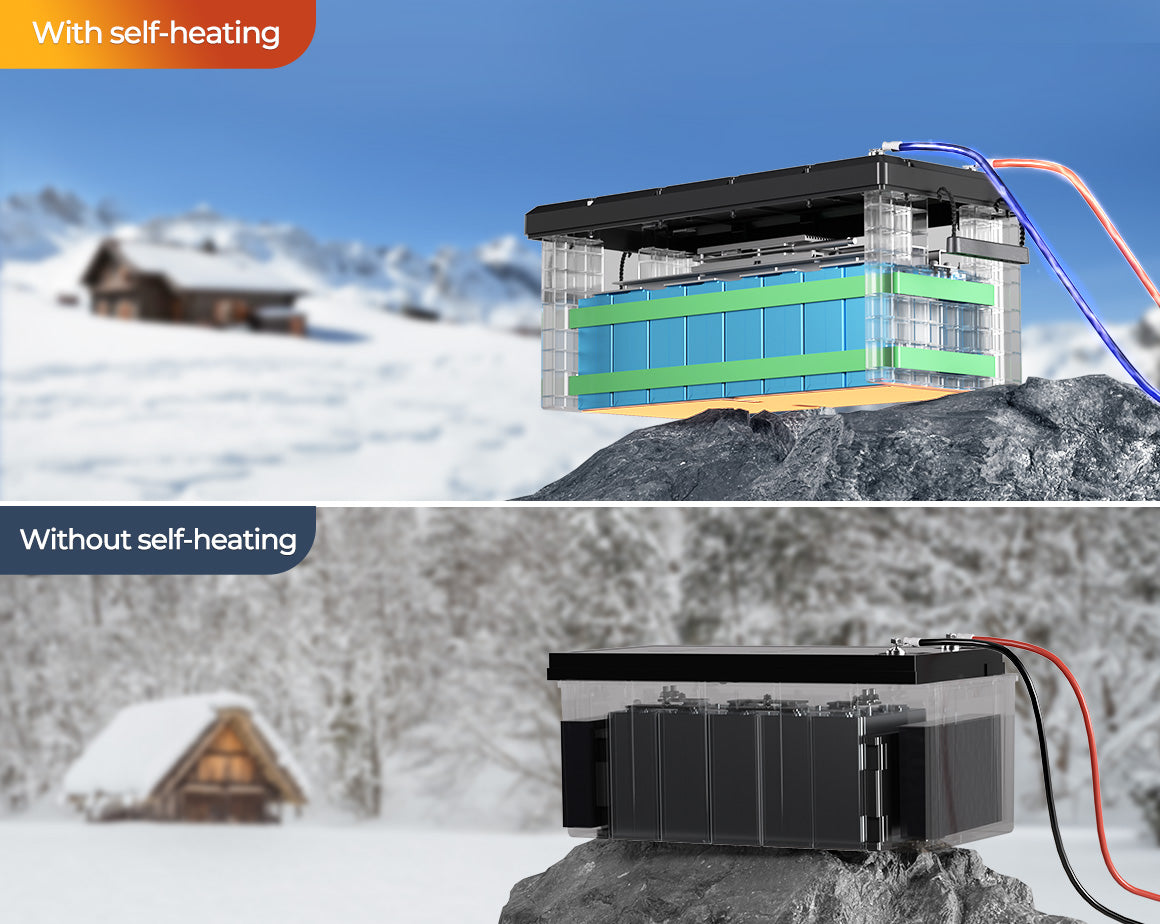

Renogy 24V 100Ah Core Series Batteries can deliver 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries integrate self-heating and low-temperature cut-off to provide power in freezing weather.

We advise you to connect your four batteries in parallel periodically to rebalance the battery voltages every six months. This helps reduce voltage differences and optimize their performance.

Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.

Each 24V 100Ah Core LiFePO4 Battery requires a charging current greater than 10A to initiate and sustain the heating. Please check the charging current of the charger for each battery more than 10A.
